USF41R-AEZGHW (2006)
Toyota Lexus Ls460/460l

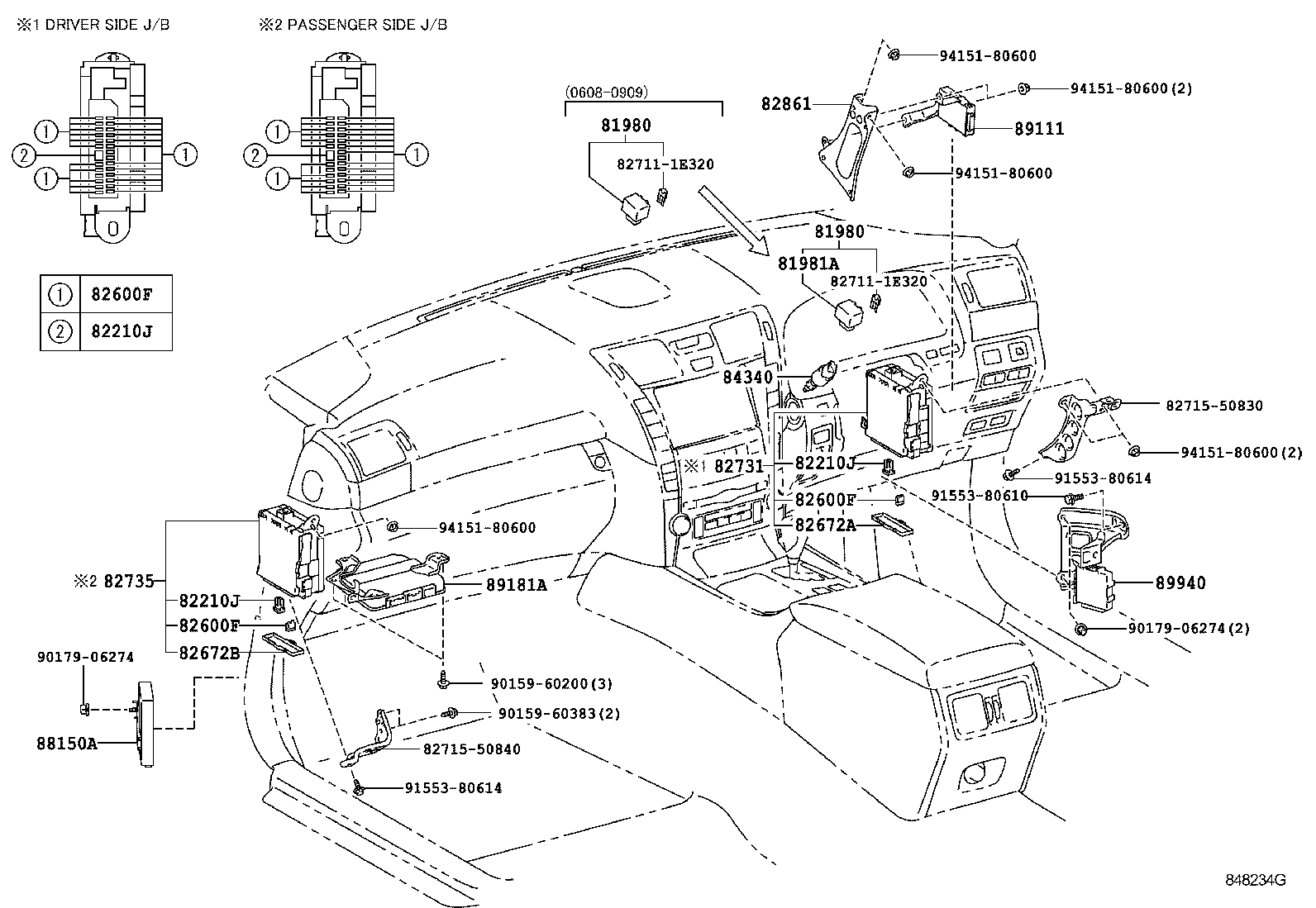

ILLUST NO. 5 OF 9(0608-0909)RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55524J - COVER, SWITCH BASE HOLE | ||||
| 55539-50060B0 |
USF4#..RHD LT.GRAY,TRIM1# |
1 | ||
| 55539-50060C0 |
USF4#..RHD BLACK,TRIM2# |
1 | ||
| 55539-50060A1 |
USF4#..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 55539-50060A0 |
USF4#..RHD IVORY,TRIM00 |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-50150 |
USF41..GCC;USF41..RHD |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-50280 |
USF4#..RHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84330-50010 |
USF4# |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-50020C0 |
USF4#..RHD BLACK,TRIM2# |
1 | ||
| 84390-50020A1 |
USF4#..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 84390-50020B0 |
USF4#..RHD LT.GRAY,TRIM1# |
1 | ||
| 84390-50020A0 |
USF4#..RHD IVORY,TRIM00 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-50131 |
USF4# |
1 | ||
| 84751-50130 |
USF4# |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-50141 |
USF4# |
1 | ||
| 84751-50140 |
USF4# |
1 | ||
| 84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL | ||||
| 84840-24020 |
USF4# |
1 | ||
| 84840D - SWITCH ASSY, LUGGAGE DOOR OPENING | ||||
| 84840-50040A1 |
USF4#..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 84840-50040B0 |
USF4#..RHD LT.GRAY,TRIM1# |
1 | ||
| 84840-50040A0 |
USF4#..RHD IVORY,TRIM00 |
1 | ||
| 84840-50040C0 |
USF4#..RHD BLACK,TRIM2# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-50450B0 |
USF41..RHD STEERING WHEEL-4-SPOKE,WOODS,WITH(HEATER),LT.GRAY,TRIM1# |
1 | ||
| 84870-50450A0 |
USF41..RHD STEERING WHEEL-4-SPOKE,WOODS,WITH(HEATER),IVORY,TRIM00 |
1 | ||
| 84870-50450C0 |
USF41..RHD STEERING WHEEL-4-SPOKE,WOODS,WITH(HEATER),BLACK,TRIM2# |
1 | ||
| 84870-50450A1 |
USF41..RHD STEERING WHEEL-4-SPOKE,WOODS,WITH(HEATER),MELLOW WHITE,TRIM01 |
1 | ||
| 84870-50460A0 |
USF41..RHD IVORY,TRIM00 |
1 | ||
| 84870-50460C0 |
USF41..RHD BLACK,TRIM2# |
1 | ||
| 84870-50460B0 |
USF41..RHD LT.GRAY,TRIM1# |
1 | ||
| 84870-50460A1 |
USF41..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-50090 |
USF41..RHD |
1 | ||
| 84970-50080 |
USF41..RHD HONG KONG SPEC |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-50040 |
USF4#..RHD |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-50080 |
USF4# |
1 | ||
| 85500G - LIGHTER ASSY, CIGARETTE, REAR | ||||
| 85500-50090 |
USF41 REAR ARMREST-WITH(OTTOMAN CIGARETTE) |
1 | ||
| 85513A - COVER, CIGARETTE LIGHTER, REAR | ||||
| 85513-28010 |
USF41..RHD REAR ARMREST-WITH(OTTOMAN CIGARETTE) |
1 | ||
| 85515A - STAY, CIGARETTE LIGHTER BEZEL, REAR | ||||
| 85515-50020 |
USF41..RHD REAR ARMREST-WITH(OTTOMAN CIGARETTE) |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-50060 |
USF4# CIGARETTE LIGHTER-FR:ACC RR:1 |
1 | ||
| 85530-50060 |
USF4# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-50011 |
USF4# |
1 | ||
| 89611-50010 |
USF4# |
1 | ||
| Common parts | ||||
| 82711-45030 | ||||
| 90159-50327 | ||||
| 90159-60605 | ||||
| Linked diagrams | ||||
| 8420 | ||||
| 8435 | ||||

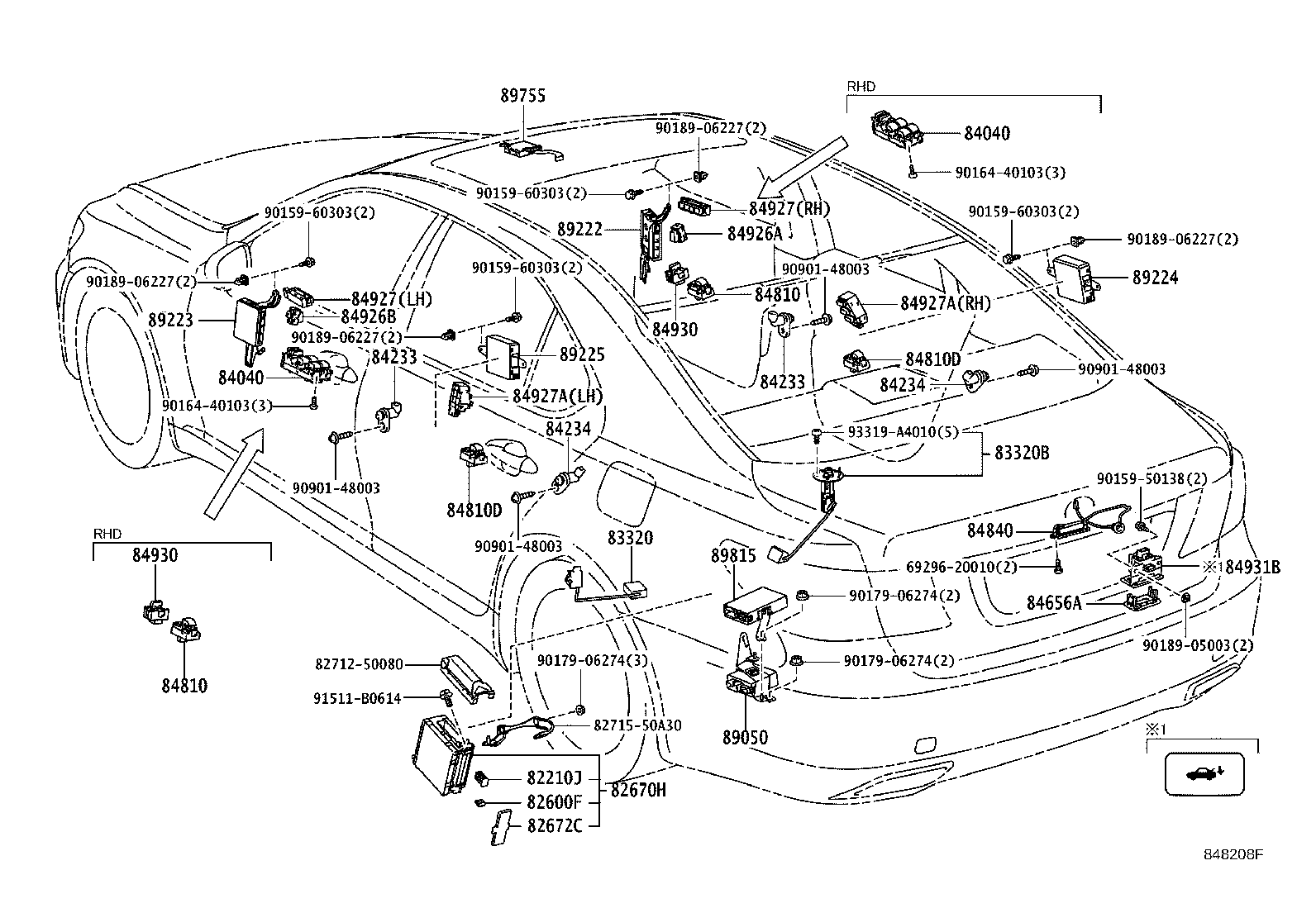

ILLUST NO. 9 OF 9(0608- )
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08296 |
USF4# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
USF4# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
USF4# 40A,TERM.:FEMALE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09019 |
USF4# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
USF4# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
USF4# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
USF4# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
USF4# 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
USF4# 25A,MINI FUSE |
1 | ||
| 82670H - BLOCK ASSY, LUGGAGE ROOM JUNCTION | ||||
| 82670-50091 |
USF4# |
1 | ||
| 82670-50110 |
USF4# |
1 | ||
| 82670-50120 |
USF4# |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-50260 |
USF4# |
1 | ||
| 82672-50231 |
USF4# |
1 | ||
| 82672-50231 |
USF4#..EUR |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-50100 |
USF4# |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-80438 |
USF4# |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-50130 |
USF4#..RHD |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-50130 |
USF4#..RHD |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-50190 |
USF4# |
2 | ||
| 84231-53010 |
USF4# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-50190 |
USF4# |
2 | ||
| 84231-53010 |
USF4# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
USF4# |
2 | ||
| 84231-50190 |
USF4# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
USF4# |
2 | ||
| 84231-50190 |
USF4# |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-30110 |
USF41 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-50020 |
USF4# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-50020 |
USF4# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-50020 |
USF4# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-50020 |
USF4# |
2 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-21010 |
USF4# |
1 | ||
| 84926A - SWITCH, HEIGHT ADJUSTABLE ANCHOR | ||||
| 84926-50090 |
USF4# |
1 | ||
| 84926B - SWITCH, HEIGHT ADJUSTABLE ANCHOR | ||||
| 84926-50080 |
USF4# |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-50090 |
USF4#..RHD RH |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-50090 |
USF4#..RHD RH |
1 | ||
| 84927A - SWITCH, REAR SEAT MEMORY | ||||
| 84927-50120 |
USF41 LH |
1 | ||
| 84927-50130 |
USF41 RH |
1 | ||
| 84927A - SWITCH, REAR SEAT MEMORY | ||||
| 84927-50120 |
USF41 LH |
1 | ||
| 84927-50130 |
USF41 RH |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-50060 |
USF4# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-50060 |
USF4# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84930-50050 |
USF41 |
1 | ||
| 89050 - COMPUTER ASSY, PARKING BRAKE | ||||
| 89050-50010 |
USF4# |
1 | ||
| 89222 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT RH | ||||
| 89222-50290 |
USF4#..RHD |
1 | ||
| 89223 - COMPUTER, MULTIPLEX NETWORK DOOR, FRONT LH | ||||
| 89223-50280 |
USF4#..RHD |
1 | ||
| 89224 - COMPUTER, MULTIPLEX NETWORK DOOR, REAR RH | ||||
| 89224-50120 |
USF40..D4;USF4#..GCC;USF41..RHD |
1 | ||
| 89224-50121 |
USF40..D4;USF4#..GCC;USF41..RHD |
1 | ||
| 89225 - COMPUTER, MULTIPLEX NETWORK DOOR, REAR LH | ||||
| 89225-50040 |
USF40..D4;USF4#..GCC;USF41..RHD |
1 | ||
| 89225-50041 |
USF40..D4;USF4#..GCC;USF41..RHD |
1 | ||
| 89815 - COMPUTER, SEAT BELT CONTROL | ||||
| 89815-50020 |
USF4#..D4 PRE-COLLISION SYSTEM-WITH(*PSB) |
1 | ||
| Common parts | ||||
| 69296-20010 | ||||
| 82712-50080 | ||||
| 82715-50A30 | ||||
| 90159-50138 | ||||
| 90159-60303 | ||||
| 90164-40103 | ||||
| 90179-06274 | ||||
| 90189-05003 | ||||
| 90189-06227 | ||||
| 90901-48003 | ||||
| 91511-B0614 | ||||
| 93319-A4010 | ||||

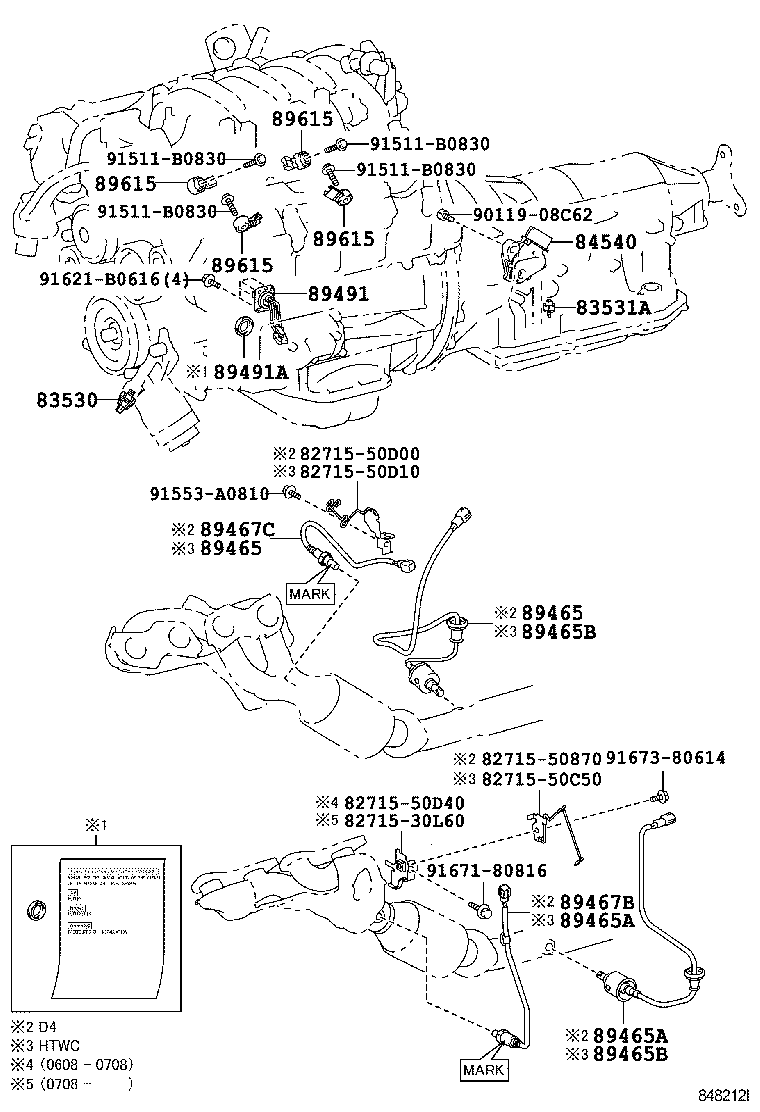

ILLUST NO. 1 OF 9(0608- )USF40,41
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
USF4# |
1 | ||
| 83531A - SWITCH, OIL PRESSURE | ||||
| 83531-50010 |
USF4# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-71010 |
USF4# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-50170 |
USF4#..D4 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-50170 |
USF4#..D4 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-50170 |
USF4#..D4 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-50170 |
USF4#..D4 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-50010 |
USF4#..D4 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-50020 |
USF4#..D4 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-50041 |
USF4# |
1 | ||
| 89491-50040 |
USF4# |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
USF4# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
USF4# |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
USF4# |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
USF4# |
4 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
USF4# |
4 | ||
| Common parts | ||||
| 82715-30L60 | ||||
| 82715-50870 | ||||
| 82715-50C50 | ||||
| 82715-50D00 | ||||
| 82715-50D10 | ||||
| 82715-50D40 | ||||
| 90119-08C62 | ||||
| 91511-B0830 | ||||
| 91553-A0810 | ||||
| 91621-B0616 | ||||
| 91671-80816 | ||||
| 91673-80614 | ||||
ILLUST NO. 6 OF 9(0608-0909)
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-50130 |
USF4#..EUR |
1 | ||
| 84140-50150 |
USF41..RHD MALAYSIA SPEC |
1 | ||
| 84140-50150 |
USF4#..RHD HONG KONG SPEC |
1 | ||
| 84140-50150 |
USF4#..RHD THAILAND SPEC |
1 | ||
| 84140-50150 |
USF4#..RHD SINGAPORE SPEC |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-50130 |
USF4#..EUR |
1 | ||
| 84140-50150 |
USF41..RHD MALAYSIA SPEC |
1 | ||
| 84140-50150 |
USF4#..RHD HONG KONG SPEC |
1 | ||
| 84140-50150 |
USF4#..RHD THAILAND SPEC |
1 | ||
| 84140-50150 |
USF4#..RHD SINGAPORE SPEC |
1 | ||
| 84240 - SWITCH ASSY, STEERING PAD, W/MODULATOR | ||||
| 84240-50050 |
USF4# |
1 | ||
| 84240-50060 |
USF41..RHD THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-48030 |
USF4# |
1 | ||
| 84306-50190 |
USF41..RHD STEERING WHEEL-4-SPOKE,WOODS,WITH(HEATER)&SUSPENSION-SPORT AIR SUSPENTION |
1 | ||
| 84306-50190 |
USF4#..EUR STEERING WHEEL-4-SPOKE,WOODS,WITH(HEATER) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-50160 |
USF4#..RHD THAILAND SPEC |
1 | ||
| 84652-50160 |
USF41..RHD MALAYSIA SPEC |
1 | ||
| 84652-50150 |
USF4#..EUR |
1 | ||
| 84652-50160 |
USF4#..RHD HONG KONG SPEC |
1 | ||
| 84652-50160 |
USF4#..RHD SINGAPORE SPEC |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-50160 |
USF4#..RHD THAILAND SPEC |
1 | ||
| 84652-50160 |
USF41..RHD MALAYSIA SPEC |
1 | ||
| 84652-50150 |
USF4#..EUR |
1 | ||
| 84652-50160 |
USF4#..RHD HONG KONG SPEC |
1 | ||
| 84652-50160 |
USF4#..RHD SINGAPORE SPEC |
1 | ||
| 86174D - CASE, SWITCH & VOLUME | ||||
| 86174-50070C0 |
USF4# BLACK,TRIM1#,2# |
1 | ||
| 86174-50070E0 |
USF4# ORCHID BROWN,TRIM00,01 |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-33010 |
USF4# |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-50090 |
USF41..RHD MALAYSIA SPEC |
1 | ||
| 89235-50090 |
USF4#..RHD HONG KONG SPEC |
1 | ||
| 89235-50090 |
USF4# |
1 | ||
| 89235-50090 |
USF4#..RHD SINGAPORE SPEC |
1 | ||
| 89235-50090 |
USF4#..RHD THAILAND SPEC |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-50090 |
USF41..RHD MALAYSIA SPEC |
1 | ||
| 89235-50090 |
USF4#..RHD HONG KONG SPEC |
1 | ||
| 89235-50090 |
USF4# |
1 | ||
| 89235-50090 |
USF4#..RHD SINGAPORE SPEC |
1 | ||
| 89235-50090 |
USF4#..RHD THAILAND SPEC |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-30070 |
USF41..RHD HONG KONG SPEC&SUSPENSION-SPORT AIR SUSPENTION |
1 | ||
| 89245-52030 |
USF41;USF40..HTWC |
1 | ||
| 89245-30070 |
USF41..RHD SUSPENSION-SPORT AIR SUSPENTION |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
ILLUST NO. 4 OF 9(0608- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50042 |
USF4# |
1 | ||
| 81980-50040 |
USF4# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50042 |
USF4# |
1 | ||
| 81980-50040 |
USF4# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08296 |
USF4# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
USF4# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
USF4# 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08296 |
USF4# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
USF4# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
USF4# 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08296 |
USF4# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
USF4# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
USF4# 40A,TERM.:FEMALE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09019 |
USF4# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
USF4# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
USF4# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
USF4# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
USF4# 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
USF4# 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09019 |
USF4# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
USF4# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
USF4# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
USF4# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
USF4# 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
USF4# 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09019 |
USF4# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
USF4# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
USF4# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
USF4# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
USF4# 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
USF4# 25A,MINI FUSE |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-50210 |
USF4# |
1 | ||
| 82672-50240 |
USF4# |
1 | ||
| 82672-50240 |
USF4# |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-50250 |
USF4# |
1 | ||
| 82672-50220 |
USF4# |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82730-50450 |
USF4#..RHD THAILAND SPEC |
1 | ||
| 82730-50400 |
USF4#..RHD SINGAPORE SPEC |
1 | ||
| 82730-50460 |
USF4#..RHD |
1 | ||
| 82730-50400 |
USF41..RHD MALAYSIA SPEC |
1 | ||
| 82730-50430 |
USF4#..RHD HONG KONG SPEC |
1 | ||
| 82730-50451 |
USF4#..RHD THAILAND SPEC |
1 | ||
| 82730-50461 |
USF4#..RHD |
1 | ||
| 82730-50431 |
USF4#..RHD HONG KONG SPEC |
1 | ||
| 82730-50401 |
USF4#..RHD SINGAPORE SPEC |
1 | ||
| 82730-50401 |
USF41..RHD MALAYSIA SPEC |
1 | ||
| 82730-50402 |
USF41..RHD MALAYSIA SPEC |
1 | ||
| 82730-50432 |
USF4#..RHD HONG KONG SPEC |
1 | ||
| 82730-50402 |
USF4#..RHD SINGAPORE SPEC |
1 | ||
| 82730-50452 |
USF4#..RHD THAILAND SPEC |
1 | ||
| 82730-50462 |
USF4#..RHD |
1 | ||
| 82735 - BLOCK, PASSENGER SIDE JUNCTION | ||||
| 82730-50160 |
USF4# |
1 | ||
| 82730-50480 |
USF4# |
1 | ||
| 82861 - BRACKET, COMPUTER INTEGRATION, NO.1 | ||||
| 82861-50020 |
USF41..RHD HONG KONG SPEC |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30110 |
USF4# |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-50010 |
USF4#..D4 PRE-COLLISION SYSTEM-WITH(*PSB),P/N LABEL=8815050010 |
1 | ||
| 88150-50013 |
USF4#..D4 PRE-COLLISION SYSTEM-WITH(*PSB) |
1 | ||
| 88150-50012 |
USF4#..D4 PRE-COLLISION SYSTEM-WITH(*PSB),P/N LABEL=8815050012 |
1 | ||
| 88150-50011 |
USF4#..D4 PRE-COLLISION SYSTEM-WITH(*PSB),P/N LABEL=8815050011 |
1 | ||
| 89181A - COMPUTER, STEERING CONTROL | ||||
| 89181-50010 |
USF41..RHD SUSPENSION-SPORT AIR SUSPENTION |
1 | ||
| 89940 - COMPUTER ASSY, HEADLAMP SWIVEL | ||||
| 89940-50120 |
USF41..RHD HONG KONG SPEC |
1 | ||
| 89940-50160 |
USF41 |
1 | ||
| Common parts | ||||
| 82711-1E320 | ||||
| 82715-50830 | ||||
| 82715-50840 | ||||
| 90159-60200 | ||||
| 90159-60383 | ||||
| 90179-06274 | ||||
| 91553-80610 | ||||
| 91553-80614 | ||||
| 94151-80600 | ||||

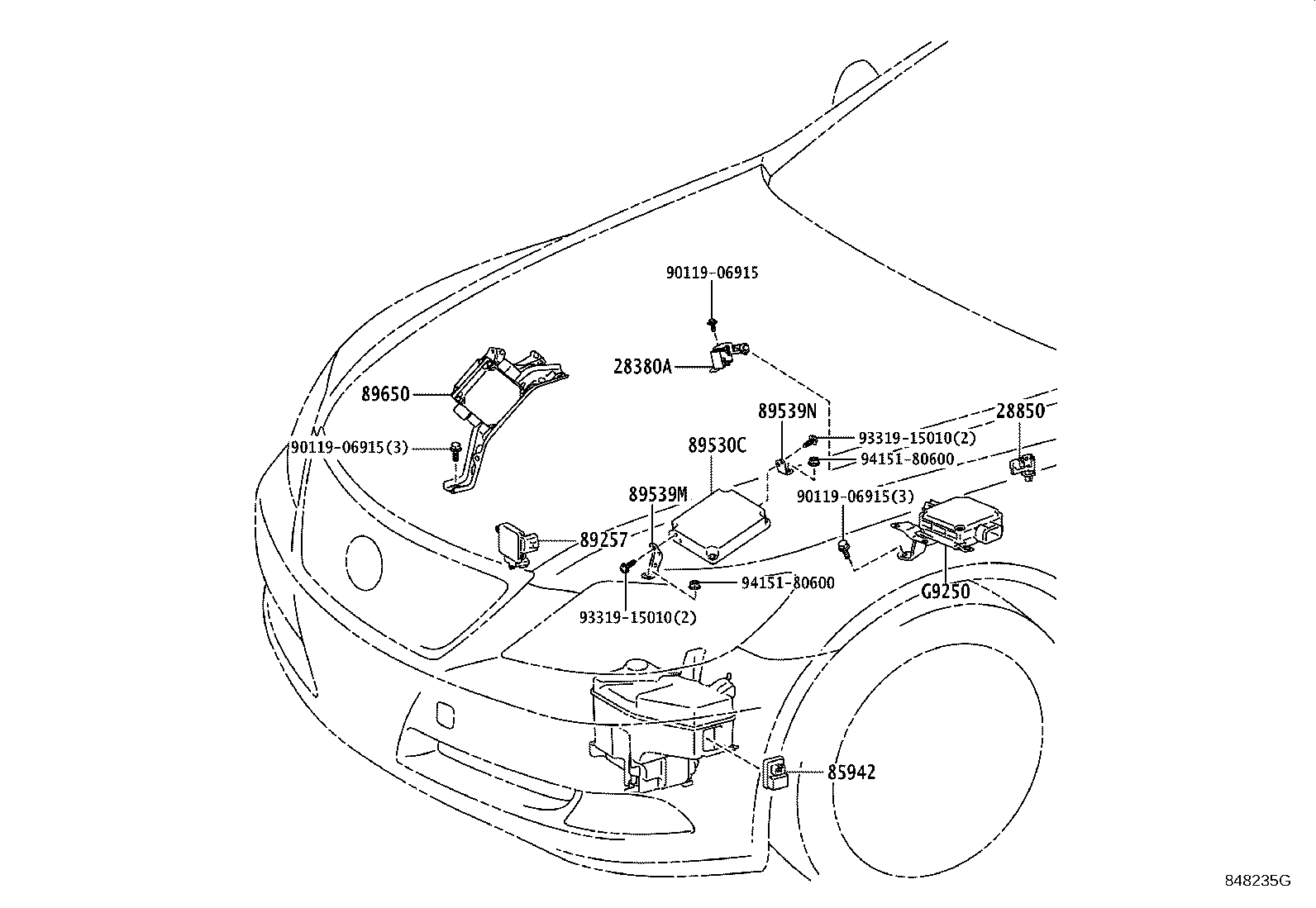

ILLUST NO. 2 OF 9(0608- )RHD
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-38010 |
1UR#..USF4# |
1 | ||
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-38010 |
1UR#..USF4# |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-30020 |
USF4# |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-30080 |
USF4# |
1 | ||
| 89530C - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89535-50040 |
USF4#..D4 ENGINE MONITOR WARNING-WITH |
1 | ||
| 89535-50020 |
USF4#..D4 |
1 | ||
| 89535-50042 |
USF4#..D4 ENGINE MONITOR WARNING-WITH |
1 | ||
| 89535-50041 |
USF4#..D4 ENGINE MONITOR WARNING-WITH |
1 | ||
| 89535-50022 |
USF4#..D4 |
1 | ||
| 89535-50021 |
USF4#..D4 |
1 | ||
| 89539M - BRACKET, TRANSMISSION CONTROL COMPUTER, NO.1 | ||||
| 89539-50040 |
USF4# |
1 | ||
| 89539-50040 |
USF4#..EUR |
1 | ||
| 89539N - BRACKET, TRANSMISSION CONTROL COMPUTER, NO.2 | ||||
| 89539-50050 |
USF4#..EUR |
1 | ||
| 89539-50050 |
USF4# |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-50150 |
USF41..EUR;USF40..HTWC..EUR SUSPENSION-SPORT AIR SUSPENTION |
1 | ||
| 89650-50140 |
USF41;USF40..HTWC |
1 | ||
| G9250 - CONVERTER ASSY, POWER STEERING | ||||
| G9250-50020 |
USF4#..RHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 93319-15010 | ||||
| 94151-80600 | ||||

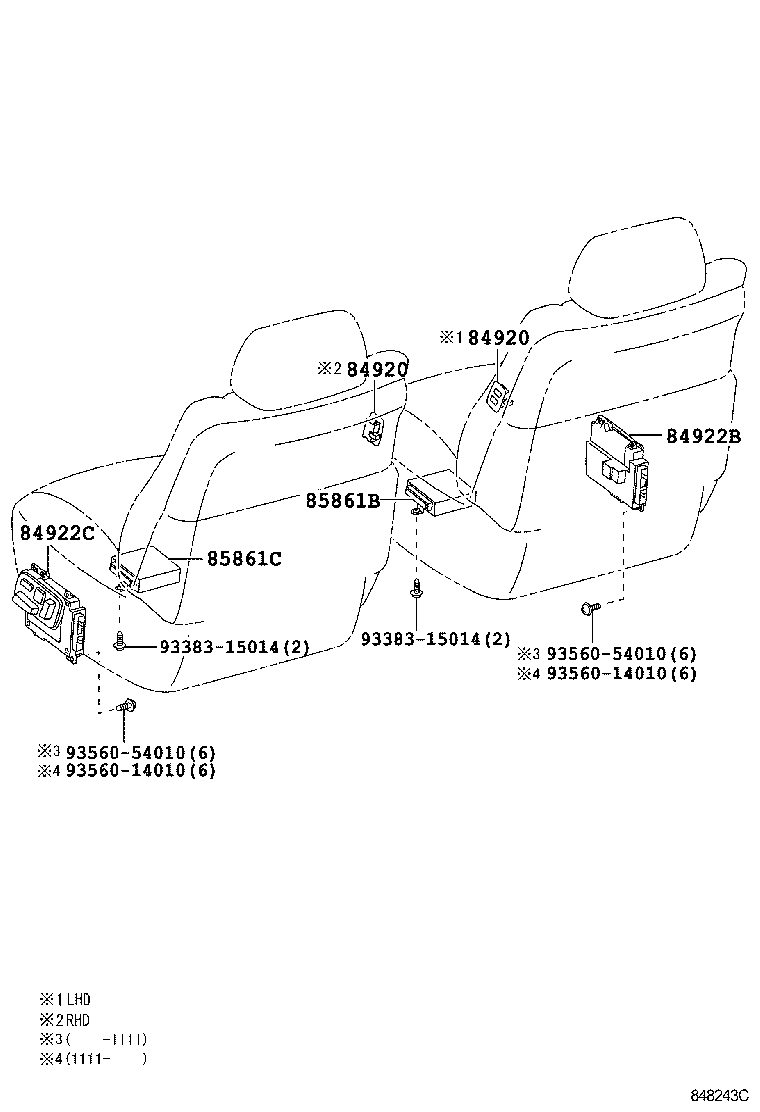

ILLUST NO. 7 OF 9(0608- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-50300C0 |
USF4#..RHD BLACK,TRIM2# |
1 | ||
| 84920-50300B0 |
USF4#..RHD LT.GRAY,TRIM1# |
1 | ||
| 84920-50300A1 |
USF4#..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 84920-50300A0 |
USF4#..RHD IVORY,TRIM00 |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-50300C0 |
USF4#..RHD BLACK,TRIM2# |
1 | ||
| 84920-50300B0 |
USF4#..RHD LT.GRAY,TRIM1# |
1 | ||
| 84920-50300A1 |
USF4#..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 84920-50300A0 |
USF4#..RHD IVORY,TRIM00 |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84070-50080B0 |
USF4#..RHD LT.GRAY,TRIM1# |
1 | ||
| 84070-50080C0 |
USF4#..RHD BLACK,TRIM2# |
1 | ||
| 84070-50080A0 |
USF4#..RHD IVORY,TRIM00 |
1 | ||
| 84070-50080A1 |
USF4#..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 84070-50081A0 |
USF4#..RHD IVORY,TRIM00 |
1 | ||
| 84070-50081B0 |
USF4#..RHD LT.GRAY,TRIM1# |
1 | ||
| 84070-50081A1 |
USF4#..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 84070-50081C0 |
USF4#..RHD BLACK,TRIM2# |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84070-50110A0 |
USF41..RHD IVORY,TRIM00 |
1 | ||
| 84070-50110C0 |
USF41..RHD BLACK,TRIM2# |
1 | ||
| 84070-50110B0 |
USF41..RHD LT.GRAY,TRIM1# |
1 | ||
| 84070-50111C0 |
USF41..RHD BLACK,TRIM2# |
1 | ||
| 84070-50110A1 |
USF41..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 84070-50111B0 |
USF41..RHD LT.GRAY,TRIM1# |
1 | ||
| 84070-50111A1 |
USF41..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 84070-50111A0 |
USF41..RHD IVORY,TRIM00 |
1 | ||
| 84070-50142A1 |
USF41..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 84070-50142C0 |
USF41..RHD BLACK,TRIM2# |
1 | ||
| 84070-50142B0 |
USF41..RHD LT.GRAY,TRIM1# |
1 | ||
| 84070-50142A0 |
USF41..RHD IVORY,TRIM00 |
1 | ||
| 85861B - COMPUTER, SEAT CLIMATE CONTROL, FRONT RH | ||||
| 85861-50052 |
USF4# |
1 | ||
| 85861-50191 |
USF4# |
1 | ||
| 85861-50050 |
USF4# |
1 | ||
| 85861C - COMPUTER, SEAT CLIMATE CONTROL, FRONT LH | ||||
| 85861-50110 |
USF4# |
1 | ||
| 85861-50112 |
USF4# |
1 | ||
| 85861-50201 |
USF4# |
1 | ||
| Common parts | ||||
| 93383-15014 | ||||
| 93560-14010 | ||||
| 93560-54010 | ||||

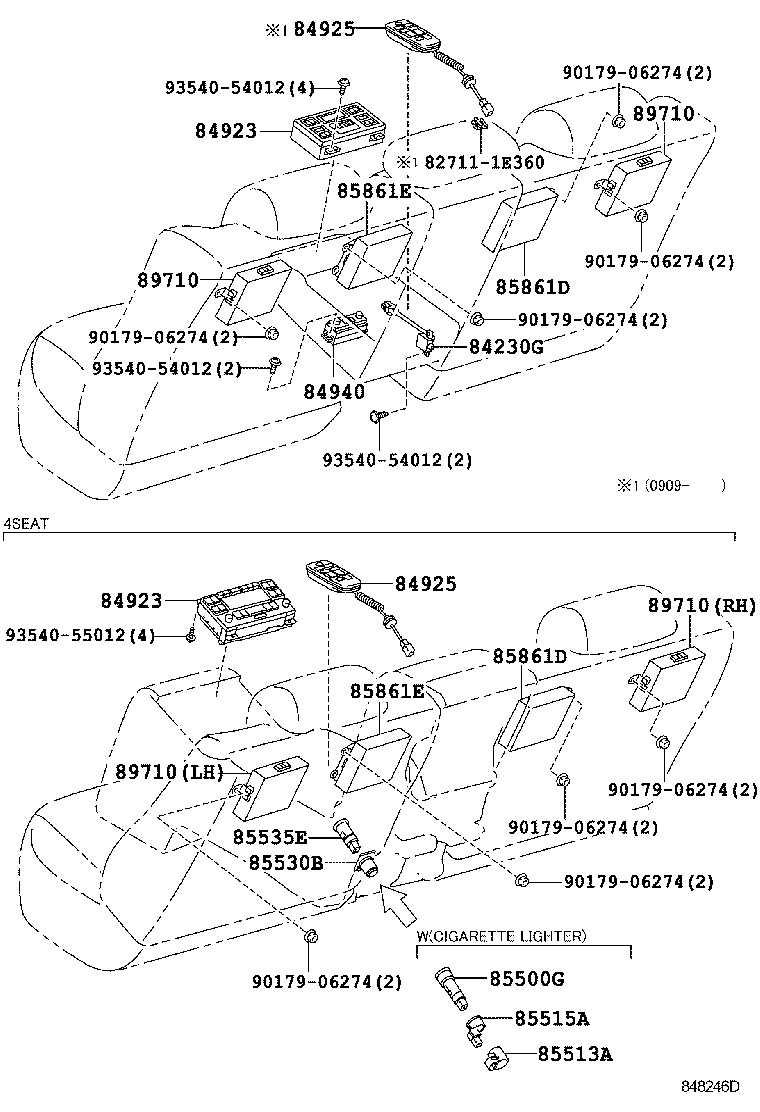

ILLUST NO. 8 OF 9(0608- )
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-50160 |
USF41..RHD |
1 | ||
| 84923-50170 |
USF41..RHD |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-50160 |
USF41..RHD |
1 | ||
| 84923-50170 |
USF41..RHD |
1 | ||
| 84925 - SWITCH, SEAT VIBRATOR | ||||
| 84925-50010 |
USF41..RHD |
1 | ||
| 84925 - SWITCH, SEAT VIBRATOR | ||||
| 84925-50010 |
USF41..RHD |
1 | ||
| 85500G - LIGHTER ASSY, CIGARETTE, REAR | ||||
| 85500-50090 |
USF41 REAR ARMREST-WITH(OTTOMAN CIGARETTE) |
1 | ||
| 85513A - COVER, CIGARETTE LIGHTER, REAR | ||||
| 85513-28010 |
USF41..RHD REAR ARMREST-WITH(OTTOMAN CIGARETTE) |
1 | ||
| 85515A - STAY, CIGARETTE LIGHTER BEZEL, REAR | ||||
| 85515-50020 |
USF41..RHD REAR ARMREST-WITH(OTTOMAN CIGARETTE) |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-42010 |
USF41..RHD |
1 | ||
| 85530-42010 |
USF41..RHD CIGARETTE LIGHTER-FR:ACC RR:1&REAR ARMREST-WITH(OTTOMAN CIGARETTE) |
1 | ||
| 85530-42010 |
USF41..RHD CIGARETTE LIGHTER-FR:ACC RR:1 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-50030 |
USF41..RHD |
1 | ||
| 85535-50030 |
USF41..RHD CIGARETTE LIGHTER-FR:ACC RR:1&REAR ARMREST-WITH(OTTOMAN CIGARETTE) |
1 | ||
| 85535-50030 |
USF41..RHD CIGARETTE LIGHTER-FR:ACC RR:1 |
1 | ||
| 85861D - COMPUTER, SEAT CLIMATE CONTROL, REAR RH | ||||
| 85861-50071 |
USF41 |
1 | ||
| 85861-50070 |
USF41 |
1 | ||
| 85861-50211 |
USF41;USF40..HTWC |
1 | ||
| 85861D - COMPUTER, SEAT CLIMATE CONTROL, REAR RH | ||||
| 85861-50071 |
USF41 |
1 | ||
| 85861-50070 |
USF41 |
1 | ||
| 85861-50211 |
USF41;USF40..HTWC |
1 | ||
| 85861E - COMPUTER, SEAT CLIMATE CONTROL, REAR LH | ||||
| 85861-50080 |
USF41 |
1 | ||
| 85861-50081 |
USF41 |
1 | ||
| 85861-50221 |
USF41;USF40..HTWC |
1 | ||
| 85861E - COMPUTER, SEAT CLIMATE CONTROL, REAR LH | ||||
| 85861-50080 |
USF41 |
1 | ||
| 85861-50081 |
USF41 |
1 | ||
| 85861-50221 |
USF41;USF40..HTWC |
1 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-50200 |
USF41..RHD LH |
1 | ||
| 89710-50190 |
USF41..RHD RH |
1 | ||
| 89710-50210 |
USF41..RHD LH |
1 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-50200 |
USF41..RHD LH |
1 | ||
| 89710-50190 |
USF41..RHD RH |
1 | ||
| 89710-50210 |
USF41..RHD LH |
1 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-50200 |
USF41..RHD LH |
1 | ||
| 89710-50190 |
USF41..RHD RH |
1 | ||
| 89710-50210 |
USF41..RHD LH |
1 | ||
| 89710 - COMPUTER ASSY, POSITION CONTROL | ||||
| 89710-50200 |
USF41..RHD LH |
1 | ||
| 89710-50190 |
USF41..RHD RH |
1 | ||
| 89710-50210 |
USF41..RHD LH |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90179-06274 | ||||
| 93540-54012 | ||||
| 93540-55012 | ||||
ILLUST NO. 3 OF 9(0608- )RHD
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1UR#..USF4# |
1 | ||
| 28300D - RELAY, STARTER CUT | ||||
| 90987-02027 |
1UR#..USF4# |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02025 |
1UR#..USF4# |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02025 |
1UR#..USF4# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08296 |
USF4# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
USF4# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
USF4# 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08296 |
USF4# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
USF4# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
USF4# 40A,TERM.:FEMALE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09019 |
USF4# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
USF4# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
USF4# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
USF4# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
USF4# 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
USF4# 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09025 |
USF4# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09019 |
USF4# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
USF4# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
USF4# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
USF4# 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
USF4# 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09025 |
USF4# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09019 |
USF4# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
USF4# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
USF4# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
USF4# 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
USF4# 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09019 |
USF4# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09023 |
USF4# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
USF4# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
USF4# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
USF4# 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
USF4# 25A,MINI FUSE |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-50110 |
USF4#..RHD |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-50030 |
USF4# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-50040 |
USF4# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-50010 |
USF4# |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82663-50081 |
USF4# |
1 | ||
| 82663-50080 |
USF41..RHD |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-50120 |
USF4#..RHD |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-50140 |
USF4# |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-50150 |
USF4# |
1 | ||
| 82662D - COVER, RELAY BLOCK, UPPER, NO.4 | ||||
| 82662-50290 |
USF4# |
1 | ||
| 82662-50160 |
USF4# |
1 | ||
| 82662E - COVER, RELAY BLOCK, UPPER, NO.7 | ||||
| 82662-50170 |
USF41..RHD SINGAPORE SPEC |
1 | ||
| 82662-50170 |
USF41..RHD MALAYSIA SPEC |
1 | ||
| 82662-50170 |
USF41..RHD SINGAPORE SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT) |
1 | ||
| 82662-50170 |
USF41..RHD THAILAND SPEC |
1 | ||
| 82662-50170 |
USF41..RHD MALAYSIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT) |
1 | ||
| 82662-50170 |
USF41..RHD |
1 | ||
| 82662-50170 |
USF41..RHD HONG KONG SPEC |
1 | ||
| 82662F - COVER, RELAY BLOCK, UPPER, NO.8 | ||||
| 82662-50190 |
USF4# |
1 | ||
| 82662-50300 |
USF4# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-50110 |
USF4#..RHD |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-50090 |
USF41..RHD |
1 | ||
| 82663-50091 |
USF4# |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-30220 |
USF4#..RHD |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-50100 |
USF4# |
1 | ||
| 82663E - COVER, RELAY BLOCK, LOWER, NO.7 | ||||
| 82663-50120 |
USF4# |
1 | ||
| 82663F - COVER, RELAY BLOCK, LOWER, NO.8 | ||||
| 82663-50130 |
USF41..RHD |
1 | ||
| 82663-50130 |
USF41..RHD THAILAND SPEC |
1 | ||
| 82663-50130 |
USF41..RHD SINGAPORE SPEC |
1 | ||
| 82663-50130 |
USF41..RHD SINGAPORE SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT) |
1 | ||
| 82663-50130 |
USF41..RHD MALAYSIA SPEC |
1 | ||
| 82663-50130 |
USF41..RHD HONG KONG SPEC |
1 | ||
| 82663-50130 |
USF41..RHD MALAYSIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT) |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-50081 |
USF4# |
1 | ||
| 82720-50080 |
USF4# |
1 | ||
| 82721B - BLOCK, ENGINE ROOM JUNCTION | ||||
| 82735-50010 |
USF41..RHD MALAYSIA SPEC |
1 | ||
| 82735-50010 |
USF41..RHD |
1 | ||
| 82735-50010 |
USF41..RHD HONG KONG SPEC |
1 | ||
| 82735-50010 |
USF41..RHD SINGAPORE SPEC |
1 | ||
| 82735-50010 |
USF41..RHD THAILAND SPEC |
1 | ||
| 82735-50010 |
USF41..RHD SINGAPORE SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT) |
1 | ||
| 82735-50010 |
USF41..RHD MALAYSIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT) |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82743-50060 |
USF4#..RHD |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
USF4# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02025 |
USF4# |
1 | ||
| 89219 - COMPUTER, MULTIPLEX NETWORK FRONT LAMP | ||||
| 89219-50050 |
USF4# |
1 | ||
| 89219-50051 |
USF4# |
1 | ||
| Common parts | ||||
| 82657-50010 | ||||
| 82657-50020 | ||||
| 82657-50030 | ||||
| 82712-50070 | ||||
| 82715-50890 | ||||
| 90179-06274 | ||||
| 91553-80614 | ||||
| 91553-80618 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8414 | ||||
| 8419 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
