USF41R-AEZGHW (2006)
Toyota Lexus Ls460/460l

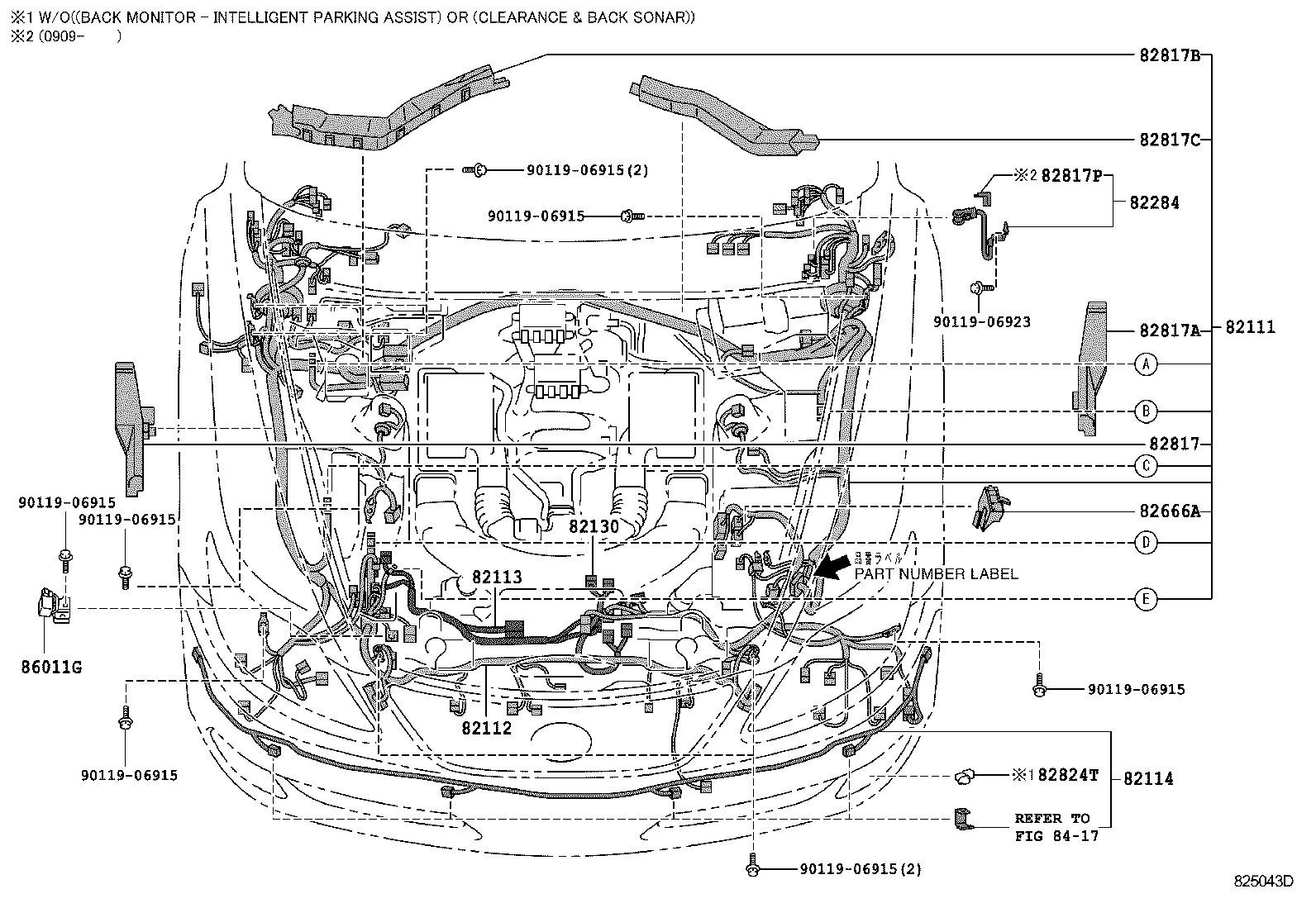

ILLUST NO. 1 OF11(0608- )RHD
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-50D00 |
USF41..RHD HONG KONG SPEC |
1 | ||
| 82111-50D10 |
USF41..RHD THAILAND SPEC |
1 | ||
| 82111-50D10 |
USF41..RHD MALAYSIA SPEC |
1 | ||
| 82111-50D10 |
USF41..RHD SINGAPORE SPEC |
1 | ||
| 82111-50D30 |
USF41..RHD |
1 | ||
| 82111-50D11 |
USF41..RHD SINGAPORE SPEC |
1 | ||
| 82111-50D11 |
USF41..RHD MALAYSIA SPEC |
1 | ||
| 82111-50D31 |
USF41..RHD |
1 | ||
| 82111-50D11 |
USF41..RHD MALAYSIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT) |
1 | ||
| 82111-50D11 |
USF41..RHD THAILAND SPEC |
1 | ||
| 82111-50D01 |
USF41..RHD HONG KONG SPEC |
1 | ||
| 82111-50D11 |
USF41..RHD SINGAPORE SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT) |
1 | ||
| 82111-50D00 |
USF41..RHD PART NUMBER LABEL=82111-50D00 |
1 | ||
| 82111-50D10 |
USF41..RHD PART NUMBER LABEL=82111-50D10 |
1 | ||
| 82111-50D11 |
USF41..RHD PART NUMBER LABEL=82111-50D11 |
1 | ||
| 82111-50D30 |
USF41..RHD PART NUMBER LABEL=82111-50D30 |
1 | ||
| 82111-50D11 |
USF41..RHD PART NUMBER LABEL=82111-50D11 |
1 | ||
| 82111-50D01 |
USF41..RHD PART NUMBER LABEL=82111-50D01 |
1 | ||
| 82111-50D31 |
USF41..RHD PART NUMBER LABEL=82111-50D31 |
1 | ||
| 82111-50D11 |
USF41..RHD PART NUMBER LABEL=82111-50D11 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-50090 |
USF4#..RHD |
1 | ||
| 82112-50070 |
USF4#..RHD PRE-COLLISION SYSTEM-WITH(*PSB) |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-50040 |
USF4#..RHD |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-50010 |
USF41;USF40..GCC |
1 | ||
| 82130 - HARNESS ASSY, CHASSIS WIRE | ||||
| 82130-50020 |
USF41..RHD SUSPENSION-SPORT AIR SUSPENTION |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-50020 |
USF4#..RHD |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-50570 |
USF4# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-50B30 |
USF4# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-50D40 |
USF4# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-50E70 |
USF4#..RHD |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-50C20 |
USF4#..RHD |
1 | ||
| 86011G - CONDENSER | ||||
| 86516-50010 |
USF4# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06923 | ||||
| Linked diagrams | ||||
| 8417 | ||||

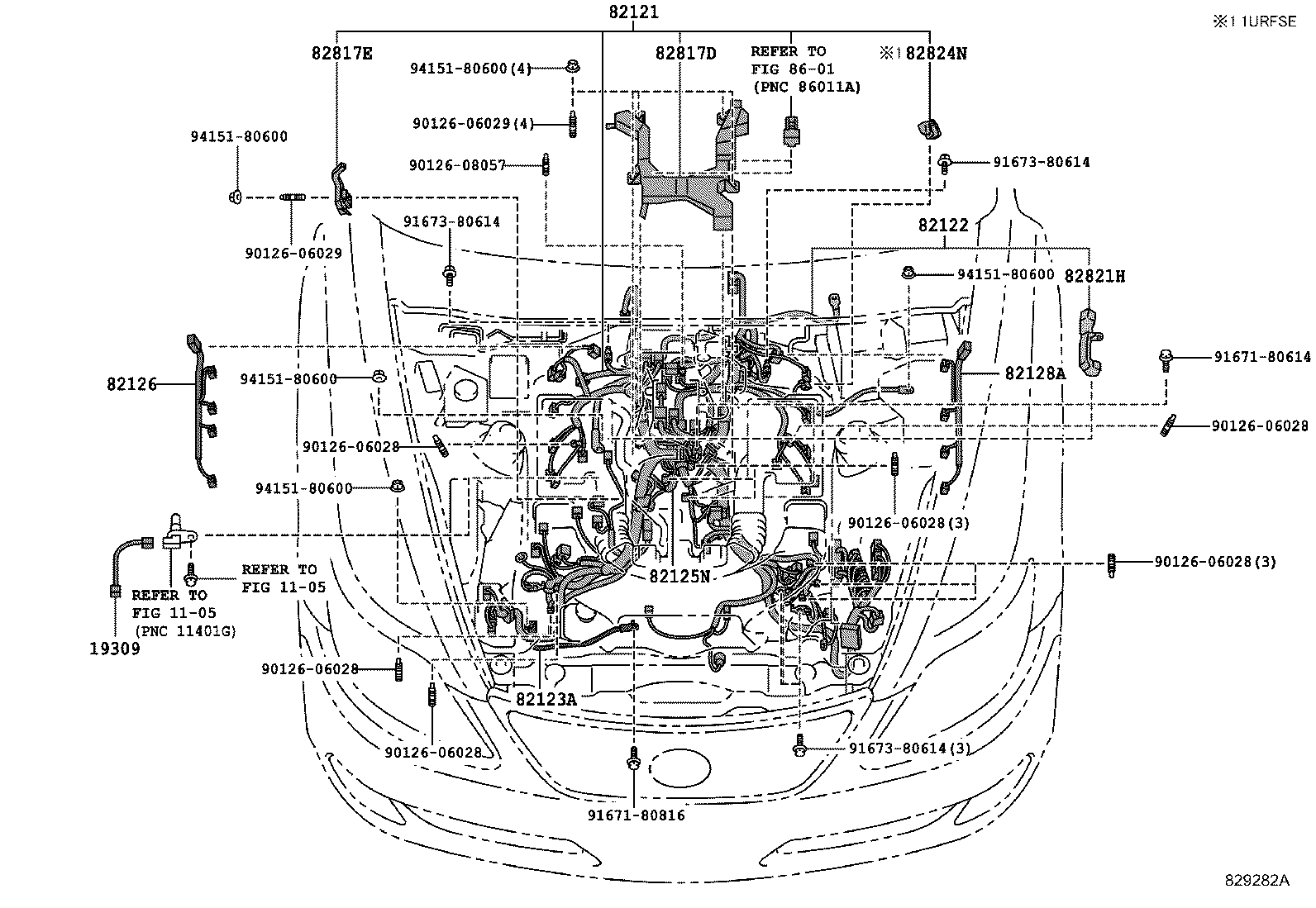

ILLUST NO. 1 OF11(0608- )RHD
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||

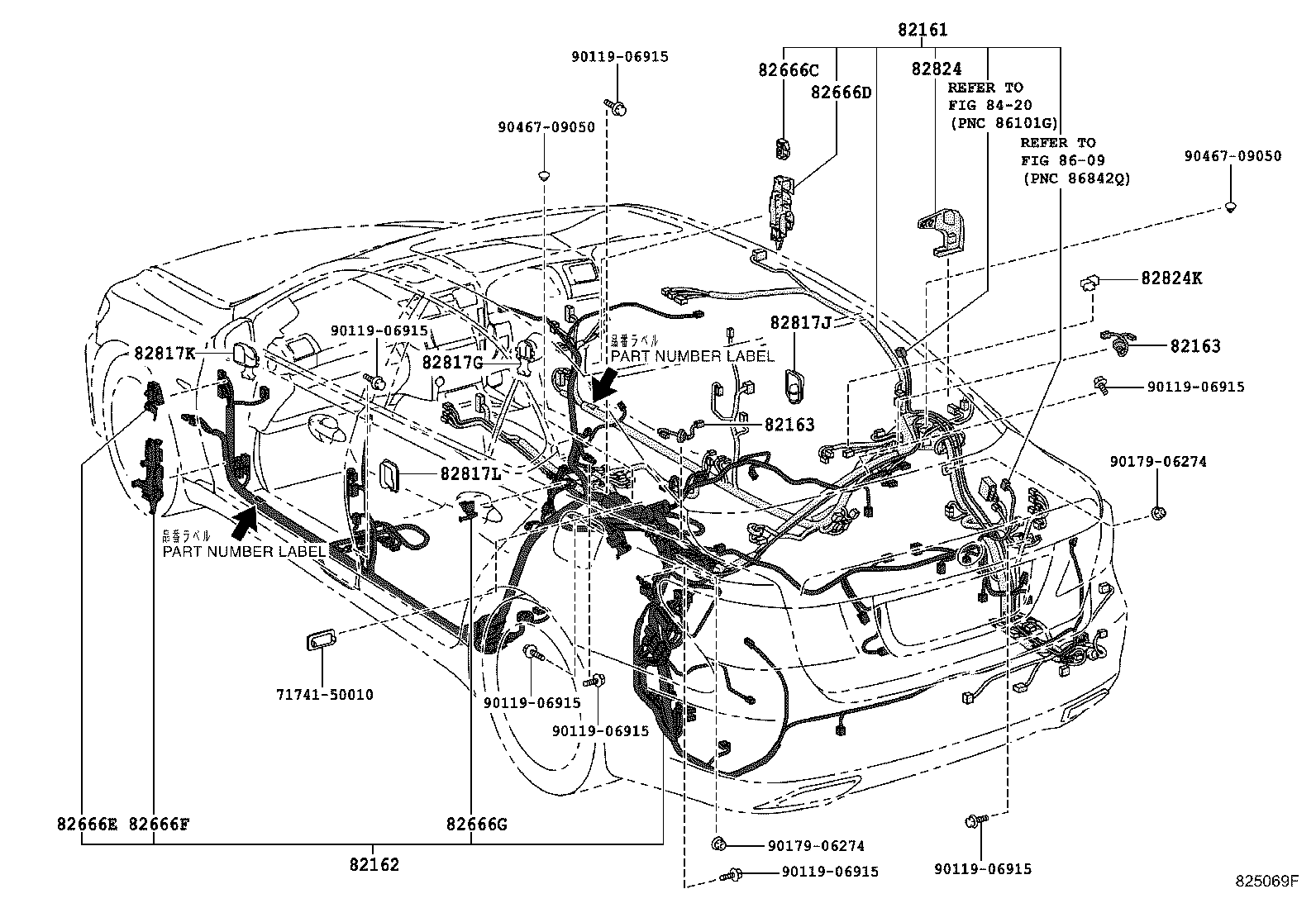

ILLUST NO. 5 OF11(0608-0809)RHD
FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-50G10 |
USF41..RHD |
1 | ||
| 82161-50F90 |
USF41..RHD WITH(REAR DISPLAY) |
1 | ||
| 82161-50G10 |
USF41..RHD PART NUMBER LABEL=82161-50G10 |
1 | ||
| 82161-50F90 |
USF41..RHD PART NUMBER LABEL=82161-50F90 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-50F40 |
USF41..RHD MALAYSIA SPEC |
1 | ||
| 82162-50F40 |
USF41..RHD HONG KONG SPEC |
1 | ||
| 82162-50F60 |
USF41..RHD |
1 | ||
| 82162-50F40 |
USF41..RHD SINGAPORE SPEC |
1 | ||
| 82162-50F40 |
USF41..RHD THAILAND SPEC |
1 | ||
| 82162-50F60 |
USF41..RHD PART NUMBER LABEL=82162-50F60 |
1 | ||
| 82162-50F40 |
USF41..RHD PART NUMBER LABEL=82162-50F40 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-50080 |
USF41..RHD HONG KONG SPEC |
2 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-50080 |
USF41..RHD HONG KONG SPEC |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-50590 |
USF4# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-50600 |
USF4# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-50610 |
USF4# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-50620 |
USF4# |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-50630 |
USF4# |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-50K10 |
USF4# |
1 | ||
| 82817-30A10 |
USF4# |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-50D70 |
USF4# |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-30A10 |
USF4# |
1 | ||
| 82817-50K10 |
USF4# |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-50D80 |
USF4# |
1 | ||
| Common parts | ||||
| 71741-50010 | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| 90467-09050 | ||||
| Linked diagrams | ||||
| 8420 | ||||
| 8609 | ||||

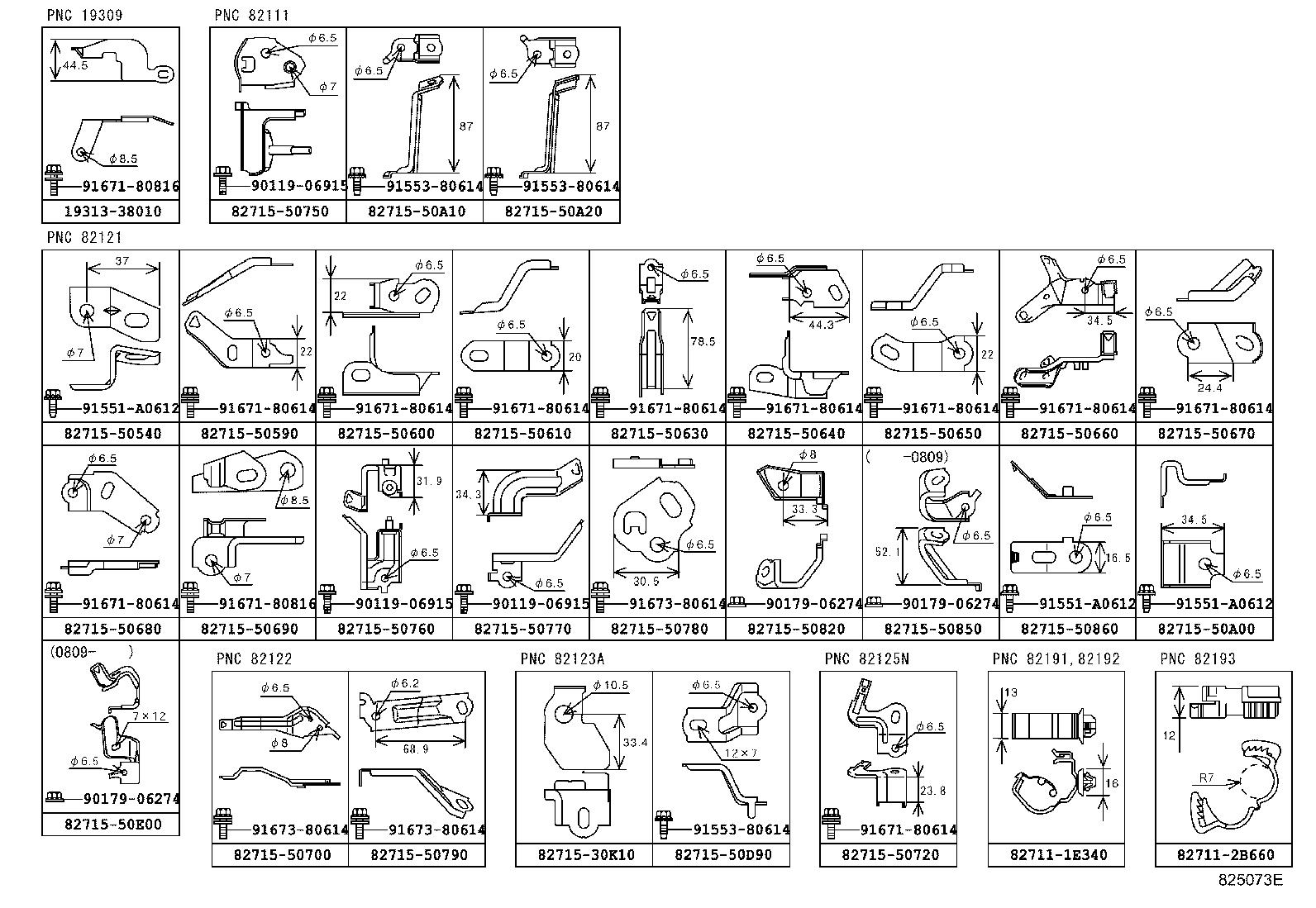

ILLUST NO. 9 OF11(0608- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 19313-38010 | ||||
| 82711-1E340 | ||||
| 82711-2B660 | ||||
| 82715-30K10 | ||||
| 82715-50540 | ||||
| 82715-50590 | ||||
| 82715-50600 | ||||
| 82715-50610 | ||||
| 82715-50630 | ||||
| 82715-50640 | ||||
| 82715-50650 | ||||
| 82715-50660 | ||||
| 82715-50670 | ||||
| 82715-50680 | ||||
| 82715-50690 | ||||
| 82715-50700 | ||||
| 82715-50720 | ||||
| 82715-50750 | ||||
| 82715-50760 | ||||
| 82715-50770 | ||||
| 82715-50780 | ||||
| 82715-50790 | ||||
| 82715-50820 | ||||
| 82715-50850 | ||||
| 82715-50860 | ||||
| 82715-50A00 | ||||
| 82715-50A10 | ||||
| 82715-50A20 | ||||
| 82715-50D90 | ||||
| 82715-50E00 | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| 91551-A0612 | ||||
| 91553-80614 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91673-80614 | ||||

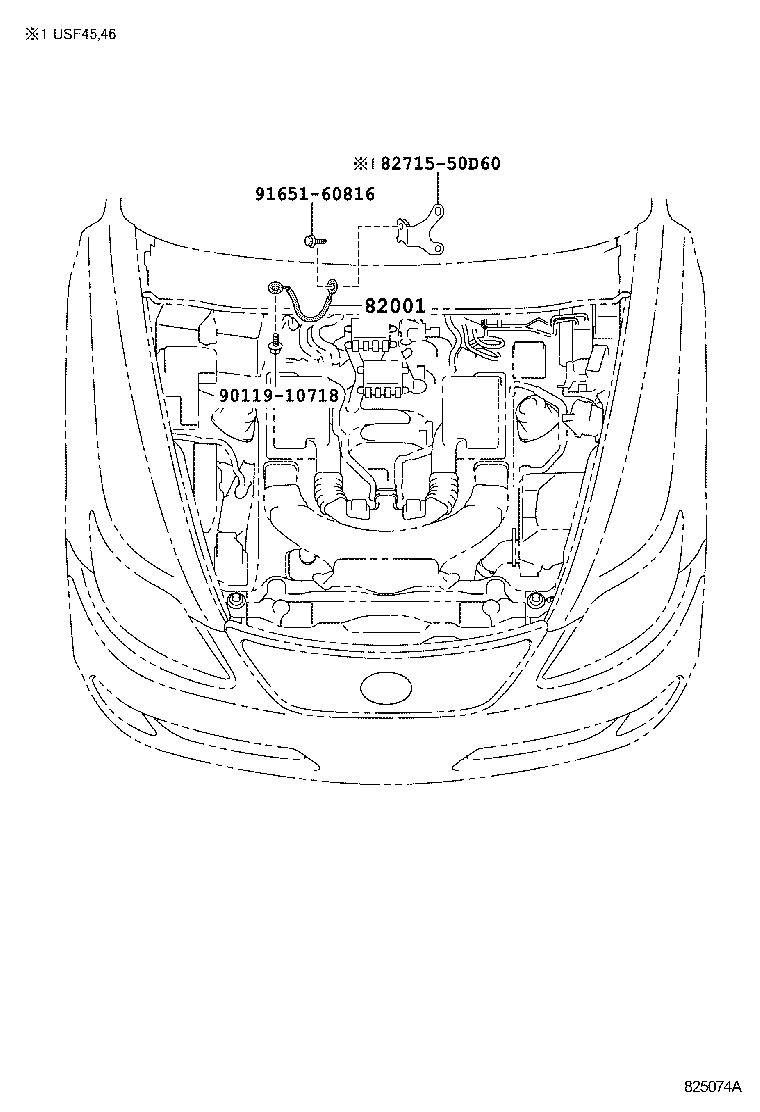

ILLUST NO.10 OF11(0608- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 82286-50010 |
USF4#..D4 |
1 | ||
| Common parts | ||||
| 82715-50D60 | ||||
| 90119-10718 | ||||
| 91651-60816 | ||||

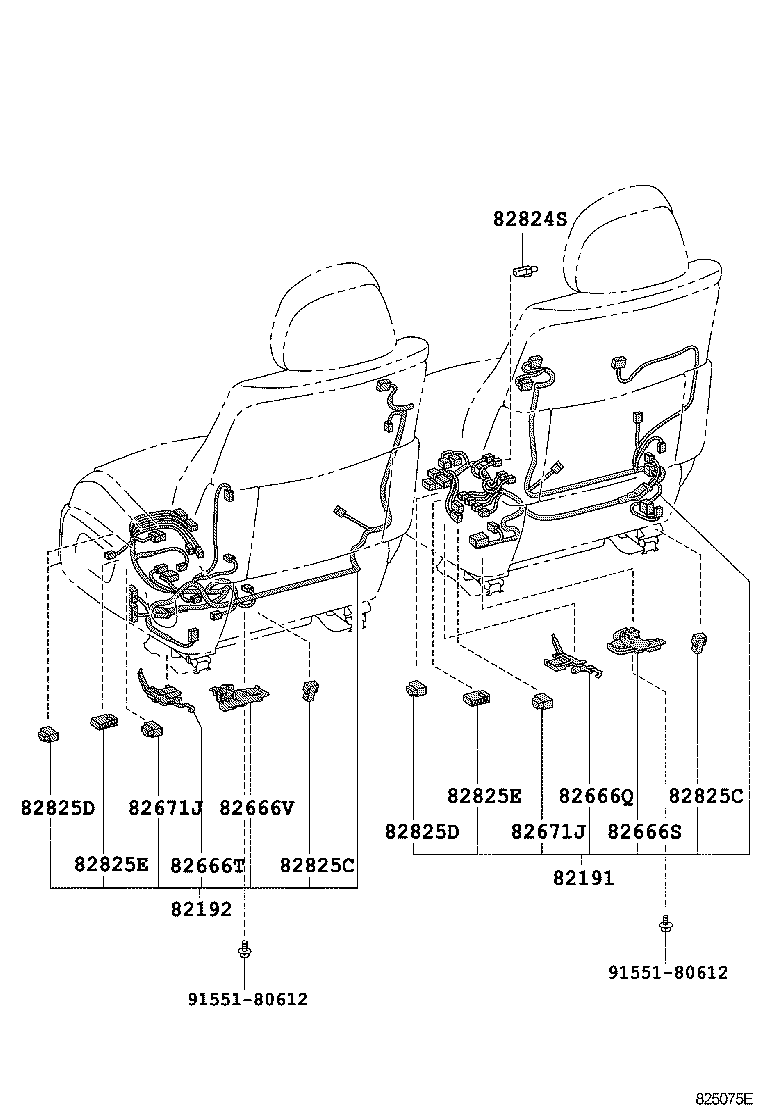

ILLUST NO. 7 OF11(0608- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-50250 |
USF4#..RHD |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-50330 |
USF41..RHD |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-50680 |
USF4# |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-50690 |
USF4# |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-50700 |
USF4# |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-50710 |
USF4# |
1 | ||
| 82825D - CONNECTOR, WIRING HARNESS | ||||
| 82824-50340 |
USF4# |
1 | ||
| 82825D - CONNECTOR, WIRING HARNESS | ||||
| 82824-50340 |
USF4# |
1 | ||
| 82825E - CONNECTOR, WIRING HARNESS | ||||
| 82824-48110 |
USF41..RHD |
1 | ||
| 82825E - CONNECTOR, WIRING HARNESS | ||||
| 82824-48110 |
USF41..RHD |
1 | ||
| Common parts | ||||
| 91551-80612 | ||||

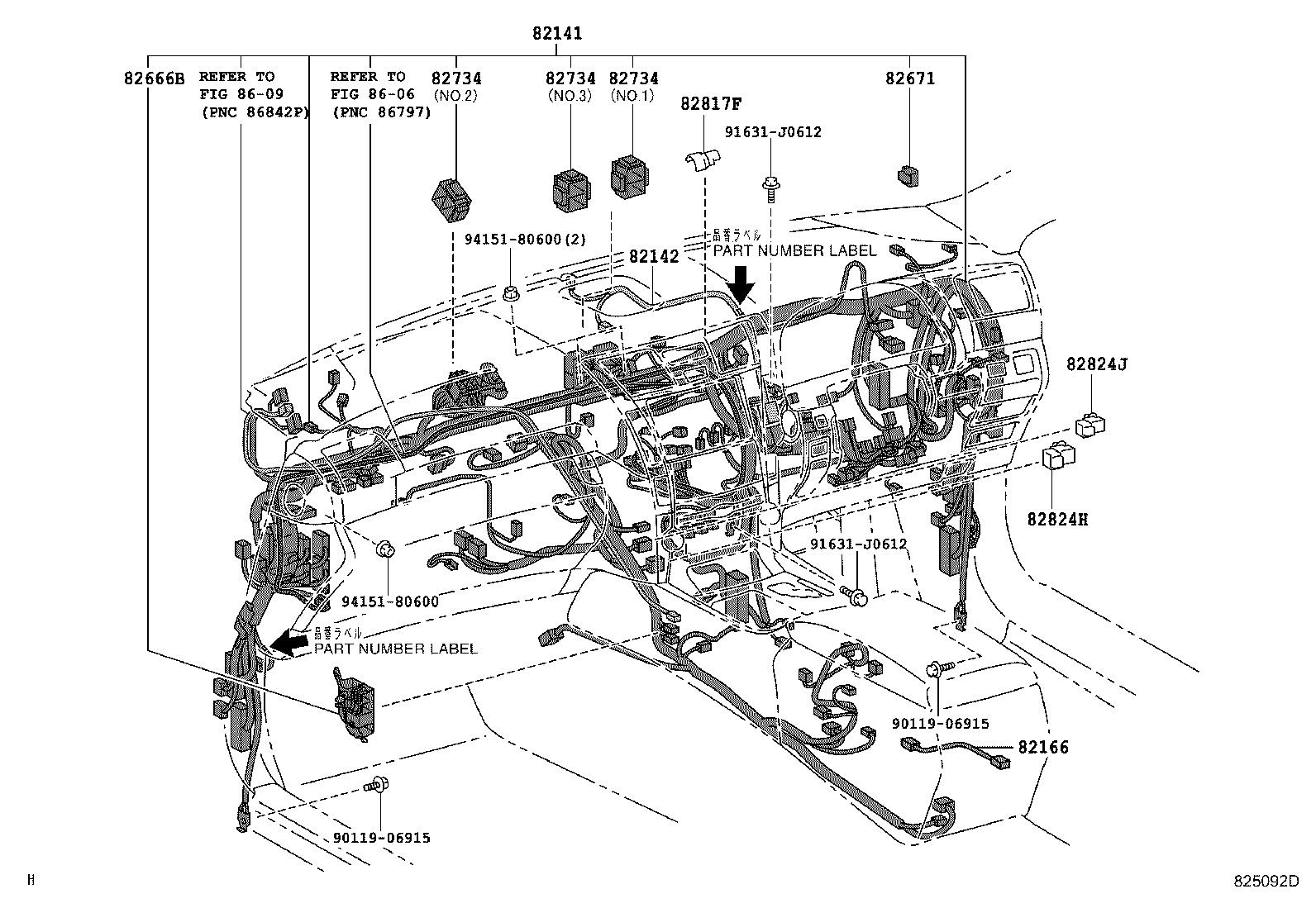

ILLUST NO. 3 OF11(0608-0809)RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-50F90 |
USF41..RHD THAILAND SPEC |
1 | ||
| 82141-50F90 |
USF41..RHD SINGAPORE SPEC |
1 | ||
| 82141-50K30 |
USF41..RHD |
1 | ||
| 82141-50F90 |
USF41..RHD MALAYSIA SPEC |
1 | ||
| 82141-50K20 |
USF41..RHD HONG KONG SPEC |
1 | ||
| 82141-50F92 |
USF41..RHD MALAYSIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT) |
1 | ||
| 82141-50F92 |
USF41..RHD THAILAND SPEC |
1 | ||
| 82141-50K22 |
USF41..RHD HONG KONG SPEC |
1 | ||
| 82141-50K32 |
USF41..RHD |
1 | ||
| 82141-50F92 |
USF41..RHD SINGAPORE SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT) |
1 | ||
| 82141-50F90 |
USF41..RHD PART NUMBER LABEL=82141-50F90 |
1 | ||
| 82141-50K20 |
USF41..RHD PART NUMBER LABEL=82141-50K20 |
1 | ||
| 82141-50K30 |
USF41..RHD PART NUMBER LABEL=82141-50K30 |
1 | ||
| 82141-50F92 |
USF41..RHD PART NUMBER LABEL=82141-50F92 |
1 | ||
| 82141-50K22 |
USF41..RHD PART NUMBER LABEL=82141-50K22 |
1 | ||
| 82141-50K32 |
USF41..RHD PART NUMBER LABEL=82141-50K32 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-50010 |
USF4# |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-30160 |
USF4# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-50580 |
USF4# |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30340 |
USF4# |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-50040 |
USF4# NO.3 |
1 | ||
| 82734-50030 |
USF4# NO.2 |
1 | ||
| 82734-50020 |
USF4# NO.1 |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-50040 |
USF4# NO.3 |
1 | ||
| 82734-50030 |
USF4# NO.2 |
1 | ||
| 82734-50020 |
USF4# NO.1 |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-50040 |
USF4# NO.3 |
1 | ||
| 82734-50030 |
USF4# NO.2 |
1 | ||
| 82734-50020 |
USF4# NO.1 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-33820 |
USF4# |
1 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-50440 |
USF4#..GCC;USF4#..RHD |
1 | ||
| 82824-50440 |
USF41..RHD VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER) |
1 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-50450 |
USF4#..GCC;USF4#..RHD |
1 | ||
| 82824-50450 |
USF41..RHD VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91631-J0612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8606 | ||||
| 8609 | ||||
ILLUST NO.11 OF11(0608-0809)
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10801 | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12038 | ||||
| 90980-12209 | ||||
| 90980-12211 | ||||
| 90980-12444 | ||||
| 90980-12460 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12556 | ||||

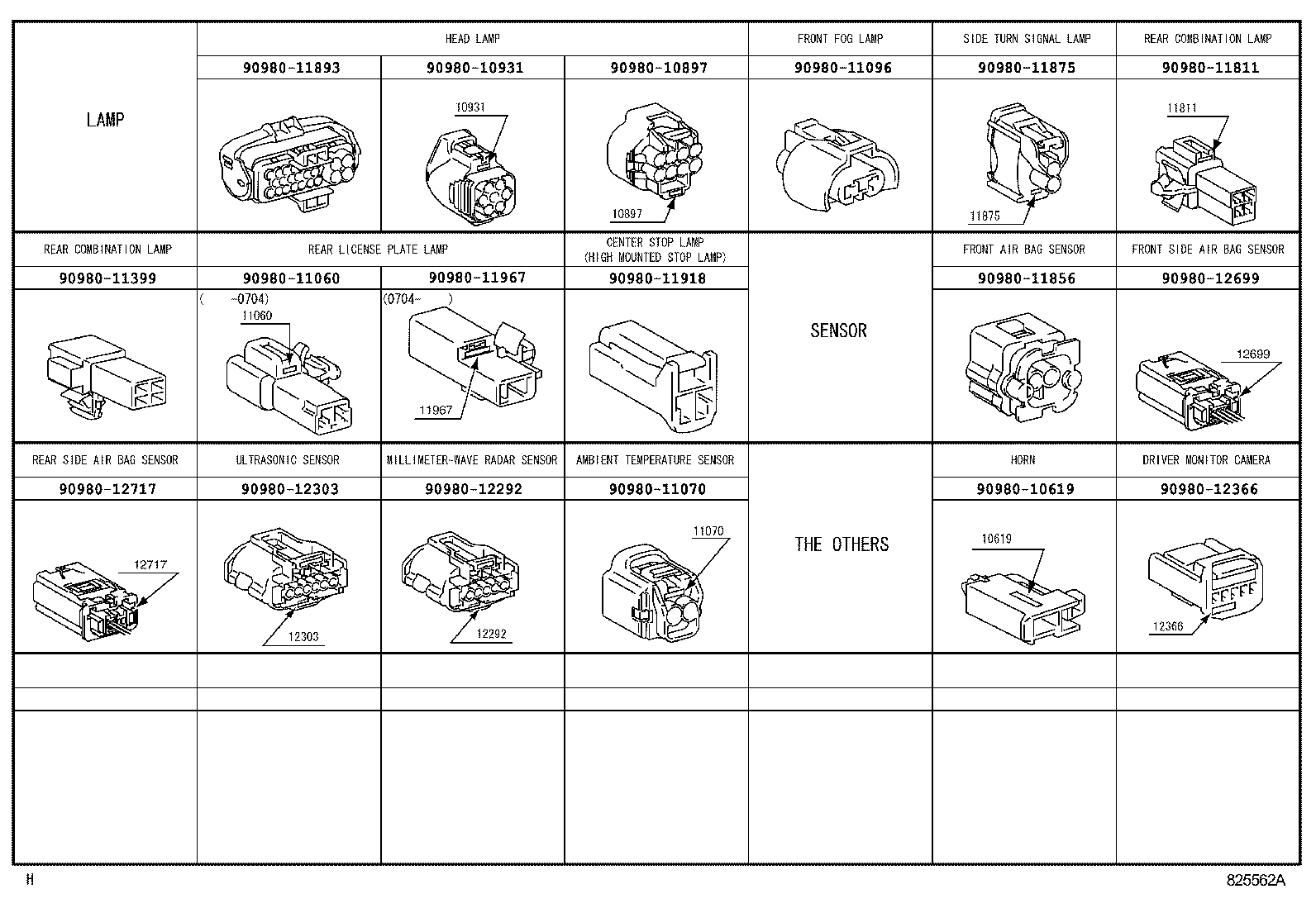

ILLUST NO.11 OF11(0608-0809)
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10897 | ||||
| 90980-10931 | ||||
| 90980-11060 | ||||
| 90980-11070 | ||||
| 90980-11096 | ||||
| 90980-11399 | ||||
| 90980-11811 | ||||
| 90980-11856 | ||||
| 90980-11875 | ||||
| 90980-11893 | ||||
| 90980-11918 | ||||
| 90980-11967 | ||||
| 90980-12292 | ||||
| 90980-12303 | ||||
| 90980-12366 | ||||
| 90980-12699 | ||||
| 90980-12717 | ||||

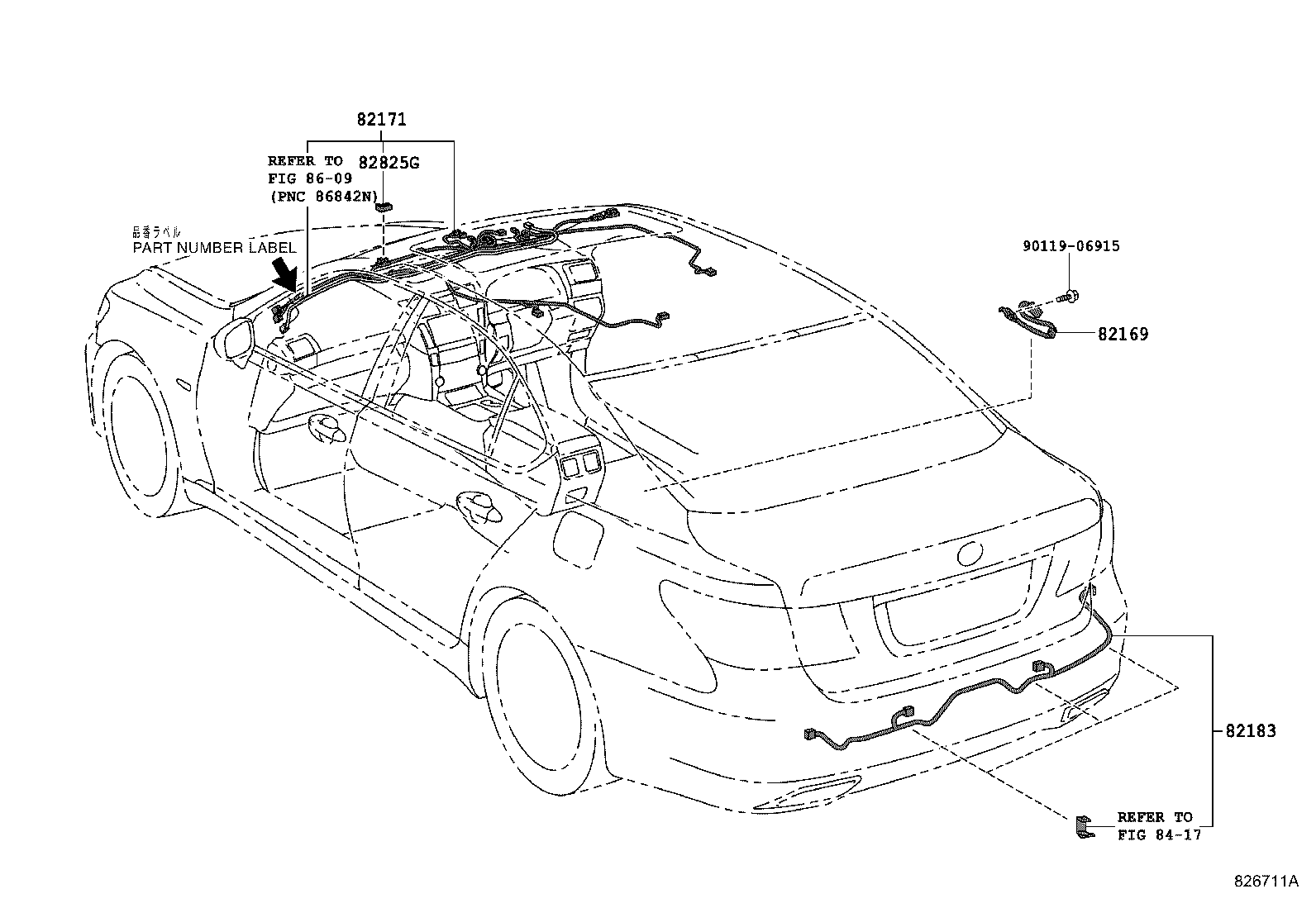

ILLUST NO. 6 OF11(0608-0809)RHD
ROOF & FRAME & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-50010 |
USF4# |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-50630 |
USF41..RHD |
1 | ||
| 82171-50630 |
USF41..RHD PART NUMBER LABEL=82171-50630 |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-50010 |
USF41;USF40..GCC |
1 | ||
| 82825G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50130 |
USF4# |
1 | ||

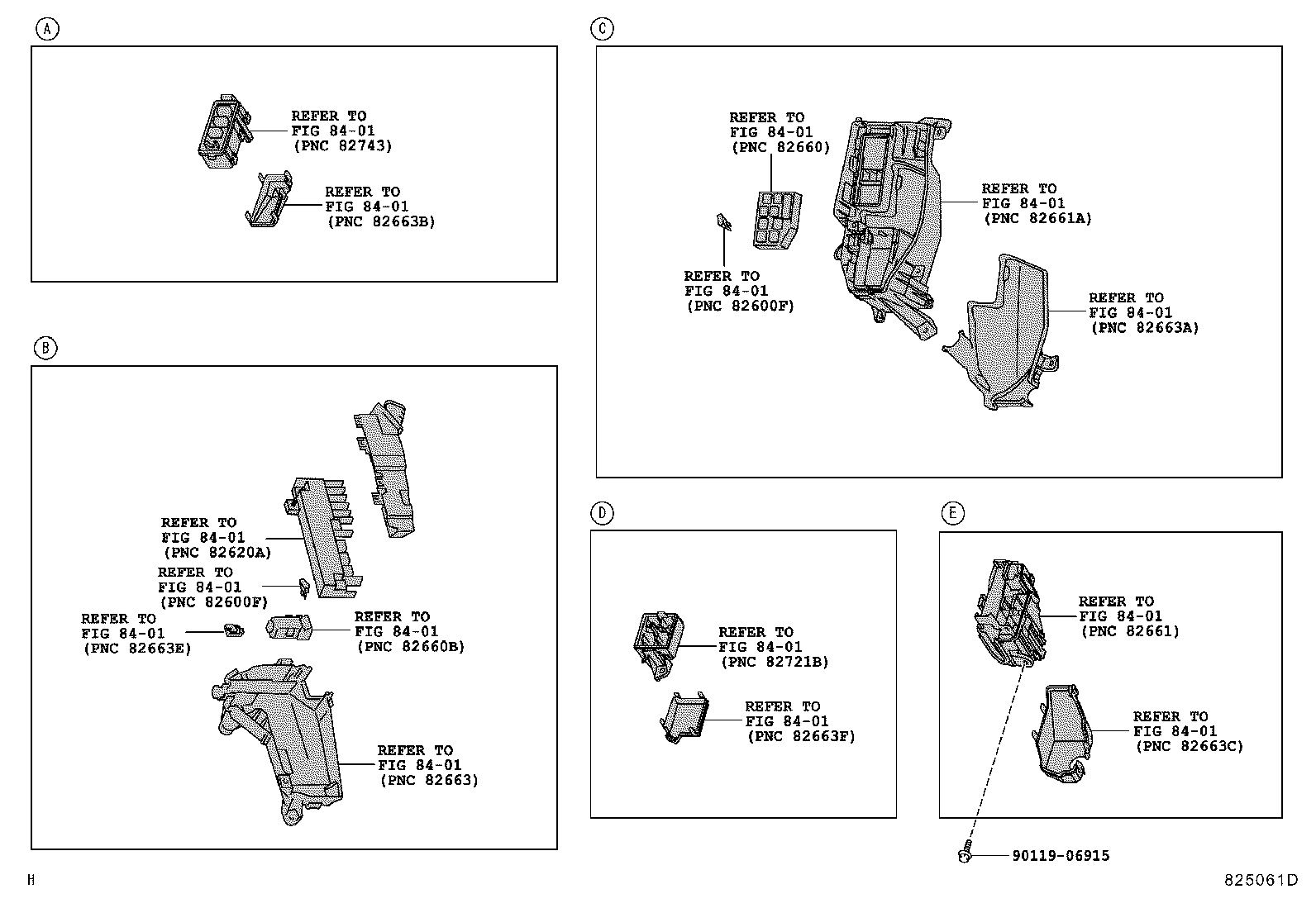

| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8417 | ||||
| 8609 | ||||

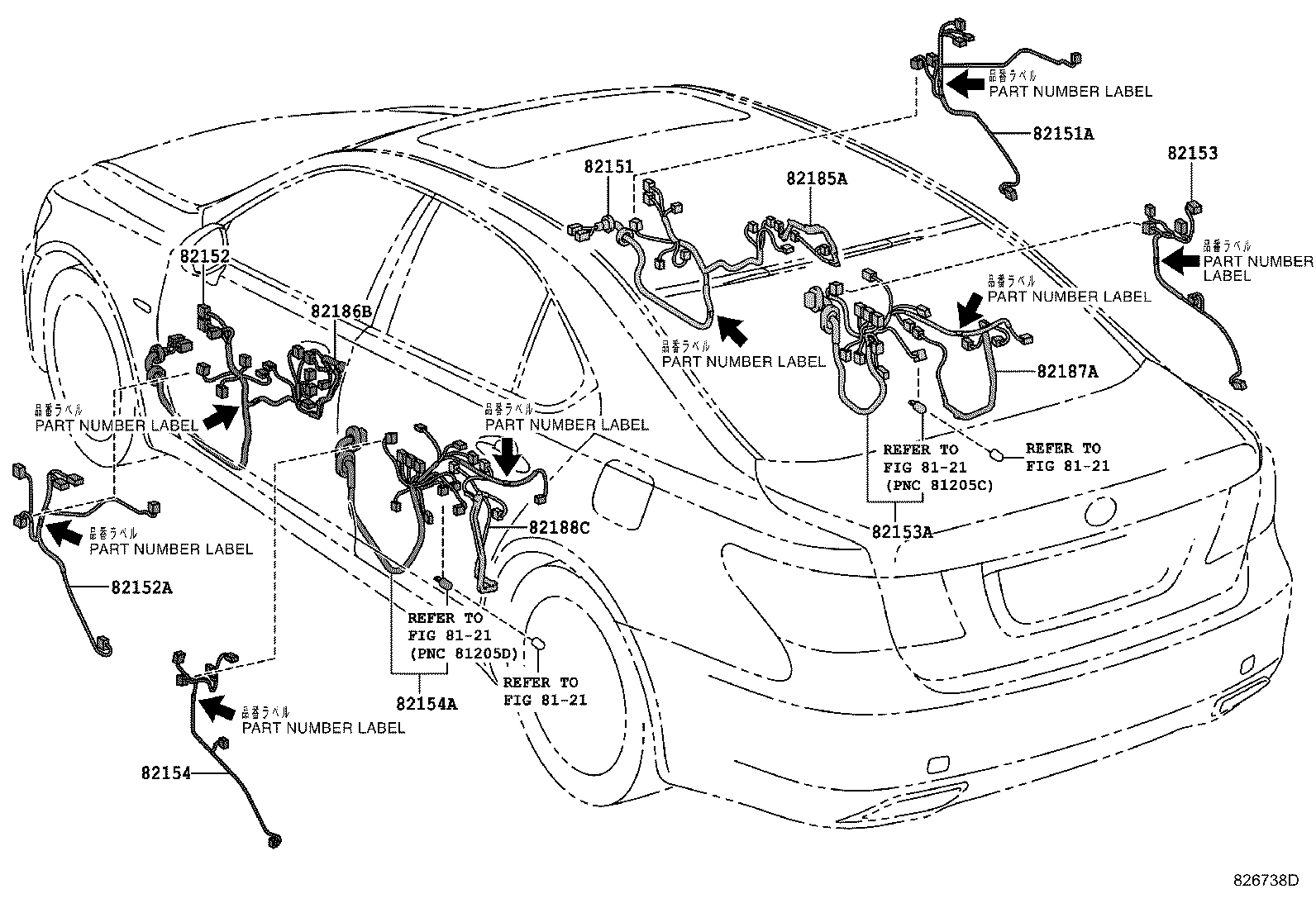

ILLUST NO. 4 OF11(0608- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-50400 |
USF41..RHD THAILAND SPEC |
1 | ||
| 82151-50420 |
USF41..RHD |
1 | ||
| 82151-50400 |
USF41..RHD SINGAPORE SPEC |
1 | ||
| 82151-50400 |
USF41..RHD HONG KONG SPEC |
1 | ||
| 82151-50400 |
USF41..RHD MALAYSIA SPEC |
1 | ||
| 82151-50420 |
USF41..RHD PART NUMBER LABEL=82151-50420 |
1 | ||
| 82151-50400 |
USF41..RHD PART NUMBER LABEL=82151-50400 |
1 | ||
| 82151A - WIRE, FRONT DOOR, NO.2, RH | ||||
| 82155-50040 |
USF4#..RHD |
1 | ||
| 82155-50040 |
USF4#..RHD PART NUMBER LABEL=82155-50040 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-50390 |
USF41..RHD SINGAPORE SPEC |
1 | ||
| 82152-50410 |
USF41..RHD |
1 | ||
| 82152-50390 |
USF41..RHD MALAYSIA SPEC |
1 | ||
| 82152-50390 |
USF41..RHD HONG KONG SPEC |
1 | ||
| 82152-50390 |
USF41..RHD THAILAND SPEC |
1 | ||
| 82152-50390 |
USF41..RHD PART NUMBER LABEL=82152-50390 |
1 | ||
| 82152-50410 |
USF41..RHD PART NUMBER LABEL=82152-50410 |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82156-50040 |
USF4#..RHD |
1 | ||
| 82156-50040 |
USF4#..RHD PART NUMBER LABEL=82156-50040 |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82157-50090 |
USF41..RHD |
1 | ||
| 82157-50090 |
USF41..RHD PART NUMBER LABEL=82157-50090 |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-50120 |
USF41..RHD SINGAPORE SPEC |
1 | ||
| 82153-50120 |
USF41..RHD THAILAND SPEC |
1 | ||
| 82153-50120 |
USF41..RHD HONG KONG SPEC |
1 | ||
| 82153-50130 |
USF41..RHD |
1 | ||
| 82153-50120 |
USF41..RHD MALAYSIA SPEC |
1 | ||
| 82153-50130 |
USF41..RHD PART NUMBER LABEL=82153-50130 |
1 | ||
| 82153-50120 |
USF41..RHD PART NUMBER LABEL=82153-50120 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82158-50090 |
USF41..RHD |
1 | ||
| 82158-50090 |
USF41..RHD PART NUMBER LABEL=82158-50090 |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82154-50120 |
USF41..RHD MALAYSIA SPEC |
1 | ||
| 82154-50120 |
USF41..RHD THAILAND SPEC |
1 | ||
| 82154-50120 |
USF41..RHD SINGAPORE SPEC |
1 | ||
| 82154-50130 |
USF41..RHD |
1 | ||
| 82154-50120 |
USF41..RHD HONG KONG SPEC |
1 | ||
| 82154-50120 |
USF41..RHD PART NUMBER LABEL=82154-50120 |
1 | ||
| 82154-50130 |
USF41..RHD PART NUMBER LABEL=82154-50130 |
1 | ||
| 82185A - WIRE, SMART DOOR, FRONT RH | ||||
| 82185-50010 |
USF4# |
1 | ||
| 82186B - WIRE, SMART DOOR, FRONT LH | ||||
| 82186-50010 |
USF4# |
1 | ||
| 82187A - WIRE, SMART DOOR, REAR RH | ||||
| 82187-50010 |
USF4# |
1 | ||
| 82188C - WIRE, SMART DOOR, REAR LH | ||||
| 82188-50010 |
USF4# |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||

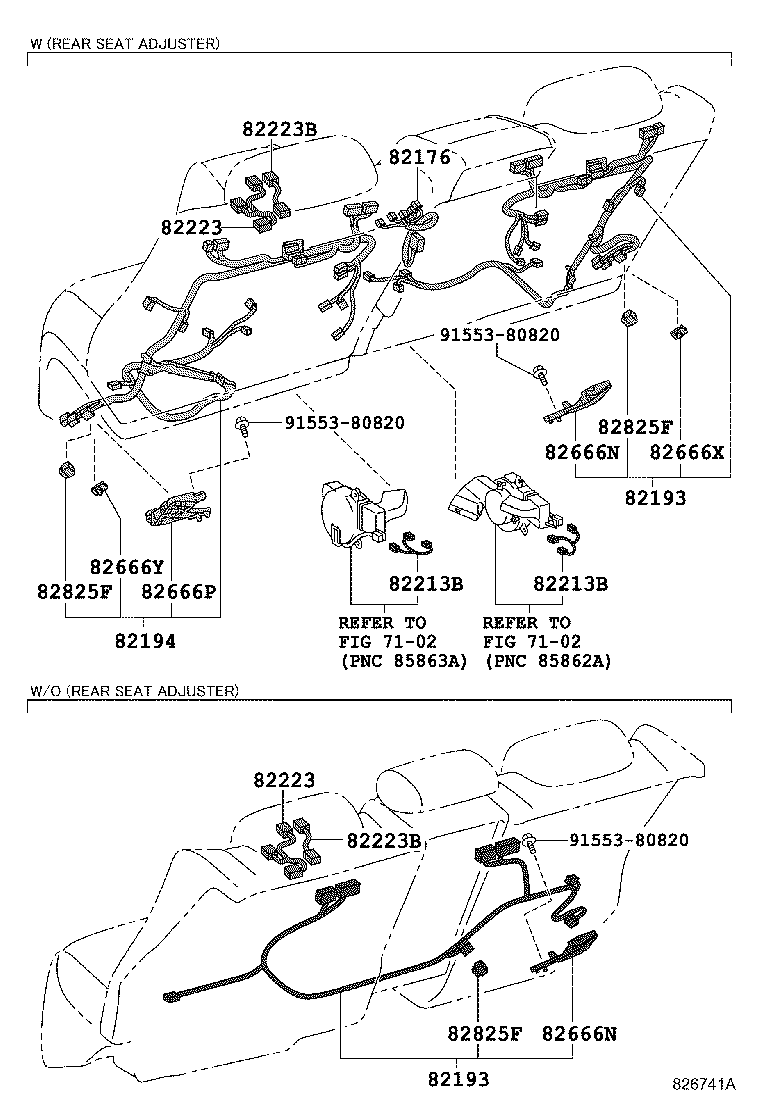

ILLUST NO. 8 OF11(0608- )
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82176 - WIRE, REAR CONSOLE BOX | ||||
| 82176-50010 |
USF41..RHD |
1 | ||
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-50140 |
USF41 |
1 | ||
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-50140 |
USF41 |
1 | ||
| 82194 - WIRE, REAR SEAT, LH | ||||
| 82194-50220 |
USF41..RHD |
1 | ||
| 82213B - WIRE, HEATER | ||||
| 82213-50020 |
USF41 |
2 | ||
| 82213B - WIRE, HEATER | ||||
| 82213-50020 |
USF41 |
2 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-50640 |
USF41 |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-50640 |
USF41 |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-50650 |
USF41 |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-60220 |
USF41 |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-60220 |
USF41 |
1 | ||
| 82825F - CONNECTOR, WIRING HARNESS | ||||
| 82824-50360 |
USF4# |
1 | ||
| 82825F - CONNECTOR, WIRING HARNESS | ||||
| 82824-50360 |
USF4# |
1 | ||
| 82825F - CONNECTOR, WIRING HARNESS | ||||
| 82824-50360 |
USF4# |
1 | ||
| Common parts | ||||
| 91553-80820 | ||||
| Linked diagrams | ||||
| 7102 | ||||
ILLUST NO. 2 OF11(0608-0809)
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19309 - HARNESS SUB-ASSY, CAM POSITION SENSOR | ||||
| 19309-38011 |
1UR#..USF4# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-50540 |
USF4#..RHD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-50110 |
USF4#..RHD |
1 | ||
| 82123A - WIRE, ENGINE, NO.3 | ||||
| 82123-50110 |
USF4# |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-50080 |
USF4#..D4 |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-34011 |
USF4# |
1 | ||
| 82126-34010 |
USF4# |
1 | ||
| 82128A - WIRE, ENGINE, NO.8 | ||||
| 82127-34030 |
USF4# |
1 | ||
| 82127-34031 |
USF4# |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-50D60 |
USF4# |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-50E50 |
USF4# |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-50520 |
USF4# |
1 | ||
| 82824N - CONNECTOR, WIRING HARNESS | ||||
| 82824-30290 |
USF4#..D4 |
2 | ||
| Common parts | ||||
| 90126-06028 | ||||
| 90126-06029 | ||||
| 90126-08057 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91673-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
