USF41R-AEZGHW (2006)
Toyota Lexus Ls460/460l
Production
Aug 2006
-
Sep 2008
Engine
1URFSE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

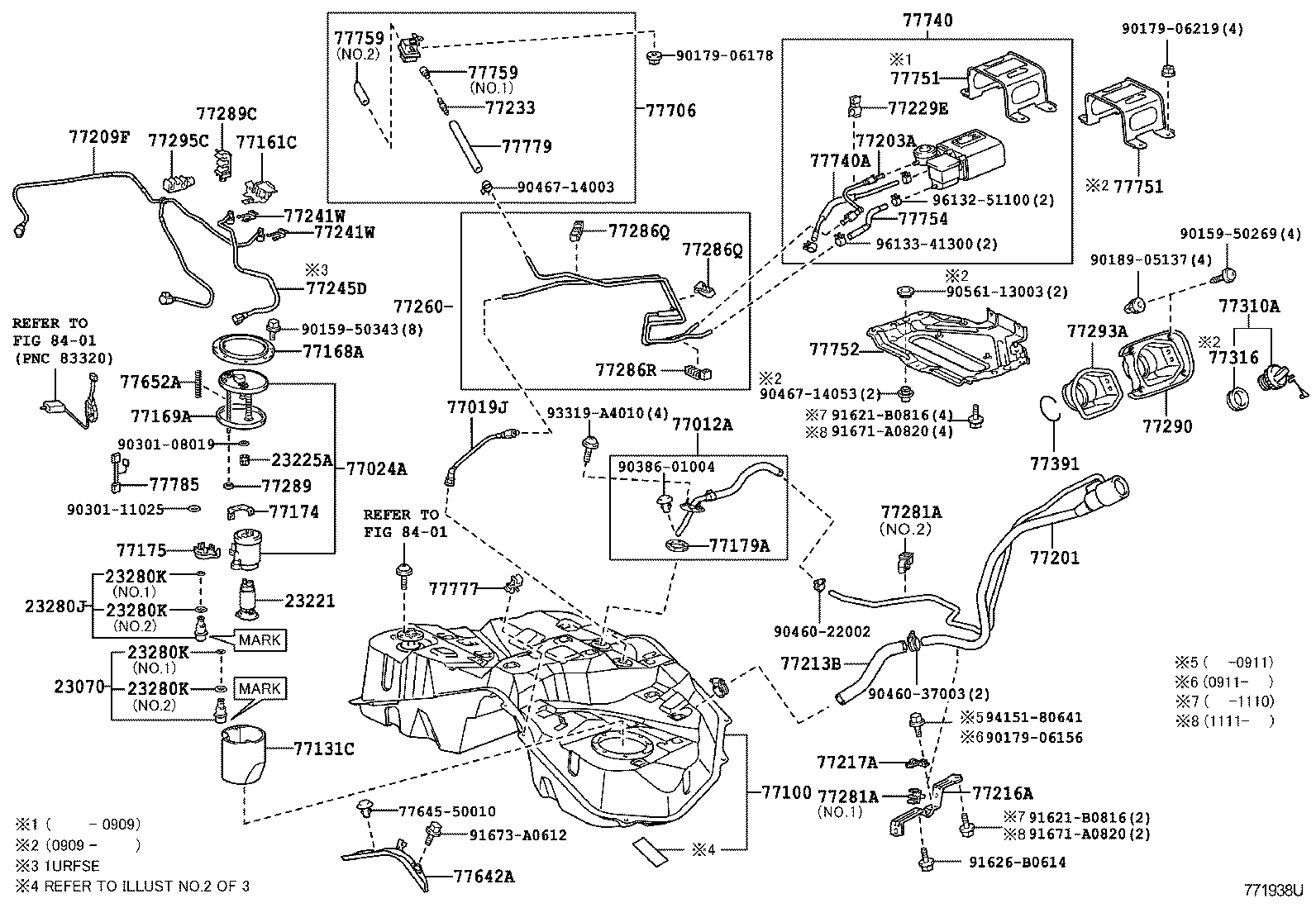

ILLUST NO. 1 OF 3(0608- )
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-38020 |
1URFSE..USF4# MARK 23070-38020 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23220-38020 |
1UR#..USF4# |
1 | ||
| 23220-38021 |
1UR#..USF4# |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-23010 |
1UR#..USF4# |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-38020 |
1UR#..USF4# MARK 23280-38020 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1UR#..USF4# NO.2 |
2 | ||
| 90301-04013 |
1UR#..USF4# NO.1 |
2 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1UR#..USF4# NO.2 |
2 | ||
| 90301-04013 |
1UR#..USF4# NO.1 |
2 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1UR#..USF4# NO.2 |
2 | ||
| 90301-04013 |
1UR#..USF4# NO.1 |
2 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1UR#..USF4# NO.2 |
2 | ||
| 90301-04013 |
1UR#..USF4# NO.1 |
2 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-50060 |
USF4# |
1 | ||
| 77012-50080 |
USF4# |
1 | ||
| 77012-50080 |
USF4# |
1 | ||
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77019-50030 |
USF4# |
1 | ||
| 77019-50030 |
USF4# |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-50020 |
USF4#..D4 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-50151 |
USF4# |
1 | ||
| 77001-50150 |
USF4# |
1 | ||
| 77001-50151 |
USF4# |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-50040 |
USF4# |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-50030 |
USF4# |
1 | ||
| 77161-50030 |
USF4# |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52020 |
USF4# |
1 | ||
| 77168-52020 |
USF4# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52010 |
USF4# |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-50010 |
USF4# |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-50010 |
USF4# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-20040 |
USF4# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-50150 |
USF4# |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-50040 |
USF4# |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-50020 |
USF4#..D4 |
1 | ||
| 77209-50020 |
USF4#..D4 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-50050 |
USF4# |
1 | ||
| 77213-50050 |
USF4# |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-50040 |
USF4# |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-50070 |
USF4# |
1 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-50090 |
USF4# |
1 | ||
| 77233 - JOINT, FUEL HOSE | ||||
| 77233-28020 |
USF4# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60320 |
USF4#..D4 |
2 | ||
| 77241-60320 |
USF4#..D4 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60320 |
USF4#..D4 |
2 | ||
| 77241-60320 |
USF4#..D4 |
2 | ||
| 77245D - TUBE, FUEL TANK RETURN VENT | ||||
| 77245-50040 |
USF4#..D4 |
1 | ||
| 77245-50040 |
USF4#..D4 |
1 | ||
| 77260 - HOSE ASSY, FUEL MAIN | ||||
| 77260-50041 |
USF4# |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77229-50050 |
USF4# NO.1 |
1 | ||
| 77229-50080 |
USF4# NO.2 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77229-50050 |
USF4# NO.1 |
1 | ||
| 77229-50080 |
USF4# NO.2 |
1 | ||
| 77286Q - CLAMP, FUEL TUBE, NO.9 | ||||
| 77289-30070 |
USF4# |
2 | ||
| 77286Q - CLAMP, FUEL TUBE, NO.9 | ||||
| 77289-30070 |
USF4# |
2 | ||
| 77286R - CLAMP, FUEL TUBE, NO.10 | ||||
| 77289-50060 |
USF4# |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52090 |
USF4# |
1 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77289-50070 |
USF4# |
1 | ||
| 77289-50070 |
USF4# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-50050 |
USF4# |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-50050 |
USF4# |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-35260 |
USF4# |
1 | ||
| 77295-35260 |
USF4# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
USF4# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
USF4# |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-50010 |
USF4# |
1 | ||
| 77642-50010 |
USF4# |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-22090 |
USF4# |
1 | ||
| 77706 - FILTER SUB-ASSY, CHARCOAL CANISTER | ||||
| 77706-50030 |
USF4# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-50120 |
USF4# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 23829-38020 |
USF4# |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-50040 |
USF4# |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-50040 |
USF4# |
1 | ||
| 77752 - BRACKET, CHARCOAL CANISTER SUPPORT | ||||
| 77742-50011 |
USF4# |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-50020 |
USF4# L=155 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-52010 |
USF4# NO.1 |
1 | ||
| 77759-50090 |
USF4# NO.2 |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-52010 |
USF4# NO.1 |
1 | ||
| 77759-50090 |
USF4# NO.2 |
1 | ||
| 77777 - BRACKET, FUEL TUBE CLAMP | ||||
| 77778-50020 |
USF4#..D4 |
2 | ||
| 77778-50020 |
USF4#..D4 |
2 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77759-50100 |
USF4# |
1 | ||
| 95325-09013 |
USF4# |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-50020 |
USF4# |
1 | ||
| Common parts | ||||
| 77645-50010 | ||||
| 90159-50269 | ||||
| 90159-50343 | ||||
| 90179-06156 | ||||
| 90179-06178 | ||||
| 90179-06219 | ||||
| 90189-05137 | ||||
| 90301-08019 | ||||
| 90301-11025 | ||||
| 90386-01004 | ||||
| 90460-22002 | ||||
| 90460-37003 | ||||
| 90467-14003 | ||||
| 90467-14053 | ||||
| 90561-13003 | ||||
| 91621-B0816 | ||||
| 91626-B0614 | ||||
| 91671-A0820 | ||||
| 91673-A0612 | ||||
| 93319-A4010 | ||||
| 94151-80641 | ||||
| 96132-51100 | ||||
| 96133-41300 | ||||
| Linked diagrams | ||||
| 8401 | ||||

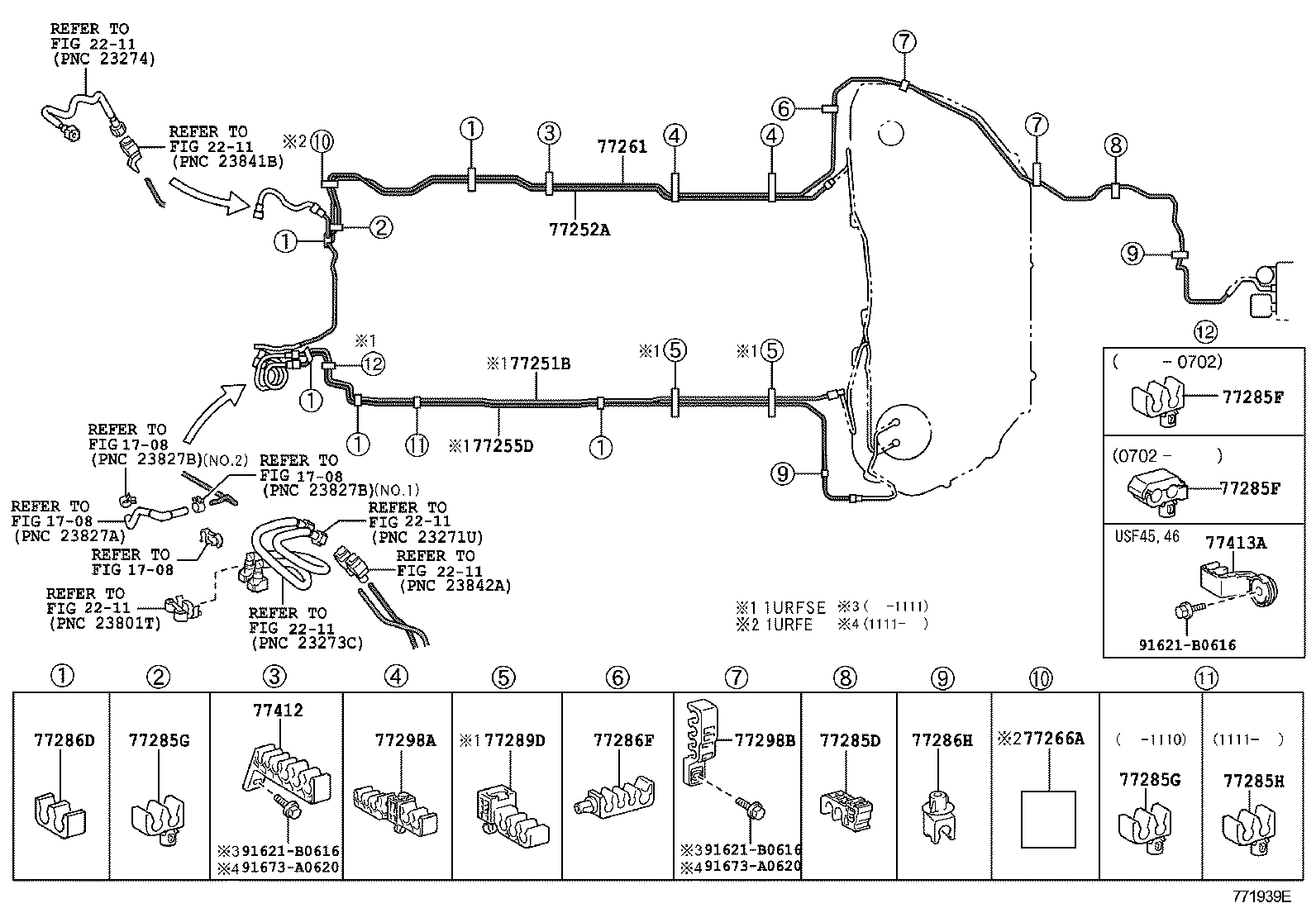

ILLUST NO. 3 OF 3(0608- )
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-50100 |
USF41..D4 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-50040 |
USF41 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-50070 |
USF41..D4 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-50100 |
USF41 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-50040 |
USF41;USF40..HTWC |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-50090 |
USF4#..D4 |
1 | ||
| 77285-30250 |
USF4#..D4 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-50090 |
USF4#..D4 |
1 | ||
| 77285-30250 |
USF4#..D4 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30250 |
USF41;USF40..HTWC |
2 | ||
| 77285-30250 |
USF41..RHD HONG KONG SPEC |
2 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30250 |
USF41;USF40..HTWC |
2 | ||
| 77285-30250 |
USF41..RHD HONG KONG SPEC |
2 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-52100 |
USF41..RHD HONG KONG SPEC |
5 | ||
| 77286-52100 |
USF41;USF40..HTWC |
5 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-30110 |
USF41;USF40..HTWC |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77286-30120 |
USF41;USF40..HTWC |
2 | ||
| 77286-30120 |
USF41..RHD HONG KONG SPEC |
2 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 77289-30070 |
USF4#..D4 |
2 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77289-30060 |
USF41;USF40..HTWC |
2 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-30150 |
USF41;USF40..HTWC |
2 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-30060 |
USF41;USF40..HTWC |
1 | ||
| Common parts | ||||
| 91621-B0616 | ||||
| 91673-A0620 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

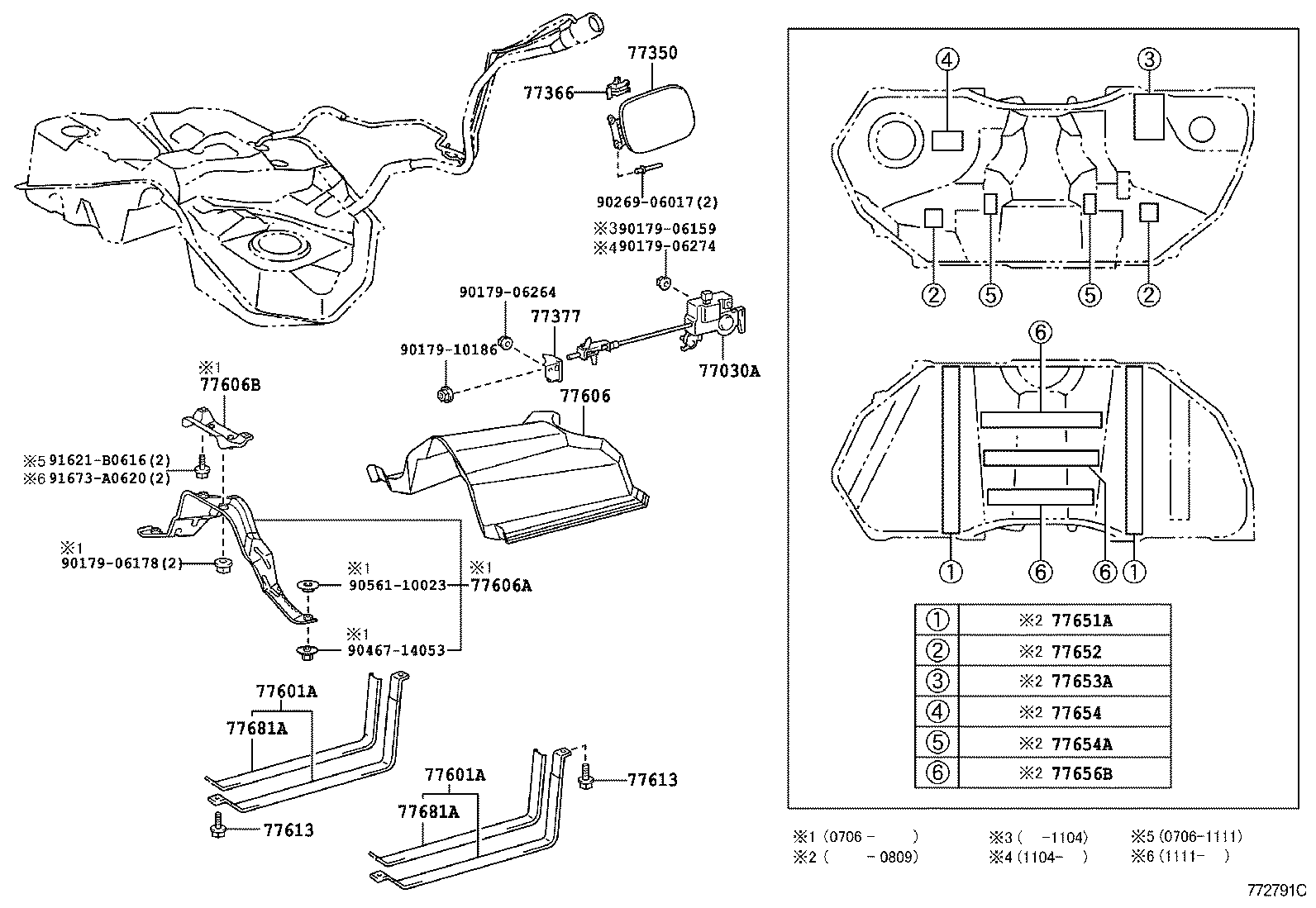

ILLUST NO. 2 OF 3(0608- )
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-50030 |
USF4# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-50050 |
USF4# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30070 |
USF4# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-50020 |
USF4# |
1 | ||
| 77377-50010 |
USF4# |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-50020 |
USF4# |
2 | ||
| 77601-50021 |
USF4# |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-50020 |
USF4# |
2 | ||
| 77601-50021 |
USF4# |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-50050 |
USF4# |
1 | ||
| 77606-50050 |
USF4# |
1 | ||
| 77606A - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77607-50050 |
USF4# |
1 | ||
| 77606B - BRACKET, FUEL TANK PROTECTOR, SIDE | ||||
| 77621-50030 |
USF4# |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-50030 |
USF4# |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
USF4# |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-35050 |
USF4# |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
USF4# |
1 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77651-36130 |
USF4# |
2 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77652-50030 |
USF4# |
3 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-21020 |
USF4# |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-21020 |
USF4# |
2 | ||
| Common parts | ||||
| 90179-06159 | ||||
| 90179-06178 | ||||
| 90179-06264 | ||||
| 90179-06274 | ||||
| 90179-10186 | ||||
| 90269-06017 | ||||
| 90467-14053 | ||||
| 90561-10023 | ||||
| 91621-B0616 | ||||
| 91673-A0620 | ||||
