USF41R-AEZGHW (2006)
Toyota Lexus Ls460/460l

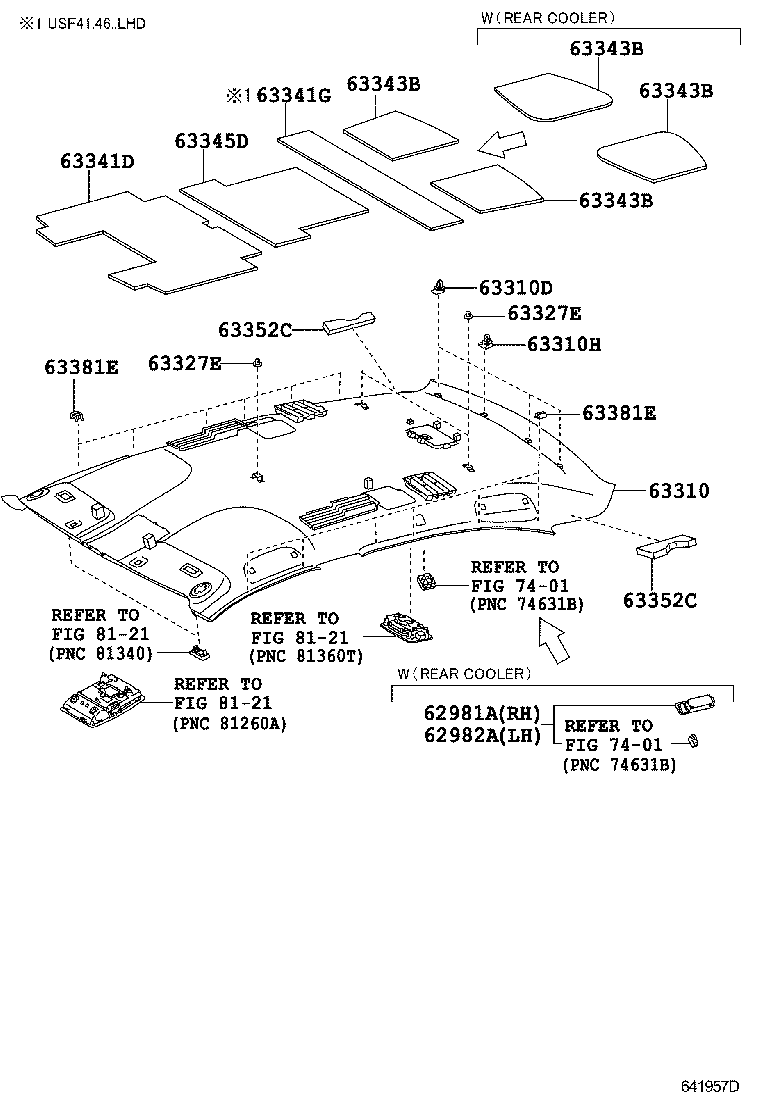

ILLUST NO. 1 OF 2(0608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62981A - BEZEL, ROOF SIDE REGISTER, RH | ||||
| 62981-50071A0 |
USF4#..GCC;USF41..RHD IVORY,TRIM00 |
1 | ||
| 62981-50071A1 |
USF4#..GCC;USF41..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 62981-50071B0 |
USF4#..GCC;USF41..RHD LT.GRAY,TRIM1#,2# |
1 | ||
| 62982A - BEZEL, ROOF SIDE REGISTER, LH | ||||
| 62982-50071A0 |
USF4#..GCC;USF41..RHD IVORY,TRIM00 |
1 | ||
| 62982-50071A1 |
USF4#..GCC;USF41..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 62982-50071B0 |
USF4#..GCC;USF41..RHD LT.GRAY,TRIM1#,2# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63311-50580A0 |
USF41..RHD IVORY,TRIM00 |
1 | ||
| 63311-50580A1 |
USF41..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 63311-50580B0 |
USF41..RHD LT.GRAY,TRIM1#,2# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
USF4# |
3 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-10181 |
USF4# |
1 | ||
| 63341D - PAD, ROOF SILENCER, FRONT | ||||
| 63691-50100 |
USF41..RHD |
2 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63693-50090 |
USF4#..GCC;USF41..RHD |
2 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63693-50090 |
USF4#..GCC;USF41..RHD |
2 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63693-50090 |
USF4#..GCC;USF41..RHD |
2 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63693-50090 |
USF4#..GCC;USF41..RHD |
2 | ||
| 63352C - PAD, ROOF HEADLINING, END | ||||
| 63352-50110 |
USF4# |
2 | ||
| 63352C - PAD, ROOF HEADLINING, END | ||||
| 63352-50110 |
USF4# |
2 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-50020 |
USF4# |
12 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-50020 |
USF4# |
12 | ||
| Linked diagrams | ||||
| 7401 | ||||
| 8121 | ||||

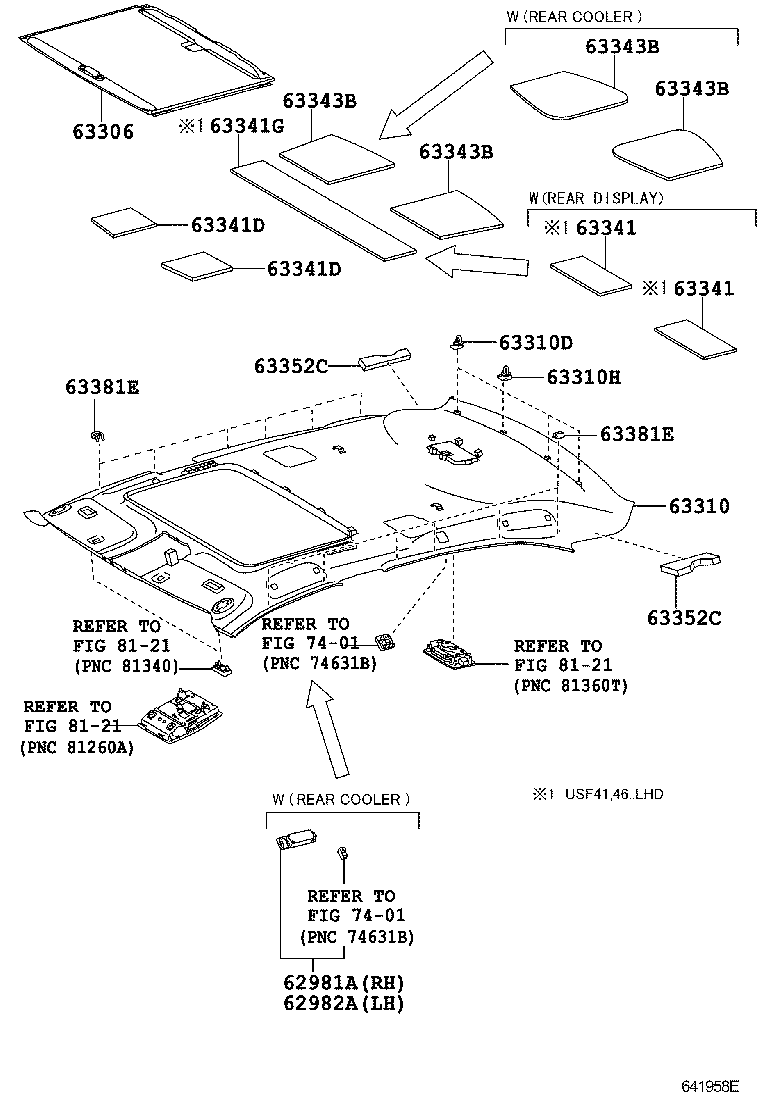

ILLUST NO. 1 OF 2(0608- )
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62981A - BEZEL, ROOF SIDE REGISTER, RH | ||||
| 62981-50071A0 |
USF4#..GCC;USF41..RHD IVORY,TRIM00 |
1 | ||
| 62981-50071A1 |
USF4#..GCC;USF41..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 62981-50071B0 |
USF4#..GCC;USF41..RHD LT.GRAY,TRIM1#,2# |
1 | ||
| 62982A - BEZEL, ROOF SIDE REGISTER, LH | ||||
| 62982-50071A0 |
USF4#..GCC;USF41..RHD IVORY,TRIM00 |
1 | ||
| 62982-50071A1 |
USF4#..GCC;USF41..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 62982-50071B0 |
USF4#..GCC;USF41..RHD LT.GRAY,TRIM1#,2# |
1 | ||
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-50070A0 |
USF41..RHD IVORY,TRIM00 |
1 | ||
| 63306-50070B0 |
USF41..RHD LT.GRAY,TRIM1#,2# |
1 | ||
| 63306-50070A1 |
USF41..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63311-50580A0 |
USF41..RHD IVORY,TRIM00 |
1 | ||
| 63311-50580A1 |
USF41..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 63311-50580B0 |
USF41..RHD LT.GRAY,TRIM1#,2# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-09126 |
USF4# |
3 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-10181 |
USF4# |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63693-50080 |
USF41..RHD |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63693-50080 |
USF41..RHD |
2 | ||
| 63341D - PAD, ROOF SILENCER, FRONT | ||||
| 63691-50100 |
USF41..RHD |
2 | ||
| 63341D - PAD, ROOF SILENCER, FRONT | ||||
| 63691-50100 |
USF41..RHD |
2 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63693-50090 |
USF4#..GCC;USF41..RHD |
2 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63693-50090 |
USF4#..GCC;USF41..RHD |
2 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63693-50090 |
USF4#..GCC;USF41..RHD |
2 | ||
| 63343B - PAD, ROOF SILENCER, REAR | ||||
| 63693-50090 |
USF4#..GCC;USF41..RHD |
2 | ||
| 63352C - PAD, ROOF HEADLINING, END | ||||
| 63352-50110 |
USF4# |
2 | ||
| 63352C - PAD, ROOF HEADLINING, END | ||||
| 63352-50110 |
USF4# |
2 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-50020 |
USF4# |
12 | ||
| 63381E - RETAINER, ROOF HEADLINING TRIM, FRONT | ||||
| 63381-50020 |
USF4# |
12 | ||
| Linked diagrams | ||||
| 7401 | ||||
| 8121 | ||||
ILLUST NO. 2 OF 2(0608- )USF41,46
ROOF CONSOLE BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63412B - RETAINER, ROOF CONSOLE | ||||
| 63412-50010 |
USF41..RHD |
4 | ||
| 63412B - RETAINER, ROOF CONSOLE | ||||
| 63412-50010 |
USF41..RHD |
4 | ||
| 63412B - RETAINER, ROOF CONSOLE | ||||
| 63412-50010 |
USF41..RHD |
4 | ||
| 63650A - BOX ASSY, ROOF CONSOLE | ||||
| 63650-50060A0 |
USF41..RHD IVORY,TRIM00 |
1 | ||
| 63650-50060B0 |
USF41..RHD LT.GRAY,TRIM2# |
1 | ||
| 63650-50060A1 |
USF41..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 63650-50060B1 |
USF41..RHD LT.GRAY,TRIM1# |
1 | ||
| 63650A - BOX ASSY, ROOF CONSOLE | ||||
| 63650-50060A0 |
USF41..RHD IVORY,TRIM00 |
1 | ||
| 63650-50060B0 |
USF41..RHD LT.GRAY,TRIM2# |
1 | ||
| 63650-50060A1 |
USF41..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 63650-50060B1 |
USF41..RHD LT.GRAY,TRIM1# |
1 | ||
| 63662B - PLATE, ROOF CONSOLE | ||||
| 63662-50210B0 |
USF41..RHD MD.GRAY,TRIM1# |
1 | ||
| 63662-50210E0 |
USF41..RHD DK.BROWN,TRIM01 |
1 | ||
| 63662-50210E1 |
USF41..RHD BROWN,TRIM00,2# |
1 | ||
| 63662B - PLATE, ROOF CONSOLE | ||||
| 63662-50210B0 |
USF41..RHD MD.GRAY,TRIM1# |
1 | ||
| 63662-50210E0 |
USF41..RHD DK.BROWN,TRIM01 |
1 | ||
| 63662-50210E1 |
USF41..RHD BROWN,TRIM00,2# |
1 | ||
| 88644 - SENSOR, AIR CONDITIONER INFRARED RAYS | ||||
| 88644-50010 |
USF41..RHD |
1 | ||
| 88644 - SENSOR, AIR CONDITIONER INFRARED RAYS | ||||
| 88644-50010 |
USF41..RHD |
1 | ||
| Common parts | ||||
| 67771-33040 | ||||
| 90159-40206 | ||||
| 90189-04059 | ||||
| Linked diagrams | ||||
| 8121 | ||||
