USF41R-AEZGHW (2006)
Toyota Lexus Ls460/460l
Production
Aug 2006
-
Sep 2008
Engine
1URFSE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 3(0608-1011)USF40,41
Click highlighted areas on diagram
FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55212C - SILENCER, FRONT PANEL, LOWER | ||||
| 55212-50060 |
USF4# |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-50020 |
USF4# |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-50020 |
USF4# |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-50020 |
USF4# |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-50020 |
USF4# |
1 | ||
| 57257A - BRACKET, ENGINE REAR MOUNTING MEMBER, RH | ||||
| 57257-50040 |
USF4# |
1 | ||
| 57257-50041 |
USF4# |
1 | ||
| 57258C - BRACKET, ENGINE REAR MOUNTING MEMBER, LH | ||||
| 57258-50040 |
USF4# |
1 | ||
| 57417F - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-50070 |
USF41 |
1 | ||
| 57418B - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-50070 |
USF41 |
1 | ||
| 57425B - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-50050 |
USF4# |
1 | ||
| 57426B - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57425-50050 |
USF4# |
1 | ||
| 57427D - REINFORCEMENT, FRONT FLOOR, NO.3 RH | ||||
| 57055-50010 |
USF4# |
1 | ||
| 57428C - REINFORCEMENT, FRONT FLOOR, NO.3 LH | ||||
| 57056-50010 |
USF4# |
1 | ||
| 57463B - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH | ||||
| 57463-50030 |
USF4# |
1 | ||
| 57464A - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH | ||||
| 57464-50020 |
USF4# |
1 | ||
| 57475D - PLATE, FRONT FLOOR CROSSMEMBER, RH | ||||
| 57475-50010 |
USF4# |
1 | ||
| 57476 - PLATE, FRONT FLOOR CROSSMEMBER, LH | ||||
| 57476-50010 |
USF4# |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-50901 |
USF4# |
1 | ||
| 58014 - PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER | ||||
| 58014-50030 |
USF41 |
1 | ||
| 58105B - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB | ||||
| 58105-50010 |
USF4# |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-50905 |
USF41 |
1 | ||
| 58112A - PANEL, FRONT FLOOR, LH | ||||
| 58112-50906 |
USF41 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-50912 |
USF41 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-51010 |
USF4# |
2 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-51010 |
USF4# |
2 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-50922 |
USF41..GCC;USF41..RHD |
1 | ||
| 58227A - PLATE, AIR GUIDE | ||||
| 58225-50010 |
USF4#..GCC;USF41..RHD |
4 | ||
| 58239A - PLATE, BELT ANCHOR NUT | ||||
| 58239-50030 |
USF41 |
2 | ||
| 58239A - PLATE, BELT ANCHOR NUT | ||||
| 58239-50030 |
USF41 |
2 | ||
| 58261A - COVER, TRANSMISSION | ||||
| 58261-50030 |
USF4# |
1 | ||
| 58271D - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 | ||||
| 58271-50020 |
USF41 |
2 | ||
| 58271D - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 | ||||
| 58271-50020 |
USF41 |
2 | ||
| 58276C - REINFORCEMENT, SIDE FLOOR, NO.4 | ||||
| 58276-50010 |
USF4#..GCC;USF41..RHD |
1 | ||
| 58282A - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH | ||||
| 58282-50040 |
USF4# |
2 | ||
| 58282A - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH | ||||
| 58282-50040 |
USF4# |
2 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-50050 |
USF4# |
1 | ||
| 58308D - BRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER | ||||
| 58308-50010 |
USF4# |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-50901 |
USF4# |
1 | ||
| 58312 - PANEL, REAR BODY FLOOR, NO.1 | ||||
| 58312-50010 |
USF4# |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58305-50020 |
USF4# |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58306-50020 |
USF4# |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-50020 |
USF4# |
1 | ||
| 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 | ||||
| 58329-50010 |
USF4# |
1 | ||
| 58338A - REINFORCEMENT, REAR FLOOR PAN, NO.2 | ||||
| 58338-50020 |
USF4# |
1 | ||
| 58353F - REINFORCEMENT, REAR FLOOR PANEL, NO.3 | ||||
| 58353-50010 |
USF4# |
1 | ||
| 58375E - REINFORCEMENT, BODY LOWER BACK PANEL | ||||
| 58375-50040 |
USF4# |
1 | ||
| 58385H - BRACKET, REAR BUMPER COVER, NO.1 | ||||
| 58385-53030 |
USF4# |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-53010 |
USF4# |
1 | ||
| 58389F - BRACKET, LOWER BACK COVER | ||||
| 58389-50010 |
USF4# |
2 | ||
| 58389F - BRACKET, LOWER BACK COVER | ||||
| 58389-50010 |
USF4# |
2 | ||
| 58619C - SHEET, CENTER FLOOR SILENCER SUB | ||||
| 58619-30080 |
USF4# |
12 | ||
| 58619C - SHEET, CENTER FLOOR SILENCER SUB | ||||
| 58619-30080 |
USF4# |
12 | ||
| 58619C - SHEET, CENTER FLOOR SILENCER SUB | ||||
| 58619-30080 |
USF4# |
12 | ||
| 72681D - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-50020 |
USF41 |
2 | ||
| Common parts | ||||
| 55217-51010 | ||||
| 58226-50010 | ||||
| 90105-08088 | ||||
| 90115-06167 | ||||
| 90115-06242 | ||||
| 90115-06243 | ||||
| 90115-06273 | ||||
| 90119-06833 | ||||
| Linked diagrams | ||||
| 5701 | ||||
ILLUST NO. 3 OF 3(0608-0909)
Click highlighted areas on diagram
FLOOR UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-50030 |
USF4# |
2 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-50030 |
USF4# |
2 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-50030 |
USF4# |
2 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-50030 |
USF4# |
2 | ||
| 58137A - SEAL, FRONT FLOOR HOLE | ||||
| 58137-50011 |
USF4# NO.2 |
6 | ||
| 58137-50011 |
USF4# NO.1 |
2 | ||
| 58137-50011 |
USF4#..EUR NO.2 |
6 | ||
| 58137A - SEAL, FRONT FLOOR HOLE | ||||
| 58137-50011 |
USF4# NO.2 |
6 | ||
| 58137-50011 |
USF4# NO.1 |
2 | ||
| 58137-50011 |
USF4#..EUR NO.2 |
6 | ||
| 58137A - SEAL, FRONT FLOOR HOLE | ||||
| 58137-50011 |
USF4# NO.2 |
6 | ||
| 58137-50011 |
USF4# NO.1 |
2 | ||
| 58137-50011 |
USF4#..EUR NO.2 |
6 | ||
| 58137A - SEAL, FRONT FLOOR HOLE | ||||
| 58137-50011 |
USF4# NO.2 |
6 | ||
| 58137-50011 |
USF4# NO.1 |
2 | ||
| 58137-50011 |
USF4#..EUR NO.2 |
6 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-50032 |
USF41 |
1 | ||
| 58165-50033 |
USF41 |
1 | ||
| 58165-50031 |
USF41 |
1 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-50032 |
USF41 |
1 | ||
| 58165-50033 |
USF41 |
1 | ||
| 58165-50031 |
USF41 |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-50031 |
USF41 |
1 | ||
| 58166-50033 |
USF41 |
1 | ||
| 58166-50032 |
USF41 |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-50031 |
USF41 |
1 | ||
| 58166-50033 |
USF41 |
1 | ||
| 58166-50032 |
USF41 |
1 | ||
| 58177A - EXTENSION, FRONT FLOOR PANEL, RH | ||||
| 58177-50010 |
USF41 |
1 | ||
| 58178A - EXTENSION, FRONT FLOOR PANEL, LH | ||||
| 58178-50010 |
USF41 |
1 | ||
| Common parts | ||||
| 58125-50010 | ||||
| 58126-50010 | ||||
| 90109-06375 | ||||
| 90179-06083 | ||||
| 90467-10162 | ||||
| 90480-10024 | ||||
| 90561-10021 | ||||
| Linked diagrams | ||||
| 5701 | ||||
ILLUST NO. 2 OF 3(0608- )USF40,41
Click highlighted areas on diagram

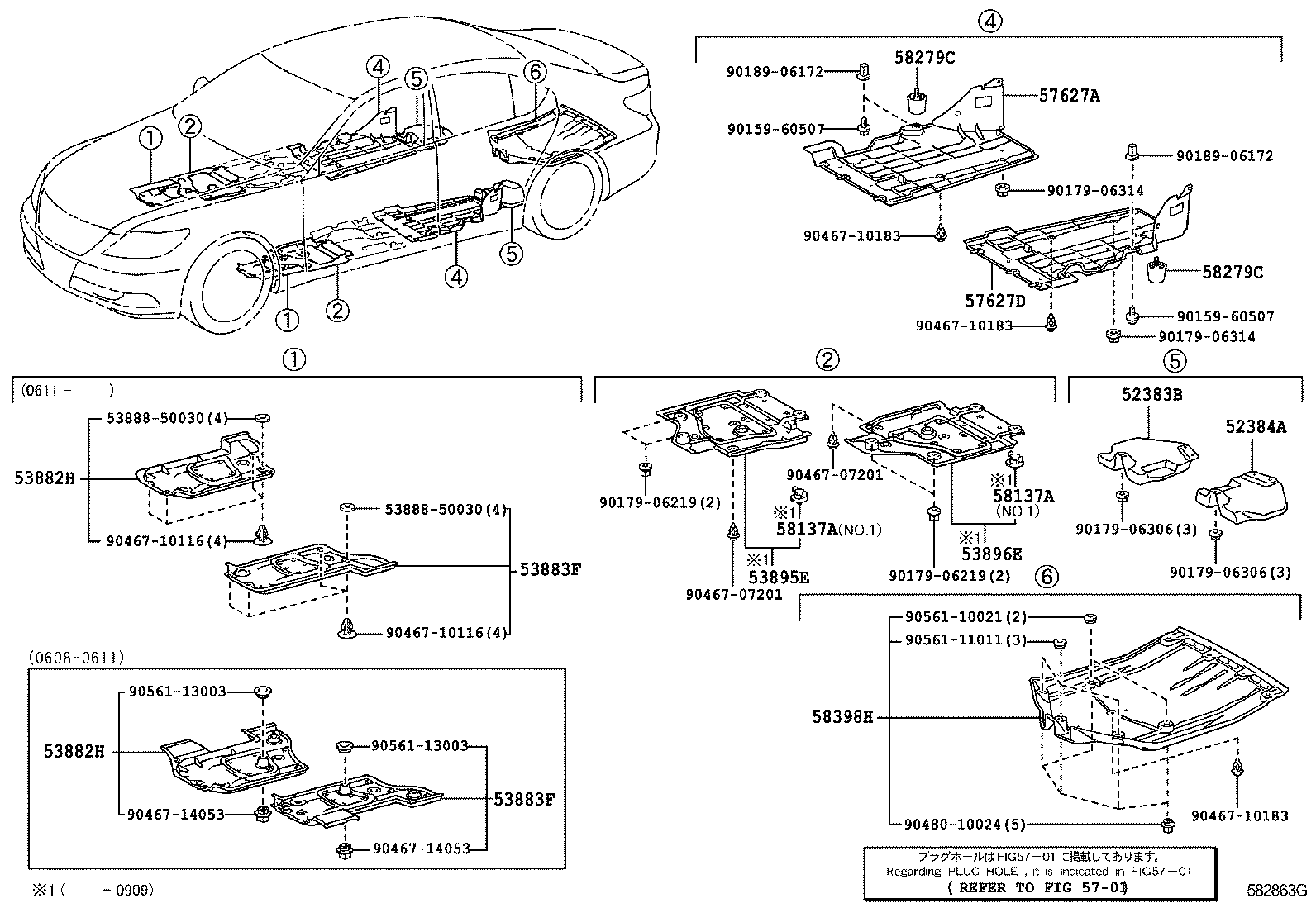

FLOOR UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52383B - PROTECTOR, DIFFERENTIAL SUPPORT, NO.1 | ||||
| 52383-50020 |
USF4# |
1 | ||
| 52384A - PROTECTOR, DIFFERENTIAL SUPPORT, NO.2 | ||||
| 52384-50020 |
USF4# |
1 | ||
| 53882H - SEAL, FRONT FENDER MAIN, RH | ||||
| 53882-50031 |
USF4# |
1 | ||
| 53882-50032 |
USF4# |
1 | ||
| 53882H - SEAL, FRONT FENDER MAIN, RH | ||||
| 53882-50031 |
USF4# |
1 | ||
| 53882-50032 |
USF4# |
1 | ||
| 53883F - SEAL, FRONT FENDER MAIN, LH | ||||
| 53883-50021 |
USF4# |
1 | ||
| 53883-50022 |
USF4# |
1 | ||
| 53883F - SEAL, FRONT FENDER MAIN, LH | ||||
| 53883-50021 |
USF4# |
1 | ||
| 53883-50022 |
USF4# |
1 | ||
| 53895E - SHIELD, FRONT FENDER SPLASH, FRONT RH | ||||
| 53885-50021 |
USF4# |
1 | ||
| 53896E - SHIELD, FRONT FENDER SPLASH, FRONT LH | ||||
| 53886-50021 |
USF4# |
1 | ||
| 57627A - COVER, REAR FLOOR SIDE MEMBER, RH | ||||
| 57627-50020 |
USF4# |
1 | ||
| 57627D - COVER, REAR FLOOR SIDE MEMBER | ||||
| 57628-50030 |
USF4# |
1 | ||
| 58137A - SEAL, FRONT FLOOR HOLE | ||||
| 58137-50011 |
USF4# NO.2 |
6 | ||
| 58137-50011 |
USF4# NO.1 |
2 | ||
| 58137-50011 |
USF4#..EUR NO.2 |
6 | ||
| 58137A - SEAL, FRONT FLOOR HOLE | ||||
| 58137-50011 |
USF4# NO.2 |
6 | ||
| 58137-50011 |
USF4# NO.1 |
2 | ||
| 58137-50011 |
USF4#..EUR NO.2 |
6 | ||
| 58279C - PROTECTOR, FUEL TANK, UPPER NO.2 | ||||
| 58279-50050 |
USF4# |
2 | ||
| 58279-50030 |
USF4# |
2 | ||
| 58279C - PROTECTOR, FUEL TANK, UPPER NO.2 | ||||
| 58279-50050 |
USF4# |
2 | ||
| 58279-50030 |
USF4# |
2 | ||
| 58398H - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-50010 |
USF4# |
1 | ||
| Common parts | ||||
| 53888-50030 | ||||
| 90159-60507 | ||||
| 90179-06219 | ||||
| 90179-06306 | ||||
| 90179-06314 | ||||
| 90189-06172 | ||||
| 90467-07201 | ||||
| 90467-10116 | ||||
| 90467-10183 | ||||
| 90467-14053 | ||||
| 90480-10024 | ||||
| 90561-10021 | ||||
| 90561-11011 | ||||
| 90561-13003 | ||||
| Linked diagrams | ||||
| 5701 | ||||
