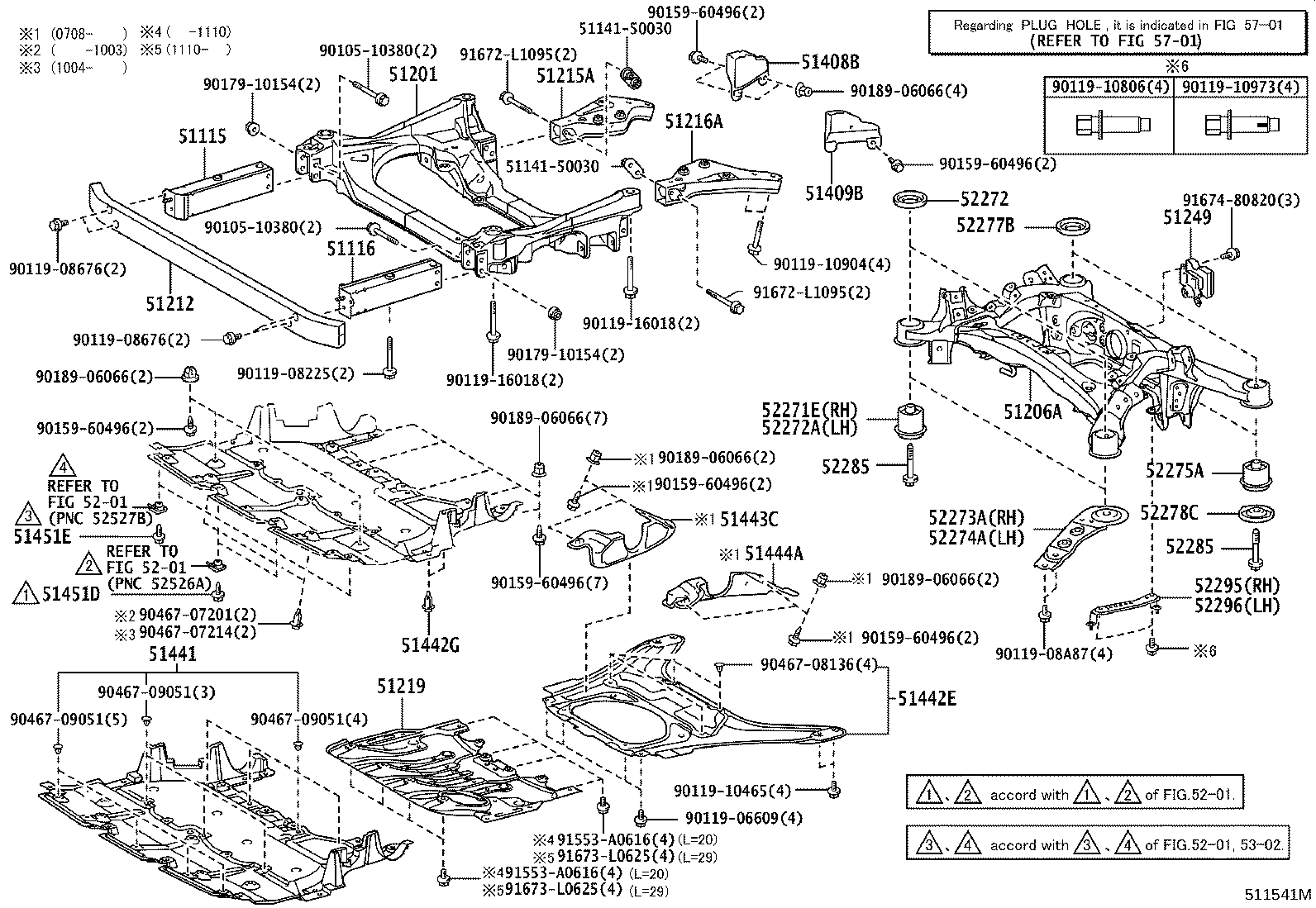

Toyota Lexus ls460/460l USF41 SUSPENSION CROSSMEMBER & UNDER COVER

Part #	Description	Period	Qty
51115 - RAIL, FRAME SIDE, REAR RH
51107-50021	USF4#	03/2007 - 09/2008	1
51107-50020	USF4#	08/2006 - 03/2007	1
51116 - RAIL, FRAME SIDE, REAR LH
51108-50020	USF4#	08/2006 - 03/2007	1
51108-50021	USF4#	03/2007 - 09/2008	1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-50040	USF4#	08/2006 - 09/2008	1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-50050	USF4#	08/2006 - 09/2008	1
51212 - CROSSMEMBER, FRONT SUSPENSION, LOWER
51212-50030	USF4#	08/2006 - 02/2007	1
51212-50031	USF4#	03/2007 - 09/2008	1
51215A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH
57305-50010	USF4#	08/2006 - 09/2008	1
51216A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH
57306-50010	USF4#	08/2006 - 09/2008	1
51219 - PROTECTOR, FRONT SUSPENSION MEMBER, LWR
51219-50020	USF4#	08/2006 - 09/2008	1
51249 - DAMPER, REAR SUSPENSION MEMBER
51249-50030	USF4#	08/2006 - 09/2008	1
51408B - COVER SUB-ASSY, ENGINE UNDER, RH
53747-50020	USF4#	08/2006 - 09/2008	1
51409B - COVER SUB-ASSY, ENGINE UNDER, LH
53748-50020	USF4#	08/2006 - 09/2008	1
51441 - COVER, ENGINE UNDER, NO.1
51440-50040	USF4#	08/2006 - 09/2008	1
51442E - COVER, ENGINE UNDER, NO.2
51420-50020	USF4#	08/2006 - 09/2008	1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07166	USF4#	08/2006 - 09/2008	5
51443C - COVER, ENGINE UNDER, REAR RH
51443-50041	USF4#	08/2007 - 09/2008	1
51444A - COVER, ENGINE UNDER, REAR LH
51444-50041	USF4#	08/2007 - 09/2008	1
51451D - SCREW, NO.1
90159-60477	USF4#	08/2006 - 09/2008	2
51451E - SCREW, NO.2
90159-60477	USF4#	08/2006 - 09/2008	2
52271E - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH
52271-50060	USF4#	08/2006 - 09/2008	1
52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER
52278-50030	USF4#	08/2006 - 09/2008	2
52272A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH
52272-50010	USF4#	08/2006 - 09/2008	1
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52273-50030	USF4#	08/2006 - 09/2008	1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52274-50030	USF4#	08/2006 - 09/2008	1
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-50071	USF4#	08/2006 - 09/2008	2
52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52277-50031	USF4#	08/2006 - 09/2008	2
52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52274-50020	USF4#	08/2006 - 09/2008	2
52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285-30021	USF4#	08/2006 - 09/2008	4
52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285-30021	USF4#	08/2006 - 09/2008	4
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-50030	USF4#	08/2006 - 09/2008	1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52295-50030	USF4#	08/2006 - 09/2008	1
Common parts
51141-50030
90105-10380
90119-06609
90119-08225
90119-08676
90119-08A87
90119-10465
90119-10806
90119-10904
90119-10973
90119-16018
90159-60496
90179-10154
90189-06066
90467-07201
90467-07214
90467-08136
90467-09051
91553-A0616
91672-L1095
91673-L0625
91674-80820
Linked diagrams
5201
5701

USF41R-AEZGHW (2006)

(0608- )USF40,41
