USF41R-AEZGHW (2006)
Toyota Lexus Ls460/460l

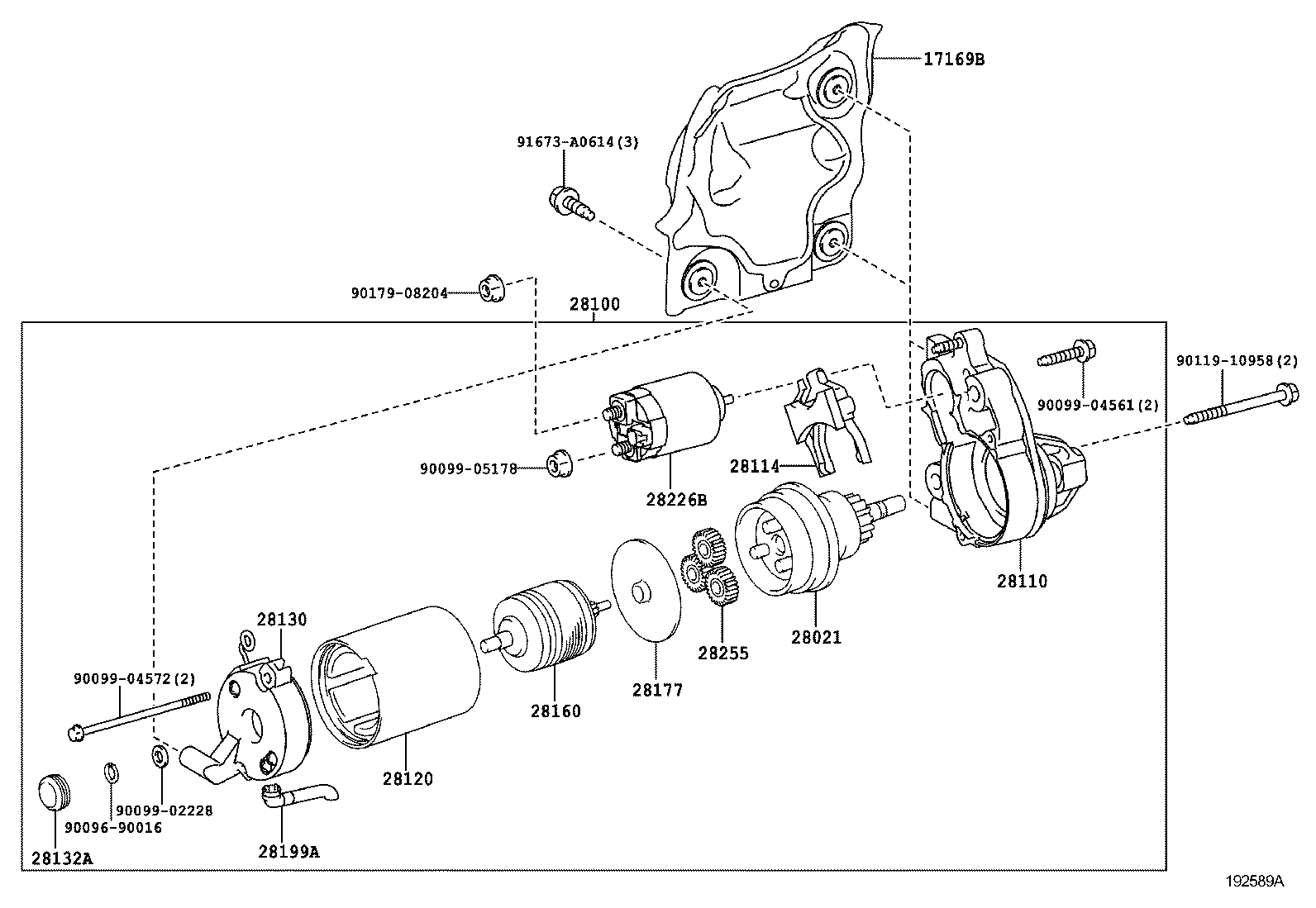

(0608-0809)1URFE..GCC ; (0608-0809)1URFSE..RHD
12V 1.6KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17169B - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 | ||||
| 17169-38020 |
1UR#..USF4# |
1 | ||
| 17169-38030 |
1UR#..USF4# |
1 | ||
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-38020 |
1URFSE..USF41..RHD ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
1 | ||
| 28021-73020 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-38020 |
1URFSE..USF41..RHD 12V 2.0KW,ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
1 | ||
| 28100-38030 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD 12V 1.6KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-38030 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
1 | ||
| 28110-38020 |
1URFSE..USF41..RHD ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-21060 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
1 | ||
| 28114-38020 |
1URFSE..USF41..RHD ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-28040 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
1 | ||
| 28120-38020 |
1URFSE..USF41..RHD ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
1 | ||
| 28120-28060 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-38030 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
1 | ||
| 28130-38020 |
1URFSE..USF41..RHD ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
1 | ||
| 28132A - COVER, STARTER COMMUTATOR END FRAME | ||||
| 28132-28040 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-21060 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
1 | ||
| 28160-38020 |
1URFSE..USF41..RHD ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-28040 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
1 | ||
| 28177-38020 |
1URFSE..USF41..RHD ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-38030 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
1 | ||
| 28199-40070 |
1URFSE..USF41..RHD ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
1 | ||
| 28226B - STARTER KIT, REPAIR SERVICE | ||||
| 28226-38030 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-20020 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
3 | ||
| 28255-38020 |
1URFSE..USF41..RHD ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
3 | ||
| Common parts | ||||
| 90096-90016 | ||||
| 90099-02228 | ||||
| 90099-04561 | ||||
| 90099-04572 | ||||
| 90099-05178 | ||||
| 90119-10958 | ||||
| 90179-08204 | ||||
| 91673-A0614 | ||||

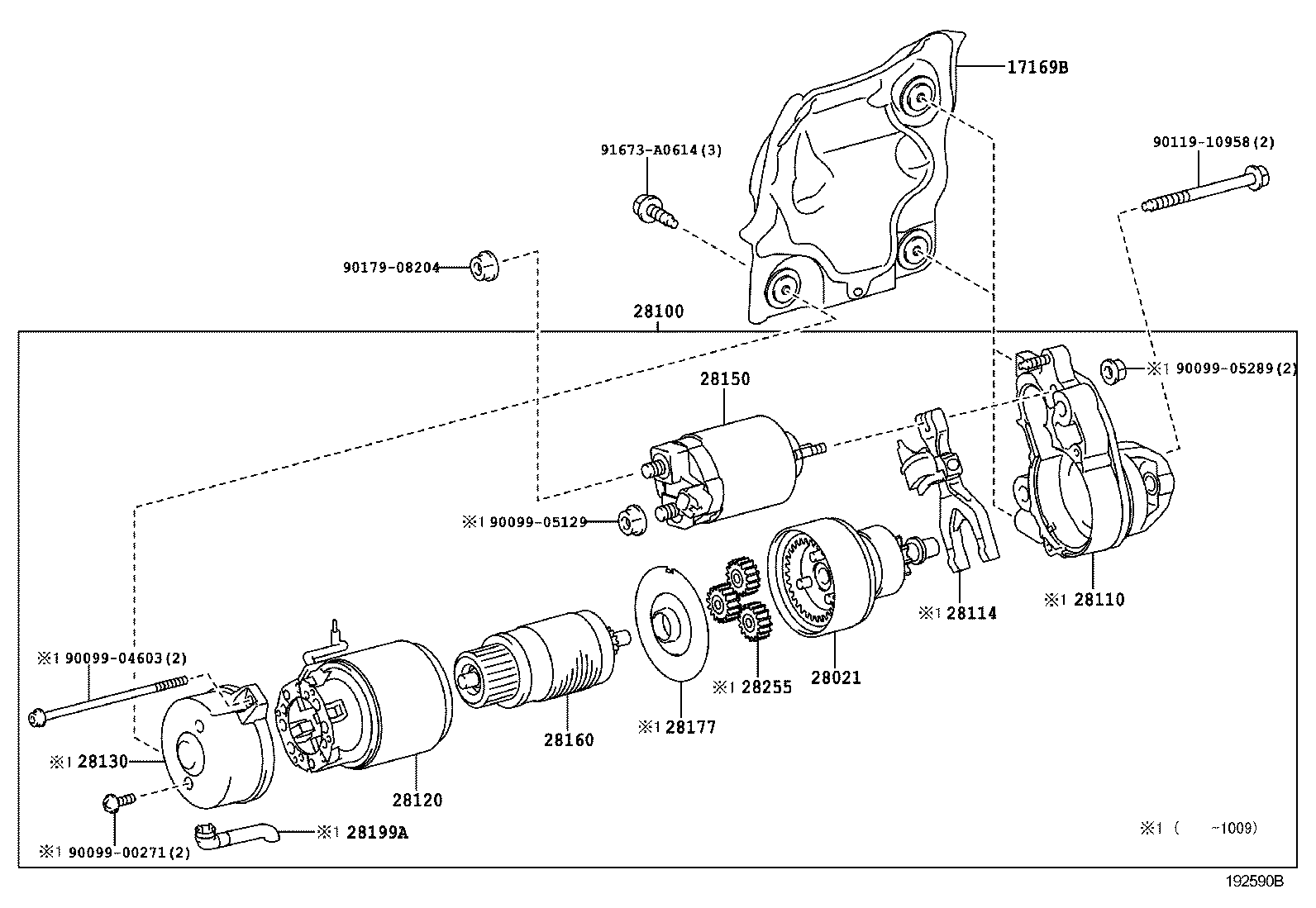

(0608-0809)1UR#..EUR ; (0809- )1UR#..USF40,41
12V 2.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17169B - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 | ||||
| 17169-38020 |
1UR#..USF4# |
1 | ||
| 17169-38030 |
1UR#..USF4# |
1 | ||
| 28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING | ||||
| 28021-38020 |
1URFSE..USF41..RHD ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
1 | ||
| 28021-73020 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-38020 |
1URFSE..USF41..RHD 12V 2.0KW,ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
1 | ||
| 28100-38030 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD 12V 1.6KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-38030 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
1 | ||
| 28110-38020 |
1URFSE..USF41..RHD ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-21060 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
1 | ||
| 28114-38020 |
1URFSE..USF41..RHD ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-28040 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
1 | ||
| 28120-38020 |
1URFSE..USF41..RHD ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
1 | ||
| 28120-28060 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-38030 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
1 | ||
| 28130-38020 |
1URFSE..USF41..RHD ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-38020 |
1URFSE..USF41..RHD ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-21060 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
1 | ||
| 28160-38020 |
1URFSE..USF41..RHD ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-28040 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
1 | ||
| 28177-38020 |
1URFSE..USF41..RHD ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-38030 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
1 | ||
| 28199-40070 |
1URFSE..USF41..RHD ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-20020 |
1URFE..USF4#..GCC;1URFSE..USF41..RHD |
3 | ||
| 28255-38020 |
1URFSE..USF41..RHD ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&BATTERY-105D31L |
3 | ||
| Common parts | ||||
| 90099-00271 | ||||
| 90099-04603 | ||||
| 90099-05129 | ||||
| 90099-05289 | ||||
| 90119-10958 | ||||
| 90179-08204 | ||||
| 91673-A0614 | ||||
