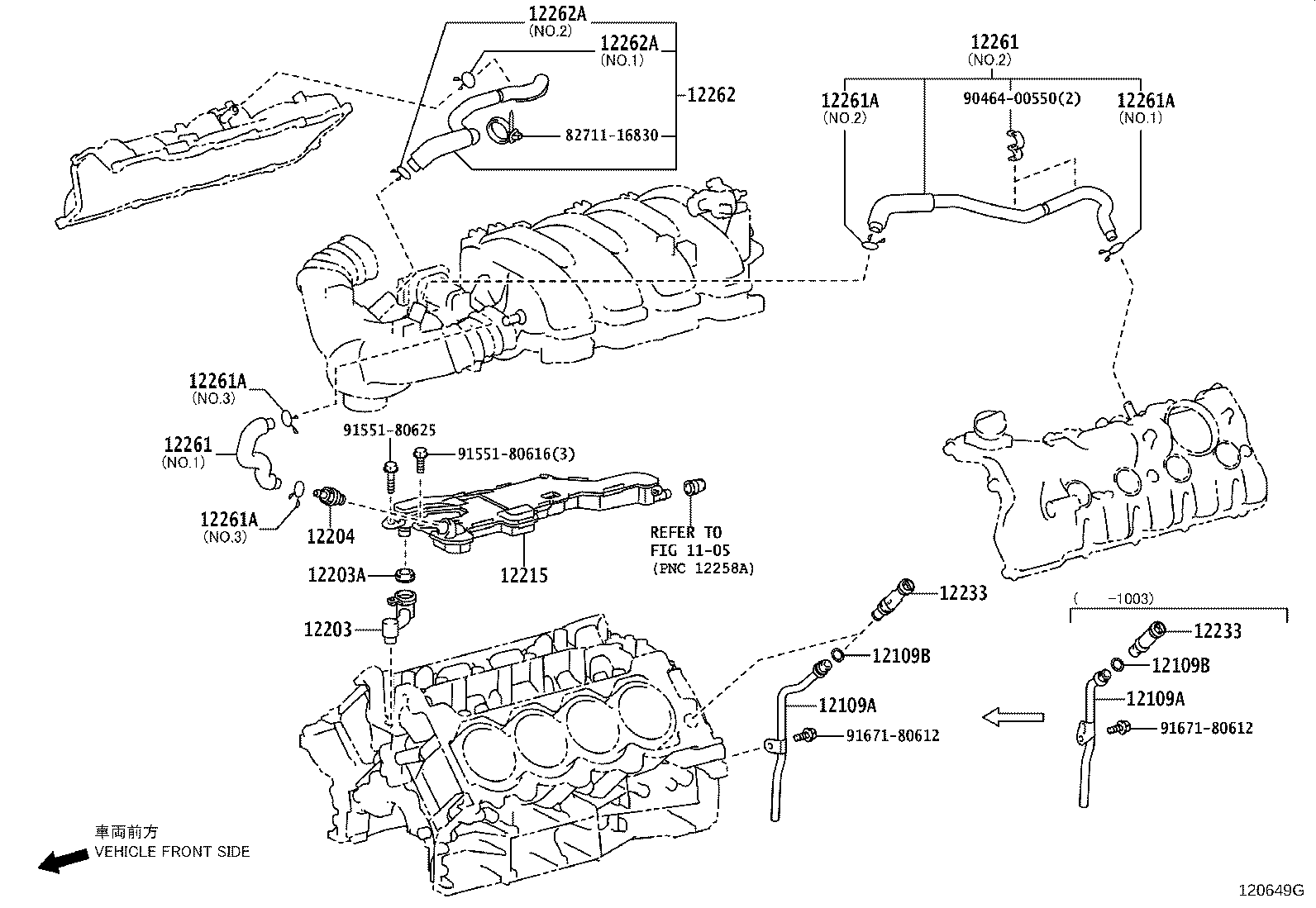

Toyota Lexus ls460/460l USF41 VENTILATION HOSE

Part #	Description	Period	Qty
12109A - PIPE SUB-ASSY, OIL DRAIN
12109-38010	1UR#..USF4#	08/2006 - 09/2008	1
12109A - PIPE SUB-ASSY, OIL DRAIN
12109-38010	1UR#..USF4#	08/2006 - 09/2008	1
12109B - RING, O(FOR OIL DRAIN PIPE)
96723-19010	1UR#..USF4#	08/2006 - 09/2008	1
12109B - RING, O(FOR OIL DRAIN PIPE)
96723-19010	1UR#..USF4#	08/2006 - 09/2008	1
12203 - PIPE SUB-ASSY, VENTILATION
12203-38010	1UR#..USF4#	08/2006 - 09/2008	1
12203A - GASKET(FOR VENTILATION PIPE)
12273-38020	1UR#..USF4#	08/2006 - 09/2008	1
12204 - VALVE SUB-ASSY, VENTILATION
12204-38010	1UR#..USF4#	08/2006 - 09/2008	1
12215 - SEPARATOR, CASE
12215-38020	1UR#..USF4#	08/2006 - 09/2008	1
12233 - CONNECTOR, VENTILATION NO.1
12233-38020	1UR#..USF4#	08/2006 - 09/2008	1
12233 - CONNECTOR, VENTILATION NO.1
12233-38020	1UR#..USF4#	08/2006 - 09/2008	1
12261 - HOSE, VENTILATION
12261-38040	1UR#..USF4# NO.1	08/2006 - 09/2008	1
12261-38030	1UR#..USF4# NO.2	08/2006 - 09/2008	1
12261 - HOSE, VENTILATION
12261-38040	1UR#..USF4# NO.1	08/2006 - 09/2008	1
12261-38030	1UR#..USF4# NO.2	08/2006 - 09/2008	1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017	1UR#..USF4# NO.3	08/2006 - 09/2008	2
90467-17126	1UR#..USF4# NO.1	08/2006 - 09/2008	1
90467-21004	1UR#..USF4# NO.2	08/2006 - 09/2008	1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017	1UR#..USF4# NO.3	08/2006 - 09/2008	2
90467-17126	1UR#..USF4# NO.1	08/2006 - 09/2008	1
90467-21004	1UR#..USF4# NO.2	08/2006 - 09/2008	1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017	1UR#..USF4# NO.3	08/2006 - 09/2008	2
90467-17126	1UR#..USF4# NO.1	08/2006 - 09/2008	1
90467-21004	1UR#..USF4# NO.2	08/2006 - 09/2008	1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017	1UR#..USF4# NO.3	08/2006 - 09/2008	2
90467-17126	1UR#..USF4# NO.1	08/2006 - 09/2008	1
90467-21004	1UR#..USF4# NO.2	08/2006 - 09/2008	1
12262 - HOSE, VENTILATION, NO.2
12262-38030	1UR#..USF4#	08/2006 - 09/2008	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17126	1UR#..USF4# NO.1	08/2006 - 09/2008	1
90467-21004	1UR#..USF4# NO.2	08/2006 - 09/2008	1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17126	1UR#..USF4# NO.1	08/2006 - 09/2008	1
90467-21004	1UR#..USF4# NO.2	08/2006 - 09/2008	1
Common parts
82711-16830
90464-00550
91551-80616
91551-80625
91671-80612
Linked diagrams
1105

USF41R-AEZGHW (2006)

(0608- )
