USF41R-AEZGHW (2006)

Toyota Lexus Ls460/460l

Production Aug 2006 - Sep 2008
Engine 1URFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0608- )

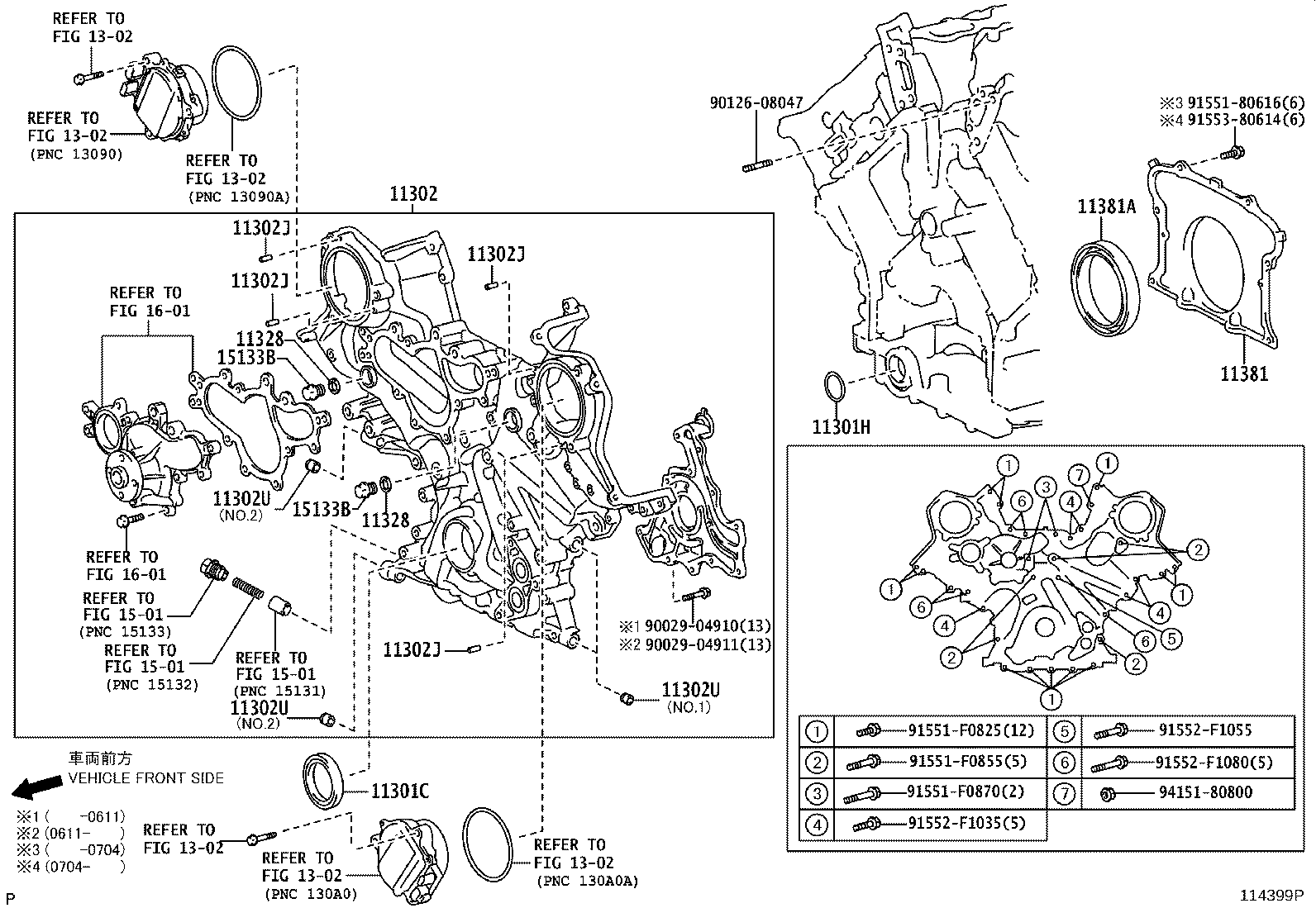

Click highlighted areas on diagram

diagram 11301C 11301H 11302 11302J 11302J 11302J 11302J 11302U 11302U 11302U 11328 11328 11381 11381A 1302 1302 1302 1302 1302 1302 1501 1501 1501 15133B 15133B 1601 1601 9002904910 9002904911 9012608047 9155180616 91551F0825 91551F0855 91551F0870 91552F1035 91552F1055 91552F1080 9155380614 9415180800
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42036

1UR#..USF4#

 1
11301H - RING, O(FOR TIMING GEAR CASE, LOWER)
90301-35006

1UR#..USF4#

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-38070

1UR#..USF4#

 1
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-04097

1UR#..USF4#

 4
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-04097

1UR#..USF4#

 4
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-04097

1UR#..USF4#

 4
11302J - PIN, STRAIGHT(FOR TIMING CHAIN COVER)
90250-04097

1UR#..USF4#

 4
11302U - PIN, RING
90253-13017

1UR#..USF4#

NO.2

 2
90253-11021

1UR#..USF4#

NO.1

 2
11302U - PIN, RING
90253-13017

1UR#..USF4#

NO.2

 2
90253-11021

1UR#..USF4#

NO.1

 2
11302U - PIN, RING
90253-13017

1UR#..USF4#

NO.2

 2
90253-11021

1UR#..USF4#

NO.1

 2
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-38030

1UR#..USF4#

 2
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-38030

1UR#..USF4#

 2
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-38020

1UR#..USF4#

 1
11381A - SEAL, ENGINE REAR OIL
90311-95013

1UR#..USF4#

 1
15133B - PLUG, OIL PUMP RELIEF VALVE
15133-38071

1UR#..USF4#

 2
15133B - PLUG, OIL PUMP RELIEF VALVE
15133-38071

1UR#..USF4#

 2
Common parts
90029-04910
90029-04911
90126-08047
91551-80616
91551-F0825
91551-F0855
91551-F0870
91552-F1035
91552-F1055
91552-F1080
91553-80614
94151-80800
Linked diagrams
1302
1501
1601
