USF41L-AEZGKV (2006)

Toyota Lexus Ls460/460l

Production Dec 2006 - Sep 2008
Engine 1URFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0608-0811)

Click highlighted areas on diagram

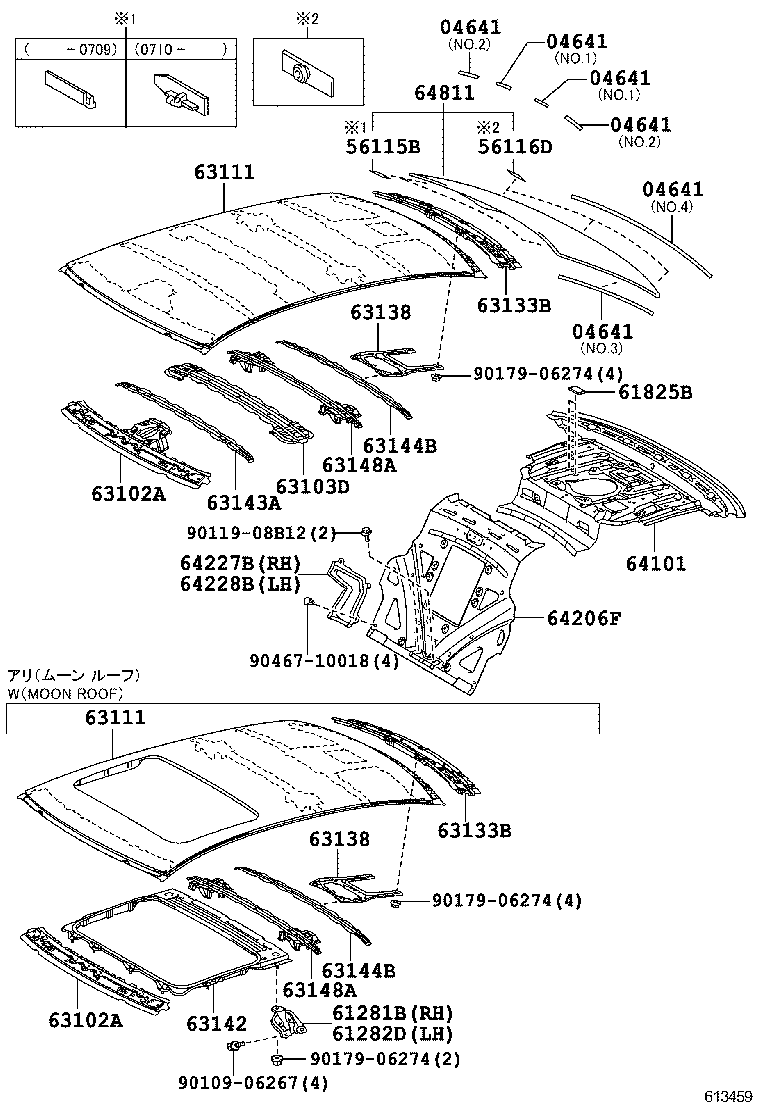

ROOF PANEL

diagram 04641 04641 04641 04641 04641 04641 56115B 56116D 61281B 61282D 61825B 63102A 63102A 63103D 63111 63111 63133B 63133B 63138 63138 63142 63143A 63144B 63144B 63148A 63148A 64101 64206F 64227B 64228B 64811 9010906267 9011908B12 9017906274 9017906274 9017906274 9046710018
Part # Description Qty Price
04641 - DAM KIT, BACK WINDOW GLASS
75573-50060

USF4#

NO.2 LH

 1
75573-50050

USF4#

NO.2 RH

 1
56118-50060

USF4#

NO.4

 1
75573-50040

USF4#

NO.1

 2
56118-50050

USF4#

NO.3

 2
04641 - DAM KIT, BACK WINDOW GLASS
75573-50060

USF4#

NO.2 LH

 1
75573-50050

USF4#

NO.2 RH

 1
56118-50060

USF4#

NO.4

 1
75573-50040

USF4#

NO.1

 2
56118-50050

USF4#

NO.3

 2
04641 - DAM KIT, BACK WINDOW GLASS
75573-50060

USF4#

NO.2 LH

 1
75573-50050

USF4#

NO.2 RH

 1
56118-50060

USF4#

NO.4

 1
75573-50040

USF4#

NO.1

 2
56118-50050

USF4#

NO.3

 2
04641 - DAM KIT, BACK WINDOW GLASS
75573-50060

USF4#

NO.2 LH

 1
75573-50050

USF4#

NO.2 RH

 1
56118-50060

USF4#

NO.4

 1
75573-50040

USF4#

NO.1

 2
56118-50050

USF4#

NO.3

 2
04641 - DAM KIT, BACK WINDOW GLASS
75573-50060

USF4#

NO.2 LH

 1
75573-50050

USF4#

NO.2 RH

 1
56118-50060

USF4#

NO.4

 1
75573-50040

USF4#

NO.1

 2
56118-50050

USF4#

NO.3

 2
04641 - DAM KIT, BACK WINDOW GLASS
75573-50060

USF4#

NO.2 LH

 1
75573-50050

USF4#

NO.2 RH

 1
56118-50060

USF4#

NO.4

 1
75573-50040

USF4#

NO.1

 2
56118-50050

USF4#

NO.3

 2
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-50070

USF4#

 2
56115-30100

USF4#

 2
56115-30100

USF4#

 2
56116D - STOPPER, BACK WINDOW GLASS, NO.2
56116-50030

USF4#

 3
61281B - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
61281-50060

USF40;USF41..LHD

MOON ROOF-WITH

 1
61282D - BRACKET, SLIDING ROOF HOUSUNG SIDE MOUNTING, NO.2
61282-50020

USF40;USF41..LHD

MOON ROOF-WITH

 1
61825B - PLATE, NOISE CONTROL, NO.2
61825-22050

USF4#

 2
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-50903

USF40;USF41..LHD

 1
63102-50902

USF40;USF41..LHD

MOON ROOF-WITH

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-50903

USF40;USF41..LHD

 1
63102-50902

USF40;USF41..LHD

MOON ROOF-WITH

 1
63103D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3
63103-50020

USF40;USF41..LHD

 1
63103-50021

USF40;USF41..LHD

 1
63111 - PANEL, ROOF
63111-50100

USF41..LHD

MOON ROOF-WITH

 1
63111-50090

USF41..LHD

 1
63111 - PANEL, ROOF
63111-50100

USF41..LHD

MOON ROOF-WITH

 1
63111-50090

USF41..LHD

 1
63133B - FRAME, BACK WINDOW
63133-50040

USF4#

 1
63133B - FRAME, BACK WINDOW
63133-50040

USF4#

 1
63138 - BRACKET, DOME LAMP, NO.2
63138-50011

USF4#

 1
63138-50010

USF4#

 1
63138 - BRACKET, DOME LAMP, NO.2
63138-50011

USF4#

 1
63138-50010

USF4#

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-50040

USF40;USF41..LHD

MOON ROOF-WITH

 1
63143A - REINFORCEMENT, ROOF PANEL
63143-50040

USF40;USF41..LHD

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63144-50030

USF4#

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63144-50030

USF4#

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63104-50020

USF40;USF41..LHD

 1
63148-50040

USF40;USF41..LHD

MOON ROOF-WITH

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63104-50020

USF40;USF41..LHD

 1
63148-50040

USF40;USF41..LHD

MOON ROOF-WITH

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-50200

USF4#..GCC;USF41..RHD

 1
64206F - PANEL SUB-ASSY, ROOM PARTITION
64206-50040

USF4#

 1
64227B - EXTENSION, CENTER FLOOR TO BLACE, NO.1
64227-50040

USF4#

 1
64228B - EXTENSION, CENTER FLOOR TO BRACE, NO.2
64228-50040

USF4#

 1
64811 - GLASS, BACK WINDOW
64810-50903

USF4#

*UVCEHT,T=5.0,GREEN

 1
64810-50912

USF4#

*UVCEHT,T=5.0,GREEN

 1
64810-50916

USF4#

*UVCT,T=5.0,GREEN

 1
64810-50917

USF4#

*UVCEHT,T=5.0,GREEN

 1
Common parts
90109-06267
90119-08B12
90179-06274
90467-10018
