USF41L-AEZGHW (2006)
Toyota Lexus Ls460/460l
ILLUST NO. 2 OF 5(0608- )
REAR CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 5(0608- )LHD

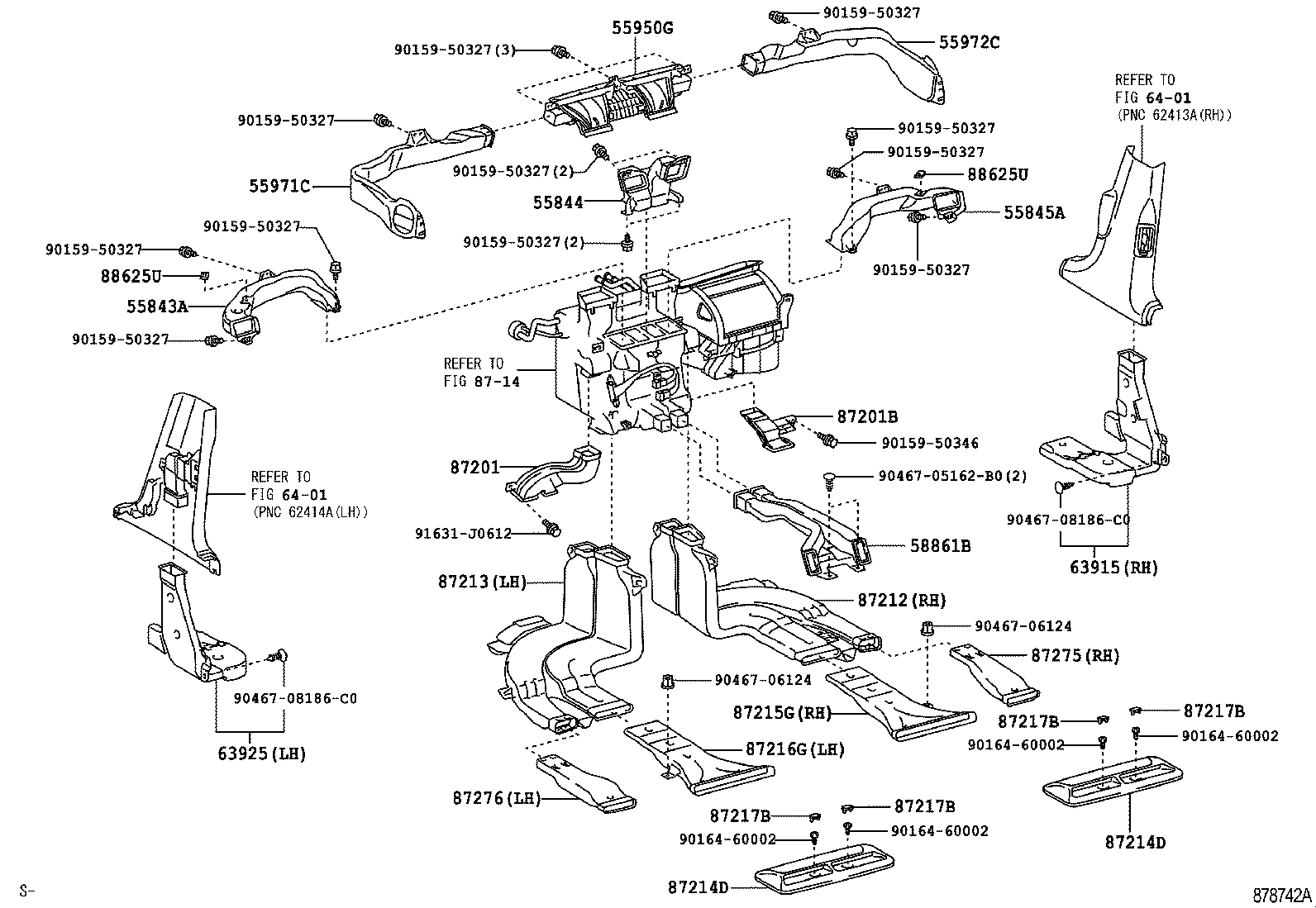

FRONT AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-50070 |
USF4#..LHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-50090 |
USF4# |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-50080 |
USF4#..LHD |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-50030 |
USF4# |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-50080 |
USF4#..LHD |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-50060 |
USF4#..LHD |
1 | ||
| 58861B - DUCT, CONSOLE BOX, NO.1 | ||||
| 58861-50050 |
USF4#..LHD |
1 | ||
| 63915 - DUCT, COOLER, INNER NO.1 RH | ||||
| 63930-50010 |
USF4# |
1 | ||
| 63925 - DUCT, COOLER, INNER NO.1 LH | ||||
| 63940-50010 |
USF4# |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87211-50110 |
USF4#..LHD |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87211-50120 |
USF4#..LHD |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-50050 |
USF4# |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-50050 |
USF4# |
1 | ||
| 87214D - DUCT, AIR, REAR NO.3 | ||||
| 87217-50060A1 |
USF4# MELLOW WHITE,TRIM01 |
2 | ||
| 87217-50060A0 |
USF4# IVORY,TRIM00 |
2 | ||
| 87217-50060B0 |
USF4# LT.GRAY,TRIM1# |
2 | ||
| 87217-50060C0 |
USF4# BLACK,TRIM2# |
2 | ||
| 87214D - DUCT, AIR, REAR NO.3 | ||||
| 87217-50060A1 |
USF4# MELLOW WHITE,TRIM01 |
2 | ||
| 87217-50060A0 |
USF4# IVORY,TRIM00 |
2 | ||
| 87217-50060B0 |
USF4# LT.GRAY,TRIM1# |
2 | ||
| 87217-50060C0 |
USF4# BLACK,TRIM2# |
2 | ||
| 87215G - GUIDE, AIR DUCT, REAR RH | ||||
| 87215-50060 |
USF4# |
1 | ||
| 87216G - GUIDE, AIR DUCT, REAR LH | ||||
| 87216-50030 |
USF4# |
1 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693A4 |
USF4# NEW IVORY,TRIM00 |
4 | ||
| 90950-0169322 |
USF4# BLACK,TRIM2# |
4 | ||
| 90950-01693A6 |
USF4# MELLOW WHITE,TRIM01 |
4 | ||
| 90950-01693B9 |
USF4# LT.GRAY,TRIM1# |
4 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693A4 |
USF4# NEW IVORY,TRIM00 |
4 | ||
| 90950-0169322 |
USF4# BLACK,TRIM2# |
4 | ||
| 90950-01693A6 |
USF4# MELLOW WHITE,TRIM01 |
4 | ||
| 90950-01693B9 |
USF4# LT.GRAY,TRIM1# |
4 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693A4 |
USF4# NEW IVORY,TRIM00 |
4 | ||
| 90950-0169322 |
USF4# BLACK,TRIM2# |
4 | ||
| 90950-01693A6 |
USF4# MELLOW WHITE,TRIM01 |
4 | ||
| 90950-01693B9 |
USF4# LT.GRAY,TRIM1# |
4 | ||
| 87217B - PLUG, AIR DUCT | ||||
| 90950-01693A4 |
USF4# NEW IVORY,TRIM00 |
4 | ||
| 90950-0169322 |
USF4# BLACK,TRIM2# |
4 | ||
| 90950-01693A6 |
USF4# MELLOW WHITE,TRIM01 |
4 | ||
| 90950-01693B9 |
USF4# LT.GRAY,TRIM1# |
4 | ||
| 87275 - DUCT, FLOOR HEATER AIR, NO.1 RH | ||||
| 87277-50010 |
USF4# |
1 | ||
| 87276 - DUCT, FLOOR HEATER AIR, NO.1 LH | ||||
| 87278-50010 |
USF4# |
1 | ||
| 88625U - THERMISTOR, COOLER (DUCT SENSOR) | ||||
| 88625-50130 |
USF4# |
2 | ||
| 88625U - THERMISTOR, COOLER (DUCT SENSOR) | ||||
| 88625-50130 |
USF4# |
2 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90159-50346 | ||||
| 90164-60002 | ||||
| 90467-05162B0 | ||||
| 90467-06124 | ||||
| 90467-08186C0 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 6401 | ||||
| 8714 | ||||
ILLUST NO. 4 OF 5(0608-0809)
REAR AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62971B - DUCT, ROOF SIDE AIR, NO.1 RH | ||||
| 62971-50050 |
USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE |
1 | ||
| 62972C - DUCT, ROOF SIDE AIR, NO.1 LH | ||||
| 62972-50050 |
USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE |
1 | ||
| 62973 - DUCT, ROOF SIDE AIR, NO.2 RH | ||||
| 62973-50020 |
USF40..EUR;USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE |
1 | ||
| 62974 - DUCT, ROOF SIDE AIR, NO.2 LH | ||||
| 62974-50020 |
USF40..EUR;USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE |
1 | ||
| 87212H - DUCT, AIR, REAR NO.4 | ||||
| 87211-50180 |
USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE |
1 | ||
| 87211-50180 |
USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 87212J - DUCT, AIR, REAR NO.5 | ||||
| 87211-50170 |
USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 87211-50170 |
USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE |
1 | ||
| 88576C - DUCT, COOLER AIR, NO.1 | ||||
| 88576-50160 |
USF41..LHD VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 88576-50160 |
USF41..LHD VERSION U OR VERSION U I PACKAGE |
1 | ||
| 88576-50180 |
USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE |
1 | ||
| 88576-50180 |
USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 88576D - DUCT, COOLER AIR, NO.2 | ||||
| 88576-50170 |
USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE |
1 | ||
| 88576-50170 |
USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 88608F - HARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2 | ||||
| 88608-50350 |
USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 88608-50350 |
USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE |
1 | ||
| Common parts | ||||
| 90467-05017C0 | ||||
| 90467-0504522 | ||||
| 90467-05162C0 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 5 OF 5(0608- )LHD

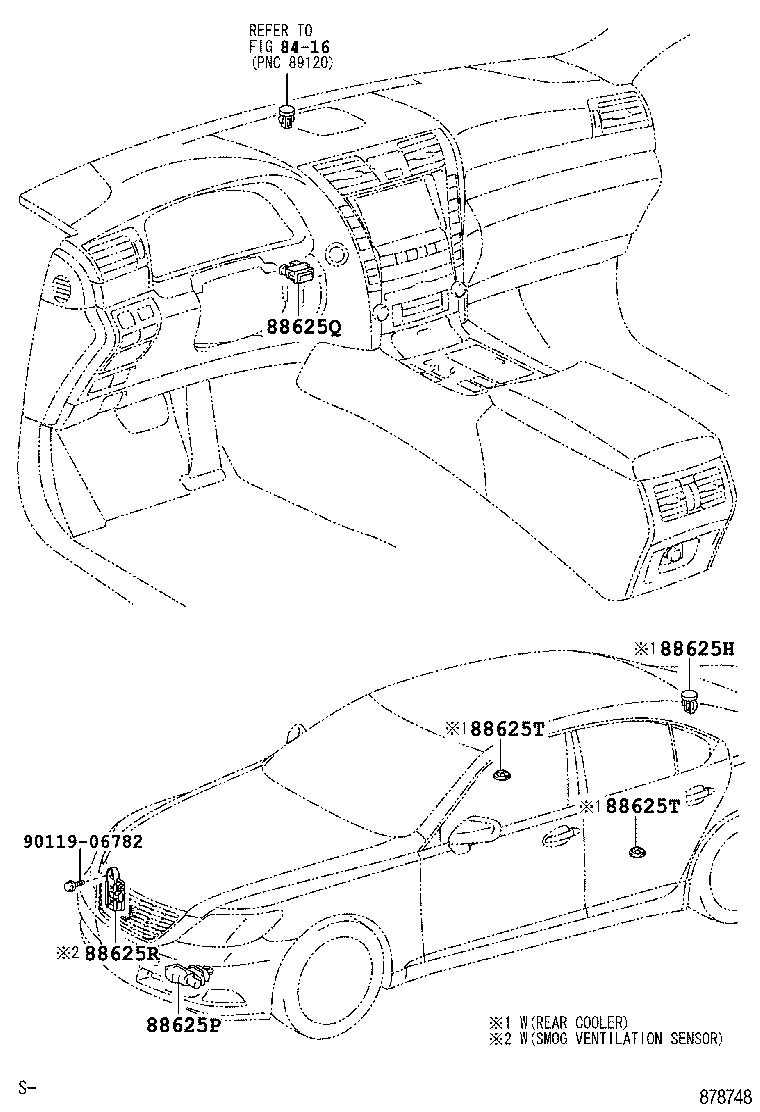

SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-47031 |
USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE |
1 | ||
| 88625-47031 |
USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-OTTOMAN |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-22131 |
USF4# |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
USF4# |
1 | ||
| 88625R - THERMISTOR, COOLER (SENSOR, SMOG VENTILATION) | ||||
| 88898-50030 |
USF4#..EUR |
1 | ||
| 88625T - THERMISTOR, COOLER (ROOM TEMP. SENSOR NO.2) | ||||
| 88625-34040A2 |
USF40..D4;USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER),MELLOW WHITE,TRIM01 |
2 | ||
| 88625-34040C0 |
USF40..D4;USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER),BLACK,TRIM2# |
2 | ||
| 88625-34040A1 |
USF40..D4;USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER),IVORY,TRIM00 |
2 | ||
| 88625-34040B3 |
USF40..D4;USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER),LT.GRAY,TRIM1# |
2 | ||
| 88625T - THERMISTOR, COOLER (ROOM TEMP. SENSOR NO.2) | ||||
| 88625-34040A2 |
USF40..D4;USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER),MELLOW WHITE,TRIM01 |
2 | ||
| 88625-34040C0 |
USF40..D4;USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER),BLACK,TRIM2# |
2 | ||
| 88625-34040A1 |
USF40..D4;USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER),IVORY,TRIM00 |
2 | ||
| 88625-34040B3 |
USF40..D4;USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER),LT.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90119-06782 | ||||
| Linked diagrams | ||||
| 8416 | ||||
ILLUST NO. 1 OF 5(0608-0909)
FRONT CONTROL PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8603 | ||||
