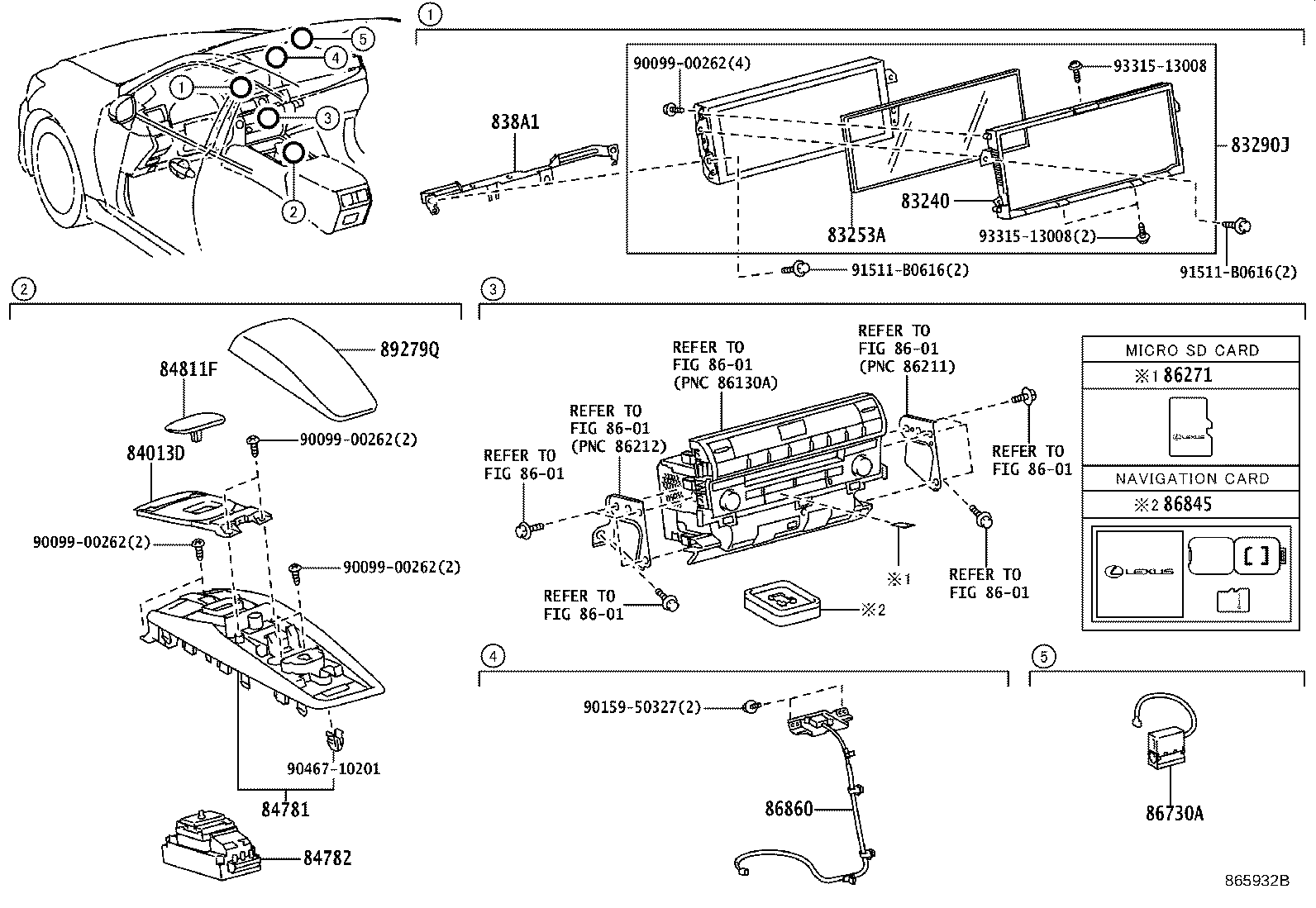

Toyota Lexus ls460/460l USF41 NAVIGATION & FRONT MONITOR DISPLAY

Part #	Description	Period	Qty
83240 - CASE ASSY, MULTI INFORMATION DISPLAY
83811-50010	USF4#	09/2012 - 09/2013	1
83811-50080	USF4#	09/2013 - 12/2999	1
83253A - GLASS, ACCESSORY METER
83253-50080	USF4#	09/2013 - 12/2999	1
83253-50010	USF4#	09/2012 - 09/2013	1
83290J - METER ASSY, ACCESSORY
83290-50100	USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC	09/2013 - 10/2014	1
83290-50110	USF46..CHI;USF41..LHD..D4..(CHI,EUR)	09/2013 - 10/2014	1
83290-50040	USF46..CHI;USF41..LHD..D4..(CHI,EUR)	09/2012 - 09/2013	1
83290-50030	USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC	09/2012 - 09/2013	1
83290-50200	USF41..LHD..D4..EUR	10/2014 - 09/2015	1
83290-50231	USF4#	07/2017 - 12/2999	1
83290-50230	USF4#	09/2015 - 06/2017	1
83290-50170	USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC	10/2014 - 09/2015	1
838A1 - BRACKET, COMBINATION METER
838A1-50020	USF4#..LHD	09/2012 - 12/2999	1
84013D - PANEL SUB-ASSY, INTEGRATION
84013-50020	USF4#	09/2015 - 08/2017	1
84013-50010	USF4#	09/2012 - 09/2015	1
84781 - SWITCH, REMOTE OPERATION
84781-50010	USF41..CHI,GCC;USF40,45,46..LHD;USF41..LHD..D4..EUR	09/2012 - 09/2015	1
84781-50020	USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC	09/2012 - 10/2014	1
84781-50070	USF41..CHI,GCC;USF40,45,46..LHD;USF41..LHD..D4..EUR	09/2015 - 12/2999	1
84781-50060	USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)	09/2016 - 12/2999	1
84781-50060	USF40,41,45..LHD..D4..EUR EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)	09/2015 - 09/2016	1
84781-50020	USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EMV & NAVIGATION SYSTEM-EMV WITH BLUETOOTH (WITHOUT NAVIGATION)	10/2014 - 09/2015	1
84782 - BOARD, REMOTE OPERATION
84782-50030	USF4#	09/2015 - 12/2999	1
84782-50020	USF4#	10/2014 - 09/2015	1
84782-50010	USF4#..LHD	02/2013 - 10/2014	1
84782-50011	USF4#..LHD	10/2012 - 02/2013	1
84782-50010	USF4#..LHD	09/2012 - 10/2012	1
84811F - KNOB, SWITCH
84811-50010	USF4#	09/2012 - 10/2014	1
84811-50020	USF4#	09/2015 - 12/2999	1
84811-50030	USF4#	07/2015 - 09/2015	1
84811-50011	USF4#	10/2014 - 06/2015	1
86271 - DISC, DISC PLAYER
86807-0W220	USF41..LHD..D4..EUR MAP DISC(DOP)-WITH(MAP DISK(DEALER OPTION))	09/2012 - 08/2013	1
86807-0W222	USF41..LHD..D4..EUR	09/2014 - 10/2014	1
86807-0W221	USF41..LHD..D4..EUR	09/2013 - 08/2014	1
86271-30B41	USF41..LHD..D4..EUR MICRO SD CARD	10/2014 - 09/2015	1
86271-30B31	USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICROSD CARD	10/2014 - 07/2015	1
86271-30B32	USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICROSD CARD	07/2015 - 09/2015	1
86271-48371	USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICROSD CARD	08/2016 - 08/2017	1
86271-48370	USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON,MICROSD CARD	09/2015 - 08/2016	1
86271-53381	USF41..LHD..D4..EUR MICRO SD CARD	09/2015 - 09/2016	1
86271-53382	USF41..LHD..D4..EUR MICRO SD CARD	10/2016 - 08/2017	1
86730A - MICROPHONE ASSY, TELEPHONE
86730-50100	USF4#..LHD	09/2013 - 08/2017	1
86730-50080	USF4#..LHD	09/2012 - 09/2013	1
86860 - ANTENNA ASSY, NAVIGATION
86860-50120	USF4#..LHD	09/2012 - 10/2014	1
86860-50140	USF4#..LHD	10/2014 - 12/2999	1
89279Q - COVER
89279-50050	USF4#	09/2015 - 12/2999	1
89279-50040	USF4#	09/2012 - 09/2015	1
Common parts
90099-00262
90159-50327
90467-10201
91511-B0616
93315-13008
Linked diagrams
8601

USF41L-AEZGHW (2012)

(1410- )LHD
