USF41L-AEZGHW (2012)
Toyota Lexus Ls460/460l
ILLUST NO. 5 OF14(1209- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-50430 |
USF41..LHD;USF40,46..CHI,GCC |
1 | ||
| 82151A - WIRE, FRONT DOOR, NO.2, RH | ||||
| 82155-50070 |
USF4#..LHD |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-50420 |
USF41..LHD;USF40,46..CHI,GCC |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82156-50060 |
USF4#..LHD |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82157-50091 |
USF41..LHD..D4..EUR |
1 | ||
| 82157-50091 |
USF41..LHD..D4..EUR VERSION L&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 82157-50091 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 82157-50020 |
USF41..LHD..D4..EUR |
1 | ||
| 82157-50030 |
USF41..LHD..D4..EUR AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 82157-50091 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-50230 |
USF41..LHD..D4..EUR |
1 | ||
| 82153-50230 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 82153-50230 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 82153-50250 |
USF41..LHD..D4..EUR |
1 | ||
| 82153-50230 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82158-50091 |
USF41..LHD..D4..EUR |
1 | ||
| 82158-50030 |
USF41..LHD..D4..EUR AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 82158-50091 |
USF41..LHD..D4..EUR VERSION L&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 82158-50020 |
USF41..LHD..D4..EUR |
1 | ||
| 82158-50091 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 82158-50091 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&AUDIO(OVERSEAS MARKET)-DVD,19SPEAKER,MARK LEVINSON |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82154-50230 |
USF41..LHD..D4..EUR |
1 | ||
| 82154-50230 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 82154-50230 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 82154-50230 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 82154-50250 |
USF41..LHD..D4..EUR |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 9 OF14(1209- )
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82176 - WIRE, REAR CONSOLE BOX | ||||
| 82176-50021 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82176-50020 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82176-50020 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82176-50021 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-50210 |
USF41..LHD..D4..EUR |
1 | ||
| 82193-50220 |
USF41,46..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82193-50220 |
USF41,46..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82193-50210 |
USF41,46..LHD..D4..EUR TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82193-50220 |
USF46;USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82193-50200 |
USF41..LHD..D4..EUR |
1 | ||
| 82193-50210 |
USF41..LHD..D4..EUR VERSION L&SEMI-ANILINE LEATHER SEAT |
1 | ||
| 82193-50220 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 82193-50220 |
USF41..LHD;USF46..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 82193-50220 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&SEMI-ANILINE LEATHER SEAT&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82193-50220 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&SEMI-ANILINE LEATHER SEAT&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82193-50210 |
USF41..LHD..D4..EUR VERSION L&SEMI-ANILINE LEATHER SEAT&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82193-50220 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&SEMI-ANILINE LEATHER SEAT&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82193-50210 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-50210 |
USF41..LHD..D4..EUR |
1 | ||
| 82193-50220 |
USF41,46..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82193-50220 |
USF41,46..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82193-50210 |
USF41,46..LHD..D4..EUR TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82193-50220 |
USF46;USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82193-50200 |
USF41..LHD..D4..EUR |
1 | ||
| 82193-50210 |
USF41..LHD..D4..EUR VERSION L&SEMI-ANILINE LEATHER SEAT |
1 | ||
| 82193-50220 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 82193-50220 |
USF41..LHD;USF46..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 82193-50220 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&SEMI-ANILINE LEATHER SEAT&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82193-50220 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&SEMI-ANILINE LEATHER SEAT&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82193-50210 |
USF41..LHD..D4..EUR VERSION L&SEMI-ANILINE LEATHER SEAT&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82193-50220 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&SEMI-ANILINE LEATHER SEAT&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82193-50210 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 82194 - WIRE, REAR SEAT, LH | ||||
| 82194-50250 |
USF41..LHD..D4..EUR |
1 | ||
| 82194-50250 |
USF41..LHD..D4..EUR VERSION L&SEMI-ANILINE LEATHER SEAT&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82194-50250 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 82194-50250 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&SEMI-ANILINE LEATHER SEAT&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82194-50250 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&SEMI-ANILINE LEATHER SEAT&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82194-50250 |
USF41..LHD..D4..EUR VERSION L&SEMI-ANILINE LEATHER SEAT |
1 | ||
| 82194-50250 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&SEMI-ANILINE LEATHER SEAT&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82194-50250 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 82194-50250 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 82213B - WIRE, HEATER | ||||
| 82213-50020 |
USF41..LHD..D4..EUR |
2 | ||
| 82213-50020 |
USF41..LHD..D4..EUR VERSION L |
2 | ||
| 82213-50020 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
2 | ||
| 82213-50020 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
2 | ||
| 82213B - WIRE, HEATER | ||||
| 82213-50020 |
USF41..LHD..D4..EUR |
2 | ||
| 82213-50020 |
USF41..LHD..D4..EUR VERSION L |
2 | ||
| 82213-50020 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
2 | ||
| 82213-50020 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
2 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-50130 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82223-50200 |
USF41..LHD..D4..EUR TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82223-50220 |
USF41..LHD..D4..EUR |
1 | ||
| 82223-50200 |
USF41..LHD..D4..EUR VERSION L&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82223-50160 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 82223-50160 |
USF41..LHD..D4..EUR |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-50130 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82223-50200 |
USF41..LHD..D4..EUR TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82223-50220 |
USF41..LHD..D4..EUR |
1 | ||
| 82223-50200 |
USF41..LHD..D4..EUR VERSION L&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82223-50160 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 82223-50160 |
USF41..LHD..D4..EUR |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-50640 |
USF41;USF40,45,46..CHI,EUR |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-50640 |
USF41;USF40,45,46..CHI,EUR |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-50650 |
USF41..LHD..D4..EUR |
1 | ||
| 82666-50650 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 82666-50650 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 82666-50650 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-60220 |
USF41..LHD..D4..EUR |
1 | ||
| 82666-60220 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 82666-60220 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 82666-60220 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-60220 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 82666-60220 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 82666-60220 |
USF41..LHD..D4..EUR |
1 | ||
| 82666-60220 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 82825F - CONNECTOR, WIRING HARNESS | ||||
| 82824-50360 |
USF41;USF40,45,46..CHI,EUR |
1 | ||
| 82825F - CONNECTOR, WIRING HARNESS | ||||
| 82824-50360 |
USF41;USF40,45,46..CHI,EUR |
1 | ||
| 82825F - CONNECTOR, WIRING HARNESS | ||||
| 82824-50360 |
USF41;USF40,45,46..CHI,EUR |
1 | ||
| Common parts | ||||
| 91553-80820 | ||||
| Linked diagrams | ||||
| 7102 | ||||
ILLUST NO.11 OF14(1209- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 82286-50010 |
USF4#..D4 |
1 | ||
| Common parts | ||||
| 82715-50D60 | ||||
| 90119-10718 | ||||
| 91651-60816 | ||||
ILLUST NO. 1 OF13(1209- )LHD
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-50Q80 |
USF41..LHD..D4;USF40..LHD..EUR |
1 | ||
| 82111-50Q50 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC |
1 | ||
| 82111-50Q81 |
USF41..LHD..D4;USF40..LHD..EUR |
1 | ||
| 82111-50Q51 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC |
1 | ||
| 82111-50Q82 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&HEADLAMP-DISCHARGE & *AFLS & *AHB |
1 | ||
| 82111-50Q52 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 82111-50Q82 |
USF41..LHD..D4..EUR VERSION L&HEADLAMP-DISCHARGE & *AFLS & *AHB |
1 | ||
| 82111-50Q52 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&VERSION L |
1 | ||
| 82111-50Q52 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 82111-50Q20 |
USF41..LHD..D4..EUR HEADLAMP-DISCHARGE & *AFLS & *AHB |
1 | ||
| 82111-50Q82 |
USF40..GCC;USF41..LHD..D4..EUR VERSION L |
1 | ||
| 82111-50Q82 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&HEADLAMP-DISCHARGE & *AFLS & *AHB |
1 | ||
| 82111-50Q82 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 82111-50Q52 |
USF40..GCC;USF41..HTWC;USF41..LHD..D4..EUR |
1 | ||
| 82111-50Q82 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 82111-50Q20 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 82111-50Q20 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 82111-50Q20 |
USF40..GCC;USF41..HTWC;USF41..LHD..D4..EUR |
1 | ||
| 82111-50Q20 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&VERSION L |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-50450 |
USF40,41..LHD..D4..EUR PRE-COLLISION SYSTEM-WITH(*MRT & *PSB) |
1 | ||
| 82112-50440 |
USF40,41..LHD..(CHI,EUR) |
1 | ||
| 82112-50450 |
USF41..LHD..D4..EUR PRE-COLLISION SYSTEM-WITH(*PB) |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-50030 |
USF40,41..LHD |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-50050 |
USF4# |
1 | ||
| 82130 - HARNESS ASSY, CHASSIS WIRE | ||||
| 82130-50010 |
USF41..LHD..D4..EUR |
1 | ||
| 82130-50010 |
USF41..LHD..D4..EUR VERSION L&SUSPENSION-AIR SUSPENTION&TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE |
1 | ||
| 82130-50010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&SUSPENSION-AIR SUSPENTION&TIRE & DISC WHEEL-245/45R19 8JSUMMER TIRE |
1 | ||
| 82130-50010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&SUSPENSION-AIR SUSPENTION&TIRE & DISC WHEEL-245/45R19 8JSUMMER TIRE |
1 | ||
| 82130-50010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&SUSPENSION-AIR SUSPENTION |
1 | ||
| 82130-50010 |
USF41..LHD..D4..EUR VERSION L&SUSPENSION-AIR SUSPENTION&TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE |
1 | ||
| 82130-50010 |
USF41..LHD..D4..EUR VERSION L&SUSPENSION-AIR SUSPENTION |
1 | ||
| 82130-50010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&SUSPENSION-AIR SUSPENTION&TIRE & DISC WHEEL-245/45R19 8JSUMMER TIRE |
1 | ||
| 82130-50010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&SUSPENSION-AIR SUSPENTION&TIRE & DISC WHEEL-245/45R19 8JSUMMER TIRE |
1 | ||
| 82130-50010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&SUSPENSION-AIR SUSPENTION |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82280-50010 |
USF4#..LHD |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-50570 |
USF4# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-50B30 |
USF4# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-50D40 |
USF4# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-50B50 |
USF4#..LHD |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-50B60 |
USF4#..LHD |
1 | ||
| 86011G - CONDENSER | ||||
| 86516-50010 |
USF4# |
1 | ||
| Common parts | ||||
| 89348-50050 | ||||
| 90119-06915 | ||||
| 90119-06995 | ||||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO. 3 OF14(1209- )USF40,41

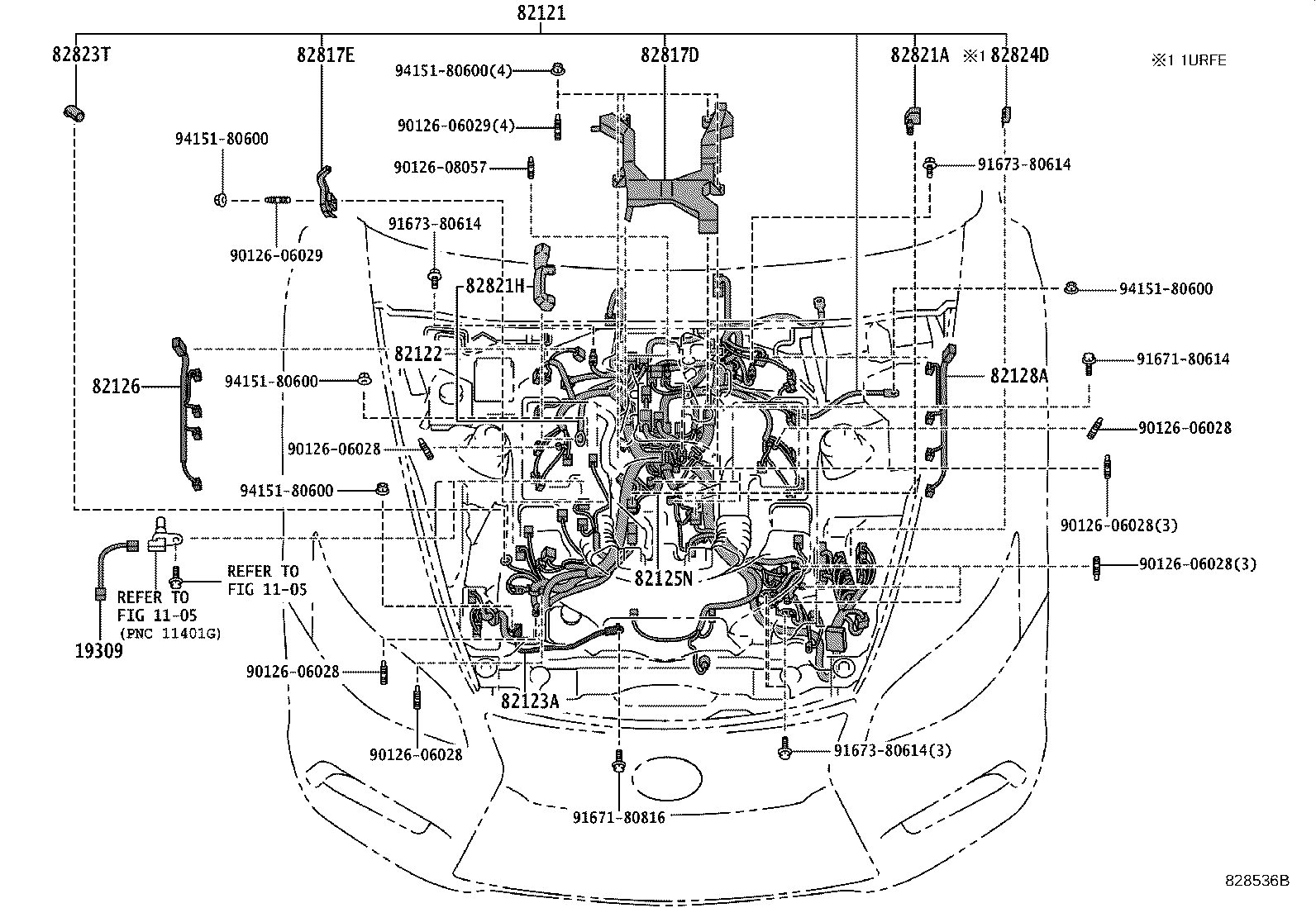

ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19309 - HARNESS SUB-ASSY, CAM POSITION SENSOR | ||||
| 19309-38011 |
1UR#..USF40,41 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-50630 |
USF40,41..LHD..D4 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-50101 |
USF4#..LHD |
1 | ||
| 82123A - WIRE, ENGINE, NO.3 | ||||
| 82123-50110 |
USF40,41 |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-50080 |
USF4#..D4 |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-34021 |
USF4# |
1 | ||
| 82128A - WIRE, ENGINE, NO.8 | ||||
| 82127-34050 |
USF4# |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-50D60 |
USF4# |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-50E50 |
USF40,41 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-50500 |
USF4# |
2 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-30730 |
USF4# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-0C010 |
USF4# |
1 | ||
| Common parts | ||||
| 90126-06028 | ||||
| 90126-06029 | ||||
| 90126-08057 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91673-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
ILLUST NO. 4 OF14(1209- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-50W60 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC |
1 | ||
| 82141-50X00 |
USF40,45,46..LHD..EUR;USF41..LHD..D4..(EUR,GCC) |
1 | ||
| 82141-50W61 |
USF40..GCC;USF41..HTWC;USF41..LHD..D4..EUR |
1 | ||
| 82141-50X01 |
USF40..GCC;USF41..LHD..D4..EUR VERSION L |
1 | ||
| 82141-50W61 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 82141-50W61 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&VERSION L |
1 | ||
| 82141-50Y30 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&HEADLAMP-DISCHARGE & *AFLS & *AHB |
1 | ||
| 82141-50Y20 |
USF41..LHD..D4..EUR HEADLAMP-DISCHARGE & *AFLS & *AHB |
1 | ||
| 82141-50Y30 |
USF41..LHD..D4..EUR VERSION L&HEADLAMP-DISCHARGE & *AFLS & *AHB |
1 | ||
| 82141-50W61 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 82141-50X01 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 82141-50X01 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 82141-50Y30 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&HEADLAMP-DISCHARGE & *AFLS & *AHB |
1 | ||
| 82141-50Y20 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&VERSION L |
1 | ||
| 82141-50Y20 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 82141-50Y30 |
USF40..GCC;USF41..LHD..D4..EUR VERSION L |
1 | ||
| 82141-50Y20 |
USF40..GCC;USF41..HTWC;USF41..LHD..D4..EUR |
1 | ||
| 82141-50Y30 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 82141-50Y31 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 82141-50Y21 |
USF40..GCC;USF41..HTWC;USF41..LHD..D4..EUR |
1 | ||
| 82141-50Y21 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 82141-50Y21 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 82141-50Y21 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&VERSION L |
1 | ||
| 82141-50Y30 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 82141-50Y20 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 82141-50Y31 |
USF40..GCC;USF41..LHD..D4..EUR VERSION L |
1 | ||
| 82141-50Y31 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-50050 |
USF4#..LHD |
1 | ||
| 82142-50051 |
USF4#..LHD |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-47010 |
USF4# |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-30160 |
USF41..LHD;USF40,45,46..EUR,GCC |
1 | ||
| 82166-50060 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&SEMI-ANILINE LEATHER SEAT&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82166-50060 |
USF40,45..EUR;USF41..LHD..D4..EUR VERSION L&SEMI-ANILINE LEATHER SEAT&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82166B - WIRE, CONSOLE BOX REPAIR | ||||
| 82166-50020 |
USF41,46..LHD..(EUR,GCC) TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82166-50021 |
USF41,46..LHD..(EUR,GCC) TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82166D - WIRE, CONSOLE BOX, NO.2 | ||||
| 82166-30160 |
USF41..LHD;USF46..EUR EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
USF4# |
2 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
USF4# |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-50580 |
USF4# NO.1 |
1 | ||
| 82666-60220 |
USF4#..LHD NO.3 |
2 | ||
| 82666-50630 |
USF4# NO.2 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-50580 |
USF4# NO.1 |
1 | ||
| 82666-60220 |
USF4#..LHD NO.3 |
2 | ||
| 82666-50630 |
USF4# NO.2 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-50580 |
USF4# NO.1 |
1 | ||
| 82666-60220 |
USF4#..LHD NO.3 |
2 | ||
| 82666-50630 |
USF4# NO.2 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-50580 |
USF4# NO.1 |
1 | ||
| 82666-60220 |
USF4#..LHD NO.3 |
2 | ||
| 82666-50630 |
USF4# NO.2 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30340 |
USF4# |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-50040 |
USF4# NO.3 |
1 | ||
| 82734-50020 |
USF4# NO.1 |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-50040 |
USF4# NO.3 |
1 | ||
| 82734-50020 |
USF4# NO.1 |
1 | ||
| 82821G - COVER, CONNECTOR(FOR DIAGNOSIS) | ||||
| 82821-20330 |
USF4# |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
USF4# |
2 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-50440 |
USF40,41,45..EUR,GCC |
1 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-50450 |
USF40,41,45..EUR,GCC |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91631-J0612 | ||||
| 94151-80600 | ||||
ILLUST NO. 7 OF14(1209- )LHD
ROOF & FRAME & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-50011 |
USF4# |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-50B70 |
USF41..LHD..D4..EUR TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82171-50B50 |
USF41..LHD..D4..EUR VERSION L&SEMI-ANILINE LEATHER SEAT&PRE-COLLISION SYSTEM-WITH(*PB) |
1 | ||
| 82171-50C00 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&PRE-COLLISION SYSTEM-WITH(*PB)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82171-50B70 |
USF41,46..LHD |
1 | ||
| 82171-50C50 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&SEMI-ANILINE LEATHER SEAT&PRE-COLLISION SYSTEM-WITH(*PB)&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82171-50B50 |
USF41..LHD..D4..EUR VERSION L&SEMI-ANILINE LEATHER SEAT&PRE-COLLISION SYSTEM-WITH(*PB)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82171-50C50 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&PRE-COLLISION SYSTEM-WITH(*PB)&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82171-50B50 |
USF41..LHD..D4..EUR VERSION L&PRE-COLLISION SYSTEM-WITH(*PB) |
1 | ||
| 82171-50C00 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&SEMI-ANILINE LEATHER SEAT&PRE-COLLISION SYSTEM-WITH(*PB)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82171-50C20 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82171-50C70 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82171-50B70 |
USF41..LHD..D4..EUR VERSION L&SEMI-ANILINE LEATHER SEAT |
1 | ||
| 82171-50C20 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&SEMI-ANILINE LEATHER SEAT&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82171-50B70 |
USF41..LHD..D4..EUR VERSION L&SEMI-ANILINE LEATHER SEAT&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82171-50C70 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&SEMI-ANILINE LEATHER SEAT&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82171-50B71 |
USF41..LHD;USF46..EUR |
1 | ||
| 82171-50B71 |
USF41..LHD..D4..EUR VERSION L&SEMI-ANILINE LEATHER SEAT&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82171-50B71 |
USF41..LHD..D4..EUR VERSION L&SEMI-ANILINE LEATHER SEAT |
1 | ||
| 82171-50C21 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82171-50C21 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&SEMI-ANILINE LEATHER SEAT&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82171-50C71 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&SEMI-ANILINE LEATHER SEAT&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82171-50C71 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-50050 |
USF41..LHD..D4..EUR PRE-COLLISION SYSTEM-WITH(*PB) |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-50030 |
USF4# |
1 | ||
| 82825G - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
USF4# |
3 | ||
| Common parts | ||||
| 89348-50050 | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO. 8 OF14(1209- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-50520 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 82191-50520 |
USF41,46..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82191-50520 |
USF41,46..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82191-50510 |
USF41,46..LHD..D4..EUR TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82191-50510 |
USF41..LHD..D4..EUR |
1 | ||
| 82191-50520 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 82191-50520 |
USF46;USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82191-50510 |
USF41..LHD..D4..EUR VERSION L&SEMI-ANILINE LEATHER SEAT&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82191-50500 |
USF41..LHD..D4..EUR |
1 | ||
| 82191-50520 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&SEMI-ANILINE LEATHER SEAT&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82191-50510 |
USF41..LHD..D4..EUR VERSION L&SEMI-ANILINE LEATHER SEAT |
1 | ||
| 82191-50520 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&SEMI-ANILINE LEATHER SEAT |
1 | ||
| 82191-50520 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&SEMI-ANILINE LEATHER SEAT&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82191-50520 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&SEMI-ANILINE LEATHER SEAT&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82191-50520 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&SEMI-ANILINE LEATHER SEAT |
1 | ||

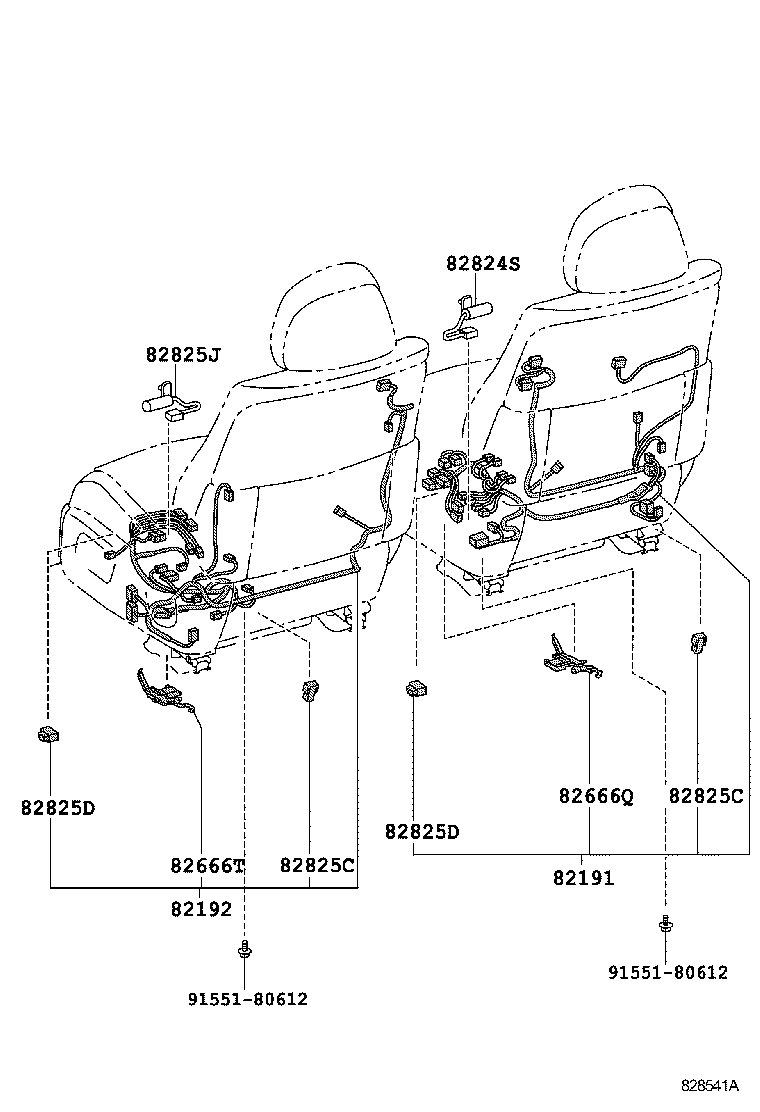

| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-50440 |
USF46..EUR;USF40,41,45..LHD |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-50790 |
USF4# |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-50800 |
USF4# |
1 | ||
| 82824S - CONNECTOR, WIRING HARNESS | ||||
| 82824-50630 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82824-50630 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82824-50630 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82824-50630 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT)&SEMI-ANILINE LEATHER SEAT&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82824-50630 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&SEMI-ANILINE LEATHER SEAT&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(12V)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82824-50630 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT)&SEMI-ANILINE LEATHER SEAT&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82825D - CONNECTOR, WIRING HARNESS | ||||
| 82824-50340 |
USF4# |
1 | ||
| 82825D - CONNECTOR, WIRING HARNESS | ||||
| 82824-50340 |
USF4# |
1 | ||

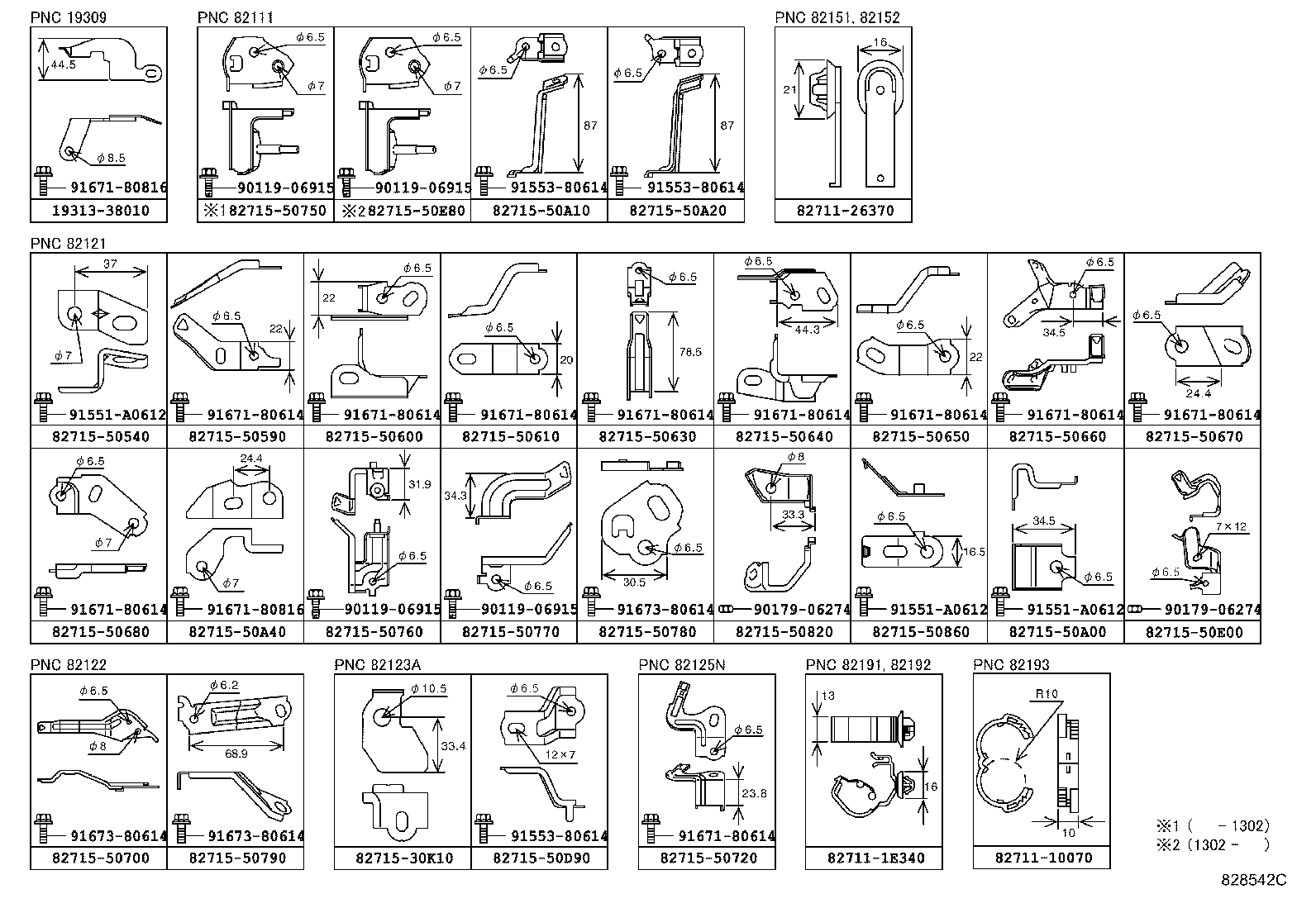

| Common parts | ||||
| 91551-80612 | ||||
ILLUST NO.10 OF14(1209- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 19313-38010 | ||||
| 82711-10070 | ||||
| 82711-1E340 | ||||
| 82711-26370 | ||||
| 82715-30K10 | ||||
| 82715-50540 | ||||
| 82715-50590 | ||||
| 82715-50600 | ||||
| 82715-50610 | ||||
| 82715-50630 | ||||
| 82715-50640 | ||||
| 82715-50650 | ||||
| 82715-50660 | ||||
| 82715-50670 | ||||
| 82715-50680 | ||||
| 82715-50700 | ||||
| 82715-50720 | ||||
| 82715-50750 | ||||
| 82715-50760 | ||||
| 82715-50770 | ||||
| 82715-50780 | ||||
| 82715-50790 | ||||
| 82715-50820 | ||||
| 82715-50860 | ||||
| 82715-50A00 | ||||
| 82715-50A10 | ||||
| 82715-50A20 | ||||
| 82715-50A40 | ||||
| 82715-50D90 | ||||
| 82715-50E00 | ||||
| 82715-50E80 | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| 91551-A0612 | ||||
| 91553-80614 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91673-80614 | ||||
ILLUST NO. 2 OF14(1209- )LHD
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8401 | ||||

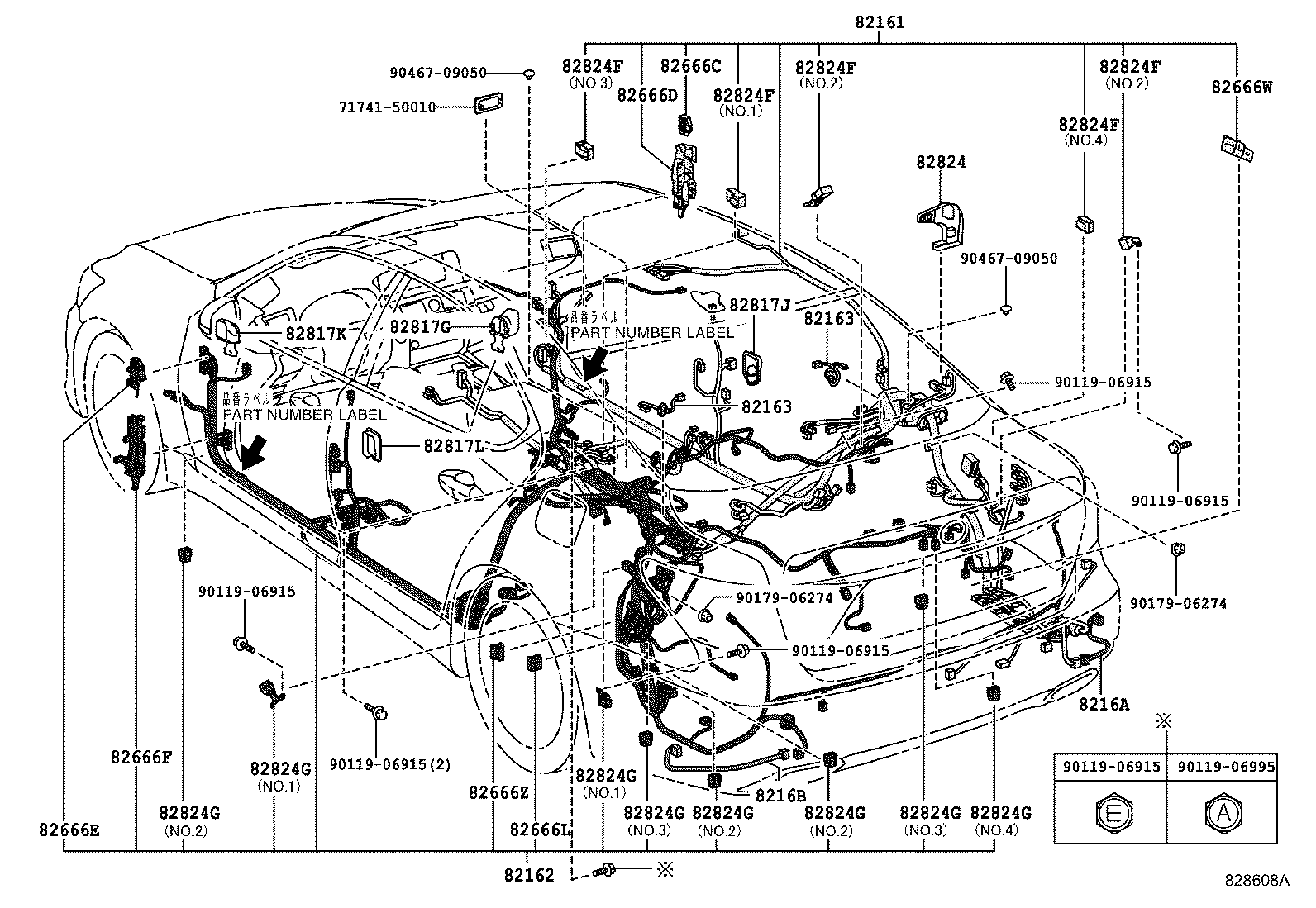

ILLUST NO. 6 OF14(1209- )LHD
FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-5A300 |
USF41,46..LHD..(EUR,GCC) TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82161-5A320 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82161-5A330 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82161-5A310 |
USF41,46..LHD |
1 | ||
| 82161-5A301 |
USF41..LHD..D4..EUR VERSION L&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82161-5A321 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82161-5A331 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82161-5A311 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 82161-5A302 |
USF41..LHD..D4..EUR VERSION L&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82161-5A322 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82161-5A750 |
USF41..LHD..D4..EUR |
1 | ||
| 82161-5A751 |
USF41..LHD..D4..EUR |
1 | ||
| 82161-5A332 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82161-5A303 |
USF41..LHD..D4..EUR VERSION L&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82161-5A323 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82161-5A312 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-50Y30 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82162-50Y00 |
USF41..LHD..D4..EUR |
1 | ||
| 82162-50X90 |
USF41..LHD..D4..EUR TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82162-50Y00 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 82162-50Y40 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82162-5A520 |
USF41..LHD..D4..EUR |
1 | ||
| 82162-50Y31 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE |
1 | ||
| 82162-50X91 |
USF41..LHD..D4..EUR VERSION L&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82162-50Y41 |
USF41,46..LHD..(EUR,GCC) EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY & BD PLAYER:CENTER CONSOLE |
1 | ||
| 82162-50Y01 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 82162-50X90 |
USF41..LHD..D4..EUR VERSION L&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:CTR CONSOLE |
1 | ||
| 82162-5A521 |
USF41..LHD..D4..EUR |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-50080 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT) |
2 | ||
| 82163-50080 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC |
2 | ||
| 82163-50080 |
USF41..LHD..D4..EUR |
2 | ||
| 82163-50080 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&VERSION L |
2 | ||
| 82163-50080 |
USF41..LHD..D4..EUR VERSION L |
2 | ||
| 82163-50081 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
2 | ||
| 82163-50080 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
2 | ||
| 82163-50080 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT) |
2 | ||
| 82163-50080 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
2 | ||
| 82163-50081 |
USF40..GCC;USF41..LHD..D4..EUR VERSION L |
2 | ||
| 82163-50081 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
2 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-50080 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT) |
2 | ||
| 82163-50080 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC |
2 | ||
| 82163-50080 |
USF41..LHD..D4..EUR |
2 | ||
| 82163-50080 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&VERSION L |
2 | ||
| 82163-50080 |
USF41..LHD..D4..EUR VERSION L |
2 | ||
| 82163-50081 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
2 | ||
| 82163-50080 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
2 | ||
| 82163-50080 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT) |
2 | ||
| 82163-50080 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
2 | ||
| 82163-50081 |
USF40..GCC;USF41..LHD..D4..EUR VERSION L |
2 | ||
| 82163-50081 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
2 | ||
| 8216A - WIRE, FLOOR NO.7 | ||||
| 8216A-50010 |
USF41..LHD..D4..EUR BLIND SPOT MONITOR-WITH |
1 | ||
| 8216A-50010 |
USF41..EUR BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 8216B - WIRE, FLOOR NO.8 | ||||
| 8216B-50010 |
USF41..EUR BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 8216B-50010 |
USF41..LHD..D4..EUR BLIND SPOT MONITOR-WITH |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-50590 |
USF4# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-50601 |
USF4# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-50610 |
USF4# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-50620 |
USF4# |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-60170 |
USF4# |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-50740 |
USF4# |
1 | ||
| 82666Z - HOLDER, CONNECTOR NO.19 | ||||
| 82666-21040 |
USF4# |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-50K10 |
USF4# |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-50D70 |
USF4# |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-50K10 |
USF4# |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-50D80 |
USF4# |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-48010 |
USF4# NO.2 |
2 | ||
| 82824-26020 |
USF4# NO.1 |
1 | ||
| 82824-52280 |
USF4# NO.4 |
1 | ||
| 82824-50350 |
USF4# NO.3 |
2 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-48010 |
USF4# NO.2 |
2 | ||
| 82824-26020 |
USF4# NO.1 |
1 | ||
| 82824-52280 |
USF4# NO.4 |
1 | ||
| 82824-50350 |
USF4# NO.3 |
2 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-48010 |
USF4# NO.2 |
2 | ||
| 82824-26020 |
USF4# NO.1 |
1 | ||
| 82824-52280 |
USF4# NO.4 |
1 | ||
| 82824-50350 |
USF4# NO.3 |
2 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-48010 |
USF4# NO.2 |
2 | ||
| 82824-26020 |
USF4# NO.1 |
1 | ||
| 82824-52280 |
USF4# NO.4 |
1 | ||
| 82824-50350 |
USF4# NO.3 |
2 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-48010 |
USF4# NO.2 |
2 | ||
| 82824-26020 |
USF4# NO.1 |
1 | ||
| 82824-52280 |
USF4# NO.4 |
1 | ||
| 82824-50350 |
USF4# NO.3 |
2 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
USF4#..LHD NO.2 |
3 | ||
| 82824-48010 |
USF4# NO.1 |
2 | ||
| 82824-50360 |
USF4# NO.3 |
2 | ||
| 82824-30130 |
USF4# NO.4 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
USF4#..LHD NO.2 |
3 | ||
| 82824-48010 |
USF4# NO.1 |
2 | ||
| 82824-50360 |
USF4# NO.3 |
2 | ||
| 82824-30130 |
USF4# NO.4 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
USF4#..LHD NO.2 |
3 | ||
| 82824-48010 |
USF4# NO.1 |
2 | ||
| 82824-50360 |
USF4# NO.3 |
2 | ||
| 82824-30130 |
USF4# NO.4 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
USF4#..LHD NO.2 |
3 | ||
| 82824-48010 |
USF4# NO.1 |
2 | ||
| 82824-50360 |
USF4# NO.3 |
2 | ||
| 82824-30130 |
USF4# NO.4 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
USF4#..LHD NO.2 |
3 | ||
| 82824-48010 |
USF4# NO.1 |
2 | ||
| 82824-50360 |
USF4# NO.3 |
2 | ||
| 82824-30130 |
USF4# NO.4 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
USF4#..LHD NO.2 |
3 | ||
| 82824-48010 |
USF4# NO.1 |
2 | ||
| 82824-50360 |
USF4# NO.3 |
2 | ||
| 82824-30130 |
USF4# NO.4 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
USF4#..LHD NO.2 |
3 | ||
| 82824-48010 |
USF4# NO.1 |
2 | ||
| 82824-50360 |
USF4# NO.3 |
2 | ||
| 82824-30130 |
USF4# NO.4 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
USF4#..LHD NO.2 |
3 | ||
| 82824-48010 |
USF4# NO.1 |
2 | ||
| 82824-50360 |
USF4# NO.3 |
2 | ||
| 82824-30130 |
USF4# NO.4 |
1 | ||
| Common parts | ||||
| 71741-50010 | ||||
| 90119-06915 | ||||
| 90119-06995 | ||||
| 90179-06274 | ||||
| 90467-09050 | ||||

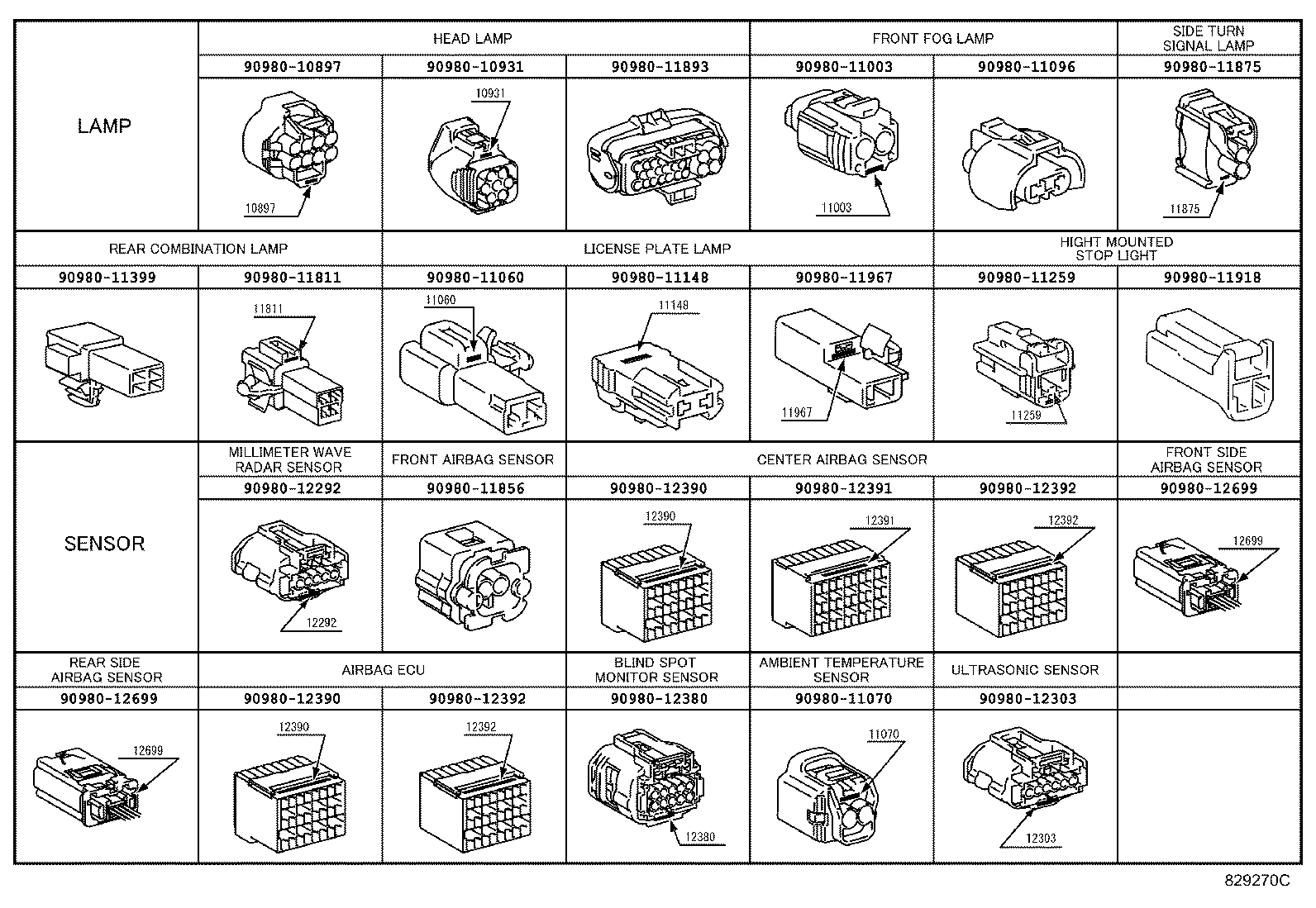

ILLUST NO.12 OF14(1209- )
CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10897 | ||||
| 90980-10931 | ||||
| 90980-11003 | ||||
| 90980-11060 | ||||
| 90980-11070 | ||||
| 90980-11096 | ||||
| 90980-11148 | ||||
| 90980-11259 | ||||
| 90980-11399 | ||||
| 90980-11811 | ||||
| 90980-11856 | ||||
| 90980-11875 | ||||
| 90980-11893 | ||||
| 90980-11918 | ||||
| 90980-11967 | ||||
| 90980-12292 | ||||
| 90980-12303 | ||||
| 90980-12380 | ||||
| 90980-12390 | ||||
| 90980-12391 | ||||
| 90980-12392 | ||||
| 90980-12699 | ||||

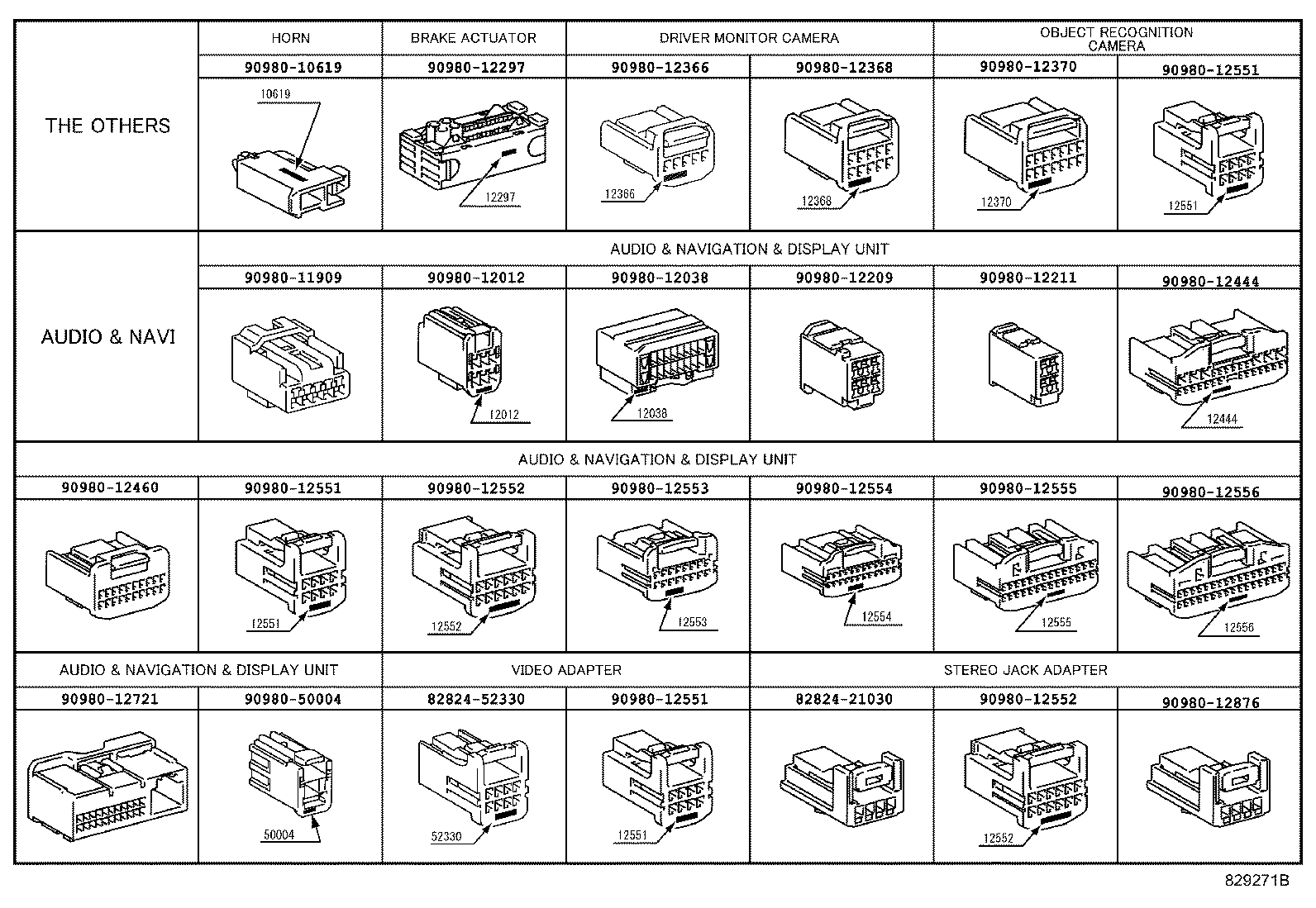

ILLUST NO.13 OF14(1209- )
CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-21030 | ||||
| 82824-52330 | ||||
| 90980-10619 | ||||
| 90980-11909 | ||||
| 90980-12012 | ||||
| 90980-12038 | ||||
| 90980-12209 | ||||
| 90980-12211 | ||||
| 90980-12297 | ||||
| 90980-12366 | ||||
| 90980-12368 | ||||
| 90980-12370 | ||||
| 90980-12444 | ||||
| 90980-12460 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12556 | ||||
| 90980-12721 | ||||
| 90980-12876 | ||||
| 90980-50004 | ||||

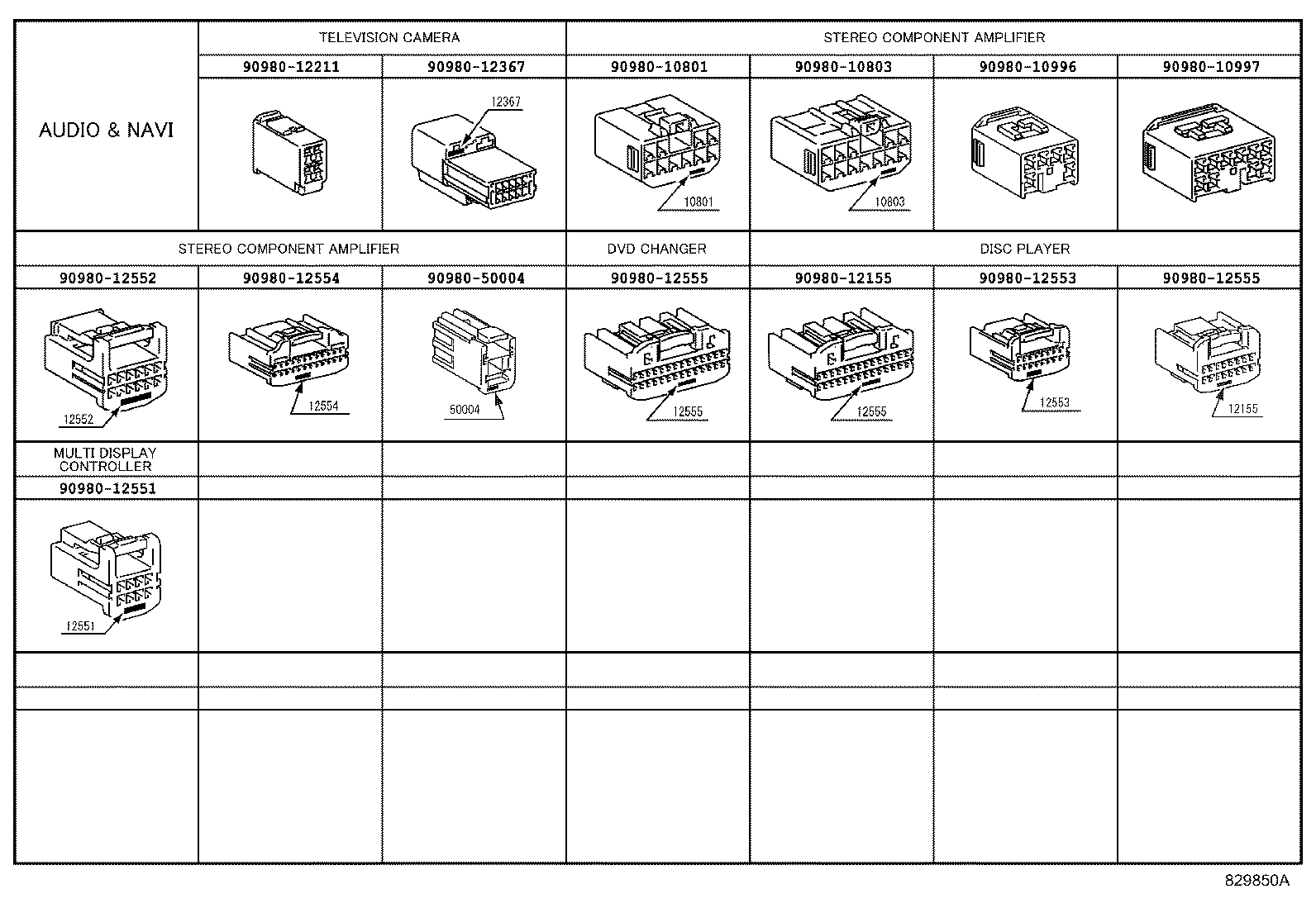

ILLUST NO.14 OF14(1209- )
CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10801 | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12155 | ||||
| 90980-12211 | ||||
| 90980-12367 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-50004 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
