USF41L-AEZGHW (2012)
Toyota Lexus Ls460/460l

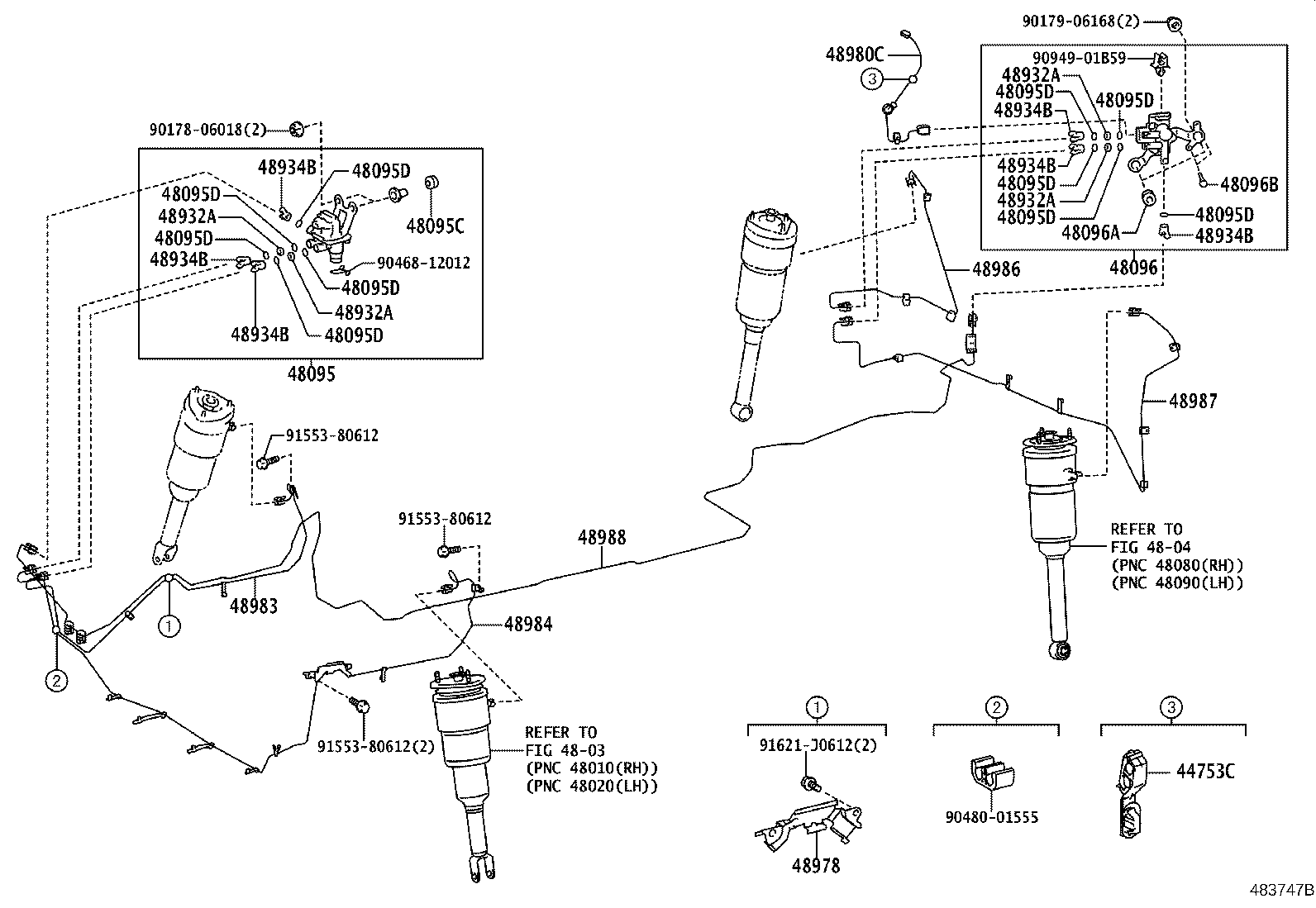

ILLUST NO. 1 OF 2(1209- )USF40,45,46 ; (1209- )USF41..CHI,EUR ; (1209- )USF41..D4..GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44753C - CLAMP, HEIGHT CONTROL TUBE, NO.2 | ||||
| 90989-01107 |
USF41..LHD..D4..EUR |
1 | ||
| 90989-01107 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 90989-01107 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 90989-01107 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 48095 - VALVE SUB-ASSY, HEIGHT CONTROL, NO.1 | ||||
| 48095-30060 |
USF41..LHD..D4..EUR |
1 | ||
| 48095-30060 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 48095-30060 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48095-30060 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 48095C - BUSH(FOR HEIGHT CONTROL VALVE NO.1) | ||||
| 90385-09010 |
USF41..LHD..D4..EUR |
2 | ||
| 90385-09010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
2 | ||
| 90385-09010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
2 | ||
| 90385-09010 |
USF41..LHD..D4..EUR VERSION L |
2 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
USF41..LHD..D4..EUR VERSION L |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR |
10 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
USF41..LHD..D4..EUR VERSION L |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR |
10 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
USF41..LHD..D4..EUR VERSION L |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR |
10 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
USF41..LHD..D4..EUR VERSION L |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR |
10 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
USF41..LHD..D4..EUR VERSION L |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR |
10 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
USF41..LHD..D4..EUR VERSION L |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR |
10 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
USF41..LHD..D4..EUR VERSION L |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR |
10 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
USF41..LHD..D4..EUR VERSION L |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR |
10 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
USF41..LHD..D4..EUR VERSION L |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR |
10 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
USF41..LHD..D4..EUR VERSION L |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
10 | ||
| 90301-04011 |
USF41..LHD..D4..EUR |
10 | ||
| 48096 - VALVE SUB-ASSY, HEIGHT CONTROL, NO.2 | ||||
| 48096-50050 |
USF41..LHD..D4..EUR |
1 | ||
| 48096-50050 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 48096-50050 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48096-50050 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 48096A - BUSH, NO.2(FOR HEIGHT CONTROL VALVE) | ||||
| 48912-30020 |
USF41..LHD..D4..EUR |
2 | ||
| 48912-30020 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
2 | ||
| 48912-30020 |
USF41..LHD..D4..EUR VERSION L |
2 | ||
| 48912-30020 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
2 | ||
| 48096B - CUSHION, NO.2(FOR HEIGHT CONTROL VALVE) | ||||
| 90541-05023 |
USF41..LHD..D4..EUR |
2 | ||
| 90541-05023 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
2 | ||
| 90541-05023 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
2 | ||
| 90541-05023 |
USF41..LHD..D4..EUR VERSION L |
2 | ||
| 48932A - PLATE, HEIGHT CONTROL TUBE | ||||
| 48932-30010 |
USF41..LHD..D4..EUR |
4 | ||
| 48932-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
4 | ||
| 48932-30010 |
USF41..LHD..D4..EUR VERSION L |
4 | ||
| 48932-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
4 | ||
| 48932A - PLATE, HEIGHT CONTROL TUBE | ||||
| 48932-30010 |
USF41..LHD..D4..EUR |
4 | ||
| 48932-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
4 | ||
| 48932-30010 |
USF41..LHD..D4..EUR VERSION L |
4 | ||
| 48932-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
4 | ||
| 48932A - PLATE, HEIGHT CONTROL TUBE | ||||
| 48932-30010 |
USF41..LHD..D4..EUR |
4 | ||
| 48932-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
4 | ||
| 48932-30010 |
USF41..LHD..D4..EUR VERSION L |
4 | ||
| 48932-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
4 | ||
| 48932A - PLATE, HEIGHT CONTROL TUBE | ||||
| 48932-30010 |
USF41..LHD..D4..EUR |
4 | ||
| 48932-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
4 | ||
| 48932-30010 |
USF41..LHD..D4..EUR VERSION L |
4 | ||
| 48932-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
4 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
USF41..LHD..D4..EUR |
6 | ||
| 48934-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
6 | ||
| 48934-30010 |
USF41..LHD..D4..EUR VERSION L |
6 | ||
| 48934-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
6 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
USF41..LHD..D4..EUR |
6 | ||
| 48934-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
6 | ||
| 48934-30010 |
USF41..LHD..D4..EUR VERSION L |
6 | ||
| 48934-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
6 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
USF41..LHD..D4..EUR |
6 | ||
| 48934-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
6 | ||
| 48934-30010 |
USF41..LHD..D4..EUR VERSION L |
6 | ||
| 48934-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
6 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
USF41..LHD..D4..EUR |
6 | ||
| 48934-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
6 | ||
| 48934-30010 |
USF41..LHD..D4..EUR VERSION L |
6 | ||
| 48934-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
6 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
USF41..LHD..D4..EUR |
6 | ||
| 48934-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
6 | ||
| 48934-30010 |
USF41..LHD..D4..EUR VERSION L |
6 | ||
| 48934-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
6 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
USF41..LHD..D4..EUR |
6 | ||
| 48934-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
6 | ||
| 48934-30010 |
USF41..LHD..D4..EUR VERSION L |
6 | ||
| 48934-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
6 | ||
| 48978 - COVER, HEIGHT CONTROL COMPRESSOR | ||||
| 48978-50020 |
USF41..LHD..D4..EUR |
1 | ||
| 48978-50020 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 48978-50020 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 48978-50020 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48980C - HARNESS ASSY, HEIGHT CONTROL VALVE | ||||
| 48980-50030 |
USF41..LHD..D4..EUR |
1 | ||
| 48980-50030 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 48980-50030 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48980-50030 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 48983 - TUBE, HEIGHT CONTROL, NO.3 | ||||
| 48983-50090 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 48983-50090 |
USF41..LHD..D4..EUR |
1 | ||
| 48983-50090 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 48983-50090 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48984 - TUBE, HEIGHT CONTROL, NO.4 | ||||
| 48984-50090 |
USF41..LHD..D4..EUR |
1 | ||
| 48984-50090 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 48984-50090 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 48984-50090 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48986 - TUBE, HEIGHT CONTROL, NO.6 | ||||
| 48986-50050 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48986-50050 |
USF41..LHD..D4..EUR |
1 | ||
| 48986-50050 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 48986-50050 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 48987 - TUBE, HEIGHT CONTROL, NO.7 | ||||
| 48987-50040 |
USF41..LHD..D4..EUR |
1 | ||
| 48987-50040 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 48987-50040 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48987-50040 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 48988 - TUBE, HEIGHT CONTROL, NO.8 | ||||
| 48988-50110 |
USF41..LHD..D4..EUR |
1 | ||
| 48988-50110 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 48988-50110 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48988-50110 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| Common parts | ||||
| 90178-06018 | ||||
| 90179-06168 | ||||
| 90468-12012 | ||||
| 90480-01555 | ||||
| 90949-01B59 | ||||
| 91553-80612 | ||||
| 91621-J0612 | ||||
| Linked diagrams | ||||
| 4803 | ||||
| 4804 | ||||
ILLUST NO. 2 OF 2(1209- )USF40,45,46 ; (1209- )USF41..CHI,EUR ; (1209- )USF41..D4..GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44753B - CLAMP, HEIGHT CONTROL TUBE, NO.1 | ||||
| 44753-50030 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC |
1 | ||
| 44753-50030 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 44753-50030 |
USF41..LHD..D4..EUR |
1 | ||
| 44753-50030 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 44753-50030 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&VERSION L |
1 | ||
| 44753-50030 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 44753-50030 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 44753-50030 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 48910D - BUSH, NO.2(FOR HEIGHT CONTROL COMPRESSOR) | ||||
| 90389-06033 |
USF41..LHD..D4..EUR |
3 | ||
| 90389-06033 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&VERSION L |
3 | ||
| 90389-06033 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT) |
3 | ||
| 90389-06033 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC |
3 | ||
| 90389-06033 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT) |
3 | ||
| 90389-06033 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
3 | ||
| 90389-06033 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
3 | ||
| 90389-06033 |
USF41..LHD..D4..EUR VERSION L |
3 | ||
| 48911 - BRACKET, HEIGHT CONTROL COMPRESSOR | ||||
| 48911-50050 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&VERSION L |
1 | ||
| 48911-50050 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC |
1 | ||
| 48911-50050 |
USF41..LHD..D4..EUR |
1 | ||
| 48911-50050 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 48911-50050 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 48911-50050 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 48911-50050 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48911-50050 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48914A - COMPRESSOR, HEIGHT CONTROL, NO.1 | ||||
| 48914-50030 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48914-50030 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&VERSION L |
1 | ||
| 48914-50030 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC |
1 | ||
| 48914-50030 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 48914-50030 |
USF41..LHD..D4..EUR |
1 | ||
| 48914-50030 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48914-50030 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 48914-50030 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 48914-50031 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 48914-50031 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48914-50031 |
USF40..GCC;USF41..LHD..D4..EUR VERSION L |
1 | ||
| 48925 - FILTER, HEIGHT CONTROL | ||||
| 48925-50040 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&VERSION L |
1 | ||
| 48925-50040 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 48925-50040 |
USF40,45..EUR;USF41..LHD..D4..EUR |
1 | ||
| 48925-50040 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48925-50040 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC |
1 | ||
| 48925-50070 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC |
1 | ||
| 48925-50070 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&VERSION L |
1 | ||
| 48925-50070 |
USF41..LHD..D4..EUR |
1 | ||
| 48925-50070 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 48925-50070 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48925-50070 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 48925-50070 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48925-50070 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30010 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC |
2 | ||
| 48933-30010 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT) |
2 | ||
| 48933-30010 |
USF41..LHD..D4..EUR |
2 | ||
| 48933-30010 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&VERSION L |
2 | ||
| 48933-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
2 | ||
| 48933-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
2 | ||
| 48933-30010 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT) |
2 | ||
| 48933-30010 |
USF41..LHD..D4..EUR VERSION L |
2 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30010 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC |
2 | ||
| 48933-30010 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT) |
2 | ||
| 48933-30010 |
USF41..LHD..D4..EUR |
2 | ||
| 48933-30010 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&VERSION L |
2 | ||
| 48933-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
2 | ||
| 48933-30010 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
2 | ||
| 48933-30010 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT) |
2 | ||
| 48933-30010 |
USF41..LHD..D4..EUR VERSION L |
2 | ||
| 48943 - HOSE, HEIGHT CONTROL, NO.1 | ||||
| 48943-50120 |
USF41..LHD..D4..EUR |
1 | ||
| 48943-50120 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&VERSION L |
1 | ||
| 48943-50120 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 48943-50120 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48943-50120 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 48943-50120 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC |
1 | ||
| 48943-50120 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 48943-50120 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48982 - TUBE, HEIGHT CONTROL, NO.2 | ||||
| 48982-50050 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&VERSION L |
1 | ||
| 48982-50050 |
USF41..LHD..D4..EUR |
1 | ||
| 48982-50050 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 48982-50050 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC |
1 | ||
| 48982-50050 |
USF41..LHD..D4..EUR VERSION L |
1 | ||
| 48982-50050 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48982-50050 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
1 | ||
| 48982-50050 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
1 | ||
| 48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2) | ||||
| 90301-04004 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT) |
2 | ||
| 90301-04004 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&VERSION L |
2 | ||
| 90301-04004 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC |
2 | ||
| 90301-04004 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT) |
2 | ||
| 90301-04004 |
USF41..LHD..D4..EUR |
2 | ||
| 90301-04004 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
2 | ||
| 90301-04004 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
2 | ||
| 90301-04004 |
USF41..LHD..D4..EUR VERSION L |
2 | ||
| 48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2) | ||||
| 90301-04004 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT) |
2 | ||
| 90301-04004 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&VERSION L |
2 | ||
| 90301-04004 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC |
2 | ||
| 90301-04004 |
USF41..LHD..D4..EUR PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT) |
2 | ||
| 90301-04004 |
USF41..LHD..D4..EUR |
2 | ||
| 90301-04004 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(4SEAT) |
2 | ||
| 90301-04004 |
USF41..LHD..D4..EUR EXECUTIVE PACKAGE(5SEAT) |
2 | ||
| 90301-04004 |
USF41..LHD..D4..EUR VERSION L |
2 | ||
| Common parts | ||||
| 82711-16830 | ||||
| 82711-1A750 | ||||
| 90119-06368 | ||||
| 90179-08040 | ||||
| 90466-13006 | ||||
| 90468-12012 | ||||
| 91551-80814 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
