USF41L-AEZGHV (2012)

Toyota Lexus Ls460/460l

Production Sep 2012 - Aug 2017
Engine 1URFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1209- )GCC

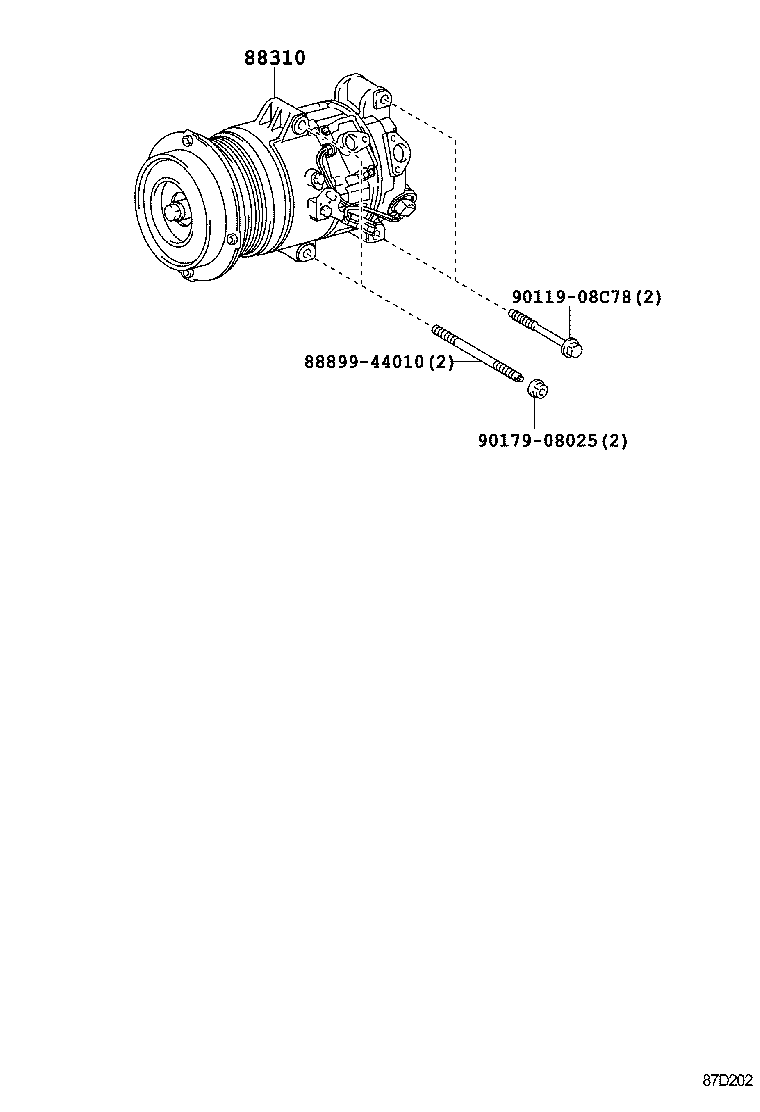

Click highlighted areas on diagram

diagram 88310 8889944010 9011908C78 9017908025
Part # Description Qty Price
88310 - COMPRESSOR ASSY, W/PULLEY
88310-50170

USF40,41..GCC

 1
88310-50171

USF40,41..GCC

 1
Common parts
88899-44010
90119-08C78
90179-08025
