USF40R-AEZGHW (2008)
Toyota Lexus Ls460/460l

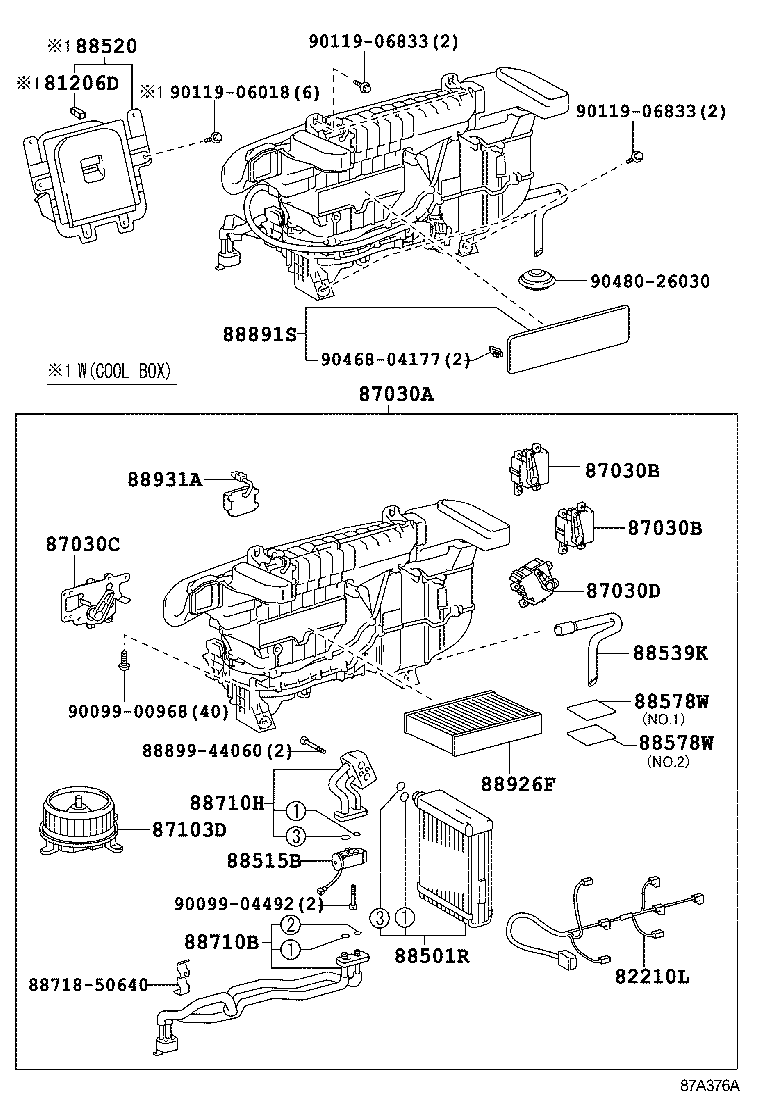

ILLUST NO. 2 OF 3(0809-0909)
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81206D - LAMP SUB-ASSY, COOLING BOX | ||||
| 81080-50030 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 81080-50030 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 82210L - HARNESS ASSY, AIR CONDITIONER, NO.2 | ||||
| 82212-50050 |
USF40..D4;USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER) |
1 | ||
| 82212-50050 |
USF40..RHD VERSION U OR VERSION U I PACKAGE&COLD AREA SPEC&WITH(REAR COOLER) |
1 | ||
| 82212-50110 |
USF40,45..RHD VERSION U OR VERSION U I PACKAGE&COLD AREA SPEC&WITH(REAR COOLER) |
1 | ||
| 82212-50110 |
USF40..D4;USF45..RHD;USF41..LHD..EUR VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER) |
1 | ||
| 82212-50110 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-50090 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 87030-50080 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 87030B - SERVO SUB-ASSY, DAMPER (FOR ROOF BLOWER) | ||||
| 87106-50440 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),NO.1 |
1 | ||
| 87106-50450 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),NO.2 |
1 | ||
| 87106-50490 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
2 | ||
| 87030B - SERVO SUB-ASSY, DAMPER (FOR ROOF BLOWER) | ||||
| 87106-50440 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),NO.1 |
1 | ||
| 87106-50450 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),NO.2 |
1 | ||
| 87106-50490 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
2 | ||
| 87030C - SERVO SUB-ASSY, DAMPER (FOR DIFFUSE MODE) | ||||
| 87106-50510 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 87106-50470 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 87030D - SERVO SUB-ASSY, DAMPER (FOR EXHAUST MODE) | ||||
| 87106-50460 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 87106-50500 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-50120 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 87103-50130 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-50280 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 88501-50240 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-30740 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 88515-30740 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-50050B0 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),LT.GRAY,TRIM1# |
1 | ||
| 88520-50050A0 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),IVORY,TRIM00 |
1 | ||
| 88520-50050A1 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),MELLOW WHITE,TRIM01 |
1 | ||
| 88520-50090A1 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),MELLOW WHITE,TRIM01 |
1 | ||
| 88520-50050C0 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),BLACK,TRIM2# |
1 | ||
| 88520-50090A0 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),IVORY,TRIM00 |
1 | ||
| 88520-50090B0 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),LT.GRAY,TRIM1# |
1 | ||
| 88520-50090C0 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),BLACK,TRIM2# |
1 | ||
| 88539K - HOSE, DRAIN COOLER | ||||
| 88539-50080 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 88539-50150 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 88578W - PACKING, COOLING UNIT, NO.4 | ||||
| 88578-30840 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),NO.2 |
3 | ||
| 88578-50270 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),NO.1 |
1 | ||
| 88578-30840 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),NO.2 |
1 | ||
| 88578-50270 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),NO.1 |
1 | ||
| 88578W - PACKING, COOLING UNIT, NO.4 | ||||
| 88578-30840 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),NO.2 |
3 | ||
| 88578-50270 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),NO.1 |
1 | ||
| 88578-30840 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),NO.2 |
1 | ||
| 88578-50270 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),NO.1 |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-50890 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 88710-50780 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-50880 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-50100 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 88891-50080 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 88926F - FILTER, REAR COOLER | ||||
| 87139-50050 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 87139-50080 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 88931A - SENSOR, SMOKE | ||||
| 88931-50040 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 88931-50040 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| Common parts | ||||
| 88718-50640 | ||||
| 88899-44060 | ||||
| 90099-00968 | ||||
| 90099-04492 | ||||
| 90119-06018 | ||||
| 90119-06833 | ||||
| 90468-04177 | ||||
| 90480-26030 | ||||
