Toyota Lexus ls460/460l USF40 ABS & VSC

Part #	Description	Period	Qty
86652A - BUZZER ASSY, SKID CONTROL
86652-50010	USF4#	09/2008 - 09/2009	1
86652-50010	USF4#	08/2006 - 09/2008	1
88263A - RELAY, SKID CONTROL
88263-21010	USF4#	08/2006 - 09/2008	1
88263-21010	USF4#	09/2008 - 09/2009	1
88266B - CLAMP, SKID CONTROL SENSOR, NO.1
88266-50600	USF4#	09/2008 - 09/2009	1
89183A - SENSOR, YAWRATE
89183-12040	USF40..D4 ANTI-THEFT SYSTEM-WITH	08/2006 - 09/2008	1
89183-12040	USF40,45..D4 ANTI-THEFT SYSTEM-WITH	09/2008 - 06/2009	1
89183-50030	USF40,45..D4	09/2008 - 09/2009	1
89183-50030	USF40..D4	08/2006 - 09/2008	1
89183-48020	USF40,45..D4 ANTI-THEFT SYSTEM-WITH	06/2009 - 09/2009	1
89510D - SENSOR ASSY, BRAKE PEDAL STROKE
89510-28010	USF40,41,45..RHD	09/2008 - 09/2009	1
89510-28010	USF4#..RHD	08/2006 - 09/2008	1
89516 - WIRE, SKID CONTROL SENSOR
89516-50030	USF40,41	09/2008 - 09/2009	1
89516-50030	USF4#	08/2006 - 09/2008	1
89516B - WIRE, SKID CONTROL SENSOR
89516-50040	USF4#	08/2006 - 09/2008	1
89516-50040	USF40,41	09/2008 - 09/2009	1
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-50060	USF40..D4	08/2006 - 09/2008	1
89516-50050	USF40..RHD SUSPENSION-COIL SPRING	08/2006 - 09/2008	1
89516-50110	USF40,45,46..D4	09/2008 - 09/2009	1
89516-50100	USF40..D4 SUSPENSION-COIL SPRING	09/2008 - 09/2009	1
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-50060	USF40..D4	08/2006 - 09/2008	1
89516-50050	USF40..RHD SUSPENSION-COIL SPRING	08/2006 - 09/2008	1
89516-50110	USF40,45,46..D4	09/2008 - 09/2009	1
89516-50100	USF40..D4 SUSPENSION-COIL SPRING	09/2008 - 09/2009	1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-50120	USF4#	09/2008 - 09/2009	1
89516-50070	USF4#	08/2006 - 09/2008	1
89540 - COMPUTER ASSY, SKID CONTROL
89540-50230	USF40..RHD SOUTH AFRICA SPEC	08/2006 - 09/2008	1
89540-50220	USF40..RHD	08/2006 - 09/2008	1
89540-50230	USF40..RHD NEW ZEALAND SPEC	08/2006 - 09/2008	1
89540-50230	USF40..RHD AUSTRALIA SPEC	08/2006 - 09/2008	1
89540-50190	USF4#..RHD HONG KONG SPEC	08/2006 - 09/2008	1
89540-50230	USF40..RHD THAILAND SPEC	08/2006 - 09/2008	1
89540-50190	USF4#..RHD SINGAPORE SPEC	08/2006 - 09/2008	1
89540-50370	USF40..RHD SINGAPORE SPEC	09/2008 - 12/2008	1
89540-50390	USF40,41..RHD MALAYSIA SPEC	09/2008 - 12/2008	1
89540-50370	USF40..RHD SOUTH AFRICA SPEC	09/2008 - 12/2008	1
89540-50370	USF40..RHD NEW ZEALAND SPEC	09/2008 - 12/2008	1
89540-50370	USF40..RHD THAILAND SPEC	09/2008 - 12/2008	1
89540-50370	USF40..RHD HONG KONG SPEC	09/2008 - 12/2008	1
89540-50371	USF40..RHD THAILAND SPEC	01/2009 - 09/2009	1
89540-50370	USF40..RHD AUSTRALIA SPEC	09/2008 - 12/2008	1
89540-50380	USF40..RHD	09/2008 - 12/2008	1
89540-50371	USF40..RHD NEW ZEALAND SPEC	01/2009 - 09/2009	1
89540-50371	USF40..RHD SINGAPORE SPEC	01/2009 - 09/2009	1
89540-50371	USF40..RHD SOUTH AFRICA SPEC	01/2009 - 09/2009	1
89540-50371	USF40..RHD HONG KONG SPEC	01/2009 - 09/2009	1
89540-50381	USF40..RHD	01/2009 - 09/2009	1
89540-50391	USF40,41..RHD MALAYSIA SPEC	01/2009 - 09/2009	1
89540-50371	USF40..RHD AUSTRALIA SPEC	01/2009 - 09/2009	1
89545 - SENSOR, SPEED, REAR RH
89545-30070	USF4#	08/2006 - 09/2008	1
89545-30070	USF4#	09/2008 - 09/2009	1
89546 - SENSOR, SPEED, REAR LH
89546-30070	USF4#	09/2008 - 09/2009	1
89546-30070	USF4#	08/2006 - 09/2008	1
89549 - BRACKET, SKID CONTROL COMPUTER
88269-50070	USF40,41,45..RHD	09/2008 - 09/2009	1
88269-50070	USF4#..RHD	08/2006 - 09/2008	1
89680 - SUPPLY ASSY, BRAKE CONTROL POWER
89680-33010	USF4#	08/2006 - 09/2008	1
89680-33010	USF4#	09/2008 - 09/2009	1
89680A - COVER, BRAKE CONTROL POWER SUPPLY
F1971-50020	USF4#	09/2008 - 09/2009	1
F1971-50020	USF4#	08/2006 - 09/2008	1
89686 - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1
89686-50010	USF4#	08/2006 - 09/2008	1
89686-50010	USF4#	09/2008 - 09/2009	1
89686A - BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1
89686-50020	USF4#	09/2008 - 09/2009	1
89686-50020	USF4#	08/2006 - 09/2008	1
Common parts
90105-06298
90119-06779
90119-06833
90179-06264
90179-06274
91551-80610
91551-A0616
91553-A0612
91631-B0616
91671-80610

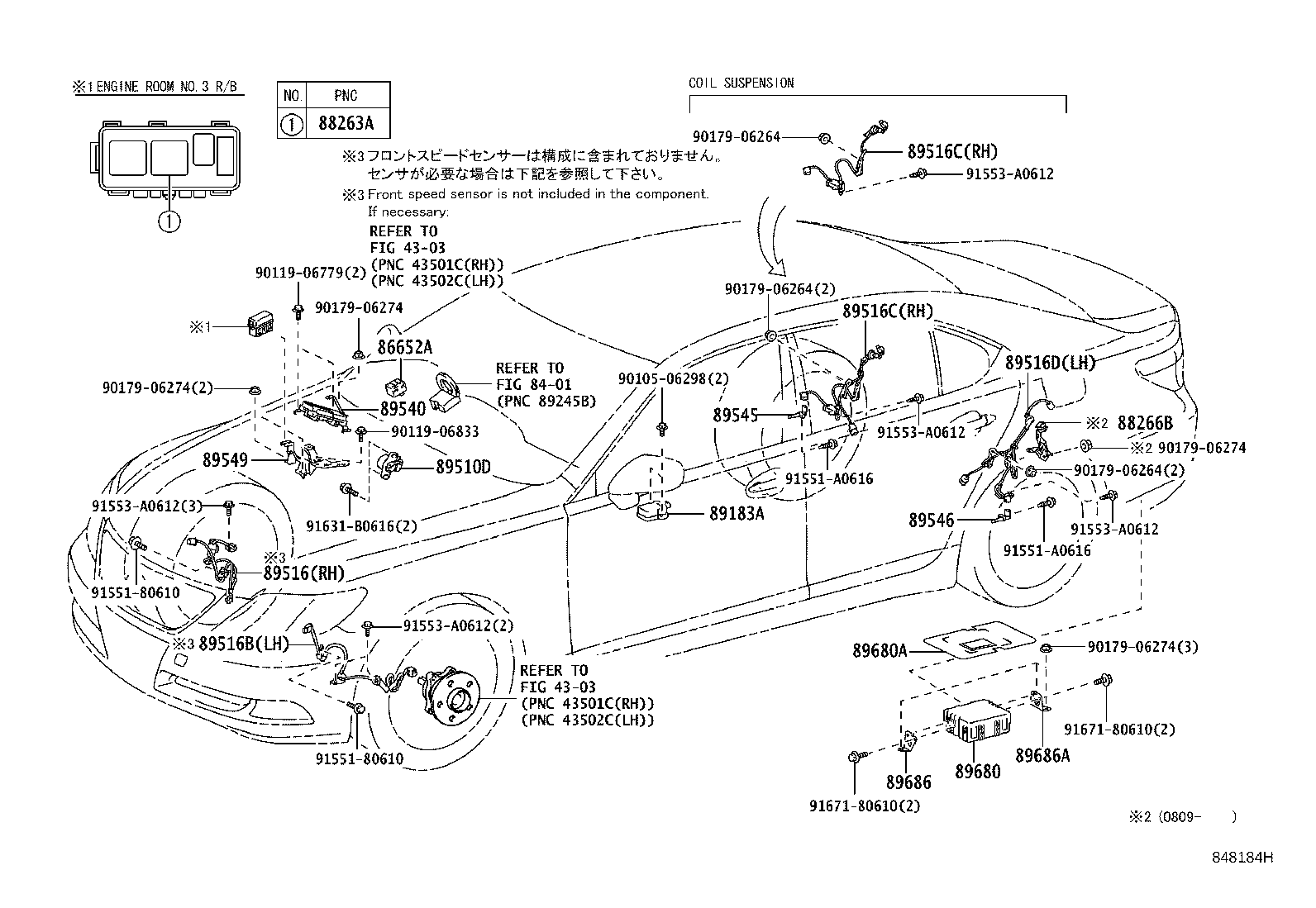

Linked diagrams
4303
8401

USF40R-AEZGHW (2008)

(0608-0909)USF40,41..RHD
