USF40R-AEZGHW (2008)
Toyota Lexus Ls460/460l

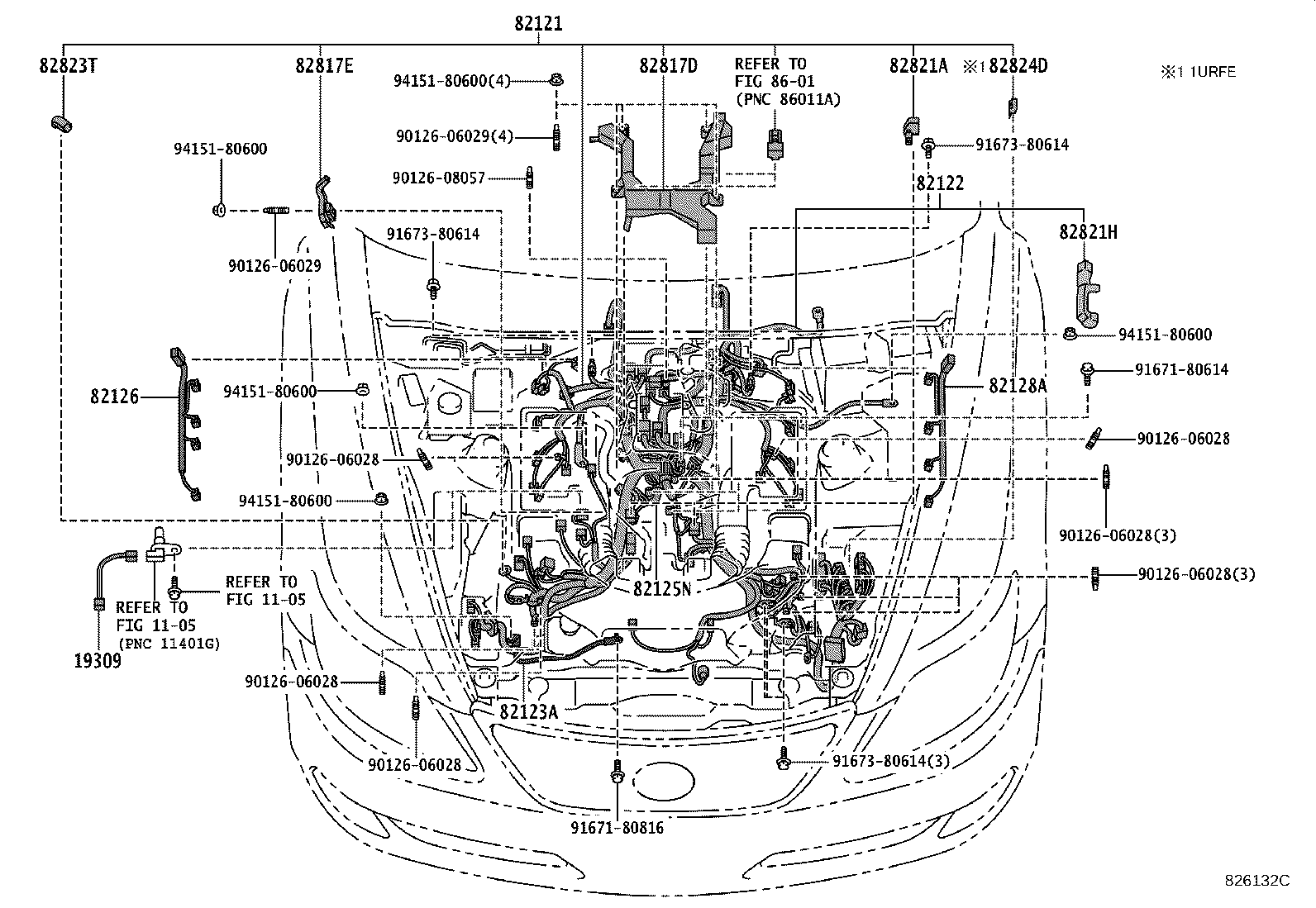

ILLUST NO. 2 OF11(0809- )USF40,41
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19309 - HARNESS SUB-ASSY, CAM POSITION SENSOR | ||||
| 19309-38011 |
1UR#..USF4# |
1 | ||
| 19309-38011 |
1UR#..USF40,41 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-50540 |
USF4#..RHD |
1 | ||
| 82121-50541 |
USF40,41..RHD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-50110 |
USF4#..RHD |
1 | ||
| 82122-50111 |
USF40,41..RHD |
1 | ||
| 82123A - WIRE, ENGINE, NO.3 | ||||
| 82123-50110 |
USF40,41 |
1 | ||
| 82123-50110 |
USF4# |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-50080 |
USF4#..D4 |
1 | ||
| 82125-50080 |
USF4#..D4 |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-34010 |
USF4# |
1 | ||
| 82126-34011 |
USF4# |
1 | ||
| 82126-34021 |
USF4# |
1 | ||
| 82128A - WIRE, ENGINE, NO.8 | ||||
| 82127-34031 |
USF4# |
1 | ||
| 82127-34030 |
USF4# |
1 | ||
| 82127-34050 |
USF4# |
1 | ||
| 82127-34041 |
USF4# |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-50D60 |
USF4# |
1 | ||
| 82817-50D60 |
USF4# |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-50E50 |
USF4# |
1 | ||
| 82817-50E50 |
USF40,41 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-50500 |
USF4# |
2 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-30730 |
USF4# |
1 | ||
| 82821-50520 |
USF4# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-0C010 |
USF4# |
1 | ||
| Common parts | ||||
| 90126-06028 | ||||
| 90126-06029 | ||||
| 90126-08057 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91673-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8601 | ||||

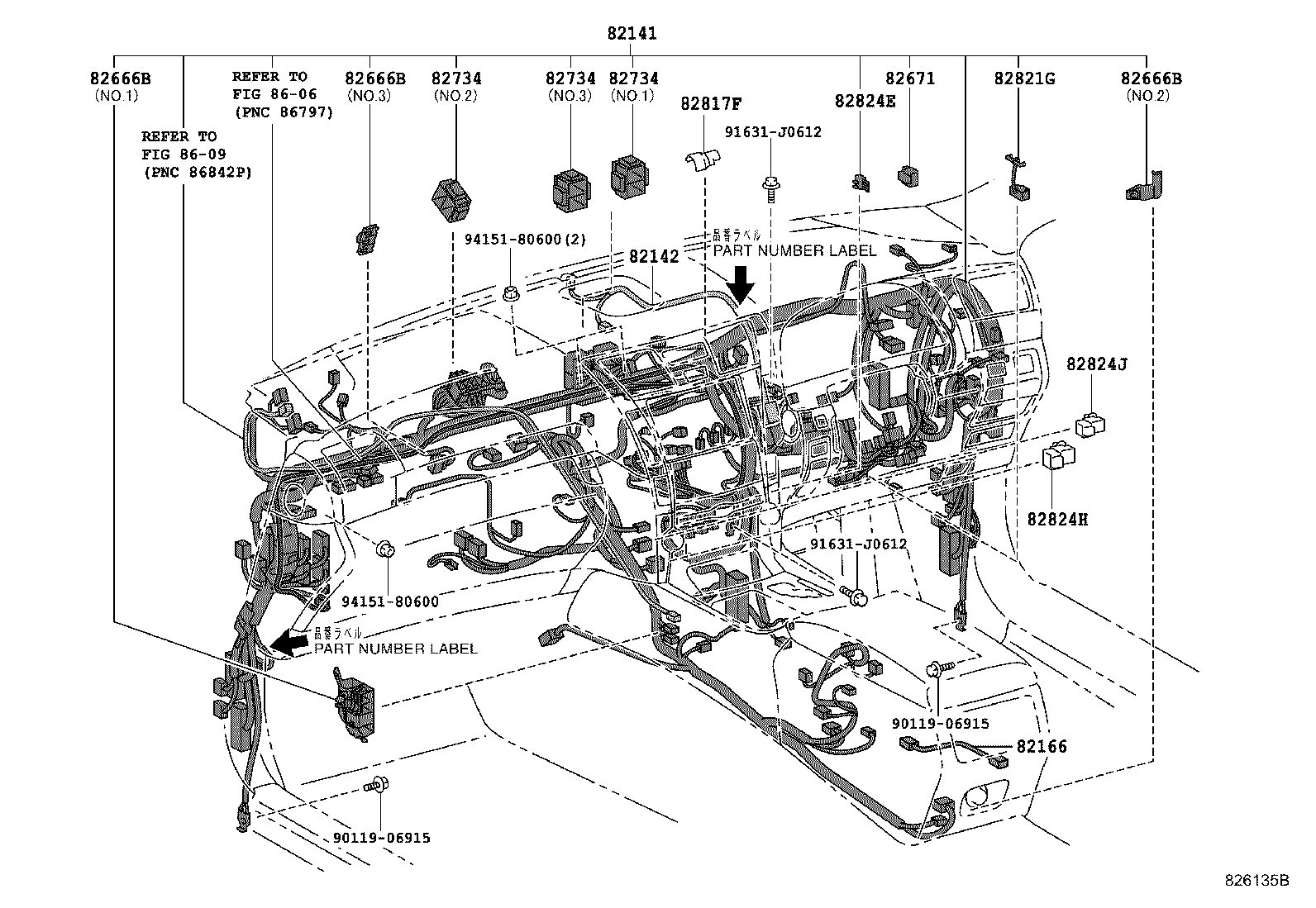

ILLUST NO. 3 OF11(0809-0909)RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-50F10 |
USF40..RHD |
1 | ||
| 82141-50F00 |
USF40..RHD AUSTRALIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&AUDIO-AM-FM,EMV,MARK LEVINSON |
1 | ||
| 82141-50F00 |
USF40..RHD NEW ZEALAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&AUDIO-AM-FM,EMV,10SP |
1 | ||
| 82141-50F70 |
USF40..RHD AUSTRALIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&SUSPENSION-COIL SPRING&AUDIO-AM-FM,EMV,MARK LEVINSON |
1 | ||
| 82141-50F70 |
USF40..RHD AUSTRALIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&SUSPENSION-COIL SPRING&AUDIO-AM-FM,EMV,10SP |
1 | ||
| 82141-50F70 |
USF40..RHD NEW ZEALAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&SUSPENSION-COIL SPRING&AUDIO-AM-FM,EMV,10SP |
1 | ||
| 82141-50F70 |
USF40..RHD NEW ZEALAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&SUSPENSION-COIL SPRING&AUDIO-AM-FM,EMV,MARK LEVINSON |
1 | ||
| 82141-50F70 |
USF40..RHD SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING&SEAT A/C-WIHT(FRONT & REAR) |
1 | ||
| 82141-50F90 |
USF40..RHD SINGAPORE SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&SUSPENSION-COIL SPRING&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,MARK LEVINSON&BACK MONITOR (REAR TELEVISIONCAMERA)-WITH |
1 | ||
| 82141-50F90 |
USF40..RHD SINGAPORE SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&SUSPENSION-COIL SPRING&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,10SP&BACK MONITOR (REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82141-50F00 |
USF40..RHD AUSTRALIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&AUDIO-AM-FM,EMV,10SP |
1 | ||
| 82141-50F00 |
USF40..RHD NEW ZEALAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&AUDIO-AM-FM,EMV,MARK LEVINSON |
1 | ||
| 82141-50K20 |
USF40..RHD HONG KONG SPEC&ANTI-THEFT SYSTEM-WITH&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,10SP&BACK MONITOR (REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82141-50F90 |
USF40..RHD THAILAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&SUSPENSION-COIL SPRING&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,10SP&BACK MONITOR (REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82141-50F90 |
USF40..RHD THAILAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&SUSPENSION-COIL SPRING&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,MARK LEVINSON&BACK MONITOR (REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82141-50F93 |
USF40..RHD THAILAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR+TILT)&SUSPENSION-COIL SPRING&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82141-50F93 |
USF40..RHD SINGAPORE SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR+TILT)&SUSPENSION-COIL SPRING&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82141-50F03 |
USF40,45..RHD AUSTRALIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR+TILT)&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON |
1 | ||
| 82141-50F03 |
USF40,45..RHD NEW ZEALAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR+TILT)&AUDIO-AM-FM,DVD CHANGER,MARKLEVINSON |
1 | ||
| 82141-50F13 |
USF40,45..RHD AUDIO-LW-MW-FM,DVD CHANGER,RDS,MARK LEVINSON |
1 | ||
| 82141-50F93 |
USF40..RHD MALAYSIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR+TILT)&SUSPENSION-COIL SPRING&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82141-50K23 |
USF40..RHD THAILAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR+TILT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82141-50K23 |
USF40..RHD SINGAPORE SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR+TILT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82141-50K23 |
USF40..RHD MALAYSIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR+TILT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82141-50M71 |
USF40..RHD MALAYSIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR+TILT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,CD CHANGER,10SPEAKER&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82141-50M61 |
USF40,45..RHD |
1 | ||
| 82141-50M51 |
USF40,45..RHD AUSTRALIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR+TILT)&AUDIO-AM-FM,CD CHANGER,10SPEAKER |
1 | ||
| 82141-50N31 |
USF40..RHD SINGAPORE SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR+TILT)&SUSPENSION-COIL SPRING&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,CD CHANGER,10SPEAKER&BACK MONITOR(REAR TELEVISIONCAMERA)-WITH |
1 | ||
| 82141-50M71 |
USF40..RHD SINGAPORE SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR+TILT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,CD CHANGER,10SPEAKER&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82141-50N31 |
USF40..RHD MALAYSIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR+TILT)&SUSPENSION-COIL SPRING&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,CD CHANGER,10SPEAKER&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82141-50N31 |
USF40..RHD THAILAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR+TILT)&SUSPENSION-COIL SPRING&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,CD CHANGER,10SPEAKER&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82141-50M71 |
USF40..RHD THAILAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR+TILT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,CD CHANGER,10SPEAKER&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82141-50M51 |
USF40,45..RHD NEW ZEALAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR+TILT)&AUDIO-AM-FM,CD CHANGER,10SPEAKER |
1 | ||
| 82141-50N90 |
USF40..RHD SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING&SEAT A/C-WITH(FRONT & REAR) |
1 | ||
| 82141-50M71 |
USF40..RHD HONG KONG SPEC&ANTI-THEFT SYSTEM-WITH&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,CD CHANGER,10SPEAKER&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82141-50N80 |
USF40..RHD SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING&SEAT A/C-WITH(FRONT & REAR)&AUDIO-LW-MW-FM,DVD CHANGER,RDS,MARK LEVINSON |
1 | ||
| 82141-50F70 |
USF40..RHD PART NUMBER LABEL=82141-50F70 |
1 | ||
| 82141-50F00 |
USF40..RHD PART NUMBER LABEL=82141-50F00 |
1 | ||
| 82141-50F90 |
USF40..RHD PART NUMBER LABEL=82141-50F90 |
1 | ||
| 82141-50F10 |
USF40..RHD PART NUMBER LABEL=82141-50F10 |
1 | ||
| 82141-50K20 |
USF40..RHD PART NUMBER LABEL=82141-50K20 |
1 | ||
| 82141-50F93 |
USF40..RHD PART NUMBER LABEL=82141-50F93 |
1 | ||
| 82141-50F03 |
USF40,45..RHD PART NUMBER LABEL=82141-50F03 |
1 | ||
| 82141-50F13 |
USF40,45..RHD PART NUMBER LABEL=82141-50F13 |
1 | ||
| 82141-50K23 |
USF40..RHD PART NUMBER LABEL=82141-50K23 |
1 | ||
| 82141-50N31 |
USF40..RHD PART NUMBER LABEL=82141-50N31 |
1 | ||
| 82141-50M61 |
USF40,45..RHD PART NUMBER LABEL=82141-50M61 |
1 | ||
| 82141-50M51 |
USF40,45..RHD PART NUMBER LABEL=82141-50M51 |
1 | ||
| 82141-50N80 |
USF40..RHD PART NUMBER LABEL=82141-50N80 |
1 | ||
| 82141-50M71 |
USF40..RHD PART NUMBER LABEL=82141-50M71 |
1 | ||
| 82141-50N90 |
USF40..RHD PART NUMBER LABEL=82141-50N90 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-50010 |
USF4# |
1 | ||
| 82142-50011 |
USF4# |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-30160 |
USF4# |
1 | ||
| 82166-30160 |
USF4# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-50580 |
USF4# |
1 | ||
| 82666-50630 |
USF4# NO.2 |
1 | ||
| 82666-60220 |
USF40,41,45..RHD NO.3 |
2 | ||
| 82666-50580 |
USF4# NO.1 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-50580 |
USF4# |
1 | ||
| 82666-50630 |
USF4# NO.2 |
1 | ||
| 82666-60220 |
USF40,41,45..RHD NO.3 |
2 | ||
| 82666-50580 |
USF4# NO.1 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-50580 |
USF4# |
1 | ||
| 82666-50630 |
USF4# NO.2 |
1 | ||
| 82666-60220 |
USF40,41,45..RHD NO.3 |
2 | ||
| 82666-50580 |
USF4# NO.1 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30340 |
USF4# |
1 | ||
| 82671-30340 |
USF4# |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-50040 |
USF4# NO.3 |
1 | ||
| 82734-50030 |
USF4# NO.2 |
1 | ||
| 82734-50040 |
USF4# NO.3 |
1 | ||
| 82734-50030 |
USF4# NO.2 |
1 | ||
| 82734-50020 |
USF4# NO.1 |
1 | ||
| 82734-50020 |
USF4# NO.1 |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-50040 |
USF4# NO.3 |
1 | ||
| 82734-50030 |
USF4# NO.2 |
1 | ||
| 82734-50040 |
USF4# NO.3 |
1 | ||
| 82734-50030 |
USF4# NO.2 |
1 | ||
| 82734-50020 |
USF4# NO.1 |
1 | ||
| 82734-50020 |
USF4# NO.1 |
1 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-50040 |
USF4# NO.3 |
1 | ||
| 82734-50030 |
USF4# NO.2 |
1 | ||
| 82734-50040 |
USF4# NO.3 |
1 | ||
| 82734-50030 |
USF4# NO.2 |
1 | ||
| 82734-50020 |
USF4# NO.1 |
1 | ||
| 82734-50020 |
USF4# NO.1 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-33820 |
USF4# |
1 | ||
| 82817-33820 |
USF4# |
1 | ||
| 82821G - COVER, CONNECTOR(FOR DIAGNOSIS) | ||||
| 82821-20330 |
USF4# |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30130 |
USF4# |
1 | ||
| 82824H - CONNECTOR, WIRING HARNESS | ||||
| 82824-50440 |
USF4#..GCC;USF4#..RHD |
1 | ||
| 82824-50440 |
USF40..RHD VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 82824-50440 |
USF40,45..RHD COLD AREA SPEC |
1 | ||
| 82824-50440 |
USF40,41..GCC;USF40,41,45..RHD |
1 | ||
| 82824J - CONNECTOR, WIRING HARNESS | ||||
| 82824-50450 |
USF40,45..RHD COLD AREA SPEC |
1 | ||
| 82824-50450 |
USF40,41..GCC;USF40,41,45..RHD |
1 | ||
| 82824-50450 |
USF40..RHD VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 82824-50450 |
USF4#..GCC;USF4#..RHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91631-J0612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8606 | ||||
| 8609 | ||||

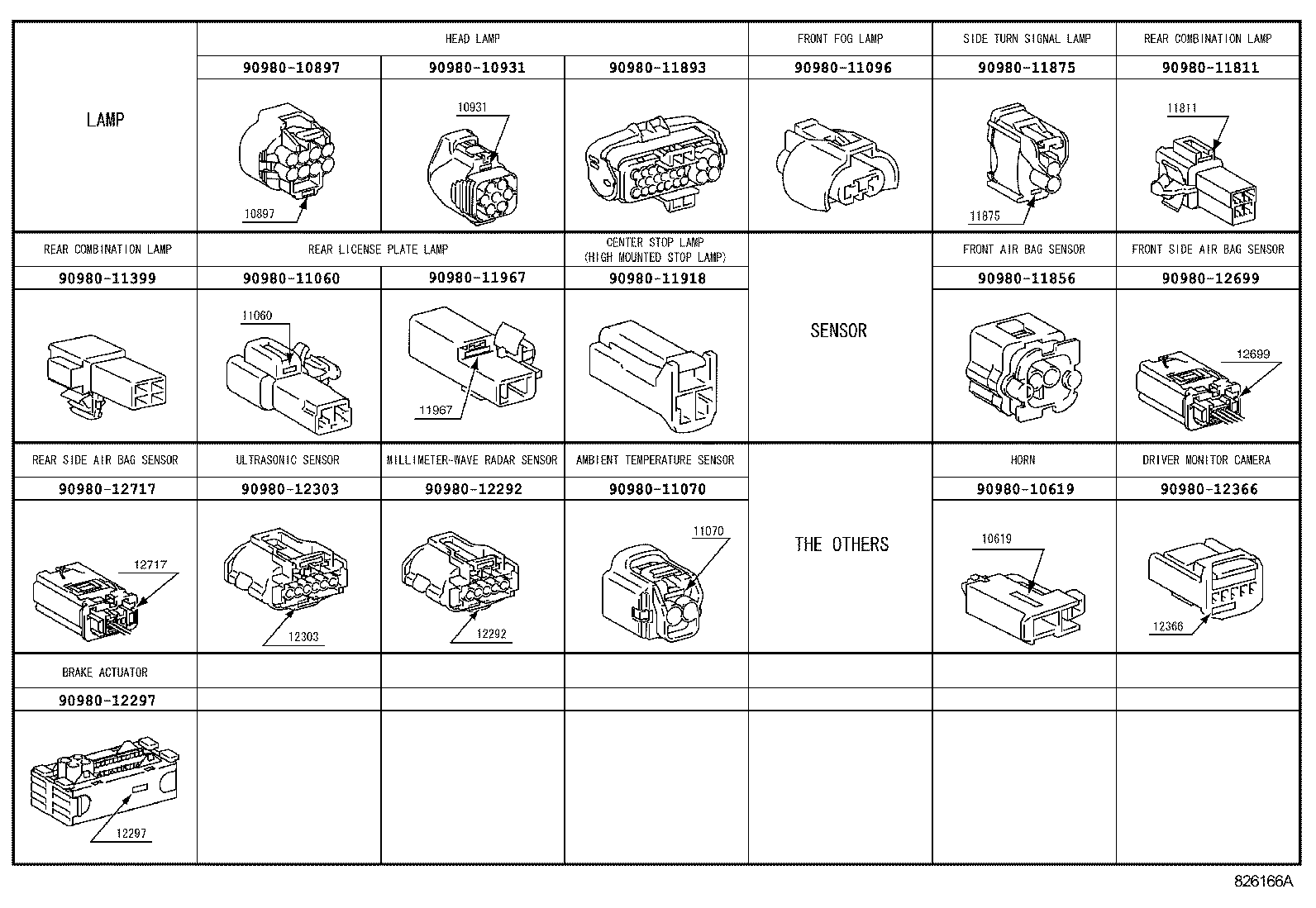

ILLUST NO.11 OF11(0809-0909)
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10897 | ||||
| 90980-10931 | ||||
| 90980-11060 | ||||
| 90980-11070 | ||||
| 90980-11096 | ||||
| 90980-11399 | ||||
| 90980-11811 | ||||
| 90980-11856 | ||||
| 90980-11875 | ||||
| 90980-11893 | ||||
| 90980-11918 | ||||
| 90980-11967 | ||||
| 90980-12292 | ||||
| 90980-12297 | ||||
| 90980-12303 | ||||
| 90980-12366 | ||||
| 90980-12699 | ||||
| 90980-12717 | ||||
ILLUST NO.11 OF11(0809-0909)
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-21030 | ||||
| 90980-10801 | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12038 | ||||
| 90980-12209 | ||||
| 90980-12211 | ||||
| 90980-12444 | ||||
| 90980-12460 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12556 | ||||
| 90980-50004 | ||||

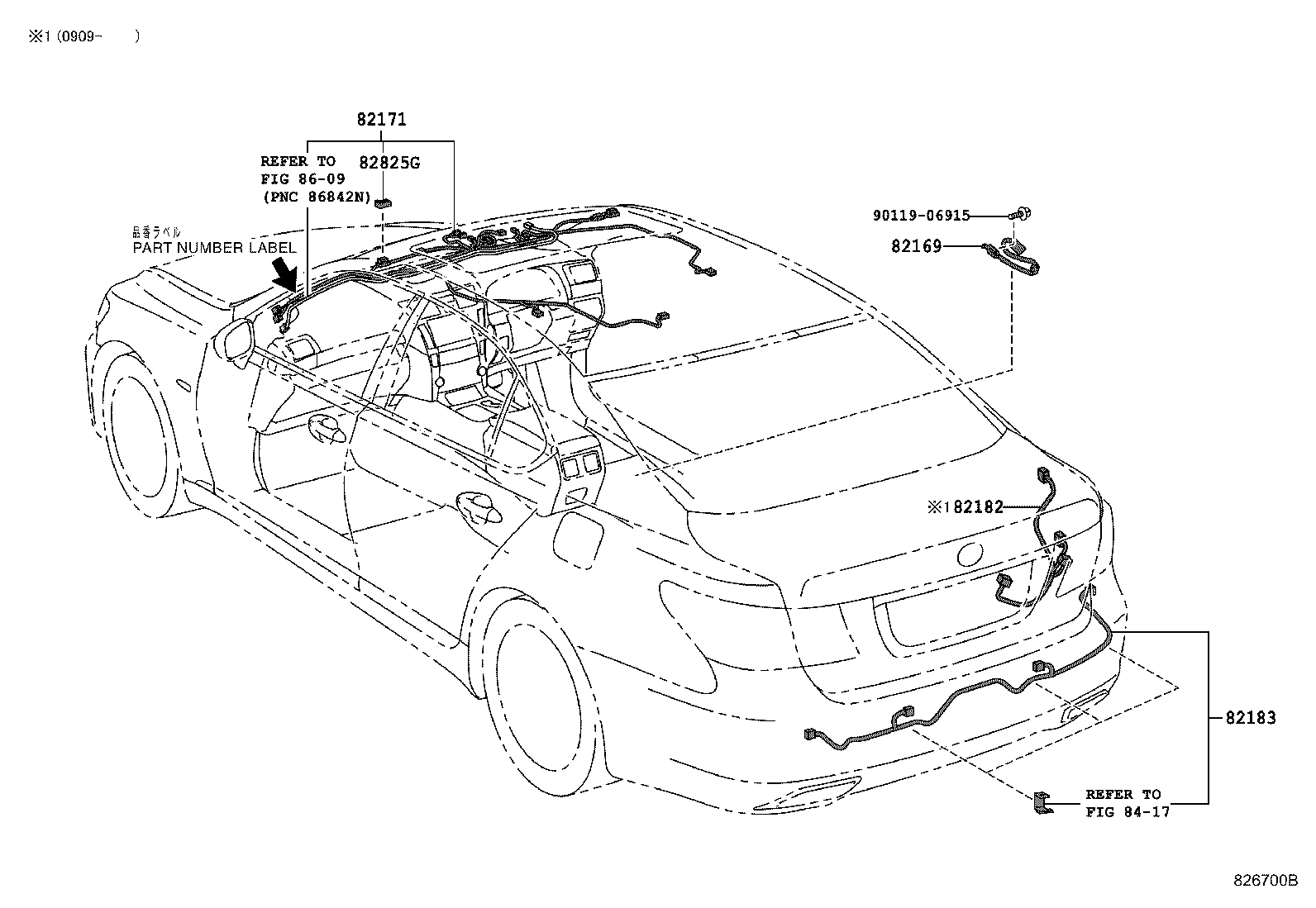

ILLUST NO. 6 OF11(0809- )RHD
ROOF & FRAME & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-50010 |
USF4# |
1 | ||
| 82169-50010 |
USF4# |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-50610 |
USF40 |
1 | ||
| 82171-50570 |
USF40..RHD VERSION U OR VERSION U I PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 82171-50590 |
USF40 MOON ROOF-WITH |
1 | ||
| 82171-50611 |
USF40,45 |
1 | ||
| 82171-50571 |
USF40,45..RHD VERSION U OR VERSION U I PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&MOON ROOF-WITH&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 82171-50700 |
USF40,45..RHD VERSION U OR VERSION U I PACKAGE&PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 82171-50591 |
USF40,45 MOON ROOF-WITH |
1 | ||
| 82171-50591 |
USF40,45 PART NUMBER LABEL=82171-50591 |
1 | ||
| 82171-50590 |
USF40 PART NUMBER LABEL=82171-50590 |
1 | ||
| 82171-50610 |
USF40 PART NUMBER LABEL=82171-50610 |
1 | ||
| 82171-50700 |
USF40,45..RHD PART NUMBER LABEL=82171-50700 |
1 | ||
| 82171-50611 |
USF40,45 PART NUMBER LABEL=82171-50611 |
1 | ||
| 82171-50570 |
USF40..RHD PART NUMBER LABEL=82171-50570 |
1 | ||
| 82171-50571 |
USF40,45..RHD PART NUMBER LABEL=82171-50571 |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-50011 |
USF40,45..EUR CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82183-50010 |
USF40..EUR CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82825G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50130 |
USF4# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8417 | ||||
| 8609 | ||||

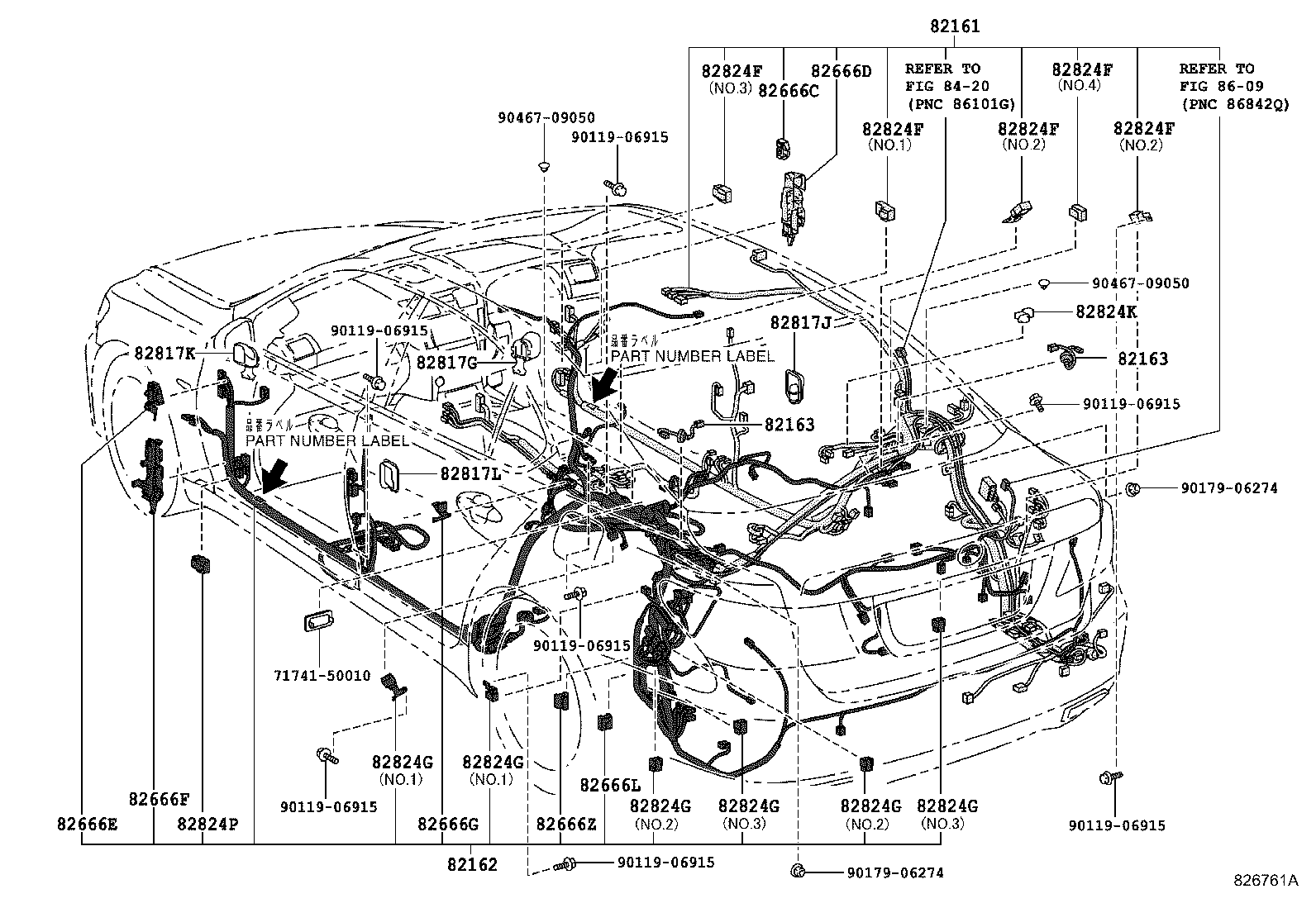

ILLUST NO. 5 OF11(0809-0909)RHD
FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-50G50 |
USF40..RHD NEW ZEALAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,MARK LEVINSON&WITH(REAR DISPLAY) |
1 | ||
| 82161-50G50 |
USF40..RHD AUSTRALIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,MARK LEVINSON&WITH(REAR DISPLAY) |
1 | ||
| 82161-50P40 |
USF40..RHD REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR) |
1 | ||
| 82161-50P30 |
USF40..RHD |
1 | ||
| 82161-50G50 |
USF40..RHD REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-LW-MW-FM,RDS,EMV,MARK LEVINSON&WITH(REAR DISPLAY) |
1 | ||
| 82161-50G51 |
USF40..RHD NEW ZEALAND SPEC&MOON ROOF-WITH&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON&WITH(REAR DISPLAY) |
1 | ||
| 82161-50G51 |
USF40,45..RHD MOON ROOF-WITH&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-LW-MW-FM,DVD CHANGER,RDS,MARK LEVINSON&WITH(REAR DISPLAY) |
1 | ||
| 82161-50G51 |
USF40..RHD AUSTRALIA SPEC&MOON ROOF-WITH&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON&WITH(REAR DISPLAY) |
1 | ||
| 82161-50R20 |
USF40,45..RHD REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-LW-MW-FM,DVD CHANGER,RDS,MARK LEVINSON&WITH(REAR DISPLAY) |
1 | ||
| 82161-50P31 |
USF40,45..RHD |
1 | ||
| 82161-50P41 |
USF40,45..RHD REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR) |
1 | ||
| 82161-50G50 |
USF40..RHD PART NUMBER LABEL=82161-50G50 |
1 | ||
| 82161-50P40 |
USF40..RHD PART NUMBER LABEL=82161-50P40 |
1 | ||
| 82161-50G50 |
USF40..RHD PART NUMBER LABEL=82161-50G50 |
1 | ||
| 82161-50P30 |
USF40..RHD PART NUMBER LABEL=82161-50P30 |
1 | ||
| 82161-50G51 |
USF40..RHD PART NUMBER LABEL=82161-50G51 |
1 | ||
| 82161-50P41 |
USF40,45..RHD PART NUMBER LABEL=82161-50P41 |
1 | ||
| 82161-50G51 |
USF40,45..RHD PART NUMBER LABEL=82161-50G51 |
1 | ||
| 82161-50R20 |
USF40,45..RHD PART NUMBER LABEL=82161-50R20 |
1 | ||
| 82161-50P31 |
USF40,45..RHD PART NUMBER LABEL=82161-50P31 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-50N00 |
USF40..RHD NEW ZEALAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&AUDIO-AM-FM,EMV,MARK LEVINSON |
1 | ||
| 82162-50N10 |
USF40..RHD HONG KONG SPEC&ANTI-THEFT SYSTEM-WITH&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,10SP&BACK MONITOR (REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N00 |
USF40..RHD AUSTRALIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&AUDIO-AM-FM,EMV,MARK LEVINSON |
1 | ||
| 82162-50N00 |
USF40..RHD NEW ZEALAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&AUDIO-AM-FM,EMV,10SP |
1 | ||
| 82162-50N10 |
USF40..RHD THAILAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,10SP&BACK MONITOR (REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N00 |
USF40..RHD AUSTRALIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&AUDIO-AM-FM,EMV,10SP |
1 | ||
| 82162-50N10 |
USF40..RHD NEW ZEALAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,MARK LEVINSON |
1 | ||
| 82162-50N10 |
USF40..RHD AUSTRALIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,MARK LEVINSON |
1 | ||
| 82162-50N20 |
USF40..RHD AUSTRALIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&AUTO & EASY CLOSER DOOR-W(DOOR & LUGAGE CLOSER &POWER TRUNK LID)&AUDIO-AM-FM,EMV,10SP |
1 | ||
| 82162-50N10 |
USF40..RHD NEW ZEALAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,10SP |
1 | ||
| 82162-50N20 |
USF40..RHD NEW ZEALAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&AUTO & EASY CLOSER DOOR-W(DOOR & LUGAGE CLOSER &POWER TRUNK LID)&AUDIO-AM-FM,EMV,10SP |
1 | ||
| 82162-50N30 |
USF40..RHD AUSTRALIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&AUTO & EASY CLOSER DOOR-W(DOOR & LUGAGE CLOSER &POWER TRUNK LID)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,10SP |
1 | ||
| 82162-50N30 |
USF40..RHD HONG KONG SPEC&ANTI-THEFT SYSTEM-WITH&AUTO & EASY CLOSER DOOR-W(DOOR & LUGAGE CLOSER &POWER TRUNK LID)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,10SP&BACK MONITOR (REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N20 |
USF40..RHD AUSTRALIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&AUTO & EASY CLOSER DOOR-W(DOOR & LUGAGE CLOSER &POWER TRUNK LID)&AUDIO-AM-FM,EMV,MARK LEVINSON |
1 | ||
| 82162-50N30 |
USF40..RHD AUSTRALIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&AUTO & EASY CLOSER DOOR-W(DOOR & LUGAGE CLOSER &POWER TRUNK LID)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,MARK LEVINSON |
1 | ||
| 82162-50N10 |
USF40..RHD THAILAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,MARK LEVINSON&BACK MONITOR (REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N20 |
USF40..RHD NEW ZEALAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&AUTO & EASY CLOSER DOOR-W(DOOR & LUGAGE CLOSER &POWER TRUNK LID)&AUDIO-AM-FM,EMV,MARK LEVINSON |
1 | ||
| 82162-50N10 |
USF40..RHD SINGAPORE SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,MARK LEVINSON&BACK MONITOR (REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N10 |
USF40..RHD SINGAPORE SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,10SP&BACK MONITOR (REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N30 |
USF40..RHD NEW ZEALAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&AUTO & EASY CLOSER DOOR-W(DOOR & LUGAGE CLOSER &POWER TRUNK LID)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,MARK LEVINSON |
1 | ||
| 82162-50N30 |
USF40..RHD NEW ZEALAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&AUTO & EASY CLOSER DOOR-W(DOOR & LUGAGE CLOSER &POWER TRUNK LID)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,10SP |
1 | ||
| 82162-50N30 |
USF40..RHD THAILAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&SUSPENSION-COIL SPRING&AUTO &EASY CLOSER DOOR-W(DOOR & LUGAGE CLOSER &POWER TRUNK LID)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,10SP&BACK MONITOR (REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N30 |
USF40..RHD SINGAPORE SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&SUSPENSION-COIL SPRING&AUTO & EASY CLOSER DOOR-W(DOOR & LUGAGE CLOSER &POWER TRUNK LID)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,10SP&BACK MONITOR (REARTELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N10 |
USF40..RHD AUSTRALIA SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,10SP |
1 | ||
| 82162-50N30 |
USF40..RHD THAILAND SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&SUSPENSION-COIL SPRING&AUTO &EASY CLOSER DOOR-W(DOOR & LUGAGE CLOSER &POWER TRUNK LID)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,MARK LEVINSON&BACK MONITOR (REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N30 |
USF40..RHD SINGAPORE SPEC&ANTI-THEFT SYSTEM-WITH(SENSOR & TILT)&SUSPENSION-COIL SPRING&AUTO & EASY CLOSER DOOR-W(DOOR & LUGAGE CLOSER &POWER TRUNK LID)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR)&AUDIO-AM-FM,EMV,MARK LEVINSON&BACK MONITOR (REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N10 |
USF40..RHD SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR) |
1 | ||
| 82162-50G50 |
USF40..RHD AUTO & EASY CLOSER DOOR-W(DOOR & LUGAGE CLOSER &POWER TRUNK LID) |
1 | ||
| 82162-50G60 |
USF40..RHD AUTO & EASY CLOSER DOOR-W(DOOR & LUGAGE CLOSER &POWER TRUNK LID)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR) |
1 | ||
| 82162-50N30 |
USF40..RHD SOUTH AFRICA SPEC&SUSPENSION-COIL SPRING&AUTO & EASY CLOSER DOOR-W(DOOR & LUGAGE CLOSER &POWER TRUNK LID)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR) |
1 | ||
| 82162-50G10 |
USF40..RHD |
1 | ||
| 82162-50G20 |
USF40..RHD REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR) |
1 | ||
| 82162-50N01 |
USF40,45..RHD AUSTRALIA SPEC&AUDIO-AM-FM,CD CHANGER,10SPEAKER |
1 | ||
| 82162-50G11 |
USF40,45..RHD |
1 | ||
| 82162-50G21 |
USF40,45..RHD REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR) |
1 | ||
| 82162-50N01 |
USF40,45..RHD NEW ZEALAND SPEC&AUDIO-AM-FM,CD CHANGER,10SPEAKER |
1 | ||
| 82162-50G61 |
USF40,45..RHD AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR) |
1 | ||
| 82162-50N11 |
USF40,45..RHD AUSTRALIA SPEC&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,CD CHANGER,10SPEAKER |
1 | ||
| 82162-50N01 |
USF40,45..RHD NEW ZEALAND SPEC&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON |
1 | ||
| 82162-50N01 |
USF40,45..RHD AUSTRALIA SPEC&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON |
1 | ||
| 82162-50N11 |
USF40..RHD THAILAND SPEC&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,CD CHANGER,10SPEAKER&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N11 |
USF40,45..RHD NEW ZEALAND SPEC&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,CD CHANGER,10SPEAKER |
1 | ||
| 82162-50N11 |
USF40,45..RHD AUSTRALIA SPEC&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON |
1 | ||
| 82162-50N11 |
USF40..RHD HONG KONG SPEC&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,CD CHANGER,10SPEAKER&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N11 |
USF40..RHD MALAYSIA SPEC&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,CD CHANGER,10SPEAKER&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N11 |
USF40..RHD THAILAND SPEC&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N11 |
USF40,45..RHD NEW ZEALAND SPEC&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON |
1 | ||
| 82162-50N21 |
USF40,45..RHD AUSTRALIA SPEC&AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID)&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON |
1 | ||
| 82162-50N11 |
USF40..RHD SINGAPORE SPEC&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N11 |
USF40..RHD SINGAPORE SPEC&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,CD CHANGER,10SPEAKER&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N11 |
USF40..RHD MALAYSIA SPEC&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N31 |
USF40,45..RHD NEW ZEALAND SPEC&AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,CD CHANGER,10SPEAKER |
1 | ||
| 82162-50N21 |
USF40,45..RHD NEW ZEALAND SPEC&AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID)&AUDIO-AM-FM,CD CHANGER,10SPEAKER |
1 | ||
| 82162-50N31 |
USF40..RHD HONG KONG SPEC&AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,CD CHANGER,10SPEAKER&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N31 |
USF40..RHD THAILAND SPEC&AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,CD CHANGER,10SPEAKER&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50G51 |
USF40,45..RHD AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID) |
1 | ||
| 82162-50N21 |
USF40,45..RHD NEW ZEALAND SPEC&AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID)&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON |
1 | ||
| 82162-50N21 |
USF40,45..RHD AUSTRALIA SPEC&AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID)&AUDIO-AM-FM,CD CHANGER,10SPEAKER |
1 | ||
| 82162-50N31 |
USF40..RHD MALAYSIA SPEC&AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N31 |
USF40..RHD SINGAPORE SPEC&AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,CD CHANGER,10SPEAKER&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N31 |
USF40,45..RHD AUSTRALIA SPEC&AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,CD CHANGER,10SPEAKER |
1 | ||
| 82162-50N31 |
USF40..RHD THAILAND SPEC&AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N31 |
USF40,45..RHD AUSTRALIA SPEC&AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON |
1 | ||
| 82162-50N31 |
USF40..RHD MALAYSIA SPEC&AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,CD CHANGER,10SPEAKER&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N31 |
USF40,45..RHD NEW ZEALAND SPEC&AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,DVDCHANGER,MARK LEVINSON |
1 | ||
| 82162-50N31 |
USF40..RHD SINGAPORE SPEC&AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR)&AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 82162-50N30 |
USF40..RHD PART NUMBER LABEL=82162-50N30 |
1 | ||
| 82162-50N00 |
USF40..RHD PART NUMBER LABEL=82162-50N00 |
1 | ||
| 82162-50N10 |
USF40..RHD PART NUMBER LABEL=82162-50N10 |
1 | ||
| 82162-50N20 |
USF40..RHD PART NUMBER LABEL=82162-50N20 |
1 | ||
| 82162-50G50 |
USF40..RHD PART NUMBER LABEL=82162-50G50 |
1 | ||
| 82162-50G20 |
USF40..RHD PART NUMBER LABEL=82162-50G20 |
1 | ||
| 82162-50G10 |
USF40..RHD PART NUMBER LABEL=82162-50G10 |
1 | ||
| 82162-50G60 |
USF40..RHD PART NUMBER LABEL=82162-50G60 |
1 | ||
| 82162-50N30 |
USF40..RHD PART NUMBER LABEL=82162-50N30 |
1 | ||
| 82162-50N10 |
USF40..RHD PART NUMBER LABEL=82162-50N10 |
1 | ||
| 82162-50G51 |
USF40,45..RHD PART NUMBER LABEL=82162-50G51 |
1 | ||
| 82162-50G21 |
USF40,45..RHD PART NUMBER LABEL=82162-50G21 |
1 | ||
| 82162-50G61 |
USF40,45..RHD PART NUMBER LABEL=82162-50G61 |
1 | ||
| 82162-50G11 |
USF40,45..RHD PART NUMBER LABEL=82162-50G11 |
1 | ||
| 82162-50N31 |
USF40..RHD PART NUMBER LABEL=82162-50N31 |
1 | ||
| 82162-50N11 |
USF40..RHD PART NUMBER LABEL=82162-50N11 |
1 | ||
| 82162-50N01 |
USF40,45..RHD PART NUMBER LABEL=82162-50N01 |
1 | ||
| 82162-50N11 |
USF40,45..RHD PART NUMBER LABEL=82162-50N11 |
1 | ||
| 82162-50N31 |
USF40,45..RHD PART NUMBER LABEL=82162-50N31 |
1 | ||
| 82162-50N21 |
USF40,45..RHD PART NUMBER LABEL=82162-50N21 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-50080 |
USF40..D4 |
2 | ||
| 82163-50080 |
USF40..RHD SUSPENSION-COIL SPRING |
2 | ||
| 82163-50080 |
USF40,45,46..D4 |
2 | ||
| 82163-50080 |
USF40..RHD SUSPENSION-COIL SPRING |
2 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-50080 |
USF40..D4 |
2 | ||
| 82163-50080 |
USF40..RHD SUSPENSION-COIL SPRING |
2 | ||
| 82163-50080 |
USF40,45,46..D4 |
2 | ||
| 82163-50080 |
USF40..RHD SUSPENSION-COIL SPRING |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-50590 |
USF4# |
1 | ||
| 82666-50590 |
USF4# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-50600 |
USF4# |
1 | ||
| 82666-50600 |
USF4# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-50610 |
USF4# |
1 | ||
| 82666-50610 |
USF4# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-50620 |
USF4# |
1 | ||
| 82666-50620 |
USF4# |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-50630 |
USF4# |
1 | ||
| 82666-50630 |
USF4# |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-60170 |
USF4# |
1 | ||
| 82666Z - HOLDER, CONNECTOR NO.19 | ||||
| 82666-21040 |
USF4# |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-50K10 |
USF4# |
1 | ||
| 82817-30A10 |
USF4# |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-50D70 |
USF4# |
1 | ||
| 82817-50D70 |
USF4# |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-50K10 |
USF4# |
1 | ||
| 82817-30A10 |
USF4# |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-50D80 |
USF4# |
1 | ||
| 82817-50D80 |
USF4# |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-26020 |
USF4# NO.1 |
1 | ||
| 82824-52280 |
USF4# NO.4 |
1 | ||
| 82824-50350 |
USF4# NO.3 |
1 | ||
| 82824-48010 |
USF4# NO.2 |
2 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-26020 |
USF4# NO.1 |
1 | ||
| 82824-52280 |
USF4# NO.4 |
1 | ||
| 82824-50350 |
USF4# NO.3 |
1 | ||
| 82824-48010 |
USF4# NO.2 |
2 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-26020 |
USF4# NO.1 |
1 | ||
| 82824-52280 |
USF4# NO.4 |
1 | ||
| 82824-50350 |
USF4# NO.3 |
1 | ||
| 82824-48010 |
USF4# NO.2 |
2 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-26020 |
USF4# NO.1 |
1 | ||
| 82824-52280 |
USF4# NO.4 |
1 | ||
| 82824-50350 |
USF4# NO.3 |
1 | ||
| 82824-48010 |
USF4# NO.2 |
2 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-26020 |
USF4# NO.1 |
1 | ||
| 82824-52280 |
USF4# NO.4 |
1 | ||
| 82824-50350 |
USF4# NO.3 |
1 | ||
| 82824-48010 |
USF4# NO.2 |
2 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
USF40,41,45..RHD NO.2 |
2 | ||
| 82824-48010 |
USF4# NO.1 |
2 | ||
| 82824-50360 |
USF4# NO.3 |
2 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
USF40,41,45..RHD NO.2 |
2 | ||
| 82824-48010 |
USF4# NO.1 |
2 | ||
| 82824-50360 |
USF4# NO.3 |
2 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
USF40,41,45..RHD NO.2 |
2 | ||
| 82824-48010 |
USF4# NO.1 |
2 | ||
| 82824-50360 |
USF4# NO.3 |
2 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
USF40,41,45..RHD NO.2 |
2 | ||
| 82824-48010 |
USF4# NO.1 |
2 | ||
| 82824-50360 |
USF4# NO.3 |
2 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
USF40,41,45..RHD NO.2 |
2 | ||
| 82824-48010 |
USF4# NO.1 |
2 | ||
| 82824-50360 |
USF4# NO.3 |
2 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-50350 |
USF40,41,45..RHD NO.2 |
2 | ||
| 82824-48010 |
USF4# NO.1 |
2 | ||
| 82824-50360 |
USF4# NO.3 |
2 | ||
| 82824K - CONNECTOR, WIRING HARNESS | ||||
| 82824-50260 |
USF40..RHD |
1 | ||
| 82824-50260 |
USF40..EUR VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 82824-50260 |
USF40,45..D4 REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR) |
1 | ||
| 82824P - CONNECTOR, WIRING HARNESS | ||||
| 82824-50340 |
USF40,41,45..RHD |
1 | ||
| Common parts | ||||
| 71741-50010 | ||||
| 90119-06915 | ||||
| 90179-06274 | ||||
| 90467-09050 | ||||
| Linked diagrams | ||||
| 8420 | ||||
| 8609 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
