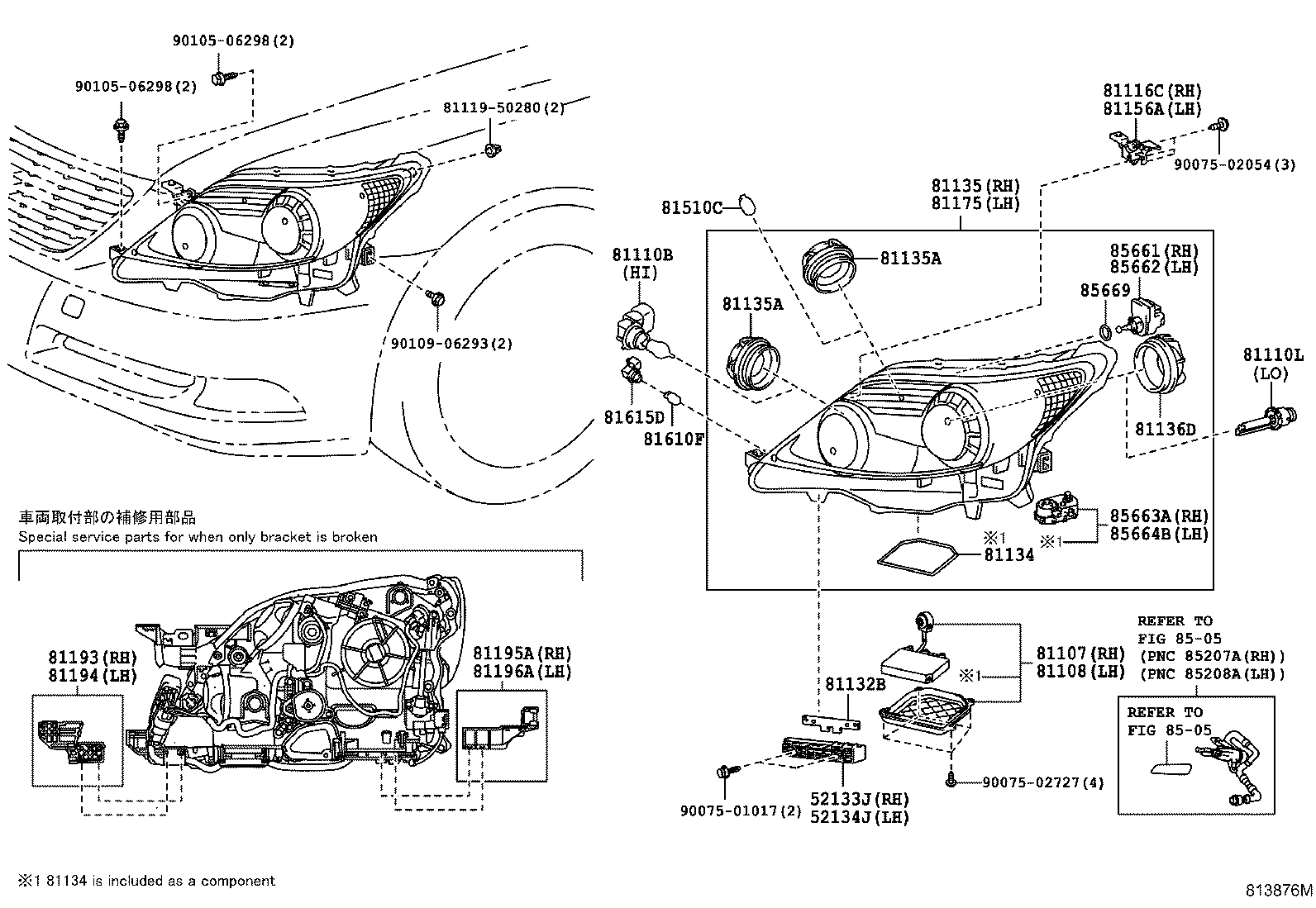

USF40R-AEZGHW (2008)
Toyota Lexus Ls460/460l
(0608-0909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52133J - REINFORCEMENT, FRONT BUMPER BAR, RH | ||||
| 52133-50050 |
USF4# |
1 | ||
| 52133-50050 |
USF4# |
1 | ||
| 52134J - REINFORCEMENT, FRONT BUMPER BAR, LH | ||||
| 52134-50050 |
USF4# |
1 | ||
| 52134-50050 |
USF4# |
1 | ||
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-22A10 |
USF4# |
1 | ||
| 81107-22A10 |
USF4# |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-22A10 |
USF4# |
1 | ||
| 81107-22A10 |
USF4# |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90080-81041 |
USF40..D4 12V 65W,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
2 | ||
| 90981-13066 |
USF4# 12V 65W,HALOGEN |
2 | ||
| 90080-81041 |
USF40,45..D4 12V 65W,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
2 | ||
| 90981-13066 |
USF4# 12V 65W,HALOGEN |
2 | ||
| 90981-13046 |
USF40,45..D4 12V65W(SAE),60W(ECE),PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20013 |
USF4# 45V 35W |
2 | ||
| 90981-20021 |
USF4# 45V 35W |
2 | ||
| 90981-20024 |
USF4# 42V 35W |
2 | ||
| 81116C - BRACKET, HEADLAMP, RH | ||||
| 81116-50340 |
USF4# |
1 | ||
| 81116-50340 |
USF4# |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-50340 |
USF4# |
2 | ||
| 81132-50340 |
USF4# |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68007 |
USF4# |
1 | ||
| 90075-68007 |
USF4# |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-50350 |
USF4#..RHD |
1 | ||
| 81145-50360 |
USF40..RHD PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 81145-50350 |
USF40,41,45..RHD |
1 | ||
| 81145-50351 |
USF40,41,45..RHD |
1 | ||
| 81145-50361 |
USF40,45..RHD PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 81145-50360 |
USF40,45..RHD PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 81135A - CAP, LOCKING | ||||
| 90075-66004 |
USF4# |
4 | ||
| 90075-66004 |
USF4# |
4 | ||
| 81135A - CAP, LOCKING | ||||
| 90075-66004 |
USF4# |
4 | ||
| 90075-66004 |
USF4# |
4 | ||
| 81136D - COVER, HEADLAMP | ||||
| 81136-50340 |
USF4# |
2 | ||
| 81136-50340 |
USF4# |
2 | ||
| 81136-50340 |
USF4# |
2 | ||
| 81156A - BRACKET, HEADLAMP, LH | ||||
| 81156-50340 |
USF4# |
1 | ||
| 81156-50340 |
USF4# |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-50350 |
USF40,41,45..RHD |
1 | ||
| 81185-50360 |
USF40..RHD PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 81185-50360 |
USF40,45..RHD PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 81185-50361 |
USF40,45..RHD PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 81185-50351 |
USF40,41,45..RHD |
1 | ||
| 81185-50350 |
USF4#..RHD |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-50020 |
USF4# |
1 | ||
| 81193-50020 |
USF4# |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-50020 |
USF4# |
1 | ||
| 81194-50020 |
USF4# |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-50020 |
USF4# |
1 | ||
| 81195-50020 |
USF4# |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-50020 |
USF4# |
1 | ||
| 81196-50020 |
USF4# |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
USF4# 12V 21W,AMBER |
2 | ||
| 90981-15021 |
USF4# 12V 21W,AMBER |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
USF4# 12V 5W |
2 | ||
| 99132-12050 |
USF4# 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60081 |
USF4# |
2 | ||
| 90075-60081 |
USF4# |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-28010 |
USF4# |
1 | ||
| 85661-28011 |
USF4# |
1 | ||
| 85661-28010 |
USF4# |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85691-28010 |
USF4# |
1 | ||
| 85691-28011 |
USF4# |
1 | ||
| 85691-28010 |
USF4# |
1 | ||
| 85663A - MOTOR, HEADLAMP SWIVEL, RH | ||||
| 81129-33680 |
USF4# |
1 | ||
| 81129-33680 |
USF4# |
1 | ||
| 81129-50381 |
USF4# |
2 | ||
| 85664B - MOTOR, HEADLAMP SWIVEL, LH | ||||
| 81169-33680 |
USF4# |
1 | ||
| 81169-33680 |
USF4# |
1 | ||
| 81169-50381 |
USF4# |
2 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
USF4# |
2 | ||
| 90075-99120 |
USF4# |
2 | ||
| Common parts | ||||
| 81119-50280 | ||||
| 90075-01017 | ||||
| 90075-02054 | ||||
| 90075-02727 | ||||
| 90105-06298 | ||||
| 90109-06293 | ||||
| Linked diagrams | ||||
| 8505 | ||||

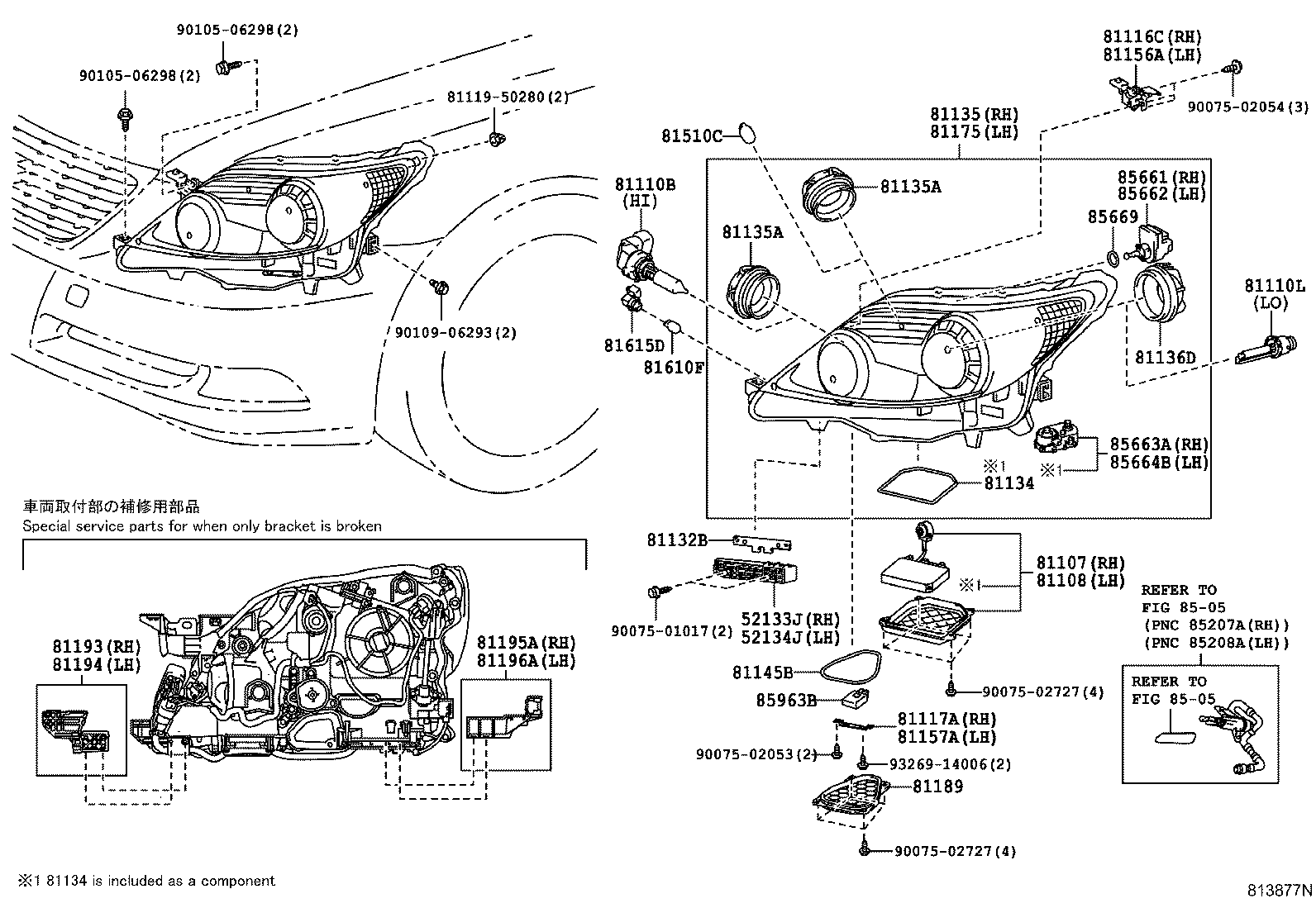

(0608-0909)USF40,45..D4
W(PRECRASH SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52133J - REINFORCEMENT, FRONT BUMPER BAR, RH | ||||
| 52133-50050 |
USF4# |
1 | ||
| 52133-50050 |
USF4# |
1 | ||
| 52134J - REINFORCEMENT, FRONT BUMPER BAR, LH | ||||
| 52134-50050 |
USF4# |
1 | ||
| 52134-50050 |
USF4# |
1 | ||
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-22A10 |
USF4# |
1 | ||
| 81107-22A10 |
USF4# |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-22A10 |
USF4# |
1 | ||
| 81107-22A10 |
USF4# |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90080-81041 |
USF40..D4 12V 65W,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
2 | ||
| 90981-13066 |
USF4# 12V 65W,HALOGEN |
2 | ||
| 90080-81041 |
USF40,45..D4 12V 65W,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
2 | ||
| 90981-13066 |
USF4# 12V 65W,HALOGEN |
2 | ||
| 90981-13046 |
USF40,45..D4 12V65W(SAE),60W(ECE),PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20013 |
USF4# 45V 35W |
2 | ||
| 90981-20021 |
USF4# 45V 35W |
2 | ||
| 90981-20024 |
USF4# 42V 35W |
2 | ||
| 81116C - BRACKET, HEADLAMP, RH | ||||
| 81116-50340 |
USF4# |
1 | ||
| 81116-50340 |
USF4# |
1 | ||
| 81117A - BRACKET, HEADLAMP, RH | ||||
| 81117-50340 |
USF40,45..D4 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 81117-50340 |
USF40..D4 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-50340 |
USF4# |
2 | ||
| 81132-50340 |
USF4# |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68007 |
USF4# |
1 | ||
| 90075-68007 |
USF4# |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-50350 |
USF4#..RHD |
1 | ||
| 81145-50360 |
USF40..RHD PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 81145-50350 |
USF40,41,45..RHD |
1 | ||
| 81145-50351 |
USF40,41,45..RHD |
1 | ||
| 81145-50361 |
USF40,45..RHD PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 81145-50360 |
USF40,45..RHD PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 81135A - CAP, LOCKING | ||||
| 90075-66004 |
USF4# |
4 | ||
| 90075-66004 |
USF4# |
4 | ||
| 81135A - CAP, LOCKING | ||||
| 90075-66004 |
USF4# |
4 | ||
| 90075-66004 |
USF4# |
4 | ||
| 81136D - COVER, HEADLAMP | ||||
| 81136-50340 |
USF4# |
2 | ||
| 81136-50340 |
USF4# |
2 | ||
| 81136-50340 |
USF4# |
2 | ||
| 81145B - GASKET, HEADLAMP COVER, NO.1 | ||||
| 81134-50340 |
USF40..D4 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
2 | ||
| 81134-50340 |
USF40,45..D4 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
2 | ||
| 81156A - BRACKET, HEADLAMP, LH | ||||
| 81156-50340 |
USF4# |
1 | ||
| 81156-50340 |
USF4# |
1 | ||
| 81157A - BRACKET, HEADLAMP, LH | ||||
| 81117-50340 |
USF40..D4 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 81117-50340 |
USF40,45..D4 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-50350 |
USF40,41,45..RHD |
1 | ||
| 81185-50360 |
USF40..RHD PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 81185-50360 |
USF40,45..RHD PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 81185-50361 |
USF40,45..RHD PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 81185-50351 |
USF40,41,45..RHD |
1 | ||
| 81185-50350 |
USF4#..RHD |
1 | ||
| 81189 - COVER, HEADLAMP | ||||
| 81135-50340 |
USF40,45..D4 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
2 | ||
| 81135-50340 |
USF40..D4 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
2 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-50020 |
USF4# |
1 | ||
| 81193-50020 |
USF4# |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-50020 |
USF4# |
1 | ||
| 81194-50020 |
USF4# |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-50020 |
USF4# |
1 | ||
| 81195-50020 |
USF4# |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-50020 |
USF4# |
1 | ||
| 81196-50020 |
USF4# |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
USF4# 12V 21W,AMBER |
2 | ||
| 90981-15021 |
USF4# 12V 21W,AMBER |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
USF4# 12V 5W |
2 | ||
| 99132-12050 |
USF4# 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60081 |
USF4# |
2 | ||
| 90075-60081 |
USF4# |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-28010 |
USF4# |
1 | ||
| 85661-28011 |
USF4# |
1 | ||
| 85661-28010 |
USF4# |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85691-28010 |
USF4# |
1 | ||
| 85691-28011 |
USF4# |
1 | ||
| 85691-28010 |
USF4# |
1 | ||
| 85663A - MOTOR, HEADLAMP SWIVEL, RH | ||||
| 81129-33680 |
USF4# |
1 | ||
| 81129-33680 |
USF4# |
1 | ||
| 81129-50381 |
USF4# |
2 | ||
| 85664B - MOTOR, HEADLAMP SWIVEL, LH | ||||
| 81169-33680 |
USF4# |
1 | ||
| 81169-33680 |
USF4# |
1 | ||
| 81169-50381 |
USF4# |
2 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
USF4# |
2 | ||
| 90075-99120 |
USF4# |
2 | ||
| 85963B - RELAY, LIGHT RETRACTOR CONTROL | ||||
| 85963-30010 |
USF40,45..D4 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB) |
2 | ||
| 85963-30010 |
USF40..D4 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB) |
2 | ||
| Common parts | ||||
| 81119-50280 | ||||
| 90075-01017 | ||||
| 90075-02053 | ||||
| 90075-02054 | ||||
| 90075-02727 | ||||
| 90105-06298 | ||||
| 90109-06293 | ||||
| 93269-14006 | ||||
| Linked diagrams | ||||
| 8505 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
