USF40R-AEZGHW (2008)
Toyota Lexus Ls460/460l

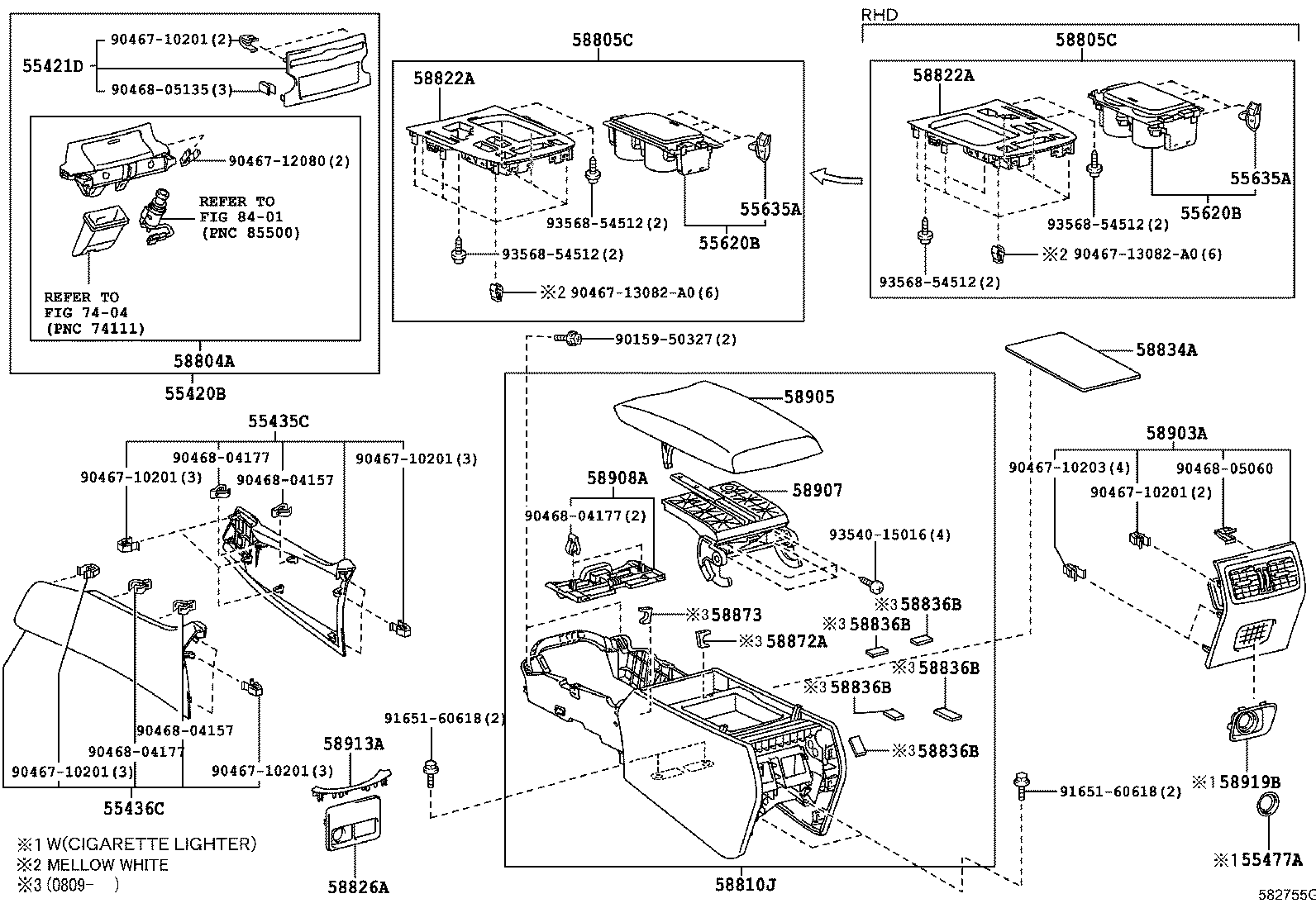

ILLUST NO. 1 OF 3(0608-0909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55420B - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55410-50490B0 |
USF4# GRAY,TRIM1# |
1 | ||
| 55410-50490E1 |
USF4# BROWN,TRIM00,2# |
1 | ||
| 55410-50490B0 |
USF4# GRAY,TRIM1# |
1 | ||
| 55410-50490E0 |
USF4# DK.BROWN,TRIM01 |
1 | ||
| 55410-50490E1 |
USF4# BROWN,TRIM00,2# |
1 | ||
| 55410-50490E0 |
USF4# DK.BROWN,TRIM01 |
1 | ||
| 55421D - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55422-50080E0 |
USF4# DK.BROWN,TRIM01 |
1 | ||
| 55422-50080E0 |
USF4# DK.BROWN,TRIM01 |
1 | ||
| 55422-50080B0 |
USF4# GRAY,TRIM1# |
1 | ||
| 55422-50080E1 |
USF4# BROWN,TRIM00,2# |
1 | ||
| 55422-50080B0 |
USF4# GRAY,TRIM1# |
1 | ||
| 55422-50080E1 |
USF4# BROWN,TRIM00,2# |
1 | ||
| 55435C - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-50050A2 |
USF4# IVORY,TRIM00 |
1 | ||
| 55435-50050A2 |
USF4# IVORY,TRIM00 |
1 | ||
| 55435-50050C1 |
USF4# BLACK,TRIM2# |
1 | ||
| 55435-50050A3 |
USF4# MELLOW WHITE,TRIM01 |
1 | ||
| 55435-50050B1 |
USF4# LT.GRAY,TRIM1# |
1 | ||
| 55435-50050B1 |
USF4# LT.GRAY,TRIM1# |
1 | ||
| 55435-50050A3 |
USF4# MELLOW WHITE,TRIM01 |
1 | ||
| 55435-50050C1 |
USF4# BLACK,TRIM2# |
1 | ||
| 55436C - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-50010A2 |
USF4# IVORY,TRIM00 |
1 | ||
| 55436-50010C1 |
USF4# BLACK,TRIM2# |
1 | ||
| 55436-50010B1 |
USF4# LT.GRAY,TRIM1# |
1 | ||
| 55436-50010A3 |
USF4# MELLOW WHITE,TRIM01 |
1 | ||
| 55436-50010C1 |
USF4# BLACK,TRIM2# |
1 | ||
| 55436-50010B1 |
USF4# LT.GRAY,TRIM1# |
1 | ||
| 55436-50010A3 |
USF4# MELLOW WHITE,TRIM01 |
1 | ||
| 55436-50010A2 |
USF4# IVORY,TRIM00 |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-26030 |
USF40;USF41..LHD |
1 | ||
| 55477-26030 |
USF41..LHD;USF40,45,46 |
1 | ||
| 55620B - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-50040B0 |
USF40..D4 REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR),GRAY,TRIM1# |
1 | ||
| 55620-50040B0 |
USF4# GRAY,TRIM1# |
1 | ||
| 55620-50040E0 |
USF4# DK.BROWN,TRIM01 |
1 | ||
| 55620-50040B0 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT &REAR),GRAY,TRIM1# |
1 | ||
| 55620-50040E0 |
USF40..D4 REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR),DK.BROWN,TRIM01 |
1 | ||
| 55620-50040E1 |
USF4# BROWN,TRIM00,2# |
1 | ||
| 55620-50040B0 |
USF40..RHD SUSPENSION-COIL SPRING,GRAY,TRIM1# |
1 | ||
| 55620-50040E0 |
USF40..RHD SUSPENSION-COIL SPRING,DK.BROWN,TRIM01 |
1 | ||
| 55620-50040E0 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT &REAR),DK.BROWN,TRIM01 |
1 | ||
| 55620-50040E1 |
USF40..RHD SUSPENSION-COIL SPRING,BROWN,TRIM00,2# |
1 | ||
| 55620-50040E1 |
USF40..D4 REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR),BROWN,TRIM00,2# |
1 | ||
| 55620-50040E1 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT &REAR),BROWN,TRIM00,2# |
1 | ||
| 55620-50040B0 |
USF4# GRAY,TRIM1# |
1 | ||
| 55620-50040E0 |
USF4# DK.BROWN,TRIM01 |
1 | ||
| 55620-50040E1 |
USF4# BROWN,TRIM00,2# |
1 | ||
| 55620B - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-50040B0 |
USF40..D4 REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR),GRAY,TRIM1# |
1 | ||
| 55620-50040B0 |
USF4# GRAY,TRIM1# |
1 | ||
| 55620-50040E0 |
USF4# DK.BROWN,TRIM01 |
1 | ||
| 55620-50040B0 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT &REAR),GRAY,TRIM1# |
1 | ||
| 55620-50040E0 |
USF40..D4 REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR),DK.BROWN,TRIM01 |
1 | ||
| 55620-50040E1 |
USF4# BROWN,TRIM00,2# |
1 | ||
| 55620-50040B0 |
USF40..RHD SUSPENSION-COIL SPRING,GRAY,TRIM1# |
1 | ||
| 55620-50040E0 |
USF40..RHD SUSPENSION-COIL SPRING,DK.BROWN,TRIM01 |
1 | ||
| 55620-50040E0 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT &REAR),DK.BROWN,TRIM01 |
1 | ||
| 55620-50040E1 |
USF40..RHD SUSPENSION-COIL SPRING,BROWN,TRIM00,2# |
1 | ||
| 55620-50040E1 |
USF40..D4 REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR),BROWN,TRIM00,2# |
1 | ||
| 55620-50040E1 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT &REAR),BROWN,TRIM00,2# |
1 | ||
| 55620-50040B0 |
USF4# GRAY,TRIM1# |
1 | ||
| 55620-50040E0 |
USF4# DK.BROWN,TRIM01 |
1 | ||
| 55620-50040E1 |
USF4# BROWN,TRIM00,2# |
1 | ||
| 55635A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.2 | ||||
| 55635-50020 |
USF4# |
4 | ||
| 55635-50020 |
USF4# |
4 | ||
| 55635A - SUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.2 | ||||
| 55635-50020 |
USF4# |
4 | ||
| 55635-50020 |
USF4# |
4 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-50310B0 |
USF4# GRAY,TRIM1# |
1 | ||
| 58804-50310E1 |
USF4# BROWN,TRIM00,2# |
1 | ||
| 58804-50310B0 |
USF4# GRAY,TRIM1# |
1 | ||
| 58804-50310E0 |
USF4# DK.BROWN,TRIM01 |
1 | ||
| 58804-50310E0 |
USF4# DK.BROWN,TRIM01 |
1 | ||
| 58804-50310E1 |
USF4# BROWN,TRIM00,2# |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-50100B0 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT &REAR),GRAY,TRIM1# |
1 | ||
| 58805-50090E0 |
USF40..RHD SUSPENSION-COIL SPRING,DK.BROWN,TRIM01 |
1 | ||
| 58805-50090B0 |
USF40..RHD SUSPENSION-COIL SPRING,GRAY,TRIM1# |
1 | ||
| 58805-50130E0 |
USF40..RHD DK.BROWN,TRIM01 |
1 | ||
| 58805-50100E0 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT &REAR),DK.BROWN,TRIM01 |
1 | ||
| 58805-50090E1 |
USF40..RHD SUSPENSION-COIL SPRING,BROWN,TRIM00,2# |
1 | ||
| 58805-50100E1 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT &REAR),BROWN,TRIM00,2# |
1 | ||
| 58805-50140E1 |
USF40..RHD REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR),BROWN,TRIM00,2# |
1 | ||
| 58805-50130B0 |
USF40..RHD GRAY,TRIM1# |
1 | ||
| 58805-50140B0 |
USF40..RHD REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR),GRAY,TRIM1# |
1 | ||
| 58805-50130E1 |
USF40..RHD BROWN,TRIM00,2# |
1 | ||
| 58805-50140E0 |
USF40..RHD REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR),DK.BROWN,TRIM01 |
1 | ||
| 58805-50100E0 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT& REAR),DK.BROWN,TRIM01 |
1 | ||
| 58805-50100B0 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT& REAR),GRAY,TRIM1# |
1 | ||
| 58805-50130B0 |
USF40,45..RHD GRAY,TRIM1# |
1 | ||
| 58805-50140B0 |
USF40,45..RHD REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR),GRAY,TRIM1# |
1 | ||
| 58805-50140E1 |
USF40,45..RHD REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR),BROWN,TRIM00,2# |
1 | ||
| 58805-50130E1 |
USF40,45..RHD BROWN,TRIM00,2# |
1 | ||
| 58805-50100E1 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT& REAR),BROWN,TRIM00,2# |
1 | ||
| 58805-50130E0 |
USF40,45..RHD DK.BROWN,TRIM01 |
1 | ||
| 58805-50140E0 |
USF40,45..RHD REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR),DK.BROWN,TRIM01 |
1 | ||
| 58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR | ||||
| 58805-50100B0 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT &REAR),GRAY,TRIM1# |
1 | ||
| 58805-50090E0 |
USF40..RHD SUSPENSION-COIL SPRING,DK.BROWN,TRIM01 |
1 | ||
| 58805-50090B0 |
USF40..RHD SUSPENSION-COIL SPRING,GRAY,TRIM1# |
1 | ||
| 58805-50130E0 |
USF40..RHD DK.BROWN,TRIM01 |
1 | ||
| 58805-50100E0 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT &REAR),DK.BROWN,TRIM01 |
1 | ||
| 58805-50090E1 |
USF40..RHD SUSPENSION-COIL SPRING,BROWN,TRIM00,2# |
1 | ||
| 58805-50100E1 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT &REAR),BROWN,TRIM00,2# |
1 | ||
| 58805-50140E1 |
USF40..RHD REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR),BROWN,TRIM00,2# |
1 | ||
| 58805-50130B0 |
USF40..RHD GRAY,TRIM1# |
1 | ||
| 58805-50140B0 |
USF40..RHD REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR),GRAY,TRIM1# |
1 | ||
| 58805-50130E1 |
USF40..RHD BROWN,TRIM00,2# |
1 | ||
| 58805-50140E0 |
USF40..RHD REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR),DK.BROWN,TRIM01 |
1 | ||
| 58805-50100E0 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT& REAR),DK.BROWN,TRIM01 |
1 | ||
| 58805-50100B0 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT& REAR),GRAY,TRIM1# |
1 | ||
| 58805-50130B0 |
USF40,45..RHD GRAY,TRIM1# |
1 | ||
| 58805-50140B0 |
USF40,45..RHD REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR),GRAY,TRIM1# |
1 | ||
| 58805-50140E1 |
USF40,45..RHD REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR),BROWN,TRIM00,2# |
1 | ||
| 58805-50130E1 |
USF40,45..RHD BROWN,TRIM00,2# |
1 | ||
| 58805-50100E1 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT& REAR),BROWN,TRIM00,2# |
1 | ||
| 58805-50130E0 |
USF40,45..RHD DK.BROWN,TRIM01 |
1 | ||
| 58805-50140E0 |
USF40,45..RHD REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR),DK.BROWN,TRIM01 |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-50070B0 |
USF40..EUR;USF41..LHD..EUR LT.GRAY,TRIM1# |
1 | ||
| 58810-50070C0 |
USF40..EUR;USF41..LHD..EUR BLACK,TRIM2# |
1 | ||
| 58810-50120A2 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),IVORY,TRIM00 |
1 | ||
| 58810-50120A3 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),MELLOW WHITE,TRIM01 |
1 | ||
| 58810-50070A1 |
USF40..EUR;USF41..LHD..EUR MELLOW WHITE,TRIM01 |
1 | ||
| 58810-50070A0 |
USF40..EUR;USF41..LHD..EUR IVORY,TRIM00 |
1 | ||
| 58810-50120C1 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),BLACK,TRIM2# |
1 | ||
| 58810-50120B1 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),LT.GRAY,TRIM1# |
1 | ||
| 58810-50070B0 |
USF40,45,46..D4;USF41..LHD..EUR LT.GRAY,TRIM1# |
1 | ||
| 58810-50070A0 |
USF40,45,46..D4;USF41..LHD..EUR IVORY,TRIM00 |
1 | ||
| 58810-50070A1 |
USF40,45,46..D4;USF41..LHD..EUR MELLOW WHITE,TRIM01 |
1 | ||
| 58810-50120A3 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),MELLOW WHITE,TRIM01 |
1 | ||
| 58810-50070C0 |
USF40,45,46..D4;USF41..LHD..EUR BLACK,TRIM2# |
1 | ||
| 58810-50120C1 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),BLACK,TRIM2# |
1 | ||
| 58810-50120B1 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),LT.GRAY,TRIM1# |
1 | ||
| 58810-50120A2 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),IVORY,TRIM00 |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-50110E1 |
USF40..RHD SUSPENSION-COIL SPRING,BROWN,TRIM00,2# |
1 | ||
| 58822-50120E0 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT &REAR),DK.BROWN,TRIM01 |
1 | ||
| 58822-50120B0 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT &REAR),MD.GRAY,TRIM1# |
1 | ||
| 58822-50110B0 |
USF40..RHD SUSPENSION-COIL SPRING,GRAY,TRIM1# |
1 | ||
| 58822-50110E0 |
USF40..RHD SUSPENSION-COIL SPRING,DK.BROWN,TRIM01 |
1 | ||
| 58822-50160B0 |
USF40..RHD REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR),MD.GRAY,TRIM1# |
1 | ||
| 58822-50150B0 |
USF40..RHD MD.GRAY,TRIM1# |
1 | ||
| 58822-50120E1 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT &REAR),BROWN,TRIM00,2# |
1 | ||
| 58822-50150E1 |
USF40..RHD BROWN,TRIM00,2# |
1 | ||
| 58822-50150E0 |
USF40..RHD DK.BROWN,TRIM01 |
1 | ||
| 58822-50160E1 |
USF40..RHD REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR),BROWN,TRIM00,2# |
1 | ||
| 58822-50160E0 |
USF40..RHD REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR),DK.BROWN,TRIM01 |
1 | ||
| 58822-50120B0 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT& REAR),GRAY,TRIM1# |
1 | ||
| 58822-50150E1 |
USF40,45..RHD BROWN,TRIM00,2# |
1 | ||
| 58822-50120E1 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT& REAR),BROWN,TRIM00,2# |
1 | ||
| 58822-50160E1 |
USF40,45..RHD REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR),BROWN,TRIM00,2# |
1 | ||
| 58822-50150E0 |
USF40,45..RHD DK.BROWN,TRIM01 |
1 | ||
| 58822-50120E0 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT& REAR),DK.BROWN,TRIM01 |
1 | ||
| 58822-50150B0 |
USF40,45..RHD GRAY,TRIM1# |
1 | ||
| 58822-50160B0 |
USF40,45..RHD REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR),GRAY,TRIM1# |
1 | ||
| 58822-50160E0 |
USF40,45..RHD REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR),DK.BROWN,TRIM01 |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-50110E1 |
USF40..RHD SUSPENSION-COIL SPRING,BROWN,TRIM00,2# |
1 | ||
| 58822-50120E0 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT &REAR),DK.BROWN,TRIM01 |
1 | ||
| 58822-50120B0 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT &REAR),MD.GRAY,TRIM1# |
1 | ||
| 58822-50110B0 |
USF40..RHD SUSPENSION-COIL SPRING,GRAY,TRIM1# |
1 | ||
| 58822-50110E0 |
USF40..RHD SUSPENSION-COIL SPRING,DK.BROWN,TRIM01 |
1 | ||
| 58822-50160B0 |
USF40..RHD REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR),MD.GRAY,TRIM1# |
1 | ||
| 58822-50150B0 |
USF40..RHD MD.GRAY,TRIM1# |
1 | ||
| 58822-50120E1 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT &REAR),BROWN,TRIM00,2# |
1 | ||
| 58822-50150E1 |
USF40..RHD BROWN,TRIM00,2# |
1 | ||
| 58822-50150E0 |
USF40..RHD DK.BROWN,TRIM01 |
1 | ||
| 58822-50160E1 |
USF40..RHD REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR),BROWN,TRIM00,2# |
1 | ||
| 58822-50160E0 |
USF40..RHD REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR),DK.BROWN,TRIM01 |
1 | ||
| 58822-50120B0 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT& REAR),GRAY,TRIM1# |
1 | ||
| 58822-50150E1 |
USF40,45..RHD BROWN,TRIM00,2# |
1 | ||
| 58822-50120E1 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT& REAR),BROWN,TRIM00,2# |
1 | ||
| 58822-50160E1 |
USF40,45..RHD REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR),BROWN,TRIM00,2# |
1 | ||
| 58822-50150E0 |
USF40,45..RHD DK.BROWN,TRIM01 |
1 | ||
| 58822-50120E0 |
USF40..RHD SUSPENSION-COIL SPRING&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT& REAR),DK.BROWN,TRIM01 |
1 | ||
| 58822-50150B0 |
USF40,45..RHD GRAY,TRIM1# |
1 | ||
| 58822-50160B0 |
USF40,45..RHD REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR),GRAY,TRIM1# |
1 | ||
| 58822-50160E0 |
USF40,45..RHD REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&SEAT A/C-WITH(FRONT & REAR),DK.BROWN,TRIM01 |
1 | ||
| 58826A - POCKET, CONSOLE BOX, LOWER | ||||
| 58826-50040 |
USF4# |
1 | ||
| 58826-50010 |
USF40,45..D4 REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&WITH(REAR DISPLAY) |
1 | ||
| 58826-50020 |
USF4# |
1 | ||
| 58826-50030 |
USF40..EUR REAR SEAT ADJUSTER-WITH(POWER SLIDE)&WITH(REAR DISPLAY) |
1 | ||
| 58834A - COVER, CONSOLE, LOWER | ||||
| 58834-50040 |
USF4# |
1 | ||
| 58834-50040 |
USF4# |
1 | ||
| 58836B - PAD, CONSOLE BOX SILENCER, NO.1 | ||||
| 58836-50010 |
USF4# |
5 | ||
| 58836B - PAD, CONSOLE BOX SILENCER, NO.1 | ||||
| 58836-50010 |
USF4# |
5 | ||
| 58836B - PAD, CONSOLE BOX SILENCER, NO.1 | ||||
| 58836-50010 |
USF4# |
5 | ||
| 58836B - PAD, CONSOLE BOX SILENCER, NO.1 | ||||
| 58836-50010 |
USF4# |
5 | ||
| 58836B - PAD, CONSOLE BOX SILENCER, NO.1 | ||||
| 58836-50010 |
USF4# |
5 | ||
| 58872A - CUSHION, CONSOLE BOX, NO.2 | ||||
| 58872-50020 |
USF4# |
1 | ||
| 58873 - CUSHION, CONSOLE BOX, NO.3 | ||||
| 58873-50010 |
USF4# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-50040A1 |
USF40;USF41..LHD MELLOW WHITE,TRIM01 |
1 | ||
| 58903-50040B0 |
USF40;USF41..LHD LT.GRAY,TRIM1# |
1 | ||
| 58903-50040A0 |
USF40;USF41..LHD IVORY,TRIM00 |
1 | ||
| 58903-50050B1 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),LT.GRAY,TRIM1# |
1 | ||
| 58903-50040C0 |
USF40;USF41..LHD BLACK,TRIM2# |
1 | ||
| 58903-50050B1 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),LT.GRAY,TRIM1# |
1 | ||
| 58903-50050E1 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),MELLOW WHITE,TRIM01 |
1 | ||
| 58903-50050B1 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),LT.GRAY,TRIM1# |
1 | ||
| 58903-50050E1 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),MELLOW WHITE,TRIM01 |
1 | ||
| 58903-50050E4 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),IVORY,TRIM00 |
1 | ||
| 58903-50050E4 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),IVORY,TRIM00 |
1 | ||
| 58903-50050E1 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),MELLOW WHITE,TRIM01 |
1 | ||
| 58903-50050E5 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),BLACK,TRIM2# |
1 | ||
| 58903-50050E4 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),IVORY,TRIM00 |
1 | ||
| 58903-50050E5 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),BLACK,TRIM2# |
1 | ||
| 58903-50050E5 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),BLACK,TRIM2# |
1 | ||
| 58903-50040A0 |
USF40..GCC;USF40,45..D4;USF41,46..LHD IVORY,TRIM00 |
1 | ||
| 58903-50040A1 |
USF40..GCC;USF40,45..D4;USF41,46..LHD MELLOW WHITE,TRIM01 |
1 | ||
| 58903-50040B0 |
USF40..GCC;USF40,45..D4;USF41,46..LHD LT.GRAY,TRIM1# |
1 | ||
| 58903-50050E4 |
USF40,45..RHD VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),IVORY,TRIM00 |
1 | ||
| 58903-50050B1 |
USF40,45..RHD VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),LT.GRAY,TRIM1# |
1 | ||
| 58903-50050E5 |
USF40,45..RHD VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),BLACK,TRIM2# |
1 | ||
| 58903-50040C0 |
USF40..GCC;USF40,45..D4;USF41,46..LHD BLACK,TRIM2# |
1 | ||
| 58903-50050E1 |
USF40,45..RHD VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),MELLOW WHITE,TRIM01 |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-50270C0 |
USF40..EUR;USF41..LHD..EUR BLACK,TRIM2# |
1 | ||
| 58905-50270A0 |
USF40..EUR;USF41..LHD..EUR NEW IVORY,TRIM00 |
1 | ||
| 58905-50280A1 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),MELLOW WHITE,TRIM01 |
1 | ||
| 58905-50270A1 |
USF40..EUR;USF41..LHD..EUR MELLOW WHITE,TRIM01 |
1 | ||
| 58905-50280A0 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),IVORY,TRIM00 |
1 | ||
| 58905-50270B0 |
USF40..EUR;USF41..LHD..EUR LT.GRAY,TRIM1# |
1 | ||
| 58905-50280C0 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),BLACK,TRIM2# |
1 | ||
| 58905-50280B0 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),LIGHT GRAY,TRIM1# |
1 | ||
| 58905-50270A0 |
USF40,45,46..D4;USF41..LHD..EUR NEW IVORY,TRIM00 |
1 | ||
| 58905-50270C0 |
USF40,45,46..D4;USF41..LHD..EUR BLACK,TRIM2# |
1 | ||
| 58905-50270B0 |
USF40,45,46..D4;USF41..LHD..EUR LT.GRAY,TRIM1# |
1 | ||
| 58905-50270A1 |
USF40,45,46..D4;USF41..LHD..EUR MELLOW WHITE,TRIM01 |
1 | ||
| 58905-50280A1 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),MELLOW WHITE,TRIM01 |
1 | ||
| 58905-50280B0 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),LIGHT GRAY,TRIM1# |
1 | ||
| 58905-50280A0 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),IVORY,TRIM00 |
1 | ||
| 58905-50280C0 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),BLACK,TRIM2# |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-50050 |
USF4# |
1 | ||
| 58907-50040 |
USF4# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-50050A0 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),IVORY,TRIM00 |
1 | ||
| 58908-50050A1 |
USF4# MELLOW WHITE,TRIM01 |
1 | ||
| 58908-50050A0 |
USF4# IVORY,TRIM00 |
1 | ||
| 58908-50050B0 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),LT.GRAY,TRIM1# |
1 | ||
| 58908-50050B0 |
USF4# LT.GRAY,TRIM1# |
1 | ||
| 58908-50050C0 |
USF4# BLACK,TRIM2# |
1 | ||
| 58908-50050A1 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),MELLOW WHITE,TRIM01 |
1 | ||
| 58908-50050C0 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),BLACK,TRIM2# |
1 | ||
| 58908-50050A1 |
USF4# MELLOW WHITE,TRIM01 |
1 | ||
| 58908-50050A0 |
USF4# IVORY,TRIM00 |
1 | ||
| 58908-50050C0 |
USF4# BLACK,TRIM2# |
1 | ||
| 58908-50050B0 |
USF4# LT.GRAY,TRIM1# |
1 | ||
| 58913A - PANEL, BOX, NO.3 | ||||
| 58913-50030A0 |
USF4# IVORY,TRIM00 |
1 | ||
| 58913-50030C0 |
USF4# BLACK,TRIM2# |
1 | ||
| 58913-50030B0 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),LT.GRAY,TRIM1# |
1 | ||
| 58913-50030A1 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),MELLOW WHITE,TRIM01 |
1 | ||
| 58913-50030A0 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),IVORY,TRIM00 |
1 | ||
| 58913-50030A1 |
USF4# MELLOW WHITE,TRIM01 |
1 | ||
| 58913-50030A1 |
USF4# MELLOW WHITE,TRIM01 |
1 | ||
| 58913-50030B0 |
USF4# LT.GRAY,TRIM1# |
1 | ||
| 58913-50030A0 |
USF4# IVORY,TRIM00 |
1 | ||
| 58913-50030C0 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),BLACK,TRIM2# |
1 | ||
| 58913-50030B0 |
USF4# LT.GRAY,TRIM1# |
1 | ||
| 58913-50030C0 |
USF4# BLACK,TRIM2# |
1 | ||
| 58919B - PLATE, CONSOLE BOX | ||||
| 58919-50020A1 |
USF40;USF41..LHD MELLOW WHITE,TRIM01 |
1 | ||
| 58919-50020A0 |
USF40;USF41..LHD IVORY,TRIM00 |
1 | ||
| 58919-50020A0 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),IVORY,TRIM00 |
1 | ||
| 58919-50020B0 |
USF40;USF41..LHD LT.GRAY,TRIM1# |
1 | ||
| 58919-50020A1 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),MELLOW WHITE,TRIM01 |
1 | ||
| 58919-50020B0 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),LT.GRAY,TRIM1# |
1 | ||
| 58919-50020C0 |
USF40;USF41..LHD BLACK,TRIM2# |
1 | ||
| 58919-50020A0 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),IVORY,TRIM00 |
1 | ||
| 58919-50020B0 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),LT.GRAY,TRIM1# |
1 | ||
| 58919-50020C0 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),BLACK,TRIM2# |
1 | ||
| 58919-50020A1 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),MELLOW WHITE,TRIM01 |
1 | ||
| 58919-50020C0 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),BLACK,TRIM2# |
1 | ||
| 58919-50020A0 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),IVORY,TRIM00 |
1 | ||
| 58919-50020A1 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),MELLOW WHITE,TRIM01 |
1 | ||
| 58919-50020B0 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),LT.GRAY,TRIM1# |
1 | ||
| 58919-50020C0 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE),BLACK,TRIM2# |
1 | ||
| 58919-50020A0 |
USF41..LHD;USF40,45,46 IVORY,TRIM00 |
1 | ||
| 58919-50020B0 |
USF41..LHD;USF40,45,46 LT.GRAY,TRIM1# |
1 | ||
| 58919-50020A1 |
USF41..LHD;USF40,45,46 MELLOW WHITE,TRIM01 |
1 | ||
| 58919-50020C0 |
USF41..LHD;USF40,45,46 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90467-13082A0 | ||||
| 90468-04157 | ||||
| 90468-04177 | ||||
| 90468-05060 | ||||
| 90468-05135 | ||||
| 91651-60618 | ||||
| 93540-15016 | ||||
| 93568-54512 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
