USF40R-AEZGHW (2008)
Toyota Lexus Ls460/460l

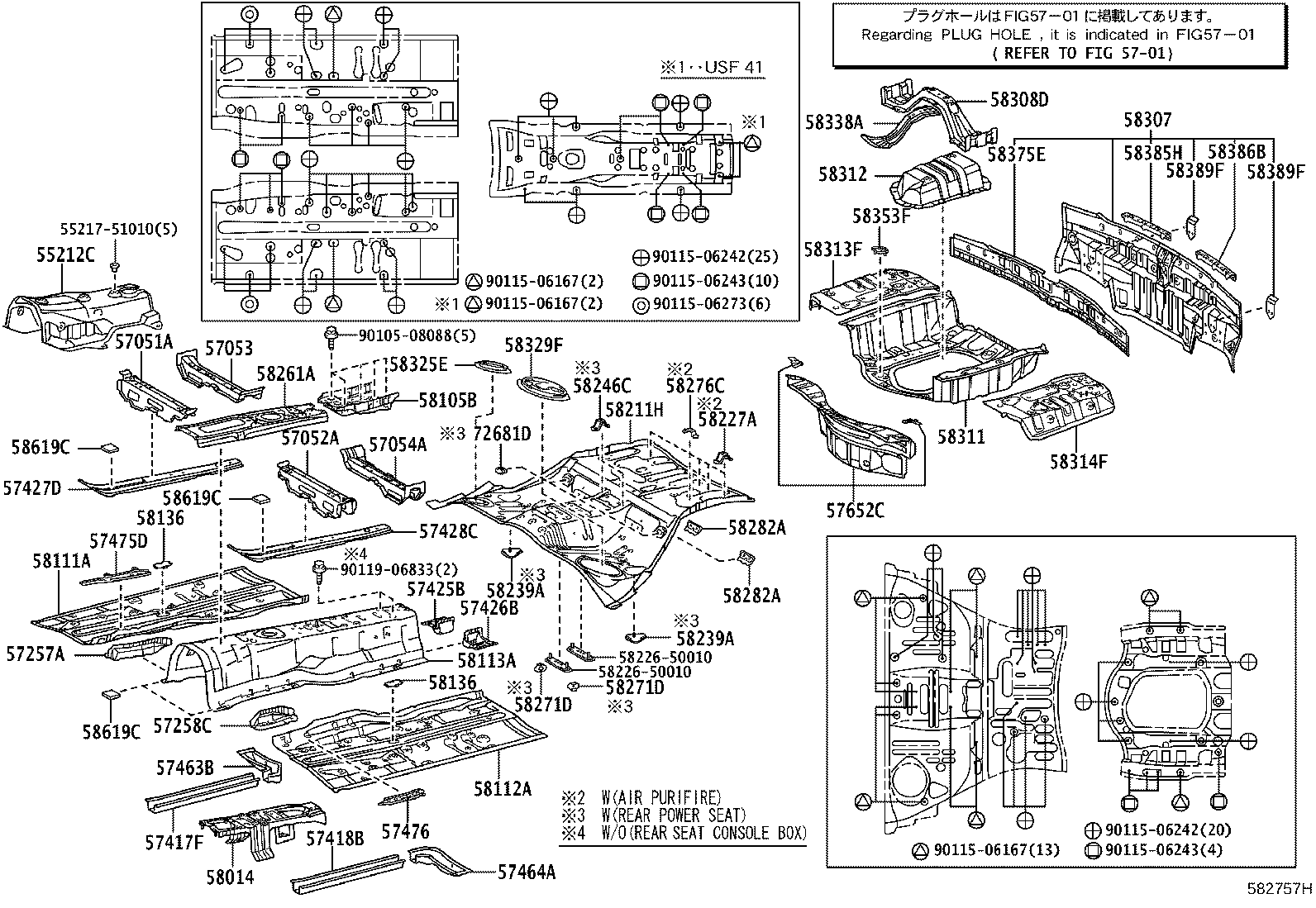

ILLUST NO. 1 OF 3(0608-1011)USF40,41
FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55212C - SILENCER, FRONT PANEL, LOWER | ||||
| 55212-50060 |
USF40,41 |
1 | ||
| 55212-50060 |
USF4# |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-50020 |
USF4# |
1 | ||
| 57051-50020 |
USF4# |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-50020 |
USF4# |
1 | ||
| 57052-50020 |
USF40,41 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-50020 |
USF4# |
1 | ||
| 57053-50020 |
USF4# |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-50020 |
USF4# |
1 | ||
| 57054-50020 |
USF4# |
1 | ||
| 57257A - BRACKET, ENGINE REAR MOUNTING MEMBER, RH | ||||
| 57257-50040 |
USF4# |
1 | ||
| 57257-50041 |
USF40,41 |
1 | ||
| 57258C - BRACKET, ENGINE REAR MOUNTING MEMBER, LH | ||||
| 57258-50040 |
USF4# |
1 | ||
| 57258-50040 |
USF40,41 |
1 | ||
| 57417F - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-50060 |
USF40,45 |
1 | ||
| 57417-50060 |
USF40 |
1 | ||
| 57418B - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-50060 |
USF40,45 |
1 | ||
| 57417-50060 |
USF40 |
1 | ||
| 57425B - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-50050 |
USF4# |
1 | ||
| 57425-50050 |
USF4# |
1 | ||
| 57426B - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57425-50050 |
USF4# |
1 | ||
| 57425-50050 |
USF4# |
1 | ||
| 57427D - REINFORCEMENT, FRONT FLOOR, NO.3 RH | ||||
| 57055-50010 |
USF4# |
1 | ||
| 57055-50010 |
USF4# |
1 | ||
| 57428C - REINFORCEMENT, FRONT FLOOR, NO.3 LH | ||||
| 57056-50010 |
USF4# |
1 | ||
| 57056-50010 |
USF4# |
1 | ||
| 57463B - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH | ||||
| 57463-50030 |
USF4# |
1 | ||
| 57463-50030 |
USF4# |
1 | ||
| 57464A - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH | ||||
| 57464-50020 |
USF4# |
1 | ||
| 57464-50020 |
USF4# |
1 | ||
| 57475D - PLATE, FRONT FLOOR CROSSMEMBER, RH | ||||
| 57475-50010 |
USF4# |
1 | ||
| 57475-50010 |
USF4# |
1 | ||
| 57476 - PLATE, FRONT FLOOR CROSSMEMBER, LH | ||||
| 57476-50010 |
USF4# |
1 | ||
| 57476-50010 |
USF40,41 |
1 | ||
| 57652C - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-50901 |
USF4# |
1 | ||
| 57652-50901 |
USF4# |
1 | ||
| 58014 - PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER | ||||
| 58014-50020 |
USF40 |
1 | ||
| 58014-50020 |
USF40 |
1 | ||
| 58105B - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB | ||||
| 58105-50010 |
USF4# |
1 | ||
| 58105-50010 |
USF4# |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-50904 |
USF40,45 |
1 | ||
| 58111-50904 |
USF40 |
1 | ||
| 58112A - PANEL, FRONT FLOOR, LH | ||||
| 58112-50905 |
USF40 |
1 | ||
| 58112-50905 |
USF40 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-50911 |
USF40 |
1 | ||
| 58113-50911 |
USF40 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-51010 |
USF4# |
2 | ||
| 58136-51010 |
USF4# |
2 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-51010 |
USF4# |
2 | ||
| 58136-51010 |
USF4# |
2 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-50921 |
USF40..D4 REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 58211-50919 |
USF40..D4 |
1 | ||
| 58211-50922 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 58211-50919 |
USF40,45..D4 |
1 | ||
| 58211-50922 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 58211-50921 |
USF40,45..D4 REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 58227A - PLATE, AIR GUIDE | ||||
| 58225-50010 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
4 | ||
| 58225-50010 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
4 | ||
| 58239A - PLATE, BELT ANCHOR NUT | ||||
| 58239-50030 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
2 | ||
| 58239-50030 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
2 | ||
| 58239-50030 |
USF40..D4 REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
2 | ||
| 58239-50030 |
USF40,45..D4 REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
2 | ||
| 58239A - PLATE, BELT ANCHOR NUT | ||||
| 58239-50030 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
2 | ||
| 58239-50030 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
2 | ||
| 58239-50030 |
USF40..D4 REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
2 | ||
| 58239-50030 |
USF40,45..D4 REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
2 | ||
| 58246C - BRACKET, REAR SEAT HINGE, CENTER NO.2 | ||||
| 58246-50010 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
2 | ||
| 58246-50010 |
USF40,45..D4 REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
2 | ||
| 58246-50010 |
USF40..D4 REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
2 | ||
| 58246-50010 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
2 | ||
| 58261A - COVER, TRANSMISSION | ||||
| 58261-50030 |
USF4# |
1 | ||
| 58261-50030 |
USF4# |
1 | ||
| 58271D - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 | ||||
| 58271-50020 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
2 | ||
| 58271-50020 |
USF40,45..D4 REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
2 | ||
| 58271-50020 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
2 | ||
| 58271-50020 |
USF40..D4 REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
2 | ||
| 58271D - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 | ||||
| 58271-50020 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
2 | ||
| 58271-50020 |
USF40,45..D4 REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
2 | ||
| 58271-50020 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
2 | ||
| 58271-50020 |
USF40..D4 REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
2 | ||
| 58276C - REINFORCEMENT, SIDE FLOOR, NO.4 | ||||
| 58276-50010 |
USF40..D4 VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
1 | ||
| 58276-50010 |
USF40,45..D4 VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
1 | ||
| 58282A - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH | ||||
| 58282-50040 |
USF4# |
2 | ||
| 58282-50040 |
USF4# |
2 | ||
| 58282A - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH | ||||
| 58282-50040 |
USF4# |
2 | ||
| 58282-50040 |
USF4# |
2 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-50050 |
USF4# |
1 | ||
| 58307-50050 |
USF4# |
1 | ||
| 58308D - BRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER | ||||
| 58308-50010 |
USF4# |
1 | ||
| 58308-50010 |
USF4# |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-50901 |
USF4# |
1 | ||
| 58311-50901 |
USF4# |
1 | ||
| 58312 - PANEL, REAR BODY FLOOR, NO.1 | ||||
| 58312-50010 |
USF4# |
1 | ||
| 58312-50010 |
USF4# |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58305-50020 |
USF4# |
1 | ||
| 58305-50020 |
USF4# |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58306-50020 |
USF4# |
1 | ||
| 58306-50020 |
USF4# |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-50020 |
USF4# |
1 | ||
| 58325-50020 |
USF4# |
1 | ||
| 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 | ||||
| 58329-50010 |
USF4# |
1 | ||
| 58329-50010 |
USF4# |
1 | ||
| 58338A - REINFORCEMENT, REAR FLOOR PAN, NO.2 | ||||
| 58338-50020 |
USF4# |
1 | ||
| 58338-50020 |
USF4# |
1 | ||
| 58353F - REINFORCEMENT, REAR FLOOR PANEL, NO.3 | ||||
| 58353-50010 |
USF4# |
1 | ||
| 58353-50010 |
USF4# |
1 | ||
| 58375E - REINFORCEMENT, BODY LOWER BACK PANEL | ||||
| 58375-50040 |
USF4# |
1 | ||
| 58375-50040 |
USF4# |
1 | ||
| 58385H - BRACKET, REAR BUMPER COVER, NO.1 | ||||
| 58385-53030 |
USF4# |
1 | ||
| 58385-53030 |
USF4# |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-53010 |
USF4# |
1 | ||
| 58386-53010 |
USF4# |
1 | ||
| 58389F - BRACKET, LOWER BACK COVER | ||||
| 58389-50010 |
USF4# |
2 | ||
| 58389-50010 |
USF4# |
2 | ||
| 58389F - BRACKET, LOWER BACK COVER | ||||
| 58389-50010 |
USF4# |
2 | ||
| 58389-50010 |
USF4# |
2 | ||
| 58619C - SHEET, CENTER FLOOR SILENCER SUB | ||||
| 58619-30080 |
USF4# |
12 | ||
| 58619-30080 |
USF4# |
12 | ||
| 58619C - SHEET, CENTER FLOOR SILENCER SUB | ||||
| 58619-30080 |
USF4# |
12 | ||
| 58619-30080 |
USF4# |
12 | ||
| 58619C - SHEET, CENTER FLOOR SILENCER SUB | ||||
| 58619-30080 |
USF4# |
12 | ||
| 58619-30080 |
USF4# |
12 | ||
| 72681D - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-50020 |
USF40,45..D4 REAR SEAT ADJUSTER-W(POWER SLIDE SEAT) |
2 | ||
| 72681-50020 |
USF40..D4 REAR SEAT ADJUSTER-WITH(POWER SLIDE) |
2 | ||
| Common parts | ||||
| 55217-51010 | ||||
| 58226-50010 | ||||
| 90105-08088 | ||||
| 90115-06167 | ||||
| 90115-06242 | ||||
| 90115-06243 | ||||
| 90115-06273 | ||||
| 90119-06833 | ||||
| Linked diagrams | ||||
| 5701 | ||||

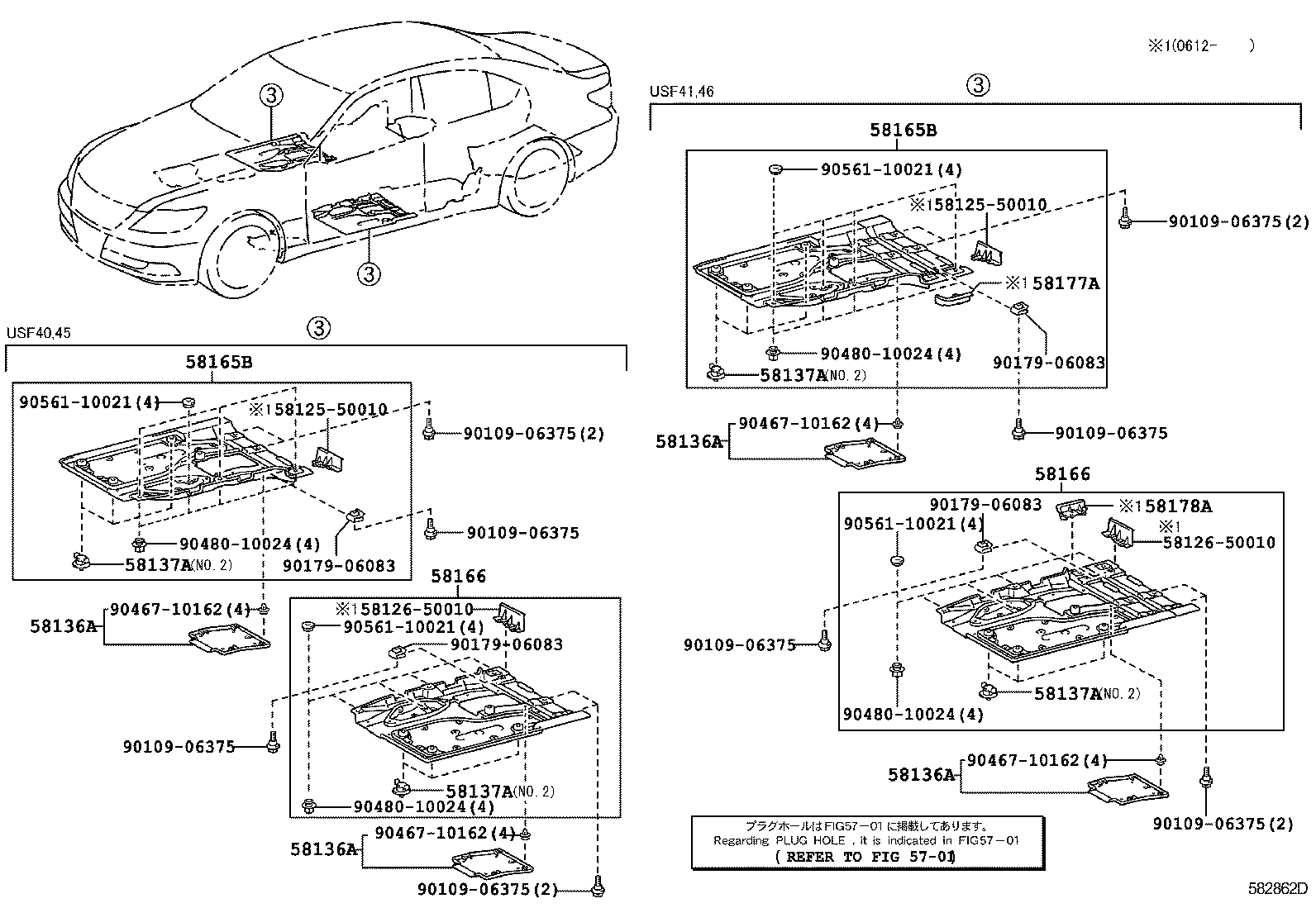

ILLUST NO. 3 OF 3(0608-0909)
FLOOR UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-50030 |
USF4# |
2 | ||
| 58136-50030 |
USF4# |
2 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-50030 |
USF4# |
2 | ||
| 58136-50030 |
USF4# |
2 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-50030 |
USF4# |
2 | ||
| 58136-50030 |
USF4# |
2 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-50030 |
USF4# |
2 | ||
| 58136-50030 |
USF4# |
2 | ||
| 58137A - SEAL, FRONT FLOOR HOLE | ||||
| 58137-50011 |
USF4# NO.1 |
2 | ||
| 58137-50011 |
USF4# NO.2 |
6 | ||
| 58137-50011 |
USF4# NO.1 |
2 | ||
| 58137A - SEAL, FRONT FLOOR HOLE | ||||
| 58137-50011 |
USF4# NO.1 |
2 | ||
| 58137-50011 |
USF4# NO.2 |
6 | ||
| 58137-50011 |
USF4# NO.1 |
2 | ||
| 58137A - SEAL, FRONT FLOOR HOLE | ||||
| 58137-50011 |
USF4# NO.1 |
2 | ||
| 58137-50011 |
USF4# NO.2 |
6 | ||
| 58137-50011 |
USF4# NO.1 |
2 | ||
| 58137A - SEAL, FRONT FLOOR HOLE | ||||
| 58137-50011 |
USF4# NO.1 |
2 | ||
| 58137-50011 |
USF4# NO.2 |
6 | ||
| 58137-50011 |
USF4# NO.1 |
2 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-50021 |
USF40 |
1 | ||
| 58165-50023 |
USF40,45 |
1 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-50021 |
USF40 |
1 | ||
| 58165-50023 |
USF40,45 |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-50021 |
USF40 |
1 | ||
| 58166-50023 |
USF40,45 |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-50021 |
USF40 |
1 | ||
| 58166-50023 |
USF40,45 |
1 | ||
| Common parts | ||||
| 58125-50010 | ||||
| 58126-50010 | ||||
| 90109-06375 | ||||
| 90179-06083 | ||||
| 90467-10162 | ||||
| 90480-10024 | ||||
| 90561-10021 | ||||
| Linked diagrams | ||||
| 5701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
