USF40R-AEZGHW (2008)
Toyota Lexus Ls460/460l

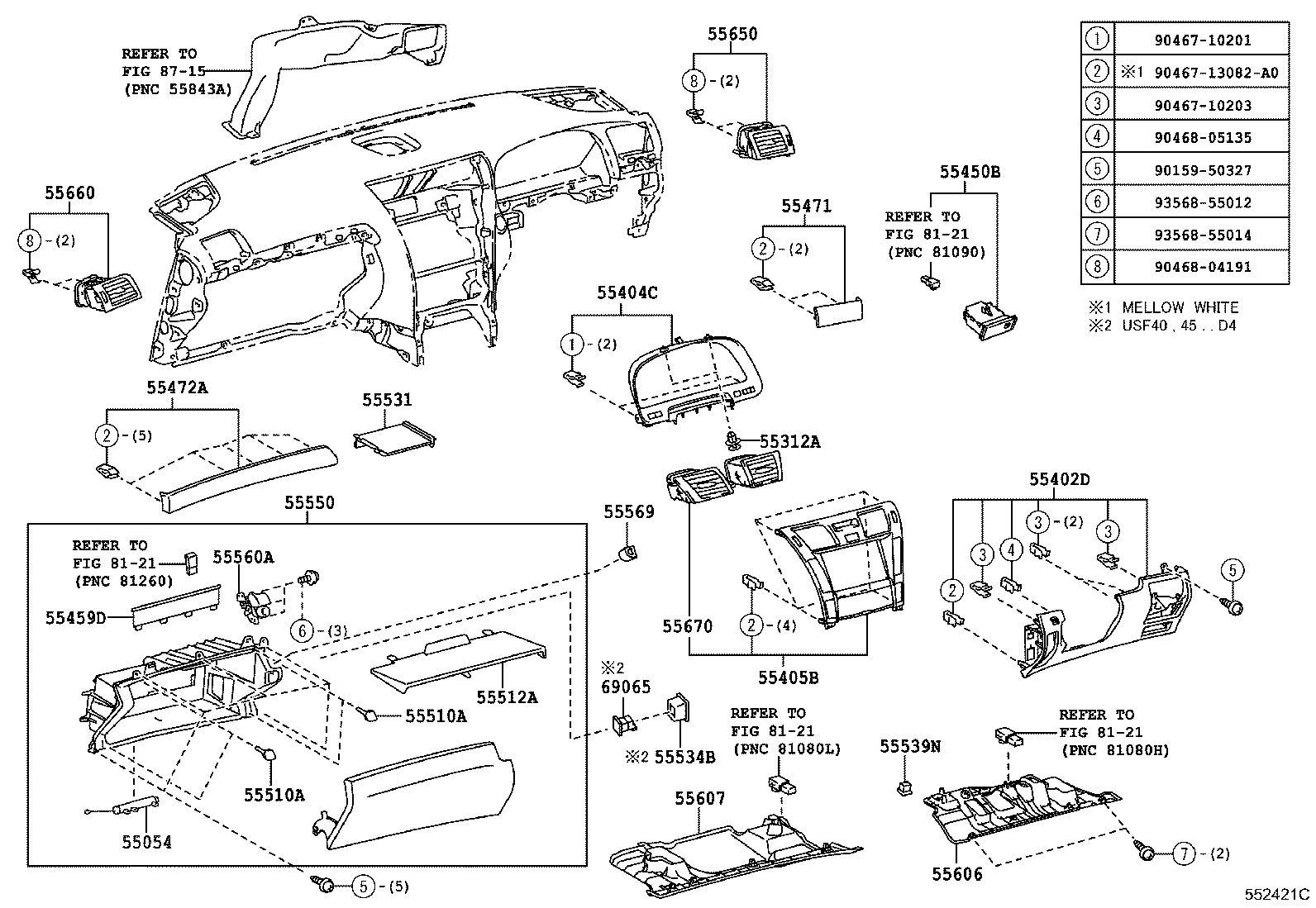

ILLUST NO. 2 OF 2(0809-0909)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-50110 |
USF4# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-06165 |
USF4# |
2 | ||
| 90467-06165C0 |
USF4# BLACK |
2 | ||
| 90467-06165 |
USF4# |
2 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-50150A1 |
USF4#..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 55402-50150B0 |
USF4#..RHD LT.GRAY,TRIM1# |
1 | ||
| 55402-50150C0 |
USF4#..RHD BLACK,TRIM2# |
1 | ||
| 55402-50150A0 |
USF4#..RHD IVORY,TRIM00 |
1 | ||
| 55402-50150A2 |
USF40,41,45..RHD IVORY,TRIM00 |
1 | ||
| 55402-50150A3 |
USF40,41,45..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 55402-50150B1 |
USF40,41,45..RHD LT.GRAY,TRIM1# |
1 | ||
| 55402-50150C1 |
USF40,41,45..RHD BLACK,TRIM2# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-50190 |
USF4#..RHD |
1 | ||
| 55404-50190 |
USF40,41,45..RHD |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-50110 |
USF4# |
1 | ||
| 55405-50110 |
USF4# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-50090A0 |
USF40,41,45..RHD IVORY,TRIM00 |
1 | ||
| 55450-50090B0 |
USF4#..RHD LT.GRAY,TRIM1# |
1 | ||
| 55450-50090C0 |
USF4#..RHD BLACK,TRIM2# |
1 | ||
| 55450-50090A1 |
USF4#..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 55450-50090A0 |
USF4#..RHD IVORY,TRIM00 |
1 | ||
| 55450-50090A1 |
USF40,41,45..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 55450-50090C0 |
USF40,41,45..RHD BLACK,TRIM2# |
1 | ||
| 55450-50090B0 |
USF40,41,45..RHD LT.GRAY,TRIM1# |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-48020 |
USF4# |
1 | ||
| 55459-48020 |
USF4# |
1 | ||
| 55471 - MOULDING, INSTRUMENT CLUSTER, NO.1 | ||||
| 55471-50020E1 |
USF4#..RHD BROWN,TRIM00,2# |
1 | ||
| 55471-50020E0 |
USF40,41,45..RHD DK.BROWN,TRIM01 |
1 | ||
| 55471-50020E0 |
USF4#..RHD DK.BROWN,TRIM01 |
1 | ||
| 55471-50020B0 |
USF4#..RHD MD.GRAY,TRIM1# |
1 | ||
| 55471-50020B0 |
USF40,41,45..RHD GRAY,TRIM1# |
1 | ||
| 55471-50020E1 |
USF40,41,45..RHD BROWN,TRIM00,2# |
1 | ||
| 55472A - MOULDING, INSTRUMENT CLUSTER, NO.2 | ||||
| 55472-50020E1 |
USF40,41,45..RHD BROWN,TRIM00,2# |
1 | ||
| 55472-50020E1 |
USF4#..RHD BROWN,TRIM00,2# |
1 | ||
| 55472-50020B0 |
USF40,41,45..RHD MD.GRAY,TRIM1# |
1 | ||
| 55472-50020E0 |
USF4#..RHD DK.BROWN,TRIM01 |
1 | ||
| 55472-50020B0 |
USF4#..RHD MD.GRAY,TRIM1# |
1 | ||
| 55472-50020E0 |
USF40,41,45..RHD DK.BROWN,TRIM01 |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
USF4# |
4 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
USF4# |
4 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-50120 |
USF40,41,45..RHD |
1 | ||
| 55531 - PANEL, GLOVE COMPARTMENT | ||||
| 55534-50050 |
USF40,41,45..RHD |
1 | ||
| 55534-50040 |
USF4#..RHD |
1 | ||
| 55534B - PANEL, GLOVE COMPARTMENT SIDE, LH | ||||
| 55533-50030 |
USF40..RHD |
1 | ||
| 55533-50050 |
USF40,45..RHD |
1 | ||
| 55539N - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
USF4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-50140A0 |
USF4#..RHD THAILAND SPEC,IVORY,TRIM00 |
1 | ||
| 55550-50140B0 |
USF4#..RHD HONG KONG SPEC,LT.GRAY,TRIM1# |
1 | ||
| 55550-50140A0 |
USF4#..RHD SINGAPORE SPEC,IVORY,TRIM00 |
1 | ||
| 55550-50140C0 |
USF4#..RHD SINGAPORE SPEC,BLACK,TRIM2# |
1 | ||
| 55550-50140A0 |
USF4#..RHD HONG KONG SPEC,IVORY,TRIM00 |
1 | ||
| 55550-50140A1 |
USF4#..RHD HONG KONG SPEC,MELLOW WHITE,TRIM01 |
1 | ||
| 55550-50140A1 |
USF4#..RHD SINGAPORE SPEC,MELLOW WHITE,TRIM01 |
1 | ||
| 55550-50150C0 |
USF4#..RHD BLACK,TRIM2# |
1 | ||
| 55550-50150A0 |
USF4#..RHD IVORY,TRIM00 |
1 | ||
| 55550-50140C0 |
USF4#..RHD THAILAND SPEC,BLACK,TRIM2# |
1 | ||
| 55550-50140C0 |
USF4#..RHD HONG KONG SPEC,BLACK,TRIM2# |
1 | ||
| 55550-50140A1 |
USF4#..RHD THAILAND SPEC,MELLOW WHITE,TRIM01 |
1 | ||
| 55550-50140B0 |
USF4#..RHD THAILAND SPEC,LT.GRAY,TRIM1# |
1 | ||
| 55550-50150B0 |
USF4#..RHD LT.GRAY,TRIM1# |
1 | ||
| 55550-50140B0 |
USF4#..RHD SINGAPORE SPEC,LT.GRAY,TRIM1# |
1 | ||
| 55550-50150A1 |
USF4#..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 55550-50220A0 |
USF40,41..RHD MALAYSIA SPEC,IVORY,TRIM00 |
1 | ||
| 55550-50220A0 |
USF40,41..RHD HONG KONG SPEC,IVORY,TRIM00 |
1 | ||
| 55550-50220A1 |
USF40,41..RHD MALAYSIA SPEC,MELLOW WHITE,TRIM01 |
1 | ||
| 55550-50220A1 |
USF40,41..RHD HONG KONG SPEC,MELLOW WHITE,TRIM01 |
1 | ||
| 55550-50220A1 |
USF40,41..RHD THAILAND SPEC,MELLOW WHITE,TRIM01 |
1 | ||
| 55550-50220A1 |
USF40,41..RHD SINGAPORE SPEC,MELLOW WHITE,TRIM01 |
1 | ||
| 55550-50220C0 |
USF40,41..RHD MALAYSIA SPEC,BLACK,TRIM2# |
1 | ||
| 55550-50220A0 |
USF40,41..RHD THAILAND SPEC,IVORY,TRIM00 |
1 | ||
| 55550-50220B0 |
USF40,41..RHD HONG KONG SPEC,LT.GRAY,TRIM1# |
1 | ||
| 55550-50220C0 |
USF40,41..RHD THAILAND SPEC,BLACK,TRIM2# |
1 | ||
| 55550-50220A0 |
USF40,41..RHD SINGAPORE SPEC,IVORY,TRIM00 |
1 | ||
| 55550-50220B0 |
USF40,41..RHD THAILAND SPEC,LT.GRAY,TRIM1# |
1 | ||
| 55550-50230A0 |
USF40,41,45..RHD IVORY,TRIM00 |
1 | ||
| 55550-50230B0 |
USF40,41,45..RHD LT.GRAY,TRIM1# |
1 | ||
| 55550-50220B0 |
USF40,41..RHD MALAYSIA SPEC,LT.GRAY,TRIM1# |
1 | ||
| 55550-50220B0 |
USF40,41..RHD SINGAPORE SPEC,LT.GRAY,TRIM1# |
1 | ||
| 55550-50220C0 |
USF40,41..RHD SINGAPORE SPEC,BLACK,TRIM2# |
1 | ||
| 55550-50220C0 |
USF40,41..RHD HONG KONG SPEC,BLACK,TRIM2# |
1 | ||
| 55550-50230C0 |
USF40,41,45..RHD BLACK,TRIM2# |
1 | ||
| 55550-50230A1 |
USF40,41,45..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-50160A0 |
USF4#..RHD IVORY,TRIM00,TYPE B:REFER ILLUST. |
1 | ||
| 55560-50160C0 |
USF4#..RHD BLACK,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 55560-50180A0 |
USF4#..RHD IVORY,TRIM00,TYPE A:REFER ILLUST. |
1 | ||
| 55560-50160A1 |
USF4#..RHD MELLOW WHITE,TRIM01,TYPE B:REFER ILLUST. |
1 | ||
| 55560-50180A1 |
USF4#..RHD MELLOW WHITE,TRIM01,TYPE A:REFER ILLUST. |
1 | ||
| 55560-50180B0 |
USF4#..RHD LT.GRAY,TRIM1#,TYPE A:REFER ILLUST. |
1 | ||
| 55560-50180B0 |
USF40,41,45..RHD LT.GRAY,TRIM1# |
1 | ||
| 55560-50160B0 |
USF4#..RHD LT.GRAY,TRIM1#,TYPE B:REFER ILLUST. |
1 | ||
| 55560-50180C0 |
USF40,41,45..RHD BLACK,TRIM2# |
1 | ||
| 55560-50180A0 |
USF40,41,45..RHD IVORY,TRIM00 |
1 | ||
| 55560-50180C0 |
USF4#..RHD BLACK,TRIM2#,TYPE A:REFER ILLUST. |
1 | ||
| 55560-50180A1 |
USF40,41,45..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-50090B0 |
USF40,41,45..RHD LT.GRAY,TRIM1# |
1 | ||
| 55569-50060A1 |
USF4#..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 55569-50090A0 |
USF40,41,45..RHD IVORY,TRIM00 |
1 | ||
| 55569-50090C0 |
USF40,41,45..RHD BLACK,TRIM2# |
1 | ||
| 55569-50060B0 |
USF4#..RHD LT.GRAY,TRIM1# |
1 | ||
| 55569-50090A1 |
USF40,41,45..RHD MELLOW WHITE,TRIM01 |
1 | ||
| 55569-50060A0 |
USF4#..RHD IVORY,TRIM00 |
1 | ||
| 55569-50060C0 |
USF4#..RHD BLACK,TRIM2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55641-50140 |
USF4#..RHD |
1 | ||
| 55641-50140 |
USF40,41,45..RHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-50150 |
USF4#..RHD |
1 | ||
| 55607-50150 |
USF40,41,45..RHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-50090E0 |
USF4#..RHD ORCHID BROWN,TRIM00,01 |
1 | ||
| 55650-50090C0 |
USF4#..RHD BLACK,TRIM1#,2# |
1 | ||
| 55650-50090E0 |
USF40,41,45..RHD ORCHID BROWN,TRIM0# |
1 | ||
| 55650-50090C0 |
USF40,41,45..RHD BLACK,TRIM1#,2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-50150E0 |
USF40,41,45..RHD ORCHID BROWN,TRIM0# |
1 | ||
| 55660-50150C0 |
USF4#..RHD BLACK,TRIM1#,2# |
1 | ||
| 55660-50150C0 |
USF40,41,45..RHD BLACK,TRIM1#,2# |
1 | ||
| 55660-50150E0 |
USF4#..RHD ORCHID BROWN,TRIM00,01 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-50070 |
USF4# |
1 | ||
| 55670-50070 |
USF4# |
1 | ||
| 69065 - CYLINDER SUB-ASSY, AIR BAG CUT OFF SW | ||||
| 69065-53010 |
USF40..RHD NEW ZEALAND SPEC |
1 | ||
| 69065-53010 |
USF40,45..D4 |
1 | ||
| 69065-53010 |
USF40..RHD THAILAND SPEC |
1 | ||
| 69065-53010 |
USF40,45..RHD AUSTRALIA SPEC |
1 | ||
| 69065-53010 |
USF40..RHD SINGAPORE SPEC |
1 | ||
| 69065-53010 |
USF40..RHD MALAYSIA SPEC |
1 | ||
| 69065-53010 |
USF40..RHD SOUTH AFRICA SPEC |
1 | ||
| 69065-53010 |
USF40..D4 |
1 | ||
| 69065-53010 |
USF40..RHD HONG KONG SPEC |
1 | ||
| 69065-53010 |
USF40,45..RHD NEW ZEALAND SPEC |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-13082A0 | ||||
| 90468-04191 | ||||
| 90468-05135 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8715 | ||||
