USF40R-AEZGHW (2008)
Toyota Lexus Ls460/460l

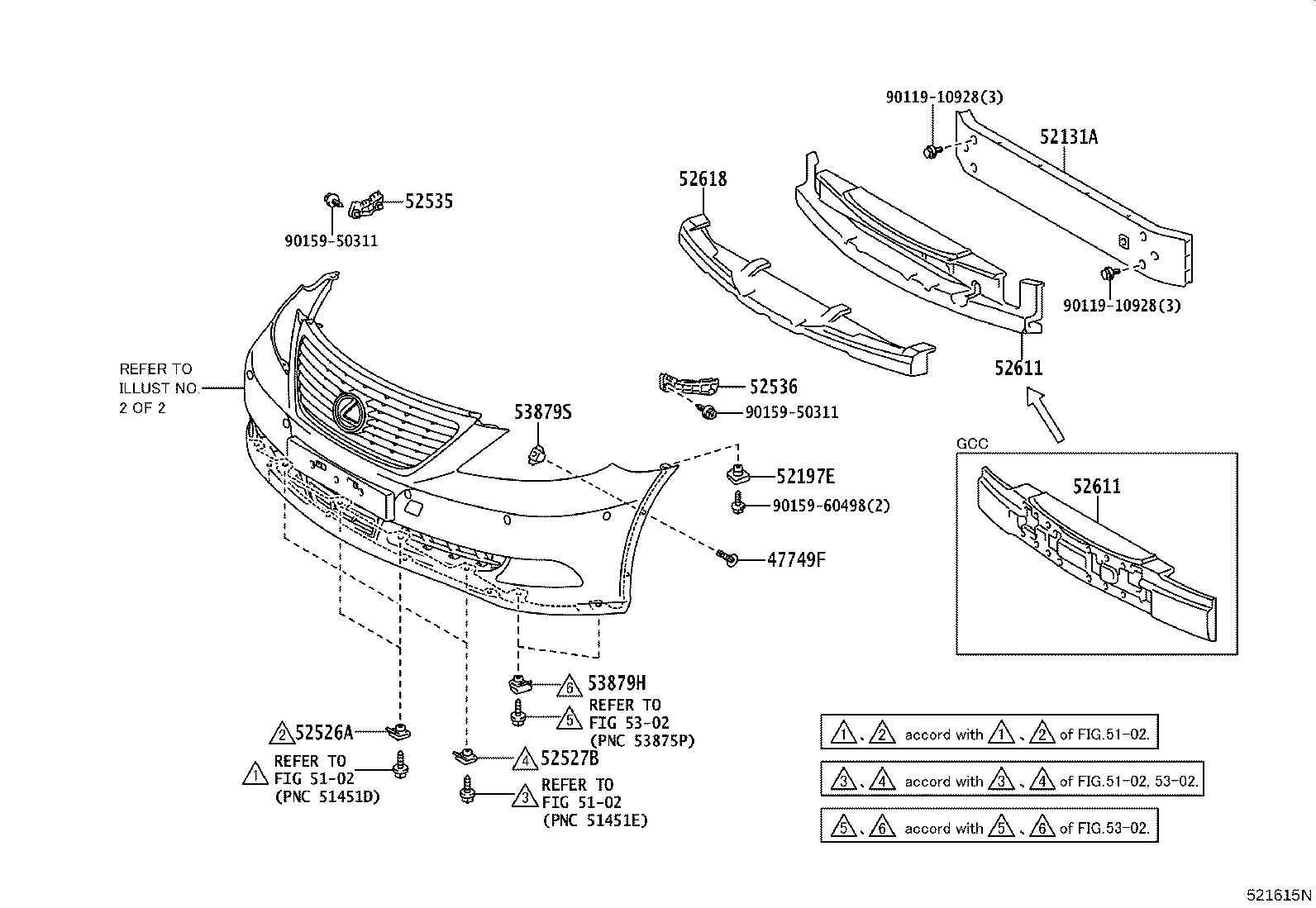

ILLUST NO. 1 OF 2(0608-0909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47749F - CLIP, PIN HOLD | ||||
| 47749-50090 |
USF4# |
4 | ||
| 47749-50090 |
USF4# |
4 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-50070 |
USF4#..EUR |
1 | ||
| 52131-50070 |
USF4#..EUR |
1 | ||
| 52197E - BRACKET, FRONT BUMPER SEAL | ||||
| 52197-30040 |
USF4# |
2 | ||
| 52197-30040 |
USF4# |
2 | ||
| 52526A - RETAINER, FRONT BUMPER, LOWER NO.1 | ||||
| 90179-05060 |
USF4# |
2 | ||
| 90179-05060 |
USF4# |
2 | ||
| 52527B - RETAINER, FRONT BUMPER, LOWER NO.2 | ||||
| 90179-05060 |
USF4# |
2 | ||
| 90179-05060 |
USF4# |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-50070 |
USF4# |
1 | ||
| 52535-50070 |
USF4# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-50060 |
USF4# |
1 | ||
| 52536-50060 |
USF4# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-50070 |
USF4#..EUR |
1 | ||
| 52611-50070 |
USF4#..EUR |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-50070 |
USF4#..EUR |
1 | ||
| 52611-50070 |
USF4#..EUR |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52614-50010 |
USF4# |
1 | ||
| 52614-50010 |
USF4# |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-17020 |
USF4# |
4 | ||
| 53879-17020 |
USF4# |
4 | ||
| 53879S - RETAINER, FRONT FENDER LINER | ||||
| 53879-50020 |
USF4# |
4 | ||
| 53879-50020 |
USF4# |
4 | ||
| Common parts | ||||
| 90119-10928 | ||||
| 90159-50311 | ||||
| 90159-60498 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||

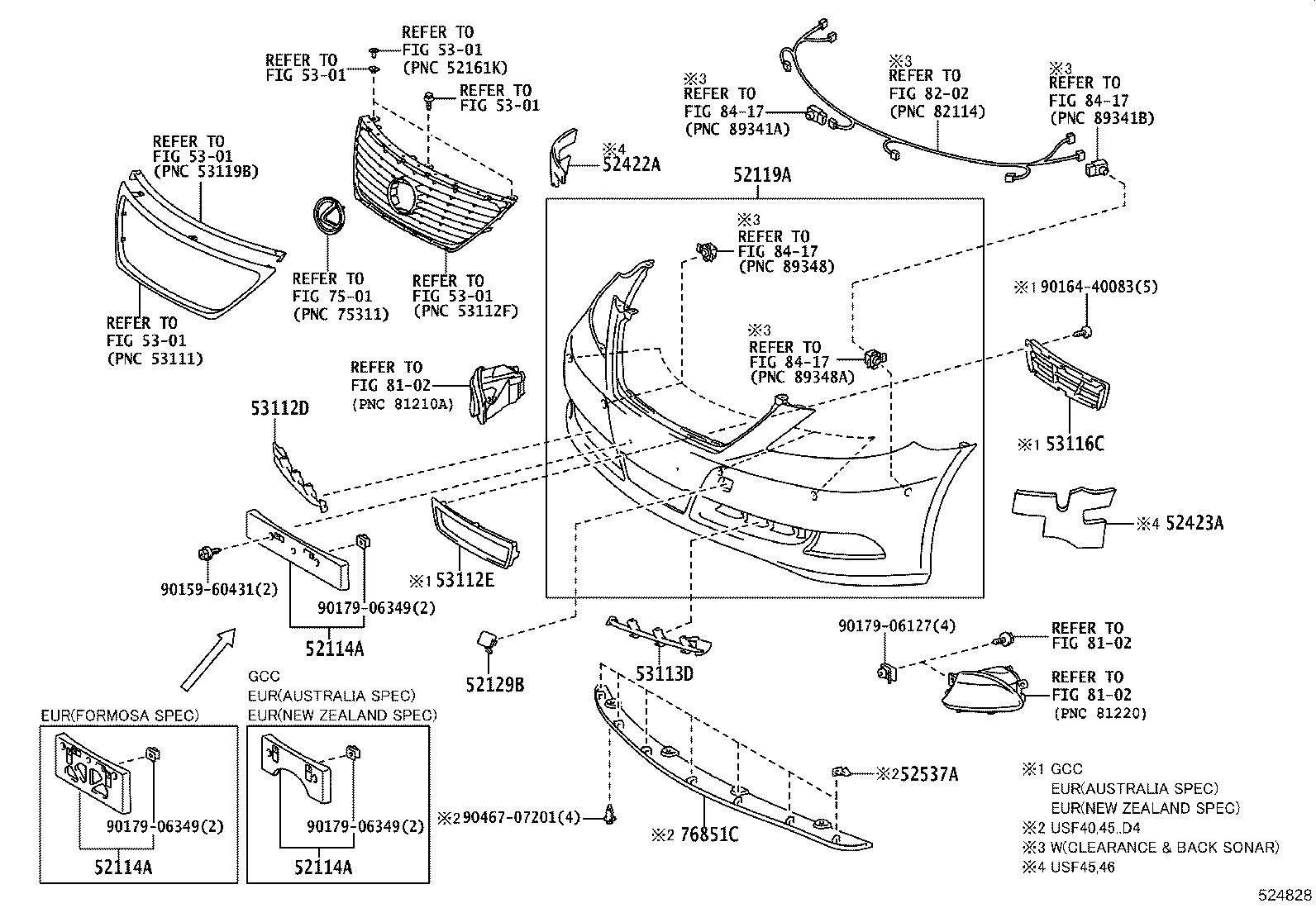

ILLUST NO. 2 OF 2(0608-0909)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-50120D1 |
USF4#..EUR DK.RED MC.CS.,3R7 |
1 | ||
| 52114-50120E1 |
USF4#..EUR SABLE M.M.,4T5 |
1 | ||
| 52114-50120B0 |
USF4#..EUR PREMIUM SILVER,1F2 |
1 | ||
| 52114-50120A2 |
USF4#..EUR WHITE PEARL CS.,077 |
1 | ||
| 52114-50120C0 |
USF4#..EUR BLACK,212 |
1 | ||
| 52114-50120B1 |
USF4#..EUR DK.GRAY MC.,1G0 |
1 | ||
| 52114-50120G0 |
USF4#..EUR JADE GREEN ME.,6V0 |
1 | ||
| 52114-50120A1 |
USF4#..EUR BLUISH PEARL CS.,074 |
1 | ||
| 52114-50130 |
USF40..RHD AUSTRALIA SPEC |
1 | ||
| 52114-50120J0 |
USF4#..EUR DK.BLUE MC. CC.,8U0 |
1 | ||
| 52114-50130 |
USF40..RHD NEW ZEALAND SPEC |
1 | ||
| 52114-50120E0 |
USF4#..EUR BEIGE ME.,4T1 |
1 | ||
| 52114-50121E1 |
USF4#..EUR SABLE M.M.,4T5 |
1 | ||
| 52114-50121B2 |
USF4#..EUR FROSTY PEARL MC.,1G5 |
1 | ||
| 52114-50121D1 |
USF4#..EUR DK.RED MC.CS.,3R7 |
1 | ||
| 52114-50121A2 |
USF4#..EUR WHITE PEARL CS.,077 |
1 | ||
| 52114-50121B0 |
USF4#..EUR PREMIUM SILVER,1F2 |
1 | ||
| 52114-50121B1 |
USF4#..EUR DK.GRAY MC.,1G0 |
1 | ||
| 52114-50121G0 |
USF4#..EUR JADE GREEN ME.,6V0 |
1 | ||
| 52114-50121C0 |
USF4#..EUR BLACK,212 |
1 | ||
| 52114-50121E0 |
USF4#..EUR BEIGE ME.,4T1 |
1 | ||
| 52114-50121J0 |
USF4#..EUR DK.BLUE MC. CC.,8U0 |
1 | ||
| 52114-50131 |
USF40,45..RHD AUSTRALIA SPEC |
1 | ||
| 52114-50131 |
USF40,45..RHD NEW ZEALAND SPEC |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-50120D1 |
USF4#..EUR DK.RED MC.CS.,3R7 |
1 | ||
| 52114-50120E1 |
USF4#..EUR SABLE M.M.,4T5 |
1 | ||
| 52114-50120B0 |
USF4#..EUR PREMIUM SILVER,1F2 |
1 | ||
| 52114-50120A2 |
USF4#..EUR WHITE PEARL CS.,077 |
1 | ||
| 52114-50120C0 |
USF4#..EUR BLACK,212 |
1 | ||
| 52114-50120B1 |
USF4#..EUR DK.GRAY MC.,1G0 |
1 | ||
| 52114-50120G0 |
USF4#..EUR JADE GREEN ME.,6V0 |
1 | ||
| 52114-50120A1 |
USF4#..EUR BLUISH PEARL CS.,074 |
1 | ||
| 52114-50130 |
USF40..RHD AUSTRALIA SPEC |
1 | ||
| 52114-50120J0 |
USF4#..EUR DK.BLUE MC. CC.,8U0 |
1 | ||
| 52114-50130 |
USF40..RHD NEW ZEALAND SPEC |
1 | ||
| 52114-50120E0 |
USF4#..EUR BEIGE ME.,4T1 |
1 | ||
| 52114-50121E1 |
USF4#..EUR SABLE M.M.,4T5 |
1 | ||
| 52114-50121B2 |
USF4#..EUR FROSTY PEARL MC.,1G5 |
1 | ||
| 52114-50121D1 |
USF4#..EUR DK.RED MC.CS.,3R7 |
1 | ||
| 52114-50121A2 |
USF4#..EUR WHITE PEARL CS.,077 |
1 | ||
| 52114-50121B0 |
USF4#..EUR PREMIUM SILVER,1F2 |
1 | ||
| 52114-50121B1 |
USF4#..EUR DK.GRAY MC.,1G0 |
1 | ||
| 52114-50121G0 |
USF4#..EUR JADE GREEN ME.,6V0 |
1 | ||
| 52114-50121C0 |
USF4#..EUR BLACK,212 |
1 | ||
| 52114-50121E0 |
USF4#..EUR BEIGE ME.,4T1 |
1 | ||
| 52114-50121J0 |
USF4#..EUR DK.BLUE MC. CC.,8U0 |
1 | ||
| 52114-50131 |
USF40,45..RHD AUSTRALIA SPEC |
1 | ||
| 52114-50131 |
USF40,45..RHD NEW ZEALAND SPEC |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-50120D1 |
USF4#..EUR DK.RED MC.CS.,3R7 |
1 | ||
| 52114-50120E1 |
USF4#..EUR SABLE M.M.,4T5 |
1 | ||
| 52114-50120B0 |
USF4#..EUR PREMIUM SILVER,1F2 |
1 | ||
| 52114-50120A2 |
USF4#..EUR WHITE PEARL CS.,077 |
1 | ||
| 52114-50120C0 |
USF4#..EUR BLACK,212 |
1 | ||
| 52114-50120B1 |
USF4#..EUR DK.GRAY MC.,1G0 |
1 | ||
| 52114-50120G0 |
USF4#..EUR JADE GREEN ME.,6V0 |
1 | ||
| 52114-50120A1 |
USF4#..EUR BLUISH PEARL CS.,074 |
1 | ||
| 52114-50130 |
USF40..RHD AUSTRALIA SPEC |
1 | ||
| 52114-50120J0 |
USF4#..EUR DK.BLUE MC. CC.,8U0 |
1 | ||
| 52114-50130 |
USF40..RHD NEW ZEALAND SPEC |
1 | ||
| 52114-50120E0 |
USF4#..EUR BEIGE ME.,4T1 |
1 | ||
| 52114-50121E1 |
USF4#..EUR SABLE M.M.,4T5 |
1 | ||
| 52114-50121B2 |
USF4#..EUR FROSTY PEARL MC.,1G5 |
1 | ||
| 52114-50121D1 |
USF4#..EUR DK.RED MC.CS.,3R7 |
1 | ||
| 52114-50121A2 |
USF4#..EUR WHITE PEARL CS.,077 |
1 | ||
| 52114-50121B0 |
USF4#..EUR PREMIUM SILVER,1F2 |
1 | ||
| 52114-50121B1 |
USF4#..EUR DK.GRAY MC.,1G0 |
1 | ||
| 52114-50121G0 |
USF4#..EUR JADE GREEN ME.,6V0 |
1 | ||
| 52114-50121C0 |
USF4#..EUR BLACK,212 |
1 | ||
| 52114-50121E0 |
USF4#..EUR BEIGE ME.,4T1 |
1 | ||
| 52114-50121J0 |
USF4#..EUR DK.BLUE MC. CC.,8U0 |
1 | ||
| 52114-50131 |
USF40,45..RHD AUSTRALIA SPEC |
1 | ||
| 52114-50131 |
USF40,45..RHD NEW ZEALAND SPEC |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-50975 |
USF40..RHD PAINT REQ.,NEW ZEALAND SPEC |
1 | ||
| 52119-50973 |
USF40..RHD PAINT REQ.,THAILAND SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH |
1 | ||
| 52119-50973 |
USF40..RHD PAINT REQ.,SINGAPORE SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH |
1 | ||
| 52119-50973 |
USF40..RHD PAINT REQ.,SOUTH AFRICA SPEC |
1 | ||
| 52119-50973 |
USF40..RHD PAINT REQ.,HONG KONG SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITH |
1 | ||
| 52119-50975 |
USF40..RHD PAINT REQ.,AUSTRALIA SPEC |
1 | ||
| 52119-50976 |
USF40..D4 PAINT REQ. |
1 | ||
| 52119-50981 |
USF40..RHD PAINT REQ.,SOUTH AFRICA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-50981 |
USF40..RHD PAINT REQ.,SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH |
1 | ||
| 52119-50981 |
USF40..RHD PAINT REQ.,HONG KONG SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH |
1 | ||
| 52119-50982 |
USF40..D4 PAINT REQ.,CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 52119-50981 |
USF40..RHD PAINT REQ.,THAILAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR (REAR TELEVISION CAMERA)-WITH |
1 | ||
| 52119-50983 |
USF40..RHD PAINT REQ.,NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-50983 |
USF40..RHD PAINT REQ.,AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-50973 |
USF40..RHD PAINT REQ.,SOUTH AFRICA SPEC |
1 | ||
| 52119-50973 |
USF40..RHD PAINT REQ.,MALAYSIA SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 52119-50973 |
USF40..RHD PAINT REQ.,HONG KONG SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 52119-50982 |
USF40..D4 PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-50973 |
USF40..RHD PAINT REQ.,SINGAPORE SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 52119-50973 |
USF40..RHD PAINT REQ.,THAILAND SPEC&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 52119-50981 |
USF40..RHD PAINT REQ.,MALAYSIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISIONCAMERA)-WITH |
1 | ||
| 52119-50981 |
USF40..RHD PAINT REQ.,SINGAPORE SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 52119-50975 |
USF40,45..RHD PAINT REQ.,NEW ZEALAND SPEC |
1 | ||
| 52119-50981 |
USF40..RHD PAINT REQ.,HONG KONG SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH |
1 | ||
| 52119-50981 |
USF40..RHD PAINT REQ.,THAILAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISIONCAMERA)-WITH |
1 | ||
| 52119-50976 |
USF40..D4 PAINT REQ. |
1 | ||
| 52119-50982 |
USF40..D4 PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-50981 |
USF40..RHD PAINT REQ.,SOUTH AFRICA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-50983 |
USF40,45..RHD PAINT REQ.,NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-50975 |
USF40,45..RHD PAINT REQ.,AUSTRALIA SPEC |
1 | ||
| 52119-50983 |
USF40,45..RHD PAINT REQ.,NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 52119-50982 |
USF40..D4 PAINT REQ.,CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 52119-50983 |
USF40,45..RHD PAINT REQ.,AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 52119-50983 |
USF40,45..RHD PAINT REQ.,AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52129B - COVER, FRONT BUMPER, LOWER | ||||
| 52128-50901 |
USF4# |
1 | ||
| 52128-50901 |
USF4# |
1 | ||
| 52537A - RETAINER, FRONT BUMPER SIDE, NO.2 | ||||
| 52535-28020 |
USF40..D4 |
7 | ||
| 52535-28020 |
USF40,45..D4 |
7 | ||
| 53112D - GRILLE, RADIATOR, LOWER RH | ||||
| 53112-50140 |
USF4# |
1 | ||
| 53112-50140 |
USF4# |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-50150A1 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH,BLUISH PEARL CS.,074 |
1 | ||
| 53112-50150A1 |
USF40..RHD NEW ZEALAND SPEC,BLUISH PEARL CS.,074 |
1 | ||
| 53112-50150A2 |
USF40..RHD NEW ZEALAND SPEC,WHITE PEARL CS.,077 |
1 | ||
| 53112-50150A2 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077 |
1 | ||
| 53112-50150A1 |
USF40..RHD AUSTRALIA SPEC,BLUISH PEARL CS.,074 |
1 | ||
| 53112-50150A2 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077 |
1 | ||
| 53112-50150A2 |
USF40..RHD AUSTRALIA SPEC,WHITE PEARL CS.,077 |
1 | ||
| 53112-50150B1 |
USF40..RHD NEW ZEALAND SPEC,DK.GRAY MC.,1G0 |
1 | ||
| 53112-50150B0 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH,PREMIUM SILVER,1F2 |
1 | ||
| 53112-50150A1 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH,BLUISH PEARL CS.,074 |
1 | ||
| 53112-50150C0 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH,BLACK,212 |
1 | ||
| 53112-50150B1 |
USF40..RHD AUSTRALIA SPEC,DK.GRAY MC.,1G0 |
1 | ||
| 53112-50150C0 |
USF40..RHD NEW ZEALAND SPEC,BLACK,212 |
1 | ||
| 53112-50150B0 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH,PREMIUM SILVER,1F2 |
1 | ||
| 53112-50150B1 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0 |
1 | ||
| 53112-50150C0 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH,BLACK,212 |
1 | ||
| 53112-50150B0 |
USF40..RHD AUSTRALIA SPEC,PREMIUM SILVER,1F2 |
1 | ||
| 53112-50150B1 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0 |
1 | ||
| 53112-50150E0 |
USF40..RHD AUSTRALIA SPEC,BEIGE ME.,4T1 |
1 | ||
| 53112-50150C0 |
USF40..RHD AUSTRALIA SPEC,BLACK,212 |
1 | ||
| 53112-50150D1 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH,DK.RED MC.CS.,3R7 |
1 | ||
| 53112-50150D1 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH,DK.RED MC.CS.,3R7 |
1 | ||
| 53112-50150E1 |
USF40..RHD NEW ZEALAND SPEC,SABLE M.M.,4T5 |
1 | ||
| 53112-50150E0 |
USF40..RHD NEW ZEALAND SPEC,BEIGE ME.,4T1 |
1 | ||
| 53112-50150B0 |
USF40..RHD NEW ZEALAND SPEC,PREMIUM SILVER,1F2 |
1 | ||
| 53112-50150E0 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH,BEIGE ME.,4T1 |
1 | ||
| 53112-50150J0 |
USF40..RHD AUSTRALIA SPEC,DK.BLUE MC. CC.,8U0 |
1 | ||
| 53112-50150D1 |
USF40..RHD NEW ZEALAND SPEC,DK.RED MC.CS.,3R7 |
1 | ||
| 53112-50150E1 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH,SABLE M.M.,4T5 |
1 | ||
| 53112-50150G0 |
USF40..RHD AUSTRALIA SPEC,JADE GREEN ME.,6V0 |
1 | ||
| 53112-50150J0 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH,DK.BLUE MC. CC.,8U0 |
1 | ||
| 53112-50150G0 |
USF40..RHD NEW ZEALAND SPEC,JADE GREEN ME.,6V0 |
1 | ||
| 53112-50150E0 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH,BEIGE ME.,4T1 |
1 | ||
| 53112-50150D1 |
USF40..RHD AUSTRALIA SPEC,DK.RED MC.CS.,3R7 |
1 | ||
| 53112-50150J0 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH,DK.BLUE MC. CC.,8U0 |
1 | ||
| 53112-50150E1 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH,SABLE M.M.,4T5 |
1 | ||
| 53112-50150G0 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH,JADE GREEN ME.,6V0 |
1 | ||
| 53112-50150E1 |
USF40..RHD AUSTRALIA SPEC,SABLE M.M.,4T5 |
1 | ||
| 53112-50150J0 |
USF40..RHD NEW ZEALAND SPEC,DK.BLUE MC. CC.,8U0 |
1 | ||
| 53112-50150G0 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH,JADE GREEN ME.,6V0 |
1 | ||
| 53112-50220A0 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST),WHITE PEARL CS.,077 |
1 | ||
| 53112-50220A0 |
USF40..RHD AUSTRALIA SPEC,WHITE PEARL CS.,077 |
1 | ||
| 53112-50220A0 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077 |
1 | ||
| 53112-50220B0 |
USF40..RHD AUSTRALIA SPEC,PREMIUM SILVER,1F2 |
1 | ||
| 53112-50220A0 |
USF40..RHD NEW ZEALAND SPEC,WHITE PEARL CS.,077 |
1 | ||
| 53112-50220A0 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST),WHITE PEARL CS.,077 |
1 | ||
| 53112-50220B0 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH,PREMIUM SILVER,1F2 |
1 | ||
| 53112-50220B0 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST),PREMIUM SILVER,1F2 |
1 | ||
| 53112-50220B1 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0 |
1 | ||
| 53112-50220B1 |
USF40..RHD NEW ZEALAND SPEC,DK.GRAY MC.,1G0 |
1 | ||
| 53112-50220B0 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST),PREMIUM SILVER,1F2 |
1 | ||
| 53112-50220B0 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH,PREMIUM SILVER,1F2 |
1 | ||
| 53112-50220B2 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH,FROSTY PEARL MC.,1G5 |
1 | ||
| 53112-50220A0 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077 |
1 | ||
| 53112-50220B2 |
USF40..RHD AUSTRALIA SPEC,FROSTY PEARL MC.,1G5 |
1 | ||
| 53112-50220B1 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0 |
1 | ||
| 53112-50220B2 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST),FROSTY PEARL MC.,1G5 |
1 | ||
| 53112-50220B2 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH,FROSTY PEARL MC.,1G5 |
1 | ||
| 53112-50220B2 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST),FROSTY PEARL MC.,1G5 |
1 | ||
| 53112-50220B0 |
USF40..RHD NEW ZEALAND SPEC,PREMIUM SILVER,1F2 |
1 | ||
| 53112-50220B2 |
USF40..RHD NEW ZEALAND SPEC,FROSTY PEARL MC.,1G5 |
1 | ||
| 53112-50220C0 |
USF40..RHD AUSTRALIA SPEC,BLACK,212 |
1 | ||
| 53112-50220C0 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH,BLACK,212 |
1 | ||
| 53112-50220B1 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST),DK.GRAY MC.,1G0 |
1 | ||
| 53112-50220B1 |
USF40..RHD AUSTRALIA SPEC,DK.GRAY MC.,1G0 |
1 | ||
| 53112-50220C0 |
USF40..RHD NEW ZEALAND SPEC,BLACK,212 |
1 | ||
| 53112-50220C0 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH,BLACK,212 |
1 | ||
| 53112-50220D0 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH,DK.RED MC.CS.,3R7 |
1 | ||
| 53112-50220D0 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST),DK.RED MC.CS.,3R7 |
1 | ||
| 53112-50220D0 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST),DK.RED MC.CS.,3R7 |
1 | ||
| 53112-50220C0 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST),BLACK,212 |
1 | ||
| 53112-50220D0 |
USF40..RHD AUSTRALIA SPEC,DK.RED MC.CS.,3R7 |
1 | ||
| 53112-50220D0 |
USF40..RHD NEW ZEALAND SPEC,DK.RED MC.CS.,3R7 |
1 | ||
| 53112-50220D0 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH,DK.RED MC.CS.,3R7 |
1 | ||
| 53112-50220E0 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST),BEIGE ME.,4T1 |
1 | ||
| 53112-50220B1 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST),DK.GRAY MC.,1G0 |
1 | ||
| 53112-50220C0 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST),BLACK,212 |
1 | ||
| 53112-50220E1 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH,SABLE M.M.,4T5 |
1 | ||
| 53112-50220E0 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH,BEIGE ME.,4T1 |
1 | ||
| 53112-50220E0 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST),BEIGE ME.,4T1 |
1 | ||
| 53112-50220E1 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST),SABLE M.M.,4T5 |
1 | ||
| 53112-50220E0 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH,BEIGE ME.,4T1 |
1 | ||
| 53112-50220E0 |
USF40..RHD AUSTRALIA SPEC,BEIGE ME.,4T1 |
1 | ||
| 53112-50220E0 |
USF40..RHD NEW ZEALAND SPEC,BEIGE ME.,4T1 |
1 | ||
| 53112-50220E1 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH,SABLE M.M.,4T5 |
1 | ||
| 53112-50220E1 |
USF40..RHD NEW ZEALAND SPEC,SABLE M.M.,4T5 |
1 | ||
| 53112-50220G0 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST),JADE GREEN ME.,6V0 |
1 | ||
| 53112-50220G0 |
USF40..RHD AUSTRALIA SPEC,JADE GREEN ME.,6V0 |
1 | ||
| 53112-50220E1 |
USF40..RHD AUSTRALIA SPEC,SABLE M.M.,4T5 |
1 | ||
| 53112-50220J0 |
USF40..RHD NEW ZEALAND SPEC,DK.BLUE MC. CC.,8U0 |
1 | ||
| 53112-50220G0 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH,JADE GREEN ME.,6V0 |
1 | ||
| 53112-50220G0 |
USF40..RHD NEW ZEALAND SPEC,JADE GREEN ME.,6V0 |
1 | ||
| 53112-50220E1 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST),SABLE M.M.,4T5 |
1 | ||
| 53112-50220G0 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH,JADE GREEN ME.,6V0 |
1 | ||
| 53112-50220G0 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST),JADE GREEN ME.,6V0 |
1 | ||
| 53112-50220J0 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH,DK.BLUE MC. CC.,8U0 |
1 | ||
| 53112-50220J0 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH,DK.BLUE MC. CC.,8U0 |
1 | ||
| 53112-50220J0 |
USF40..RHD AUSTRALIA SPEC,DK.BLUE MC. CC.,8U0 |
1 | ||
| 53112-50220J0 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST),DK.BLUE MC. CC.,8U0 |
1 | ||
| 53112-50220J0 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST),DK.BLUE MC. CC.,8U0 |
1 | ||
| 53113D - GRILLE, RADIATOR, LOWER LH | ||||
| 53113-50010 |
USF4# |
1 | ||
| 53113-50010 |
USF4# |
1 | ||
| 53116C - BRACKET, RADIATOR GRILLE, NO.2 | ||||
| 53115-50030 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53115-50030 |
USF40..RHD AUSTRALIA SPEC |
1 | ||
| 53115-50030 |
USF40..RHD NEW ZEALAND SPEC |
1 | ||
| 53115-50030 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53115-50040 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 53115-50040 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53115-50040 |
USF40..RHD AUSTRALIA SPEC |
1 | ||
| 53115-50040 |
USF40..RHD NEW ZEALAND SPEC |
1 | ||
| 53115-50040 |
USF40..RHD NEW ZEALAND SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53115-50040 |
USF40..RHD AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH&BACK MONITOR(REAR TELEVISION CAMERA)-WITH(INTELLIGENT PARKING ASSIST) |
1 | ||
| 76851C - FRONT SPOILER | ||||
| 76851-50080 |
USF40,45..D4 |
1 | ||
| 76851-50080 |
USF40..D4 |
1 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90164-40083 | ||||
| 90179-06127 | ||||
| 90179-06349 | ||||
| 90467-07201 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 7501 | ||||
| 8102 | ||||
| 8202 | ||||
| 8417 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
