USF40L-AEZGKW (2009)
Toyota Lexus Ls460/460l

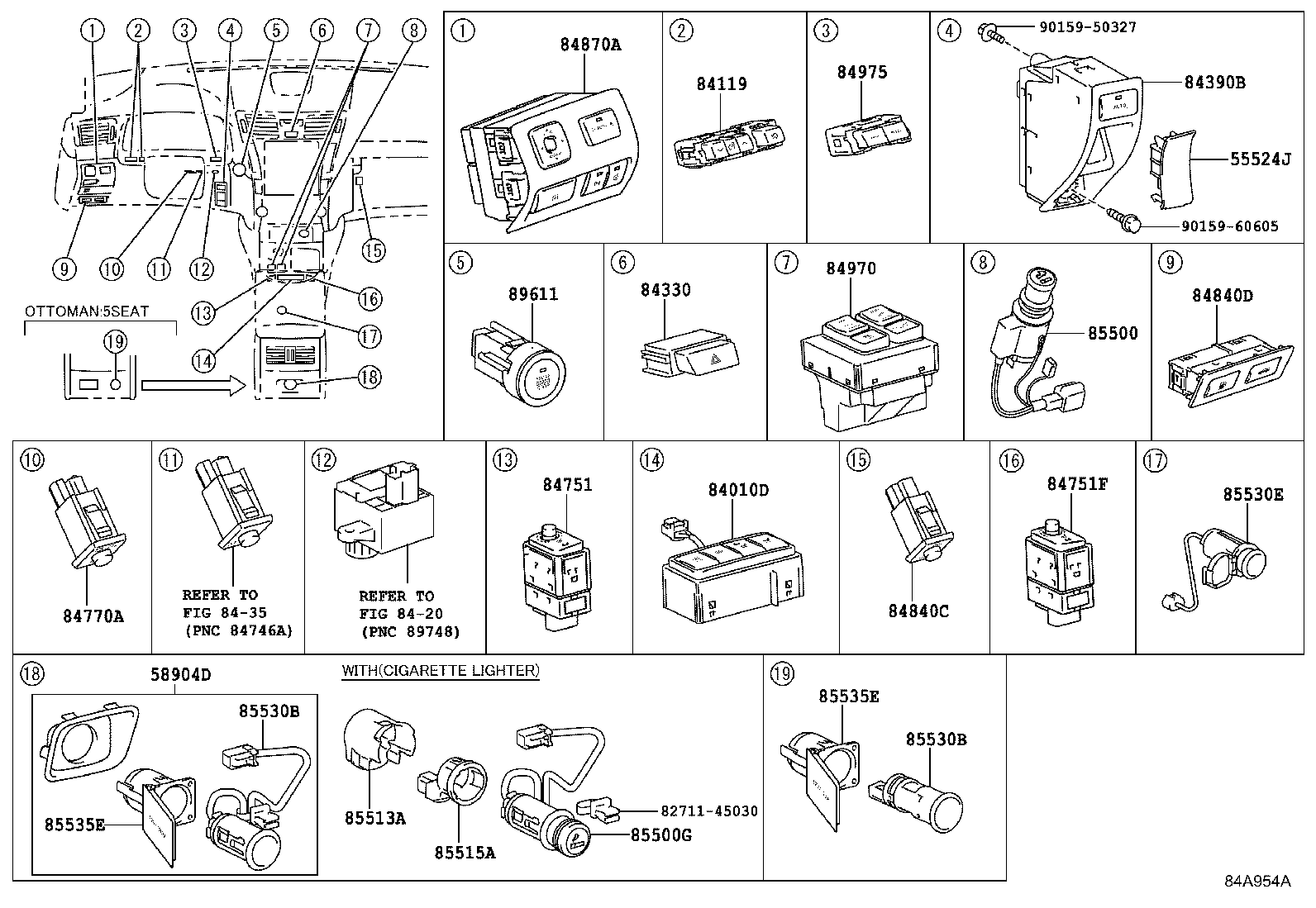

ILLUST NO. 5 OF 9(0909- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55524J - COVER, SWITCH BASE HOLE | ||||
| 55539-50050C0 |
USF4#..LHD BLACK,TRIM2# |
1 | ||
| 55539-50050A1 |
USF4#..LHD MELLOW WHITE,TRIM01 |
1 | ||
| 55539-50050B0 |
USF4#..LHD LT.GRAY,TRIM1# |
1 | ||
| 55539-50050A0 |
USF4#..LHD IVORY,TRIM00 |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-50170 |
USF40..HTWC..EUR REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR) |
1 | ||
| 84010-50180 |
USF40..HTWC..EUR |
1 | ||
| 84010-50150 |
USF40..HTWC..EUR VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&SEAT A/C-WIHT(FRONT & REAR) |
1 | ||
| 84010-50150 |
USF41,46;USF40..HTWC;USF40..D4..GCC |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-50270 |
USF4#..LHD |
1 | ||
| 84119-50270 |
USF4#..LHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84330-50010 |
USF4# |
1 | ||
| 84332-50060 |
USF4# |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-50010A0 |
USF4#..LHD IVORY,TRIM00 |
1 | ||
| 84390-50010C0 |
USF4#..LHD BLACK,TRIM2# |
1 | ||
| 84390-50010A1 |
USF4#..LHD MELLOW WHITE,TRIM01 |
1 | ||
| 84390-50010B0 |
USF4#..LHD LT.GRAY,TRIM1# |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-50130 |
USF4# |
1 | ||
| 84751-50131 |
USF4# |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-50141 |
USF4# |
1 | ||
| 84751-50140 |
USF4# |
1 | ||
| 84840C - SWITCH ASSY, LUGGAGE DOOR OPENING, CANCEL | ||||
| 84840-24020 |
USF4# |
1 | ||
| 84840-24020 |
USF4# |
1 | ||
| 84840D - SWITCH ASSY, LUGGAGE DOOR OPENING | ||||
| 84840-50030A1 |
USF4#..LHD MELLOW WHITE,TRIM01 |
1 | ||
| 84840-50030A0 |
USF4#..LHD IVORY,TRIM00 |
1 | ||
| 84840-50030C0 |
USF4#..LHD BLACK,TRIM2# |
1 | ||
| 84840-50030B0 |
USF4#..LHD LT.GRAY,TRIM1# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-50370A0 |
USF40..LHD..EUR STEERING WHEEL-4-SPOKE,WOODS,WITH(HEATER)&CLEARANCE & BACK SONAR-WITH,IVORY,TRIM00 |
1 | ||
| 84870-50370C0 |
USF40..LHD..EUR STEERING WHEEL-4-SPOKE,WOODS,WITH(HEATER)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 84870-50380A0 |
USF40..LHD..EUR CLEARANCE & BACK SONAR-WITH,IVORY,TRIM00 |
1 | ||
| 84870-50370A1 |
USF40..LHD..EUR STEERING WHEEL-4-SPOKE,WOODS,WITH(HEATER)&CLEARANCE & BACK SONAR-WITH,MELLOW WHITE,TRIM01 |
1 | ||
| 84870-50380B0 |
USF40..LHD..EUR CLEARANCE & BACK SONAR-WITH,LT.GRAY,TRIM1# |
1 | ||
| 84870-50400B0 |
USF40..LHD..EUR LT.GRAY,TRIM1# |
1 | ||
| 84870-50390A0 |
USF40..LHD..EUR STEERING WHEEL-4-SPOKE,WOODS,WITH(HEATER),IVORY,TRIM00 |
1 | ||
| 84870-50390C0 |
USF40..LHD..EUR STEERING WHEEL-4-SPOKE,WOODS,WITH(HEATER),BLACK,TRIM2# |
1 | ||
| 84870-50390B0 |
USF40..LHD..EUR STEERING WHEEL-4-SPOKE,WOODS,WITH(HEATER),LT.GRAY,TRIM1# |
1 | ||
| 84870-50390A1 |
USF40..LHD..EUR STEERING WHEEL-4-SPOKE,WOODS,WITH(HEATER),MELLOW WHITE,TRIM01 |
1 | ||
| 84870-50380A1 |
USF40..LHD..EUR CLEARANCE & BACK SONAR-WITH,MELLOW WHITE,TRIM01 |
1 | ||
| 84870-50400C0 |
USF40..LHD..EUR BLACK,TRIM2# |
1 | ||
| 84870-50400A0 |
USF40..LHD..EUR IVORY,TRIM00 |
1 | ||
| 84870-50400A1 |
USF40..LHD..EUR MELLOW WHITE,TRIM01 |
1 | ||
| 84870-50370B0 |
USF40..LHD..EUR STEERING WHEEL-4-SPOKE,WOODS,WITH(HEATER)&CLEARANCE & BACK SONAR-WITH,LT.GRAY,TRIM1# |
1 | ||
| 84870-50380C0 |
USF40..LHD..EUR CLEARANCE & BACK SONAR-WITH,BLACK,TRIM2# |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-50040 |
USF41..LHD..EUR;USF40..HTWC..EUR |
1 | ||
| 84970-50030 |
USF4#..HTWC..EUR SUSPENSION-SPORT AIR SUSPENTION |
1 | ||
| 84970-50200 |
USF40,41..HTWC;USF40,41..D4..GCC |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-50030 |
USF4#..LHD |
1 | ||
| 84975-50030 |
USF4#..LHD |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-50080 |
USF4# |
1 | ||
| 85500G - LIGHTER ASSY, CIGARETTE, REAR | ||||
| 85500-50070 |
USF40;USF41..LHD |
1 | ||
| 85513A - COVER, CIGARETTE LIGHTER, REAR | ||||
| 85513-28010 |
USF40;USF41..LHD |
1 | ||
| 85515A - STAY, CIGARETTE LIGHTER BEZEL, REAR | ||||
| 85515-50020 |
USF40;USF41..LHD |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-50060 |
USF4# CIGARETTE LIGHTER-FR:ACC RR:1 |
1 | ||
| 85530-50060 |
USF4# |
1 | ||
| 85530-50060 |
USF4# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-50040 |
USF4# |
1 | ||
| 89611-50010 |
USF4# |
1 | ||
| 89611-50011 |
USF4# |
1 | ||
| Common parts | ||||
| 82711-45030 | ||||
| 90159-50327 | ||||
| 90159-60605 | ||||
| Linked diagrams | ||||
| 8420 | ||||
| 8435 | ||||

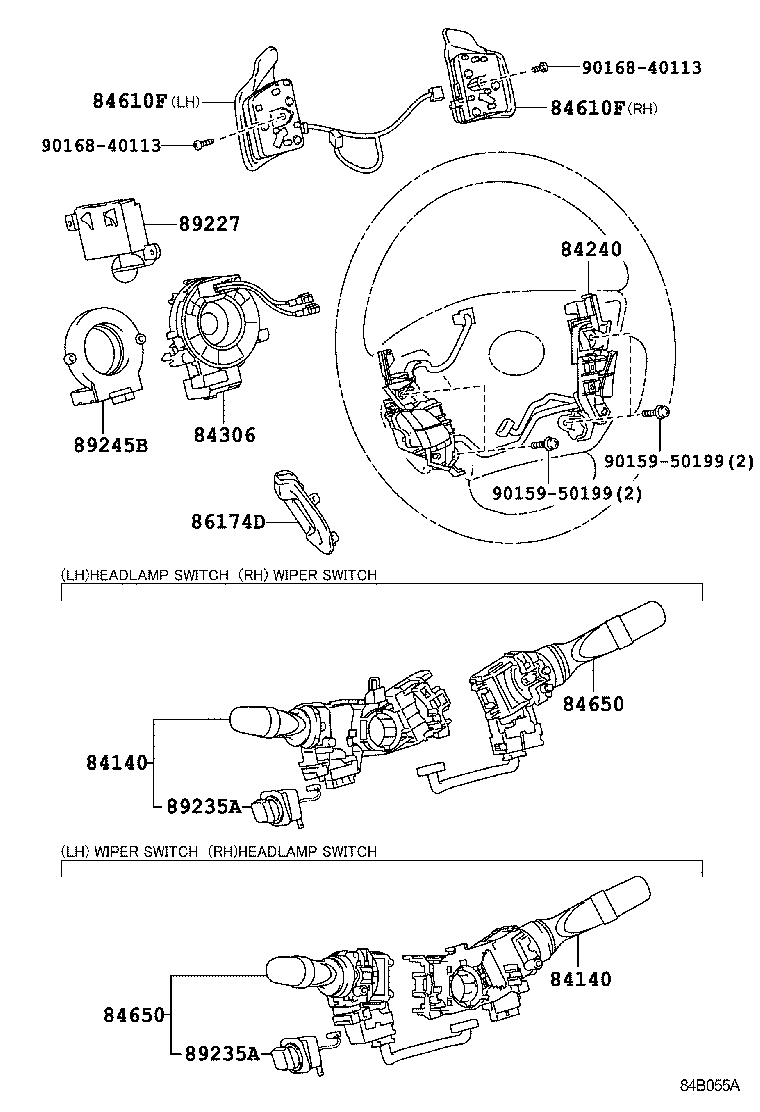

ILLUST NO. 6 OF 9(0909- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-50130 |
USF4#..EUR |
1 | ||
| 84140-50170 |
USF4#..EUR |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-50130 |
USF4#..EUR |
1 | ||
| 84140-50170 |
USF4#..EUR |
1 | ||
| 84240 - SWITCH ASSY, STEERING PAD, W/MODULATOR | ||||
| 84240-50050 |
USF4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-50190 |
USF40..HTWC..EUR CHINA(EXCEPT BEIJING) SPEC&STEERING WHEEL-4-SPOKE,WOODS,WITH(HEATER)&SUSPENSION-SPORT AIR SUSPENTION |
1 | ||
| 84306-48030 |
USF4# |
1 | ||
| 84306-50190 |
USF40..HTWC..EUR BEIJING SPEC&STEERING WHEEL-4-SPOKE,WOODS,WITH(HEATER)&SUSPENSION-SPORT AIR SUSPENTION |
1 | ||
| 84306-50190 |
USF4#..EUR STEERING WHEEL-4-SPOKE,WOODS,WITH(HEATER) |
1 | ||
| 84306-50210 |
USF40,41 |
1 | ||
| 84306-50200 |
USF40..EUR;USF41..LHD..EUR STEERING WHEEL-4-SPOKE, WOODS, WITH(HEATER) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-50150 |
USF4#..EUR |
1 | ||
| 84652-50151 |
USF4# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-50150 |
USF4#..EUR |
1 | ||
| 84652-50151 |
USF4# |
1 | ||
| 86174D - CASE, SWITCH & VOLUME | ||||
| 86174-50070C0 |
USF4# BLACK,TRIM1#,2# |
1 | ||
| 86174-50070E0 |
USF4# ORCHID BROWN,TRIM00,01 |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-33010 |
USF4# |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-50090 |
USF4# |
1 | ||
| 89235-50090 |
USF4# |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-50090 |
USF4# |
1 | ||
| 89235-50090 |
USF4# |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-30070 |
USF4#..HTWC..EUR CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-SPORT AIR SUSPENTION |
1 | ||
| 89245-52030 |
USF41;USF40..HTWC |
1 | ||
| 89245-30070 |
USF4#..HTWC..EUR BEIJING SPEC&SUSPENSION-SPORT AIR SUSPENTION |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40113 | ||||
