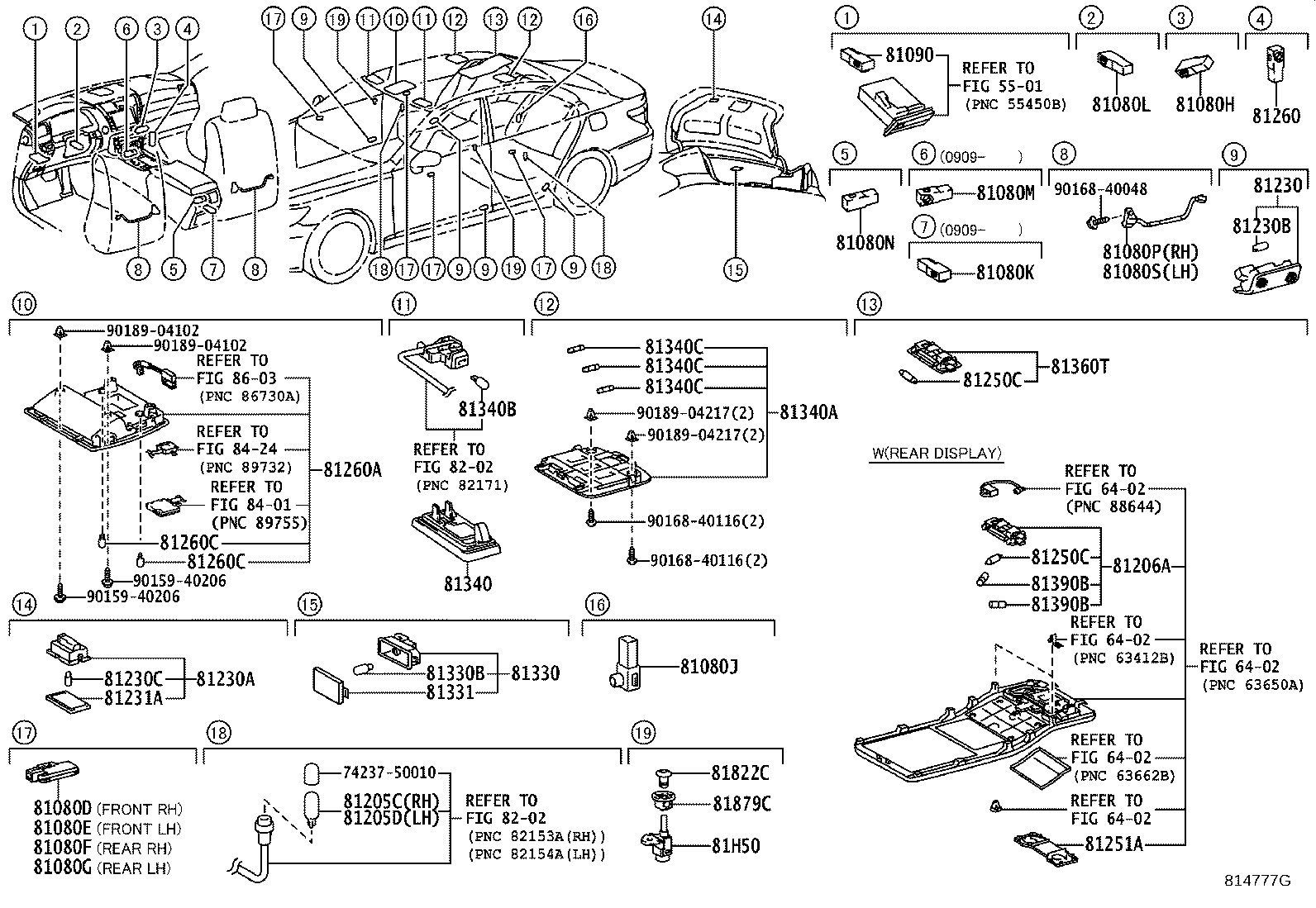

USF40L-AEZGHW (2008)
Toyota Lexus Ls460/460l
(0809- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81080D - LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH | ||||
| 81080-50040 |
USF4# |
1 | ||
| 81080-50040 |
USF4# |
1 | ||
| 81080E - LAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH | ||||
| 81080-50050 |
USF4# |
1 | ||
| 81080-50050 |
USF4# |
1 | ||
| 81080F - LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH | ||||
| 81080-50040 |
USF4# |
1 | ||
| 81080-50040 |
USF4# |
1 | ||
| 81080G - LAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH | ||||
| 81080-50050 |
USF4# |
1 | ||
| 81080-50050 |
USF4# |
1 | ||
| 81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-50030 |
USF4# |
1 | ||
| 81080-50030 |
USF4# |
1 | ||
| 81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-50030 |
USF4# |
1 | ||
| 81080-50030 |
USF4# |
1 | ||
| 81080N - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-50030 |
USF4# |
1 | ||
| 81080-50030 |
USF4# |
1 | ||
| 81080P - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81081-50020 |
USF4# |
1 | ||
| 81081-50020 |
USF4# |
1 | ||
| 81080S - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81081-50030 |
USF4# |
1 | ||
| 81081-50030 |
USF4# |
1 | ||
| 81090 - LAMP ASSY, INTERIOR ILLUMINATION, NO.2 | ||||
| 81080-22040 |
USF4# |
1 | ||
| 81080-22040 |
USF4# |
1 | ||
| 81205C - BULB, ASH RECEPTACLE LAMP, REAR RH | ||||
| 90981-11041 |
USF4# |
1 | ||
| 90981-11041 |
USF4# |
1 | ||
| 81205D - BULB, ASH RECEPTACLE LAMP, REAR LH | ||||
| 90981-11041 |
USF4# |
1 | ||
| 90981-11041 |
USF4# |
1 | ||
| 81206A - LAMP SUB-ASSY, CONSOLE BOX | ||||
| 81206-50050A0 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&WITH(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 81206-50050A1 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&WITH(REAR DISPLAY),MELLOW WHITE,TRIM01 |
1 | ||
| 81206-50050B0 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&WITH(REAR DISPLAY),LT.GRAY,TRIM1#,2# |
1 | ||
| 81206-50050A1 |
USF40..D4 REAR SEAT ADJUSTER-WITH(POWER SLIDE)&WITH(REAR DISPLAY),MELLOW WHITE,TRIM01 |
1 | ||
| 81206-50050A0 |
USF40..D4 REAR SEAT ADJUSTER-WITH(POWER SLIDE)&WITH(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 81206-50050B0 |
USF40..D4 REAR SEAT ADJUSTER-WITH(POWER SLIDE)&WITH(REAR DISPLAY),LT.GRAY,TRIM1#,2# |
1 | ||
| 81206-50060A0 |
USF40,45..D4 I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&WITH(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 81206-50060A1 |
USF40,45..D4 I PACKAGE&MOON ROOF-WITH&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&WITH(REAR DISPLAY),MELLOW WHITE,TRIM01 |
1 | ||
| 81206-50060A0 |
USF40,45..D4 I PACKAGE&MOON ROOF-WITH&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&WITH(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 81206-50060A1 |
USF40,45..D4 I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&WITH(REAR DISPLAY),MELLOW WHITE,TRIM01 |
1 | ||
| 81206-50060B0 |
USF40,45..D4 I PACKAGE&MOON ROOF-WITH&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&WITH(REAR DISPLAY),LT.GRAY,TRIM1#,2# |
1 | ||
| 81206-50060B0 |
USF40,45..D4 I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&WITH(REAR DISPLAY),LT.GRAY,TRIM1#,2# |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-47010 |
USF4# |
4 | ||
| 81230-47010 |
USF4# |
4 | ||
| 81230A - LAMP ASSY, COURTESY, NO.2 | ||||
| 81230-30140 |
USF4# |
1 | ||
| 81230-30140 |
USF4# |
1 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-12010 |
USF4# 12V 5W |
4 | ||
| 90981-12010 |
USF4# 12V 5W |
4 | ||
| 81230C - BULB(FOR COURTESY LAMP NO.2) | ||||
| 90981-11020 |
USF4# 12V 3.8W |
1 | ||
| 90981-11020 |
USF4# 12V 3.8W |
1 | ||
| 81231A - LENS, COURTESY LAMP, NO.2 | ||||
| 81231-50010 |
USF4# |
1 | ||
| 81231-50010 |
USF4# |
1 | ||
| 81250C - BULB, SPOT LAMP | ||||
| 90981-14004 |
USF4# 12V 8W |
1 | ||
| 90981-14004 |
USF4# 12V 8W |
1 | ||
| 81250C - BULB, SPOT LAMP | ||||
| 90981-14004 |
USF4# 12V 8W |
1 | ||
| 90981-14004 |
USF4# 12V 8W |
1 | ||
| 81251A - LENS, SPOT LAMP | ||||
| 81361-50020A0 |
USF40..D4 REAR SEAT ADJUSTER-WITH(POWER SLIDE)&WITH(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 81361-50020A1 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&WITH(REAR DISPLAY),MELLOW WHITE,TRIM01 |
1 | ||
| 81361-50020B0 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&WITH(REAR DISPLAY),LT.GRAY,TRIM1#,2# |
1 | ||
| 81361-50020A1 |
USF40..D4 REAR SEAT ADJUSTER-WITH(POWER SLIDE)&WITH(REAR DISPLAY),MELLOW WHITE,TRIM01 |
1 | ||
| 81361-50020B0 |
USF40..D4 REAR SEAT ADJUSTER-WITH(POWER SLIDE)&WITH(REAR DISPLAY),LT.GRAY,TRIM1#,2# |
1 | ||
| 81361-50020A0 |
USF40..D4 I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE)&WITH(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 81361-50030A0 |
USF40,45..D4 I PACKAGE&MOON ROOF-WITH&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&WITH(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 81361-50030A0 |
USF40,45..D4 I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&WITH(REAR DISPLAY),IVORY,TRIM00 |
1 | ||
| 81361-50030A1 |
USF40,45..D4 I PACKAGE&MOON ROOF-WITH&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&WITH(REAR DISPLAY),MELLOW WHITE,TRIM01 |
1 | ||
| 81361-50030A1 |
USF40,45..D4 I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&WITH(REAR DISPLAY),MELLOW WHITE,TRIM01 |
1 | ||
| 81361-50030B0 |
USF40,45..D4 I PACKAGE&MOON ROOF-WITH&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&WITH(REAR DISPLAY),LT.GRAY,TRIM1#,2# |
1 | ||
| 81361-50030 |
USF40,45..D4 I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&WITH(REAR DISPLAY) |
1 | ||
| 81361-50030 |
USF40,45..D4 I PACKAGE&MOON ROOF-WITH&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&WITH(REAR DISPLAY) |
1 | ||
| 81361-50030B0 |
USF40,45..D4 I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&WITH(REAR DISPLAY),LT.GRAY,TRIM1#,2# |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81080-50030 |
USF4# |
1 | ||
| 81080-50030 |
USF4# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-50480A1 |
USF40..LHD..D4 ANTI-THEFT SYSTEM-WITH&MOON ROOF-WITH,MELLOW WHITE,TRIM01 |
1 | ||
| 81260-50440A0 |
USF40..LHD..D4 ANTI-THEFT SYSTEM-WITH(SIREN),IVORY,TRIM00 |
1 | ||
| 81260-50440A1 |
USF40..LHD..D4 ANTI-THEFT SYSTEM-WITH(SIREN),MELLOW WHITE,TRIM01 |
1 | ||
| 81260-50480A0 |
USF40..LHD..D4 ANTI-THEFT SYSTEM-WITH&MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 81260-50440B0 |
USF40..LHD..D4 ANTI-THEFT SYSTEM-WITH(SIREN),LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-50480A1 |
USF40..LHD..D4 ANTI-THEFT SYSTEM-WITH(SIREN)&MOON ROOF-WITH,MELLOW WHITE,TRIM01 |
1 | ||
| 81260-50480A0 |
USF40..LHD..D4 ANTI-THEFT SYSTEM-WITH(SIREN)&MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 81260-50440B0 |
USF40..LHD..D4 ANTI-THEFT SYSTEM-WITH,LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-50510A0 |
USF40..LHD..D4 IVORY,TRIM00 |
1 | ||
| 81260-50480B0 |
USF40..LHD..D4 ANTI-THEFT SYSTEM-WITH(SIREN)&MOON ROOF-WITH,LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-50440A0 |
USF40..LHD..D4 ANTI-THEFT SYSTEM-WITH,IVORY,TRIM00 |
1 | ||
| 81260-50440A1 |
USF40..LHD..D4 ANTI-THEFT SYSTEM-WITH,MELLOW WHITE,TRIM01 |
1 | ||
| 81260-50520A0 |
USF40..LHD..D4 MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 81260-50510A1 |
USF40..LHD..D4 MELLOW WHITE,TRIM01 |
1 | ||
| 81260-50510B0 |
USF40..LHD..D4 LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-50480B0 |
USF40..LHD..D4 ANTI-THEFT SYSTEM-WITH&MOON ROOF-WITH,LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-50520A1 |
USF40..LHD..D4 MOON ROOF-WITH,MELLOW WHITE,TRIM01 |
1 | ||
| 81260-50520B0 |
USF40..LHD..D4 MOON ROOF-WITH,LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-50511A0 |
USF40,45..LHD..D4 IVORY,TRIM00 |
1 | ||
| 81260-50511B0 |
USF40,45..LHD..D4 LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-50521B0 |
USF40,45..LHD..D4 MOON ROOF-WITH,LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-50511A1 |
USF40,45..LHD..D4 MELLOW WHITE,TRIM01 |
1 | ||
| 81260-50441A0 |
USF40,45..LHD..D4 ANTI-THEFT SYSTEM-WITH(SIREN),IVORY,TRIM00 |
1 | ||
| 81260-50441A0 |
USF40,45..LHD..D4 ANTI-THEFT SYSTEM-WITH,IVORY,TRIM00 |
1 | ||
| 81260-50521A0 |
USF40,45..LHD..D4 MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 81260-50521A1 |
USF40,45..LHD..D4 MOON ROOF-WITH,MELLOW WHITE,TRIM01 |
1 | ||
| 81260-50441B0 |
USF40,45..LHD..D4 ANTI-THEFT SYSTEM-WITH,LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-50441A1 |
USF40,45..LHD..D4 ANTI-THEFT SYSTEM-WITH,MELLOW WHITE,TRIM01 |
1 | ||
| 81260-50481A0 |
USF40,45..LHD..D4 ANTI-THEFT SYSTEM-WITH&MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 81260-50441B0 |
USF40,45..LHD..D4 ANTI-THEFT SYSTEM-WITH(SIREN),LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-50481A0 |
USF40,45..LHD..D4 ANTI-THEFT SYSTEM-WITH(SIREN)&MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 81260-50481B0 |
USF40,45..LHD..D4 ANTI-THEFT SYSTEM-WITH&MOON ROOF-WITH,LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-50441A1 |
USF40,45..LHD..D4 ANTI-THEFT SYSTEM-WITH(SIREN),MELLOW WHITE,TRIM01 |
1 | ||
| 81260-50481B0 |
USF40,45..LHD..D4 ANTI-THEFT SYSTEM-WITH(SIREN)&MOON ROOF-WITH,LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-50481A1 |
USF40,45..LHD..D4 ANTI-THEFT SYSTEM-WITH(SIREN)&MOON ROOF-WITH,MELLOW WHITE,TRIM01 |
1 | ||
| 81260-50481A1 |
USF40,45..LHD..D4 ANTI-THEFT SYSTEM-WITH&MOON ROOF-WITH,MELLOW WHITE,TRIM01 |
1 | ||
| 81260-50512A0 |
USF40,45..LHD..D4 IVORY,TRIM00 |
1 | ||
| 81260-50522A0 |
USF40,45..LHD..D4 MOON ROOF-WITH,IVORY,TRIM00 |
1 | ||
| 81260-50512B0 |
USF40,45..LHD..D4 LT.GRAY,TRIM1#,2# |
1 | ||
| 81260-50522A1 |
USF40,45..LHD..D4 MOON ROOF-WITH,MELLOW WHITE,TRIM01 |
1 | ||
| 81260-50512A1 |
USF40,45..LHD..D4 MELLOW WHITE,TRIM01 |
1 | ||
| 81260-50522B0 |
USF40,45..LHD..D4 MOON ROOF-WITH,LT.GRAY,TRIM1#,2# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
USF4# 12V 8W |
2 | ||
| 90981-11062 |
USF4# 12V 8W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
USF4# 12V 8W |
2 | ||
| 90981-11062 |
USF4# 12V 8W |
2 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-50021 |
USF4# |
1 | ||
| 81330-50021 |
USF4# |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-11020 |
USF4# 12V 3.8W |
1 | ||
| 90981-11020 |
USF4# 12V 3.8W |
1 | ||
| 81331 - LENS, LUGGAGE COMPARTMENT LAMP | ||||
| 81331-50010 |
USF4# |
1 | ||
| 81331-50010 |
USF4# |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-30100A2 |
USF4# MELLOW WHITE,TRIM01 |
2 | ||
| 81340-30100A0 |
USF4# IVORY,TRIM00 |
2 | ||
| 81340-30100B0 |
USF4# LT.GRAY,TRIM1#,2# |
2 | ||
| 81340-30100A0 |
USF4# IVORY,TRIM00 |
2 | ||
| 81340-30100A2 |
USF4# MELLOW WHITE,TRIM01 |
2 | ||
| 81340-30100B0 |
USF4# LT.GRAY,TRIM1#,2# |
2 | ||
| 81340A - LAMP ASSY, REAR VANITY | ||||
| 81340-50170A2 |
USF40;USF41..RHD IVORY,TRIM00 |
2 | ||
| 81340-50170B0 |
USF40;USF41..RHD LT.GRAY,TRIM1#,2# |
2 | ||
| 81340-50170A0 |
USF40;USF41..RHD MELLOW WHITE,TRIM01 |
2 | ||
| 81340-50170A2 |
USF40,45;USF41..RHD IVORY,TRIM00 |
2 | ||
| 81340-50170A0 |
USF40,45;USF41..RHD MELLOW WHITE,TRIM01 |
2 | ||
| 81340-50170B0 |
USF40,45;USF41..RHD LT.GRAY,TRIM1#,2# |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-11062 |
USF4# 12V 8W |
2 | ||
| 90981-11062 |
USF4# 12V 8W |
2 | ||
| 81340C - BULB (FOR REAR VANITY LAMP) | ||||
| 90981-14007 |
USF4# |
6 | ||
| 90981-14007 |
USF4# |
6 | ||
| 81340C - BULB (FOR REAR VANITY LAMP) | ||||
| 90981-14007 |
USF4# |
6 | ||
| 90981-14007 |
USF4# |
6 | ||
| 81340C - BULB (FOR REAR VANITY LAMP) | ||||
| 90981-14007 |
USF4# |
6 | ||
| 90981-14007 |
USF4# |
6 | ||
| 81360T - LAMP ASSY, SPOT | ||||
| 81360-50030B0 |
USF41..LHD;USF40,45,46 LT.GRAY,TRIM1#,2# |
1 | ||
| 81360-50030A0 |
USF40;USF41..LHD IVORY,TRIM00 |
1 | ||
| 81360-50030A1 |
USF40;USF41..LHD MELLOW WHITE,TRIM01 |
1 | ||
| 81360-50030A1 |
USF41..LHD;USF40,45,46 MELLOW WHITE,TRIM01 |
1 | ||
| 81360-50030B0 |
USF40;USF41..LHD LT.GRAY,TRIM1#,2# |
1 | ||
| 81360-50030A0 |
USF41..LHD;USF40,45,46 IVORY,TRIM00 |
1 | ||
| 81390B - BULB, SPOT LAMP | ||||
| 90981-12028 |
USF40,45..D4 12V 10W,I PACKAGE&MOON ROOF-WITH&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&WITH(REARDISPLAY) |
2 | ||
| 90981-12028 |
USF40,45..D4 12V 10W,I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&WITH(REAR DISPLAY) |
2 | ||
| 81390B - BULB, SPOT LAMP | ||||
| 90981-12028 |
USF40,45..D4 12V 10W,I PACKAGE&MOON ROOF-WITH&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&WITH(REARDISPLAY) |
2 | ||
| 90981-12028 |
USF40,45..D4 12V 10W,I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)&WITH(REAR DISPLAY) |
2 | ||
| 81822C - COVER, INDICATOR LAMP | ||||
| 81822-50010 |
USF4# |
2 | ||
| 81822-50010 |
USF4# |
2 | ||
| 81879C - BRACKET, INDICATOR LAMP | ||||
| 81879-50020 |
USF4# |
2 | ||
| 81879-50020 |
USF4# |
2 | ||
| 81H50 - LAMP ASSY, INDICATOR | ||||
| 81850-50010 |
USF4# |
2 | ||
| 81850-50010 |
USF4# |
2 | ||
| Common parts | ||||
| 74237-50010 | ||||
| 90159-40206 | ||||
| 90168-40048 | ||||
| 90168-40116 | ||||
| 90189-04102 | ||||
| 90189-04217 | ||||
| Linked diagrams | ||||
| 5501 | ||||
| 6402 | ||||
| 8202 | ||||
| 8401 | ||||
| 8424 | ||||
| 8603 | ||||
ILLUST NO. 1 OF 2(1209-1410)LHD
LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90168-40048 | ||||
| Linked diagrams | ||||
| 5501 | ||||
ILLUST NO. 2 OF 2(1209-1410)
LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-40206 | ||||
| 90168-40116 | ||||
| 90189-04102 | ||||
| 90189-04217 | ||||
| Linked diagrams | ||||
| 6402 | ||||
| 8202 | ||||
| 8424 | ||||
| 8603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
