USF40L-AEZGHW (2008)
Toyota Lexus Ls460/460l

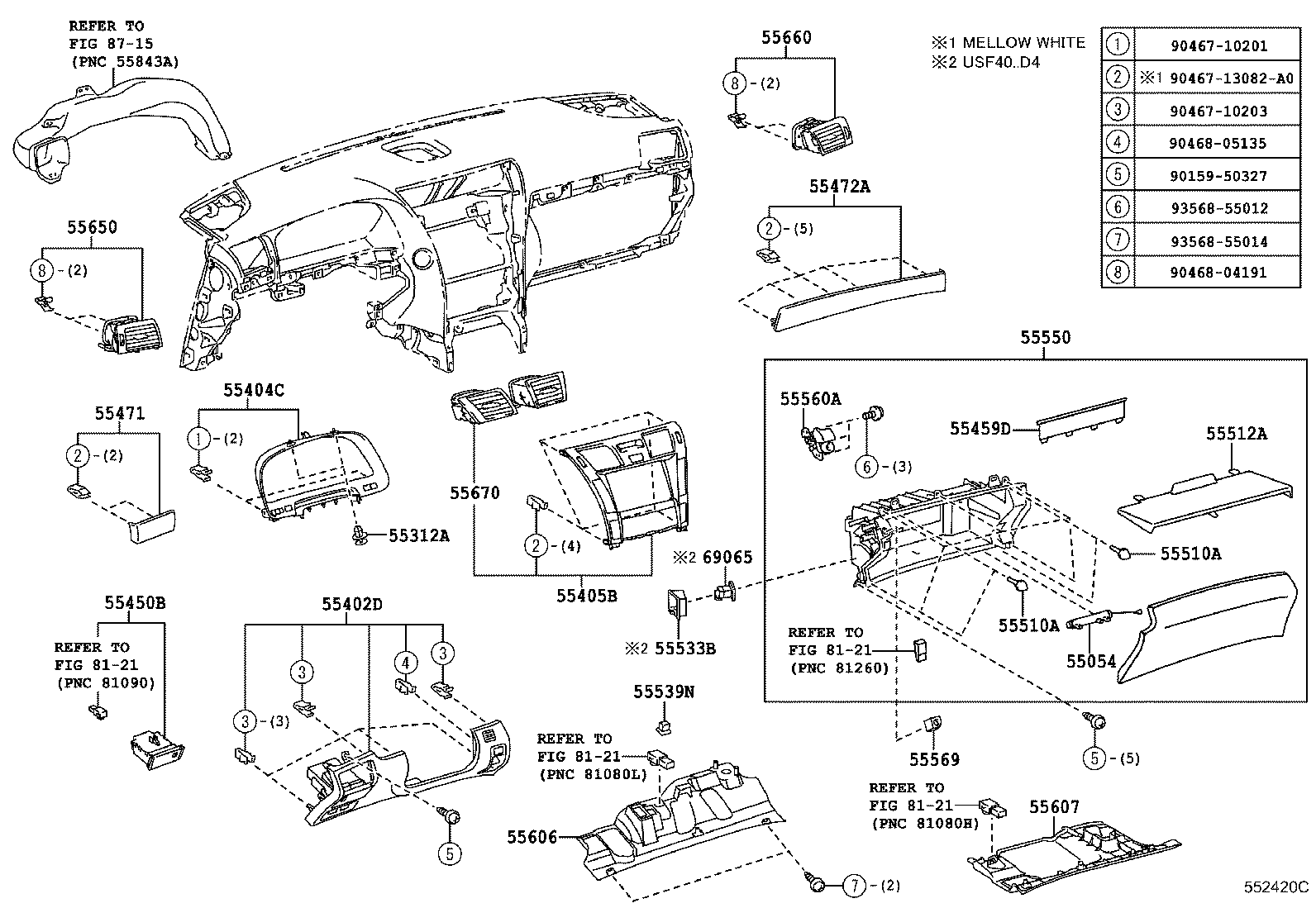

ILLUST NO. 2 OF 2(0809-0909)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-50110 |
USF4# |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-06165 |
USF4# |
2 | ||
| 90467-06165C0 |
USF4# BLACK |
2 | ||
| 90467-06165 |
USF4# |
2 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-50140A1 |
USF4#..LHD MELLOW WHITE,TRIM01 |
1 | ||
| 55402-50140A0 |
USF4#..LHD IVORY,TRIM00 |
1 | ||
| 55402-50140B0 |
USF4#..LHD LT.GRAY,TRIM1# |
1 | ||
| 55402-50140C0 |
USF4#..LHD BLACK,TRIM2# |
1 | ||
| 55402-50140B1 |
USF4#..LHD LT.GRAY,TRIM1# |
1 | ||
| 55402-50140C1 |
USF4#..LHD BLACK,TRIM2# |
1 | ||
| 55402-50140A3 |
USF4#..LHD MELLOW WHITE,TRIM01 |
1 | ||
| 55402-50140A2 |
USF4#..LHD IVORY,TRIM00 |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-50170 |
USF4#..LHD |
1 | ||
| 55404-50170 |
USF4#..LHD |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-50110 |
USF4# |
1 | ||
| 55405-50110 |
USF4# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-50080A0 |
USF4#..LHD IVORY,TRIM00 |
1 | ||
| 55450-50080A1 |
USF4#..LHD MELLOW WHITE,TRIM01 |
1 | ||
| 55450-50080C0 |
USF4#..LHD BLACK,TRIM2# |
1 | ||
| 55450-50080B0 |
USF4#..LHD LT.GRAY,TRIM1# |
1 | ||
| 55450-50080B0 |
USF4#..LHD LT.GRAY,TRIM1# |
1 | ||
| 55450-50080A0 |
USF4#..LHD IVORY,TRIM00 |
1 | ||
| 55450-50080A1 |
USF4#..LHD MELLOW WHITE,TRIM01 |
1 | ||
| 55450-50080C0 |
USF4#..LHD BLACK,TRIM2# |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-48020 |
USF4# |
1 | ||
| 55459-48020 |
USF4# |
1 | ||
| 55471 - MOULDING, INSTRUMENT CLUSTER, NO.1 | ||||
| 55471-50010B0 |
USF4#..LHD GRAY,TRIM1# |
1 | ||
| 55471-50010B0 |
USF4#..LHD GRAY,TRIM1# |
1 | ||
| 55471-50010E0 |
USF4#..LHD DK.BROWN,TRIM01 |
1 | ||
| 55471-50010E1 |
USF4#..LHD BROWN,TRIM00,2# |
1 | ||
| 55471-50010E1 |
USF4#..LHD BROWN,TRIM00,2# |
1 | ||
| 55471-50010E0 |
USF4#..LHD DK.BROWN,TRIM01 |
1 | ||
| 55472A - MOULDING, INSTRUMENT CLUSTER, NO.2 | ||||
| 55472-50010E1 |
USF4#..LHD BROWN,TRIM00,2# |
1 | ||
| 55472-50010E0 |
USF4#..LHD DK.BROWN,TRIM01 |
1 | ||
| 55472-50010B0 |
USF4#..LHD GRAY,TRIM1# |
1 | ||
| 55472-50010E1 |
USF4#..LHD BROWN,TRIM00,2# |
1 | ||
| 55472-50010B0 |
USF4#..LHD GRAY,TRIM1# |
1 | ||
| 55472-50010E0 |
USF4#..LHD DK.BROWN,TRIM01 |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
USF4# |
4 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04002 |
USF4# |
4 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-50110 |
USF4#..LHD |
1 | ||
| 55533B - PANEL, GLOVE COMPARTMENT SIDE, RH | ||||
| 55533-50040 |
USF40,45..LHD..D4 |
1 | ||
| 55533-50020 |
USF40..LHD..D4 |
1 | ||
| 55539N - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
USF4# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-50110A0 |
USF4#..LHD EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION ),IVORY,TRIM00 |
1 | ||
| 55550-50110B0 |
USF40..LHD..D4 ISRAEL SPEC&EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION ),LT.GRAY,TRIM1# |
1 | ||
| 55550-50110A0 |
USF40..LHD..D4 RUSSIA SPEC&EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION ),IVORY,TRIM00 |
1 | ||
| 55550-50110C0 |
USF40..LHD..D4 RUSSIA SPEC&EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION ),BLACK,TRIM2# |
1 | ||
| 55550-50110B0 |
USF4#..LHD EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION ),LT.GRAY,TRIM1# |
1 | ||
| 55550-50110A1 |
USF40..LHD..D4 ISRAEL SPEC&EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION ),MELLOW WHITE,TRIM01 |
1 | ||
| 55550-50110B0 |
USF40..LHD..D4 RUSSIA SPEC&EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION ),LT.GRAY,TRIM1# |
1 | ||
| 55550-50120A1 |
USF4#..LHD MELLOW WHITE,TRIM01 |
1 | ||
| 55550-50110A0 |
USF40..LHD..D4 ISRAEL SPEC&EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION ),IVORY,TRIM00 |
1 | ||
| 55550-50110C0 |
USF4#..LHD EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION ),BLACK,TRIM2# |
1 | ||
| 55550-50110C0 |
USF40..LHD..D4 ISRAEL SPEC&EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION ),BLACK,TRIM2# |
1 | ||
| 55550-50110A1 |
USF4#..LHD EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION ),MELLOW WHITE,TRIM01 |
1 | ||
| 55550-50120C0 |
USF4#..LHD BLACK,TRIM2# |
1 | ||
| 55550-50110A1 |
USF40..LHD..D4 RUSSIA SPEC&EMV & NAVIGATION SYSTEM-WITH(EMV) & WITHOUT(NAVIGATION ),MELLOW WHITE,TRIM01 |
1 | ||
| 55550-50120B0 |
USF4#..LHD LT.GRAY,TRIM1# |
1 | ||
| 55550-50120A0 |
USF4#..LHD IVORY,TRIM00 |
1 | ||
| 55550-50190A1 |
USF4#..LHD..EUR WITH(EMV) & WITHOUT(NAVIGATION ),IVORY,TRIM00 |
1 | ||
| 55550-50190A1 |
USF40..LHD..D4 ISRAEL SPEC&WITH(EMV) & WITHOUT(NAVIGATION ),IVORY,TRIM00 |
1 | ||
| 55550-50190A3 |
USF40,45..LHD..D4 RUSSIA SPEC&WITH(EMV) & WITHOUT(NAVIGATION ),MELLOW WHITE,TRIM01 |
1 | ||
| 55550-50190A3 |
USF40..LHD..D4 ISRAEL SPEC&WITH(EMV) & WITHOUT(NAVIGATION ),MELLOW WHITE,TRIM01 |
1 | ||
| 55550-50190B1 |
USF40..LHD..D4 ISRAEL SPEC&WITH(EMV) & WITHOUT(NAVIGATION ),LT.GRAY,TRIM1# |
1 | ||
| 55550-50190A3 |
USF4#..LHD..EUR WITH(EMV) & WITHOUT(NAVIGATION ),MELLOW WHITE,TRIM01 |
1 | ||
| 55550-50190C1 |
USF40..LHD..D4 ISRAEL SPEC&WITH(EMV) & WITHOUT(NAVIGATION ),BLACK,TRIM2# |
1 | ||
| 55550-50190B1 |
USF4#..LHD..EUR WITH(EMV) & WITHOUT(NAVIGATION ),LT.GRAY,TRIM1# |
1 | ||
| 55550-50200C0 |
USF4#..LHD BLACK,TRIM2# |
1 | ||
| 55550-50190A1 |
USF40,45..LHD..D4 RUSSIA SPEC&WITH(EMV) & WITHOUT(NAVIGATION ),IVORY,TRIM00 |
1 | ||
| 55550-50190C1 |
USF4#..LHD..EUR WITH(EMV) & WITHOUT(NAVIGATION ),BLACK,TRIM2# |
1 | ||
| 55550-50200B0 |
USF4#..LHD LT.GRAY,TRIM1# |
1 | ||
| 55550-50200A1 |
USF4#..LHD MELLOW WHITE,TRIM01 |
1 | ||
| 55550-50190B1 |
USF40,45..LHD..D4 RUSSIA SPEC&WITH(EMV) & WITHOUT(NAVIGATION ),LT.GRAY,TRIM1# |
1 | ||
| 55550-50190C1 |
USF40,45..LHD..D4 RUSSIA SPEC&WITH(EMV) & WITHOUT(NAVIGATION ),BLACK,TRIM2# |
1 | ||
| 55550-50200A0 |
USF4#..LHD IVORY,TRIM00 |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-50150B0 |
USF4#..LHD LT.GRAY,TRIM1#,TYPE B:REFER ILLUST. |
1 | ||
| 55560-50150A0 |
USF4#..LHD IVORY,TRIM00,TYPE B:REFER ILLUST. |
1 | ||
| 55560-50170A0 |
USF4#..LHD IVORY,TRIM00,TYPE A:REFER ILLUST. |
1 | ||
| 55560-50150C0 |
USF4#..LHD BLACK,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 55560-50170B0 |
USF4#..LHD LT.GRAY,TRIM1# |
1 | ||
| 55560-50150A1 |
USF4#..LHD MELLOW WHITE,TRIM01,TYPE B:REFER ILLUST. |
1 | ||
| 55560-50170C0 |
USF4#..LHD BLACK,TRIM2#,TYPE A:REFER ILLUST. |
1 | ||
| 55560-50170C0 |
USF4#..LHD BLACK,TRIM2# |
1 | ||
| 55560-50170A1 |
USF4#..LHD MELLOW WHITE,TRIM01 |
1 | ||
| 55560-50170A1 |
USF4#..LHD MELLOW WHITE,TRIM01,TYPE A:REFER ILLUST. |
1 | ||
| 55560-50170B0 |
USF4#..LHD LT.GRAY,TRIM1#,TYPE A:REFER ILLUST. |
1 | ||
| 55560-50170A0 |
USF4#..LHD IVORY,TRIM00 |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-50050A1 |
USF4#..LHD MELLOW WHITE,TRIM01 |
1 | ||
| 55569-50050A0 |
USF4#..LHD IVORY,TRIM00 |
1 | ||
| 55569-50080C0 |
USF4#..LHD BLACK,TRIM2# |
1 | ||
| 55569-50050C0 |
USF4#..LHD BLACK,TRIM2# |
1 | ||
| 55569-50080B0 |
USF4#..LHD LT.GRAY,TRIM1# |
1 | ||
| 55569-50080A1 |
USF4#..LHD MELLOW WHITE,TRIM01 |
1 | ||
| 55569-50050B0 |
USF4#..LHD LT.GRAY,TRIM1# |
1 | ||
| 55569-50080A0 |
USF4#..LHD IVORY,TRIM00 |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55641-50130 |
USF4#..LHD |
1 | ||
| 55641-50130 |
USF4#..LHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-50140 |
USF4#..LHD |
1 | ||
| 55607-50140 |
USF4#..LHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-50080E0 |
USF4#..LHD ORCHID BROWN,TRIM00,01 |
1 | ||
| 55650-50080E0 |
USF4#..LHD ORCHID BROWN,TRIM0# |
1 | ||
| 55650-50080C0 |
USF4#..LHD BLACK,TRIM1#,2# |
1 | ||
| 55650-50080C0 |
USF4#..LHD BLACK,TRIM1#,2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-50140E0 |
USF4#..LHD ORCHID BROWN,TRIM00,01 |
1 | ||
| 55660-50140C0 |
USF4#..LHD BLACK,TRIM1#,2# |
1 | ||
| 55660-50140C0 |
USF4#..LHD BLACK,TRIM1#,2# |
1 | ||
| 55660-50140E0 |
USF4#..LHD ORCHID BROWN,TRIM0# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-50070 |
USF4# |
1 | ||
| 55670-50070 |
USF4# |
1 | ||
| 69065 - CYLINDER SUB-ASSY, AIR BAG CUT OFF SW | ||||
| 69065-53010 |
USF40,45..D4 |
1 | ||
| 69065-53010 |
USF40,45..LHD..D4 RUSSIA SPEC |
1 | ||
| 69065-53010 |
USF40..LHD..D4 RUSSIA SPEC |
1 | ||
| 69065-53010 |
USF40..D4 |
1 | ||
| 69065-53010 |
USF40..LHD..D4 ISRAEL SPEC |
1 | ||
| 69065-53010 |
USF40..LHD..D4 FORMOSA SPEC |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-13082A0 | ||||
| 90468-04191 | ||||
| 90468-05135 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8715 | ||||
