UCF20R-AEPGKQ (1994)
Toyota Lexus Ls400
Production
Oct 1994
-
Jul 1997
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9410- )

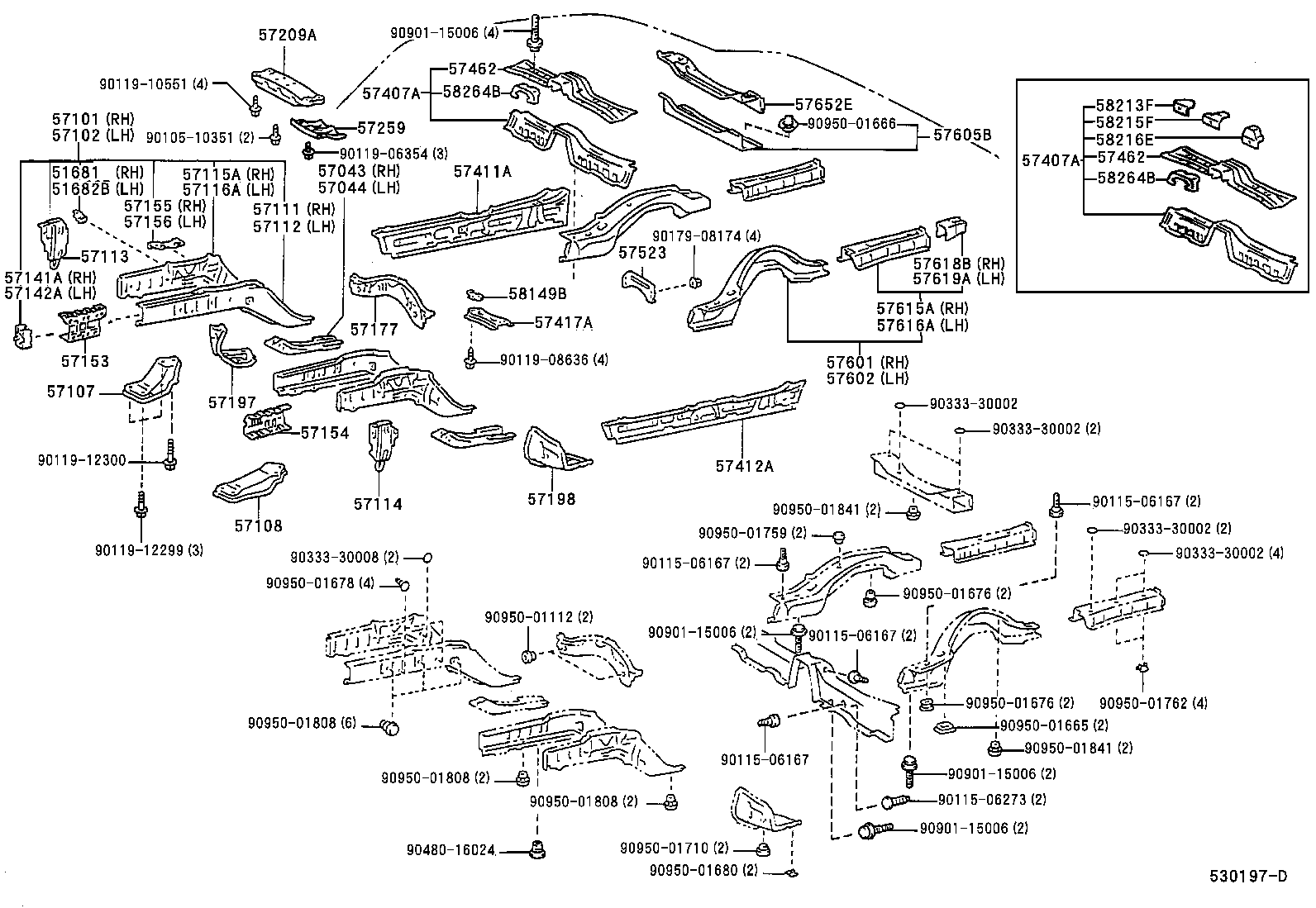

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51681 - BRACKET, FLEXIBLE HOSE | ||||
| 51681-50030 |
UCF20 |
1 | ||
| 51682B - BRACKET, FLEXIBLE HOSE, LH | ||||
| 51682-50030 |
UCF20 |
1 | ||
| 57043 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-50021 |
UCF20 |
1 | ||
| 57043-50020 |
UCF20 |
1 | ||
| 57043-50030 |
UCF20 |
1 | ||
| 57044 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-50020 |
UCF20 |
1 | ||
| 57044-50021 |
UCF20 |
1 | ||
| 57044-50030 |
UCF20 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-50910 |
UCF20..RHD |
1 | ||
| 57101-50922 |
UCF20..RHD |
1 | ||
| 57101-50918 |
UCF20..RHD |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-50908 |
UCF20..RHD |
1 | ||
| 57102-50914 |
UCF20..RHD |
1 | ||
| 57102-50917 |
UCF20..RHD |
1 | ||
| 57107 - BRACKET SUB-ASSY, STRUT BAR, RH | ||||
| 57107-50020 |
UCF20 |
1 | ||
| 57108 - BRACKET SUB-ASSY, STRUT BAR, LH | ||||
| 57108-50020 |
UCF20 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-50090 |
UCF20..RHD |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-50060 |
UCF20..RHD |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57016-50020 |
UCF20 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57017-50020 |
UCF20 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-50040 |
UCF20 |
1 | ||
| 57115-50042 |
UCF20 |
1 | ||
| 57115-50043 |
UCF20 |
1 | ||
| 57115-50041 |
UCF20 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-50041 |
UCF20 |
1 | ||
| 57116-50042 |
UCF20 |
1 | ||
| 57116-50040 |
UCF20 |
1 | ||
| 57116-50032 |
UCF20 |
1 | ||
| 57141A - SUPPORT, FRONT BUMPER ARM, RH | ||||
| 57141-50010 |
UCF20 |
1 | ||
| 57142A - SUPPORT, FRONT BUMPER ARM, LH | ||||
| 57142-50010 |
UCF20 |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-50010 |
UCF20 |
1 | ||
| 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57156-50010 |
UCF20 |
1 | ||
| 57177 - CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL | ||||
| 57177-50040 |
UCF20..RHD |
1 | ||
| 57177-50041 |
UCF20..RHD |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-50020 |
UCF20 |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-50020 |
UCF20 |
1 | ||
| 57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 57255-50011 |
UCF20 |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-50900 |
UCF20 |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-50900 |
UCF20 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-50900 |
UCF20 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-50900 |
UCF20 |
1 | ||
| 57417A - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57417-50020 |
UCF20 |
1 | ||
| 57462 - MEMBER, CENTER FLOOR CROSS, NO.2 | ||||
| 57462-50020 |
UCF20 |
1 | ||
| 57462 - MEMBER, CENTER FLOOR CROSS, NO.2 | ||||
| 57462-50020 |
UCF20 |
1 | ||
| 57523 - BRACE, CENTER FLOOR CROSSMEMBER | ||||
| 57523-50020 |
UCF20 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-50901 |
UCF20..ARL,EUR,V |
1 | ||
| 57601-50903 |
UCF20 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-50903 |
UCF20 |
1 | ||
| 57602-50901 |
UCF20..ARL,EUR,V |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-50900 |
UCF20 |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-50903 |
UCF20 |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-50902 |
UCF20 |
1 | ||
| 57618B - REINFORCEMENT, REAR BUMPER RETAINER, RH | ||||
| 57618-50010 |
UCF20 |
1 | ||
| 57619A - REINFORCEMENT, REAR BUMPER RETAINER, LH | ||||
| 57619-50010 |
UCF20 |
1 | ||
| 57652E - MEMBER, REAR FLOOR CROSS, NO.1 | ||||
| 57652-50020 |
UCF20 |
1 | ||
| 58149B - PLATE, FRONT FLOOR REINFORCE NUT | ||||
| 58149-50010 |
UCF20 |
2 | ||
| 58264B - BRACKET, PARKING BRAKE CABLE GUIDE | ||||
| 58264-50020 |
UCF20 |
1 | ||
| 58264B - BRACKET, PARKING BRAKE CABLE GUIDE | ||||
| 58264-50020 |
UCF20 |
1 | ||
| Common parts | ||||
| 90105-10351 | ||||
| 90115-06167 | ||||
| 90115-06273 | ||||
| 90119-06354 | ||||
| 90119-08636 | ||||
| 90119-10551 | ||||
| 90119-12299 | ||||
| 90119-12300 | ||||
| 90179-08174 | ||||
| 90333-30002 | ||||
| 90333-30008 | ||||
| 90480-16024 | ||||
| 90901-15006 | ||||
| 90950-01112 | ||||
| 90950-01665 | ||||
| 90950-01666 | ||||
| 90950-01676 | ||||
| 90950-01678 | ||||
| 90950-01680 | ||||
| 90950-01710 | ||||
| 90950-01759 | ||||
| 90950-01762 | ||||
| 90950-01808 | ||||
| 90950-01841 | ||||
