UCF20R-AEPGK (1994)

Toyota Lexus Ls400

Production Oct 1994 - Jul 1997
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9410- )

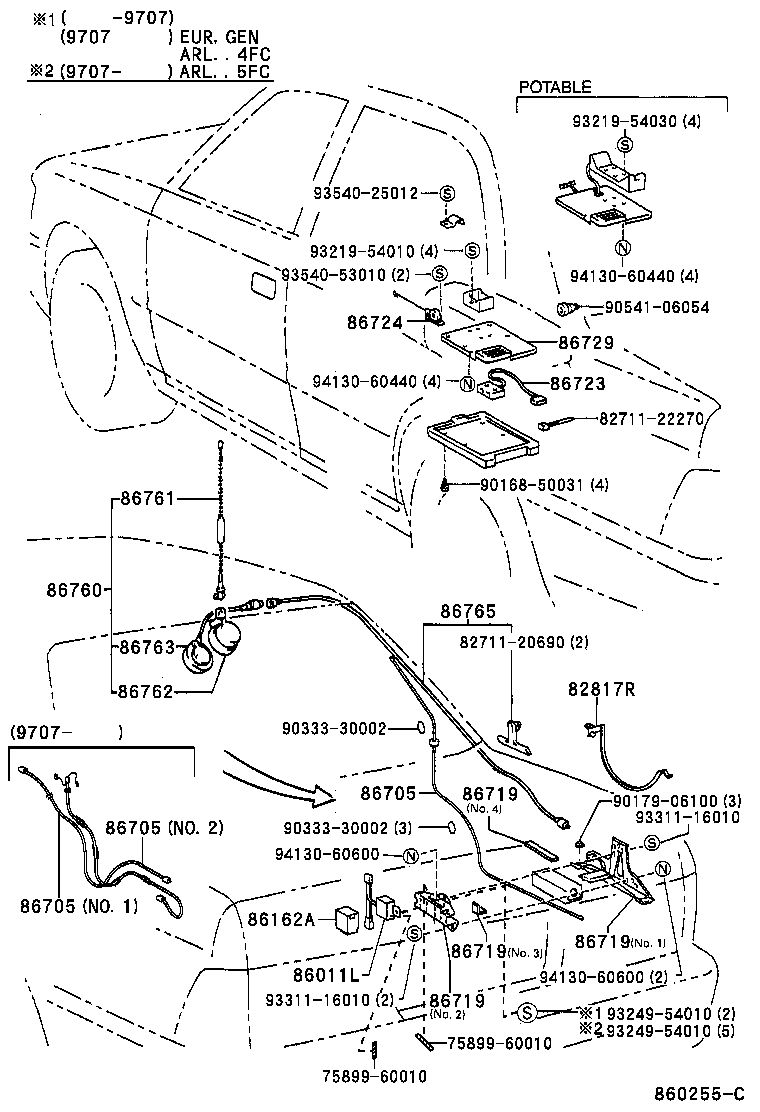

Click highlighted areas on diagram

diagram 7589960010 7589960010 8271120690 8271122270 82817R 86011L 86162A 86705 86705 86705 86719 86719 86719 86719 86723 86724 86729 86760 86761 86762 86763 86765 9016850031 9017906100 9033330002 9033330002 9054106054 9321954010 9321954030 9324954010 9324954010 9331116010 9331116010 9354025012 9354053010 9413060440 9413060440 9413060600 9413060600
Part # Description Qty Price
82817R - PROTECTOR, WIRING HARNESS, NO.16
82817-5A730

UCF20

 1
86011L - FILTER, NOISE
90980-05281

UCF20..ARL,EUR,GEN

 1
86162A - RELAY, SPEAKER
86162-50010

UCF20..ARL,EUR,GEN

 1
86705 - CORD SUB-ASSY, TELEPHONE ANTENNA
86705-50020

UCF20..ARL,EUR,GEN

 1
86705 - CORD SUB-ASSY, TELEPHONE ANTENNA
86705-50020

UCF20..ARL,EUR,GEN

 1
86705 - CORD SUB-ASSY, TELEPHONE ANTENNA
86705-50020

UCF20..ARL,EUR,GEN

 1
86719 - BRACKET, TELEPHONE
86719-50110

UCF20..ARL,EUR,GEN

NO.4

 1
86719-50080

UCF20..ARL,EUR,GEN

NO.2

 1
86719-50100

UCF20..ARL,EUR,GEN

NO.3

 2
86719-50070

UCF20..ARL,EUR,GEN

NO.1

 1
86719 - BRACKET, TELEPHONE
86719-50110

UCF20..ARL,EUR,GEN

NO.4

 1
86719-50080

UCF20..ARL,EUR,GEN

NO.2

 1
86719-50100

UCF20..ARL,EUR,GEN

NO.3

 2
86719-50070

UCF20..ARL,EUR,GEN

NO.1

 1
86719 - BRACKET, TELEPHONE
86719-50110

UCF20..ARL,EUR,GEN

NO.4

 1
86719-50080

UCF20..ARL,EUR,GEN

NO.2

 1
86719-50100

UCF20..ARL,EUR,GEN

NO.3

 2
86719-50070

UCF20..ARL,EUR,GEN

NO.1

 1
86719 - BRACKET, TELEPHONE
86719-50110

UCF20..ARL,EUR,GEN

NO.4

 1
86719-50080

UCF20..ARL,EUR,GEN

NO.2

 1
86719-50100

UCF20..ARL,EUR,GEN

NO.3

 2
86719-50070

UCF20..ARL,EUR,GEN

NO.1

 1
86723 - WIRE, MOBILEPHONE
86723-50100

UCF20..ARL,EUR,GEN

 1
86724 - GUIDE, CURL CORD
86724-33010

UCF20..ARL,EUR,GEN

 1
86729 - BRACKET, MOBILEPHONE
86729-50080

UCF20..ARL,EUR,GEN

 1
86760 - ANTENNA ASSY, TELEPHONE
86760-50030

UCF20..EUR,GEN

 1
86761 - ROD, TELEPHONE ANTENNA
86761-50020

UCF20..EUR,GEN

 1
86762 - BASE, TELEPHONE ANTENNA
86762-50020

UCF20..EUR,GEN

 1
86763 - BASE, TELEPHONE ANTENNA, N0.2
86763-50020

UCF20..EUR,GEN

 1
86765 - CODE, TELEPHONE ANTENNA
86705-50010

UCF20..EUR,GEN

 1
Common parts
75899-60010
82711-20690
82711-22270
90168-50031
90179-06100
90333-30002
90541-06054
93219-54010
93219-54030
93249-54010
93311-16010
93540-25012
93540-53010
94130-60440
94130-60600
