UCF20R-AEPGK (1994)
Toyota Lexus Ls400
Production
Oct 1994
-
Jul 1997
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9410- )RHD

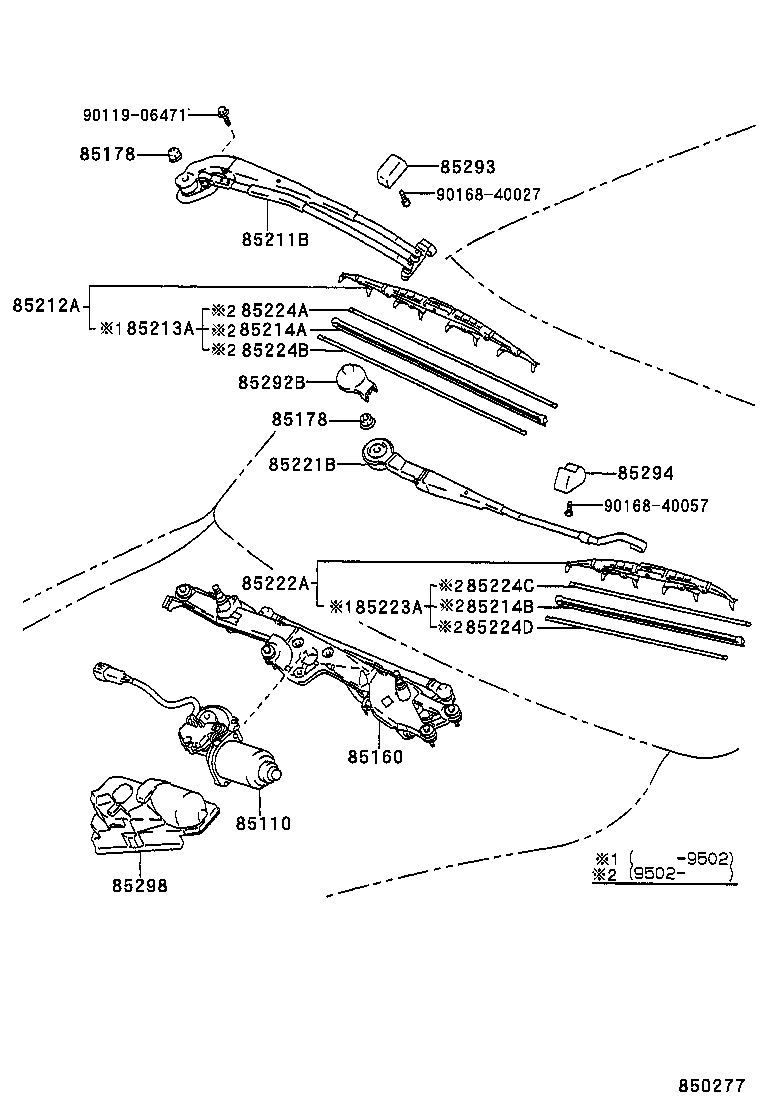

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-50100 |
UCF20..RHD |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-50090 |
UCF20..RHD |
1 | ||
| 85150-50100 |
UCF20..RHD |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90179-10161 |
UCF20..RHD LH |
1 | ||
| 90176-10005 |
UCF20..RHD RH |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90179-10161 |
UCF20..RHD LH |
1 | ||
| 90176-10005 |
UCF20..RHD RH |
1 | ||
| 85211B - ARM, FRONT WIPER, RH | ||||
| 85211-50060 |
UCF20..ARL,GEN |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| 85212-50021 |
UCF20..ARL,GEN |
1 | ||
| 85213A - RUBBER, WIPER BLADE, RH | ||||
| 85213-50022 |
UCF20..ARL,GEN |
1 | ||
| 85221B - ARM, FRONT WIPER, LH | ||||
| 85221-50060 |
UCF20..RHD |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| 85222-50050 |
UCF20..RHD |
1 | ||
| 85223A - RUBBER, FRONT WIPER BLADE, LH | ||||
| 85223-50040 |
UCF20..RHD |
1 | ||
| 85224A - PLATE, WIPER RUBBER BACKING, NO.1 | ||||
| 85224-50020 |
UCF20..RHD |
1 | ||
| 85224B - PLATE, WIPER RUBBER BACKING, NO.2 | ||||
| 85224-50020 |
UCF20..RHD |
1 | ||
| 85224C - PLATE, WIPER RUBBER BACKING, NO.3 | ||||
| 85224-60070 |
UCF20..RHD |
1 | ||
| 85224D - PLATE, WIPER RUBBER BACKING, NO.4 | ||||
| 85224-60070 |
UCF20..RHD |
1 | ||
| 85292B - CAP, FRONT WIPER ARM HEAD | ||||
| 85292-50010 |
UCF20..RHD |
1 | ||
| 85293 - STEP, LINEAR WIPER, RH | ||||
| 85293-50010 |
UCF20..ARL,EUR,GEN |
1 | ||
| 85294 - STEP, LINEAR WIPER, LH | ||||
| 85294-50010 |
UCF20..ARL,EUR,GEN |
1 | ||
| 85298 - COVER, WIPER MOTOR | ||||
| 85111-50020 |
UCF20..RHD |
1 | ||
| Common parts | ||||
| 90119-06471 | ||||
| 90168-40027 | ||||
| 90168-40057 | ||||
