UCF20R-AEPGK (1994)
Toyota Lexus Ls400
(9410- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-50040A0 |
UCF20..ARL,GEN,V IVORY,TRIM0# |
1 | ||
| 74210-50040G0 |
UCF20..ARL,GEN AGATE,TRIM6# |
1 | ||
| 74210-50040C0 |
UCF20..ARL,GEN,V BLACK,TRIM2# |
1 | ||
| 74210-50040B0 |
UCF20..ARL,GEN,V BLUE GRAY,TRIM1# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-50040A0 |
UCF20..ARL,GEN,V IVORY,TRIM0# |
1 | ||
| 74220-50040C0 |
UCF20..ARL,GEN,V BLACK,TRIM2# |
1 | ||
| 74220-50040G0 |
UCF20..ARL,GEN AGATE,TRIM6# |
1 | ||
| 74220-50040B0 |
UCF20..ARL,GEN,V BLUE GRAY,TRIM1# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74250-50040A0 |
UCF20..ARL,GEN,V IVORY,TRIM0# |
1 | ||
| 74250-50040G0 |
UCF20..ARL,GEN AGATE,TRIM6# |
1 | ||
| 74250-50040B0 |
UCF20..ARL,GEN,V BLUE GRAY,TRIM1# |
1 | ||
| 74250-50040C0 |
UCF20..ARL,GEN,V BLACK,TRIM2# |
1 | ||
| 74231C - PANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE | ||||
| 74231-50030 |
UCF20..RHD |
1 | ||
| 74232C - PANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE | ||||
| 74232-50030 |
UCF20 |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74260-50040B0 |
UCF20..ARL,GEN,V BLUE GRAY,TRIM1# |
1 | ||
| 74260-50040A0 |
UCF20..ARL,GEN,V IVORY,TRIM0# |
1 | ||
| 74260-50040G0 |
UCF20..ARL,GEN AGATE,TRIM6# |
1 | ||
| 74260-50040C0 |
UCF20..ARL,GEN,V BLACK,TRIM2# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-50030 |
UCF20 |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-50030 |
UCF20 |
1 | ||
| 74275A - PLATE, REAR DOOR ARMREST BASE FINISH,RH | ||||
| 74275-50030 |
UCF20 |
1 | ||
| 74276A - PLATE, REAR DOOR ARMREST BASE FINISH,LH | ||||
| 74276-50030 |
UCF20 |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-50081B0 |
UCF20 BLUE GRAY,TRIM1#,2# |
1 | ||
| 74310-50082B0 |
UCF20 BLUE GRAY,TRIM1#,2# |
1 | ||
| 74310-50082G0 |
UCF20..ARL,EUR,GEN AGATE,TRIM6# |
1 | ||
| 74310-50081A0 |
UCF20..ARL,EUR,GEN IVORY,TRIM0# |
1 | ||
| 74310-50080G0 |
UCF20..ARL,EUR,GEN AGATE,TRIM6# |
1 | ||
| 74310-50080A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 74310-50081G0 |
UCF20..ARL,EUR,GEN AGATE,TRIM6# |
1 | ||
| 74310-50082A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 74310-50080B0 |
UCF20 BLUE GRAY,TRIM1#,2# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-50072A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 74320-50072B0 |
UCF20 BLUE GRAY,TRIM1#,2# |
1 | ||
| 74320-50070G0 |
UCF20..ARL,EUR,GEN AGATE,TRIM6# |
1 | ||
| 74320-50071B0 |
UCF20 BLUE GRAY,TRIM1#,2# |
1 | ||
| 74320-50071G0 |
UCF20..ARL,EUR,GEN AGATE,TRIM6# |
1 | ||
| 74320-50070A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 74320-50072G0 |
UCF20..ARL,EUR,GEN AGATE,TRIM6# |
1 | ||
| 74320-50071A0 |
UCF20..ARL,EUR,GEN IVORY,TRIM0# |
1 | ||
| 74320-50070B0 |
UCF20 BLUE GRAY,TRIM1#,2# |
1 | ||
| 74330A - VISOR ASSY, CENTER | ||||
| 74330-50031A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 74330-50030A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 74330-50030B0 |
UCF20 BLUE GRAY,TRIM1#,2# |
1 | ||
| 74330-50030G0 |
UCF20..ARL,EUR,GEN AGATE,TRIM6# |
1 | ||
| 74330-50031B0 |
UCF20 BLUE GRAY,TRIM1#,2# |
1 | ||
| 74330-50031G0 |
UCF20..ARL,EUR,GEN AGATE,TRIM6# |
1 | ||
| 74331 - CASE, VISOR ARM, RH | ||||
| 74331-50030A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 74331-50030B0 |
UCF20 BLUE GRAY,TRIM1#,2# |
1 | ||
| 74331-50030G0 |
UCF20..ARL,EUR,GEN AGATE,TRIM6# |
1 | ||
| 74334 - CASE, VISOR ARM, LH | ||||
| 74331-50030A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 74331-50030G0 |
UCF20..ARL,EUR,GEN AGATE,TRIM6# |
1 | ||
| 74331-50030B0 |
UCF20 BLUE GRAY,TRIM1#,2# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-50020B0 |
UCF20 BLUE GRAY,TRIM1#,2# |
2 | ||
| 74348-50020A0 |
UCF20 IVORY,TRIM0# |
2 | ||
| 74348-50020G0 |
UCF20..ARL,EUR,GEN AGATE,TRIM6# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-50020B0 |
UCF20 BLUE GRAY,TRIM1#,2# |
3 | ||
| 74610-50020A0 |
UCF20 IVORY,TRIM0# |
3 | ||
| 74610-50020G0 |
UCF20..ARL,EUR,GEN AGATE,TRIM6# |
3 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-50020G0 |
UCF20..ARL,EUR,GEN AGATE,TRIM6# |
6 | ||
| 74612-50020B0 |
UCF20 BLUE GRAY,TRIM1#,2# |
6 | ||
| 74612-50020A0 |
UCF20 IVORY,TRIM0# |
6 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-50020G0 |
UCF20..ARL,EUR,GEN AGATE,TRIM6# |
6 | ||
| 74612-50020B0 |
UCF20 BLUE GRAY,TRIM1#,2# |
6 | ||
| 74612-50020A0 |
UCF20 IVORY,TRIM0# |
6 | ||
| 74631B - HOOK, COAT | ||||
| 74605-50010A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 74605-50010G0 |
UCF20..ARL,EUR,GEN AGATE,TRIM6# |
1 | ||
| 74605-50010B0 |
UCF20 BLUE GRAY,TRIM1#,2# |
1 | ||
| Common parts | ||||
| 90151-50025 | ||||
| 90161-30002 | ||||
| 90162-50009 | ||||
| 90164-40105 | ||||
| 90164-60014 | ||||
| 90467-10012 | ||||
| 90468-05095 | ||||
| 90468-05129 | ||||
| 90901-89021 | ||||
| 93319-14010 | ||||
| 93540-44012 | ||||
| 93540-54008 | ||||

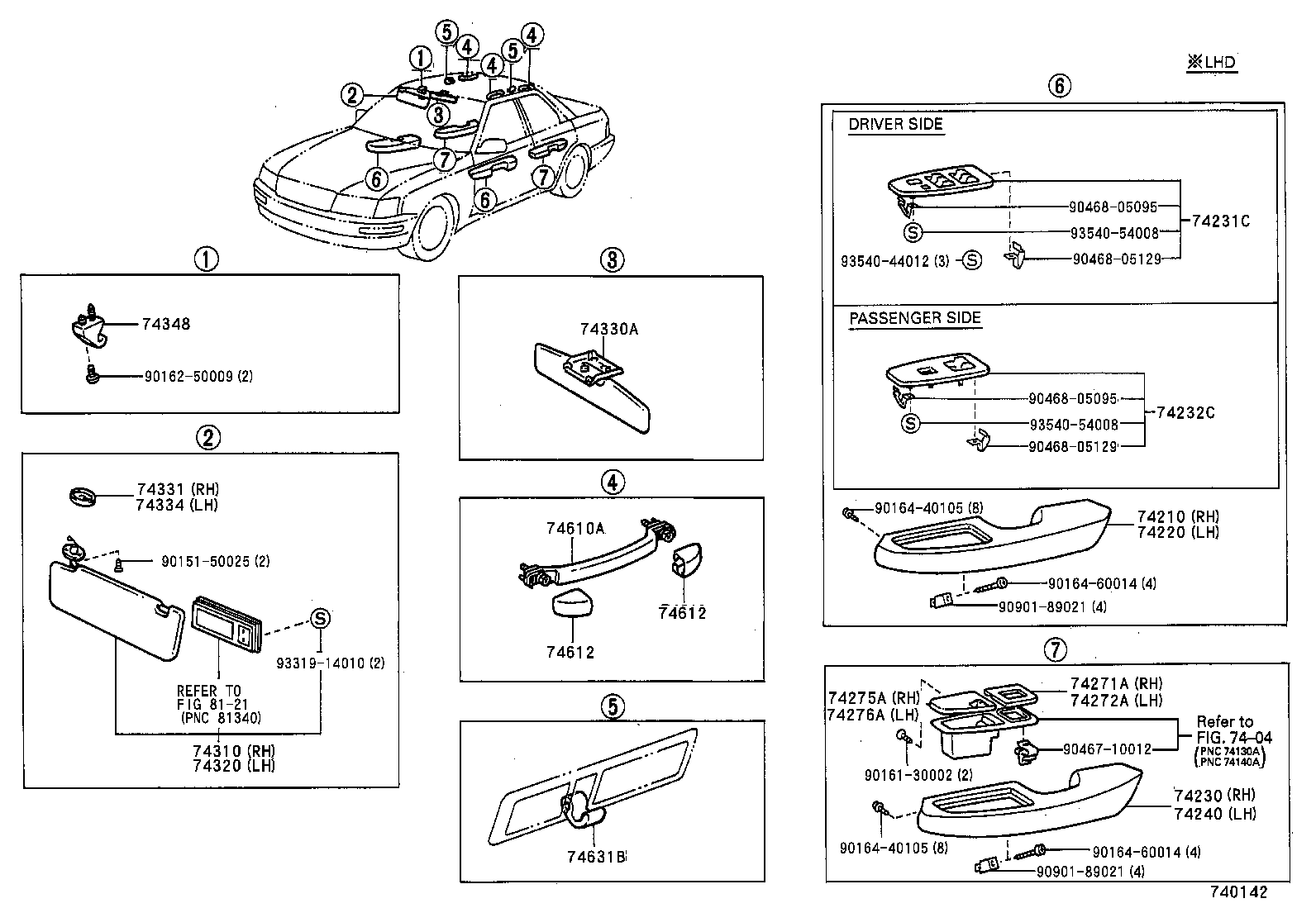

| Linked diagrams | ||||
| 8121 | ||||
