UCF20R-AEPGK (1994)
Toyota Lexus Ls400
Production
Oct 1994
-
Jul 1997
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9410- )

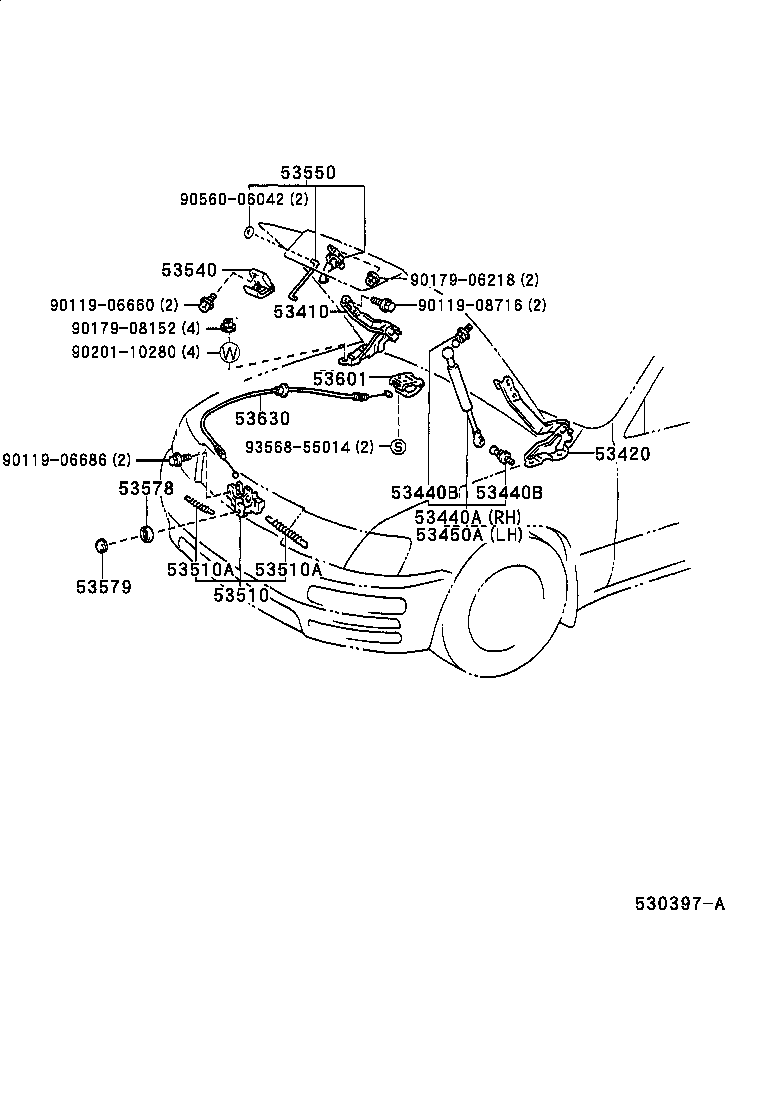

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-50020 |
UCF20 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-50020 |
UCF20 |
1 | ||
| 53440A - SUPPORT ASSY, HOOD, RH | ||||
| 53440-59025 |
UCF20 |
1 | ||
| 53440B - BOLT, HOOD SUPPORT, NO.1 | ||||
| 68961-50010 |
UCF20 |
4 | ||
| 53440B - BOLT, HOOD SUPPORT, NO.1 | ||||
| 68961-50010 |
UCF20 |
4 | ||
| 53450A - SUPPORT ASSY, HOOD, LH | ||||
| 53440-59025 |
UCF20 |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-50060 |
UCF20..RHD |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09050 |
UCF20 WD=0.9,CW=20.5,OD=9,L=36.3 |
1 | ||
| 90506-18068 |
UCF20 WD=1.8,CW=18,OD=15,L=52 |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-09050 |
UCF20 WD=0.9,CW=20.5,OD=9,L=36.3 |
1 | ||
| 90506-18068 |
UCF20 WD=1.8,CW=18,OD=15,L=52 |
1 | ||
| 53540 - LEVER ASSY, AUXILIARY CATCH RELEASE | ||||
| 53540-30010 |
UCF20 |
1 | ||
| 53550 - HOOK ASSY, HOOD AUXILIARY CATCH | ||||
| 53550-50020 |
UCF20 |
1 | ||
| 53578 - NUT, HOOD LOCK | ||||
| 53578-50010 |
UCF20 |
1 | ||
| 53579 - CAP, HOOD LOCK NUT | ||||
| 53579-50010 |
UCF20 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-20060A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 53601-20060B1 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 53601-20060C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 53601-20060G0 |
UCF20..ARL,EUR,GEN AGATE,TRIM6# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-50050 |
UCF20 |
1 | ||
| Common parts | ||||
| 90119-06660 | ||||
| 90119-06686 | ||||
| 90119-08716 | ||||
| 90179-06218 | ||||
| 90179-08152 | ||||
| 90201-10280 | ||||
| 90560-06042 | ||||
| 93568-55014 | ||||
