UCF20R-AEPGK (1994)
Toyota Lexus Ls400
Production
Oct 1994
-
Jul 1997
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9410- )

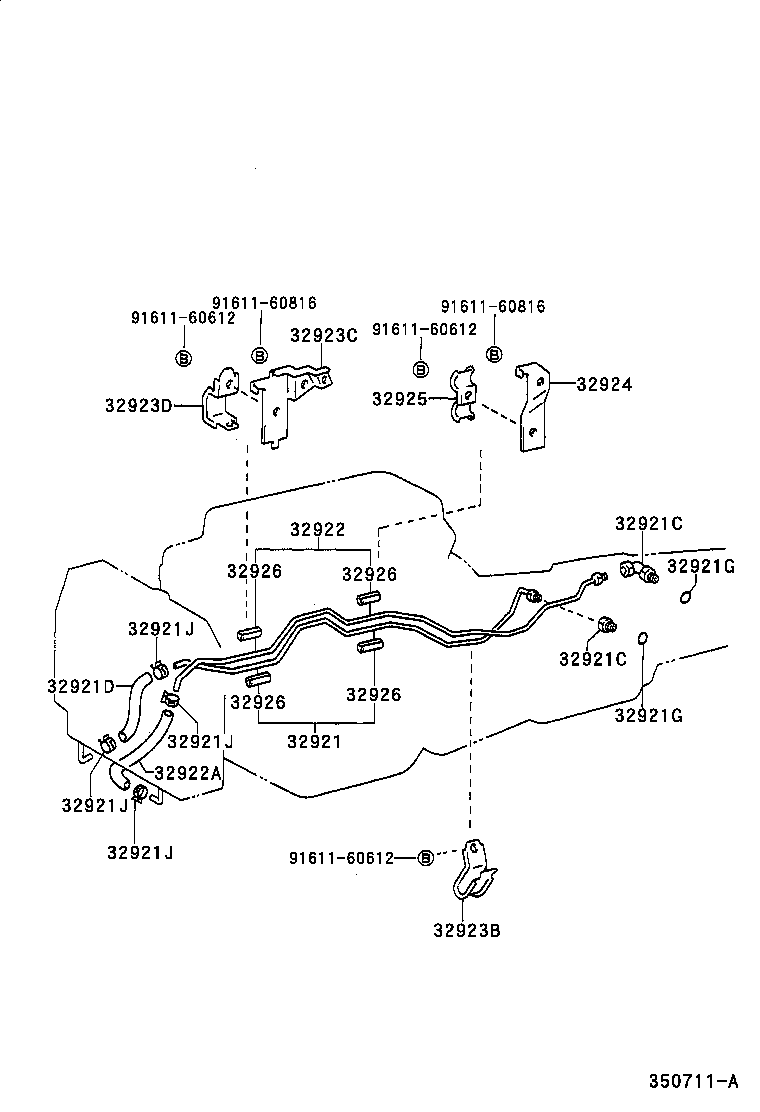

Click highlighted areas on diagram
A341E,A342E,A650E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-50060 |
UCF20 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16029 |
UCF20 INLET |
1 | ||
| 90407-16009 |
UCF20 OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16029 |
UCF20 INLET |
1 | ||
| 90407-16009 |
UCF20 OUTLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-17095 |
UCF20..V..4FC;UCF20..ARL,EUR,GEN |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
UCF20 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
UCF20 |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
UCF20..ARL,EUR,GEN |
4 | ||
| 90467-16013 |
UCF20..V..4FC;UCF20..ARL,EUR,GEN |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
UCF20..ARL,EUR,GEN |
4 | ||
| 90467-16013 |
UCF20..V..4FC;UCF20..ARL,EUR,GEN |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
UCF20..ARL,EUR,GEN |
4 | ||
| 90467-16013 |
UCF20..V..4FC;UCF20..ARL,EUR,GEN |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16013 |
UCF20..ARL,EUR,GEN |
4 | ||
| 90467-16013 |
UCF20..V..4FC;UCF20..ARL,EUR,GEN |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-50040 |
UCF20 |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17140 |
UCF20 |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-50010 |
UCF20 |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 32924-50020 |
UCF20 |
1 | ||
| 32923D - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5 | ||||
| 32929-50020 |
UCF20 |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32923-50030 |
UCF20 |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 90462-12074 |
UCF20 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
UCF20 L=35,ID=10 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
UCF20 L=35,ID=10 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
UCF20 L=35,ID=10 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
UCF20 L=35,ID=10 |
4 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
