UCF20R-AEPGK (1994)
Toyota Lexus Ls400
Production
Oct 1994
-
Jul 1997
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

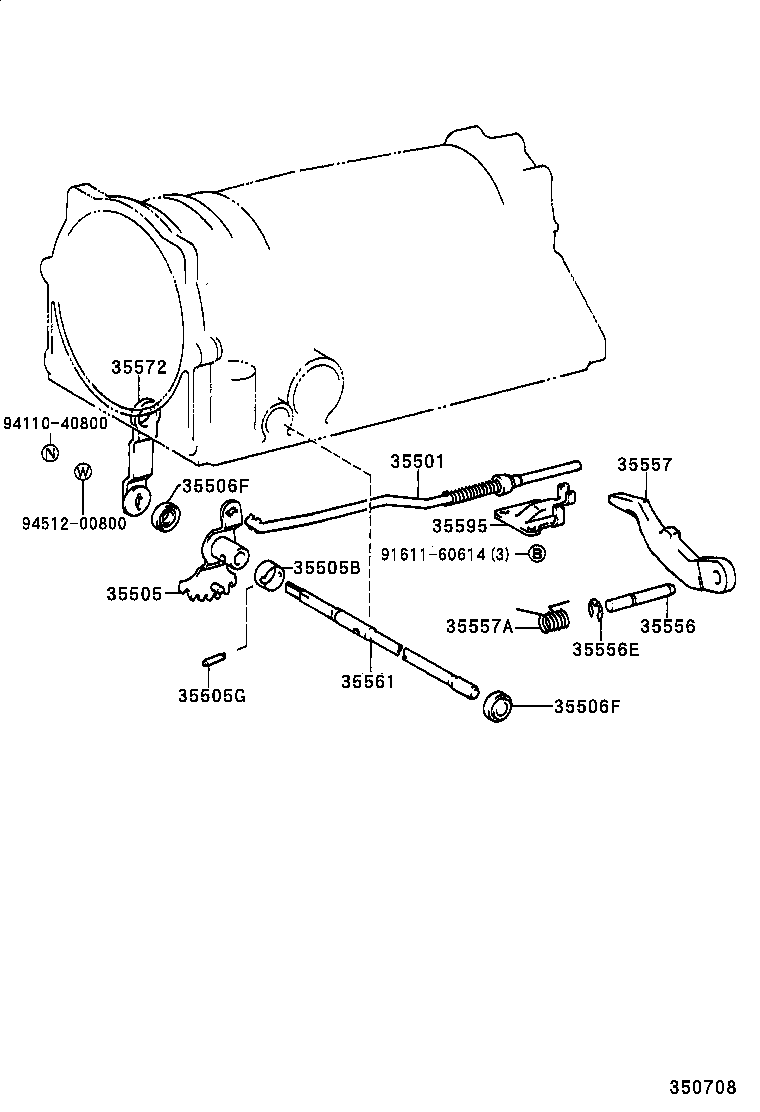

ILLUST NO. 1 OF 2(9410- )
Click highlighted areas on diagram
A341E,A342E,A650E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-30010 |
UCF20 |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-50020 |
UCF20 |
1 | ||
| 35505B - SPACER (FOR MANUAL VALVE LEVER) | ||||
| 90560-20006 |
UCF20 |
1 | ||
| 35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER) | ||||
| 90254-04011 |
UCF20 |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
UCF20 |
2 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
UCF20 |
2 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-30020 |
UCF20 |
1 | ||
| 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
UCF20 |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-30020 |
UCF20 |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-21002 |
UCF20 |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-30070 |
UCF20 |
1 | ||
| 35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH | ||||
| 35572-30060 |
UCF20 |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-30010 |
UCF20 |
1 | ||
| Common parts | ||||
| 91611-60614 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||

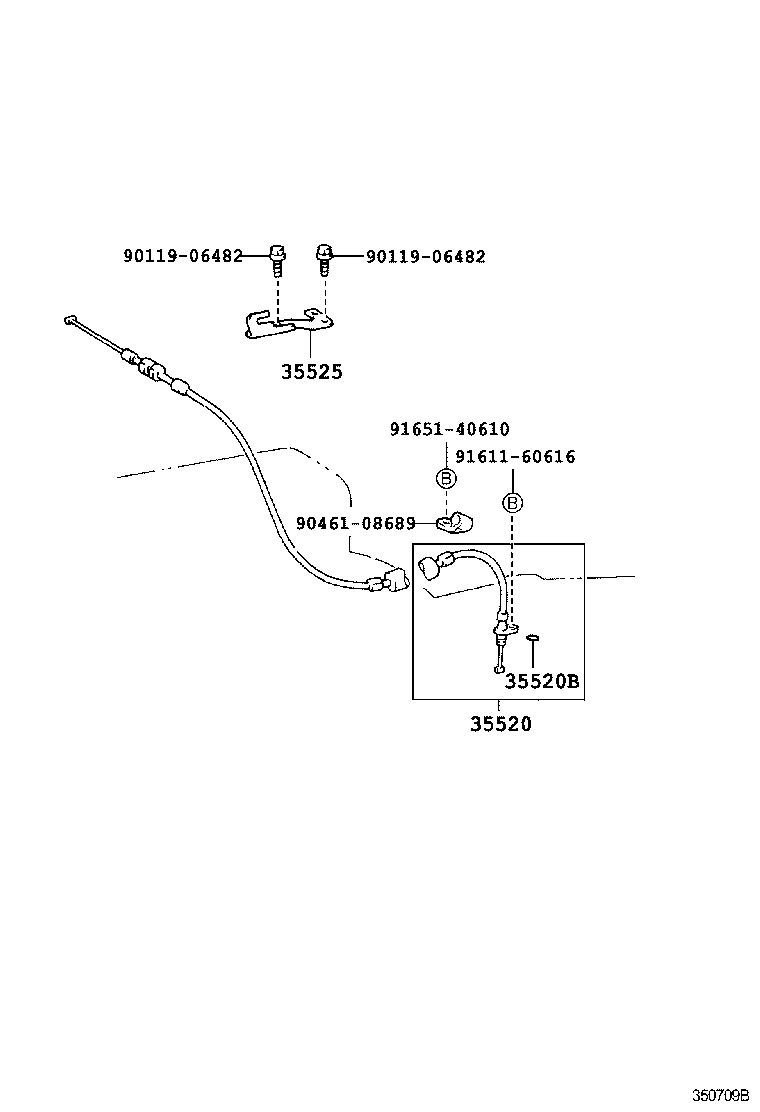

ILLUST NO. 2 OF 2(9410-9707)RHD
Click highlighted areas on diagram
A341E,A342E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-50020 |
UCF20 |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09012 |
UCF20 |
1 | ||
| 35525 - BRACKET, THROTTLE CABLE | ||||
| 35525-30030 |
UCF20..RHD |
1 | ||
| Common parts | ||||
| 90119-06482 | ||||
| 90461-08689 | ||||
| 91611-60616 | ||||
| 91651-40610 | ||||
