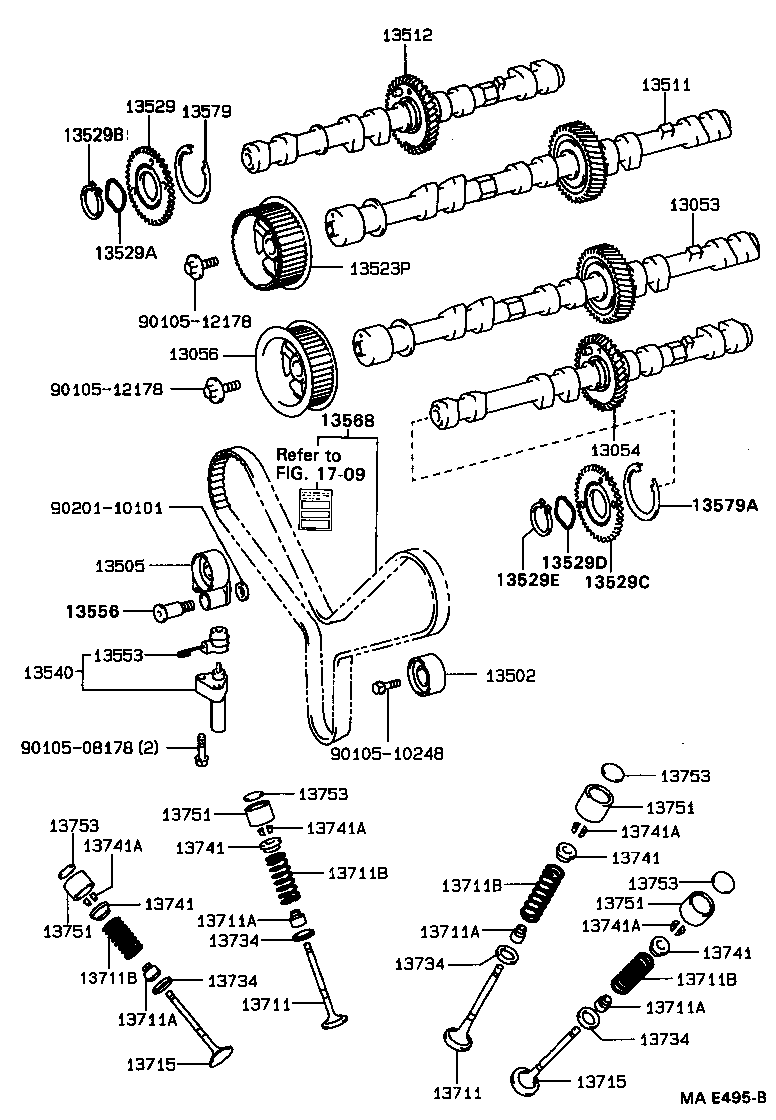

UCF20R-AEPGK (1994)
Toyota Lexus Ls400
(9410-9707)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13053 - CAMSHAFT SUB-ASSY, NO.3 | ||||
| 13053-50021 |
1UZFE..UCF20 |
1 | ||
| 13054 - CAMSHAFT SUB-ASSY, NO.4 | ||||
| 13054-50010 |
1UZFE..UCF20 |
1 | ||
| 13056 - PULLEY SUB-ASSY, CAMSHAFT TIMING, LH | ||||
| 13056-50010 |
1UZFE..UCF20 |
1 | ||
| 13056-50011 |
1UZFE..UCF20 |
1 | ||
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-50011 |
1UZFE..UCF20 |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-50022 |
1UZFE..UCF20 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-50021 |
1UZFE..UCF20 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-50010 |
1UZFE..UCF20 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-50021 |
1UZFE..UCF20 |
1 | ||
| 13051-50010 |
1UZFE..UCF20 |
1 | ||
| 13529 - GEAR, CAMSHAFT SUB | ||||
| 13529-62901 |
1UZFE..UCF20 |
1 | ||
| 13529A - WASHER, WAVE(FOR CAMSHAFT SUB GEAR) | ||||
| 90206-42001 |
1UZFE..UCF20 |
1 | ||
| 13529B - RING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR) | ||||
| 90520-41004 |
1UZFE..UCF20 |
1 | ||
| 13529C - GEAR, CAMSHAFT SUB, NO.3 | ||||
| 13529-62901 |
1UZFE..UCF20 |
2 | ||
| 13529D - WASHER, WAVE(FOR CAMSHAFT SUB GEAR, NO.3) | ||||
| 90206-42001 |
1UZFE..UCF20 |
1 | ||
| 13529E - RING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR, NO.3) | ||||
| 90520-41004 |
1UZFE..UCF20 |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-50011 |
1UZFE..UCF20 |
1 | ||
| 13553 - COVER, CHAIN TENSIONER DUST | ||||
| 13553-50010 |
1UZFE..UCF20 |
1 | ||
| 13556 - SHAFT, TIMING BELT IDLER | ||||
| 13556-50010 |
1UZFE..UCF20 |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-59045 |
1UZFE..UCF20 |
1 | ||
| 13579 - WASHER, CAMSHAFT TIMING GEAR BOLT | ||||
| 13579-50020 |
1UZFE..UCF20 |
1 | ||
| 13579A - WASHER, CAMSHAFT TIMING GEAR BOLT, NO.3 | ||||
| 13579-50020 |
1UZFE..UCF20 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-50021 |
1UZFE..UCF20..GEN HONG KONG SPEC |
16 | ||
| 13711-50050 |
1UZFE..UCF20..EUR,GEN,V |
16 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-50021 |
1UZFE..UCF20..GEN HONG KONG SPEC |
16 | ||
| 13711-50050 |
1UZFE..UCF20..EUR,GEN,V |
16 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02090 |
1UZFE..UCF20 INTAKE |
16 | ||
| 90913-02090 |
1UZFE..UCF20 |
32 | ||
| 90913-02106 |
1UZFE..UCF20 EXHAUST |
16 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02090 |
1UZFE..UCF20 INTAKE |
16 | ||
| 90913-02090 |
1UZFE..UCF20 |
32 | ||
| 90913-02106 |
1UZFE..UCF20 EXHAUST |
16 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02090 |
1UZFE..UCF20 INTAKE |
16 | ||
| 90913-02090 |
1UZFE..UCF20 |
32 | ||
| 90913-02106 |
1UZFE..UCF20 EXHAUST |
16 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02090 |
1UZFE..UCF20 INTAKE |
16 | ||
| 90913-02090 |
1UZFE..UCF20 |
32 | ||
| 90913-02106 |
1UZFE..UCF20 EXHAUST |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90905-01022 |
1UZFE..UCF20 |
32 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90905-01022 |
1UZFE..UCF20 |
32 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90905-01022 |
1UZFE..UCF20 |
32 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90905-01022 |
1UZFE..UCF20 |
32 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-50021 |
1UZFE..UCF20..GEN HONG KONG SPEC |
16 | ||
| 13715-50050 |
1UZFE..UCF20..EUR,GEN,V |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-50021 |
1UZFE..UCF20..GEN HONG KONG SPEC |
16 | ||
| 13715-50050 |
1UZFE..UCF20..EUR,GEN,V |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 90201-18015 |
1UZFE..UCF20 |
32 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 90201-18015 |
1UZFE..UCF20 |
32 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 90201-18015 |
1UZFE..UCF20 |
32 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 90201-18015 |
1UZFE..UCF20 |
32 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-50020 |
1UZFE..UCF20 |
32 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-50020 |
1UZFE..UCF20 |
32 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-50020 |
1UZFE..UCF20 |
32 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-50020 |
1UZFE..UCF20 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
1UZFE..UCF20 |
64 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
1UZFE..UCF20 |
64 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
1UZFE..UCF20 |
64 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
1UZFE..UCF20 |
64 | ||
| 13751 - LIFTER, VALVE | ||||
| 13750-50020 |
1UZFE..UCF20 |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13750-50020 |
1UZFE..UCF20 |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13750-50020 |
1UZFE..UCF20 |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13750-50020 |
1UZFE..UCF20 |
32 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-50060 |
1UZFE..UCF20 T=2.60,MARK 06 |
1 | ||
| 13753-50380 |
1UZFE..UCF20 T=2.95,MARK 38 |
1 | ||
| 13753-50130 |
1UZFE..UCF20 T=2.70,MARK 13 |
1 | ||
| 13753-50280 |
1UZFE..UCF20 T=2.85,MARK 28 |
1 | ||
| 13753-50230 |
1UZFE..UCF20 T=2.80,MARK 23 |
1 | ||
| 13753-50330 |
1UZFE..UCF20 T=2.90,MARK 33 |
1 | ||
| 13753-50010 |
1UZFE..UCF20 T=2.50,MARK 01 |
1 | ||
| 13753-50480 |
1UZFE..UCF20 T=3.05,MARK 48 |
1 | ||
| 13753-50430 |
1UZFE..UCF20 T=3.00,MARK 43 |
1 | ||
| 13753-50640 |
1UZFE..UCF20 T=2.575,MARK 64 |
1 | ||
| 13753-50660 |
1UZFE..UCF20 T=2.65,MARK 66 |
1 | ||
| 13753-50610 |
1UZFE..UCF20 T=3.30,MARK 61 |
1 | ||
| 13753-50620 |
1UZFE..UCF20 T=2.525,MARK 62 |
1 | ||
| 13753-50180 |
1UZFE..UCF20 T=2.75,MARK 18 |
1 | ||
| 13753-50630 |
1UZFE..UCF20 T=2.55,MARK 63 |
1 | ||
| 13753-50710 |
1UZFE..UCF20 T=2.875,MARK 71 |
1 | ||
| 13753-50560 |
1UZFE..UCF20 T=3.20,MARK 56 |
1 | ||
| 13753-50680 |
1UZFE..UCF20 T=2.725,MARK 68 |
1 | ||
| 13753-50650 |
1UZFE..UCF20 T=2.625,MARK 65 |
1 | ||
| 13753-50700 |
1UZFE..UCF20 T=2.825,MARK 70 |
1 | ||
| 13753-50780 |
1UZFE..UCF20 T=3.175,MARK 78 |
1 | ||
| 13753-50750 |
1UZFE..UCF20 T=3.075,MARK 75 |
1 | ||
| 13753-50510 |
1UZFE..UCF20 T=3.10,MARK 51 |
1 | ||
| 13753-50760 |
1UZFE..UCF20 T=3.125,MARK 76 |
1 | ||
| 13753-50670 |
1UZFE..UCF20 T=2.675,MARK 67 |
1 | ||
| 13753-50730 |
1UZFE..UCF20 T=2.975,MARK 73 |
1 | ||
| 13753-50740 |
1UZFE..UCF20 T=3.025,MARK 74 |
1 | ||
| 13753-50690 |
1UZFE..UCF20 T=2.775,MARK 69 |
1 | ||
| 13753-50770 |
1UZFE..UCF20 T=3.15,MARK 77 |
1 | ||
| 13753-50790 |
1UZFE..UCF20 T=3.225,MARK 79 |
1 | ||
| 13753-50810 |
1UZFE..UCF20 T=3.275,MARK 81 |
1 | ||
| 13753-50720 |
1UZFE..UCF20 T=2.925,MARK 72 |
1 | ||
| 13753-50800 |
1UZFE..UCF20 T=3.25,MARK 80 |
1 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-50060 |
1UZFE..UCF20 T=2.60,MARK 06 |
1 | ||
| 13753-50380 |
1UZFE..UCF20 T=2.95,MARK 38 |
1 | ||
| 13753-50130 |
1UZFE..UCF20 T=2.70,MARK 13 |
1 | ||
| 13753-50280 |
1UZFE..UCF20 T=2.85,MARK 28 |
1 | ||
| 13753-50230 |
1UZFE..UCF20 T=2.80,MARK 23 |
1 | ||
| 13753-50330 |
1UZFE..UCF20 T=2.90,MARK 33 |
1 | ||
| 13753-50010 |
1UZFE..UCF20 T=2.50,MARK 01 |
1 | ||
| 13753-50480 |
1UZFE..UCF20 T=3.05,MARK 48 |
1 | ||
| 13753-50430 |
1UZFE..UCF20 T=3.00,MARK 43 |
1 | ||
| 13753-50640 |
1UZFE..UCF20 T=2.575,MARK 64 |
1 | ||
| 13753-50660 |
1UZFE..UCF20 T=2.65,MARK 66 |
1 | ||
| 13753-50610 |
1UZFE..UCF20 T=3.30,MARK 61 |
1 | ||
| 13753-50620 |
1UZFE..UCF20 T=2.525,MARK 62 |
1 | ||
| 13753-50180 |
1UZFE..UCF20 T=2.75,MARK 18 |
1 | ||
| 13753-50630 |
1UZFE..UCF20 T=2.55,MARK 63 |
1 | ||
| 13753-50710 |
1UZFE..UCF20 T=2.875,MARK 71 |
1 | ||
| 13753-50560 |
1UZFE..UCF20 T=3.20,MARK 56 |
1 | ||
| 13753-50680 |
1UZFE..UCF20 T=2.725,MARK 68 |
1 | ||
| 13753-50650 |
1UZFE..UCF20 T=2.625,MARK 65 |
1 | ||
| 13753-50700 |
1UZFE..UCF20 T=2.825,MARK 70 |
1 | ||
| 13753-50780 |
1UZFE..UCF20 T=3.175,MARK 78 |
1 | ||
| 13753-50750 |
1UZFE..UCF20 T=3.075,MARK 75 |
1 | ||
| 13753-50510 |
1UZFE..UCF20 T=3.10,MARK 51 |
1 | ||
| 13753-50760 |
1UZFE..UCF20 T=3.125,MARK 76 |
1 | ||
| 13753-50670 |
1UZFE..UCF20 T=2.675,MARK 67 |
1 | ||
| 13753-50730 |
1UZFE..UCF20 T=2.975,MARK 73 |
1 | ||
| 13753-50740 |
1UZFE..UCF20 T=3.025,MARK 74 |
1 | ||
| 13753-50690 |
1UZFE..UCF20 T=2.775,MARK 69 |
1 | ||
| 13753-50770 |
1UZFE..UCF20 T=3.15,MARK 77 |
1 | ||
| 13753-50790 |
1UZFE..UCF20 T=3.225,MARK 79 |
1 | ||
| 13753-50810 |
1UZFE..UCF20 T=3.275,MARK 81 |
1 | ||
| 13753-50720 |
1UZFE..UCF20 T=2.925,MARK 72 |
1 | ||
| 13753-50800 |
1UZFE..UCF20 T=3.25,MARK 80 |
1 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-50060 |
1UZFE..UCF20 T=2.60,MARK 06 |
1 | ||
| 13753-50380 |
1UZFE..UCF20 T=2.95,MARK 38 |
1 | ||
| 13753-50130 |
1UZFE..UCF20 T=2.70,MARK 13 |
1 | ||
| 13753-50280 |
1UZFE..UCF20 T=2.85,MARK 28 |
1 | ||
| 13753-50230 |
1UZFE..UCF20 T=2.80,MARK 23 |
1 | ||
| 13753-50330 |
1UZFE..UCF20 T=2.90,MARK 33 |
1 | ||
| 13753-50010 |
1UZFE..UCF20 T=2.50,MARK 01 |
1 | ||
| 13753-50480 |
1UZFE..UCF20 T=3.05,MARK 48 |
1 | ||
| 13753-50430 |
1UZFE..UCF20 T=3.00,MARK 43 |
1 | ||
| 13753-50640 |
1UZFE..UCF20 T=2.575,MARK 64 |
1 | ||
| 13753-50660 |
1UZFE..UCF20 T=2.65,MARK 66 |
1 | ||
| 13753-50610 |
1UZFE..UCF20 T=3.30,MARK 61 |
1 | ||
| 13753-50620 |
1UZFE..UCF20 T=2.525,MARK 62 |
1 | ||
| 13753-50180 |
1UZFE..UCF20 T=2.75,MARK 18 |
1 | ||
| 13753-50630 |
1UZFE..UCF20 T=2.55,MARK 63 |
1 | ||
| 13753-50710 |
1UZFE..UCF20 T=2.875,MARK 71 |
1 | ||
| 13753-50560 |
1UZFE..UCF20 T=3.20,MARK 56 |
1 | ||
| 13753-50680 |
1UZFE..UCF20 T=2.725,MARK 68 |
1 | ||
| 13753-50650 |
1UZFE..UCF20 T=2.625,MARK 65 |
1 | ||
| 13753-50700 |
1UZFE..UCF20 T=2.825,MARK 70 |
1 | ||
| 13753-50780 |
1UZFE..UCF20 T=3.175,MARK 78 |
1 | ||
| 13753-50750 |
1UZFE..UCF20 T=3.075,MARK 75 |
1 | ||
| 13753-50510 |
1UZFE..UCF20 T=3.10,MARK 51 |
1 | ||
| 13753-50760 |
1UZFE..UCF20 T=3.125,MARK 76 |
1 | ||
| 13753-50670 |
1UZFE..UCF20 T=2.675,MARK 67 |
1 | ||
| 13753-50730 |
1UZFE..UCF20 T=2.975,MARK 73 |
1 | ||
| 13753-50740 |
1UZFE..UCF20 T=3.025,MARK 74 |
1 | ||
| 13753-50690 |
1UZFE..UCF20 T=2.775,MARK 69 |
1 | ||
| 13753-50770 |
1UZFE..UCF20 T=3.15,MARK 77 |
1 | ||
| 13753-50790 |
1UZFE..UCF20 T=3.225,MARK 79 |
1 | ||
| 13753-50810 |
1UZFE..UCF20 T=3.275,MARK 81 |
1 | ||
| 13753-50720 |
1UZFE..UCF20 T=2.925,MARK 72 |
1 | ||
| 13753-50800 |
1UZFE..UCF20 T=3.25,MARK 80 |
1 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-50060 |
1UZFE..UCF20 T=2.60,MARK 06 |
1 | ||
| 13753-50380 |
1UZFE..UCF20 T=2.95,MARK 38 |
1 | ||
| 13753-50130 |
1UZFE..UCF20 T=2.70,MARK 13 |
1 | ||
| 13753-50280 |
1UZFE..UCF20 T=2.85,MARK 28 |
1 | ||
| 13753-50230 |
1UZFE..UCF20 T=2.80,MARK 23 |
1 | ||
| 13753-50330 |
1UZFE..UCF20 T=2.90,MARK 33 |
1 | ||
| 13753-50010 |
1UZFE..UCF20 T=2.50,MARK 01 |
1 | ||
| 13753-50480 |
1UZFE..UCF20 T=3.05,MARK 48 |
1 | ||
| 13753-50430 |
1UZFE..UCF20 T=3.00,MARK 43 |
1 | ||
| 13753-50640 |
1UZFE..UCF20 T=2.575,MARK 64 |
1 | ||
| 13753-50660 |
1UZFE..UCF20 T=2.65,MARK 66 |
1 | ||
| 13753-50610 |
1UZFE..UCF20 T=3.30,MARK 61 |
1 | ||
| 13753-50620 |
1UZFE..UCF20 T=2.525,MARK 62 |
1 | ||
| 13753-50180 |
1UZFE..UCF20 T=2.75,MARK 18 |
1 | ||
| 13753-50630 |
1UZFE..UCF20 T=2.55,MARK 63 |
1 | ||
| 13753-50710 |
1UZFE..UCF20 T=2.875,MARK 71 |
1 | ||
| 13753-50560 |
1UZFE..UCF20 T=3.20,MARK 56 |
1 | ||
| 13753-50680 |
1UZFE..UCF20 T=2.725,MARK 68 |
1 | ||
| 13753-50650 |
1UZFE..UCF20 T=2.625,MARK 65 |
1 | ||
| 13753-50700 |
1UZFE..UCF20 T=2.825,MARK 70 |
1 | ||
| 13753-50780 |
1UZFE..UCF20 T=3.175,MARK 78 |
1 | ||
| 13753-50750 |
1UZFE..UCF20 T=3.075,MARK 75 |
1 | ||
| 13753-50510 |
1UZFE..UCF20 T=3.10,MARK 51 |
1 | ||
| 13753-50760 |
1UZFE..UCF20 T=3.125,MARK 76 |
1 | ||
| 13753-50670 |
1UZFE..UCF20 T=2.675,MARK 67 |
1 | ||
| 13753-50730 |
1UZFE..UCF20 T=2.975,MARK 73 |
1 | ||
| 13753-50740 |
1UZFE..UCF20 T=3.025,MARK 74 |
1 | ||
| 13753-50690 |
1UZFE..UCF20 T=2.775,MARK 69 |
1 | ||
| 13753-50770 |
1UZFE..UCF20 T=3.15,MARK 77 |
1 | ||
| 13753-50790 |
1UZFE..UCF20 T=3.225,MARK 79 |
1 | ||
| 13753-50810 |
1UZFE..UCF20 T=3.275,MARK 81 |
1 | ||
| 13753-50720 |
1UZFE..UCF20 T=2.925,MARK 72 |
1 | ||
| 13753-50800 |
1UZFE..UCF20 T=3.25,MARK 80 |
1 | ||
| Common parts | ||||
| 90105-08178 | ||||
| 90105-10248 | ||||
| 90105-12178 | ||||
| 90201-10101 | ||||
| Linked diagrams | ||||
| 1709 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
