UCF20R-AEAGKW (1997)

Toyota Lexus Ls400

Production Jul 1997 - Aug 2000
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9707- )

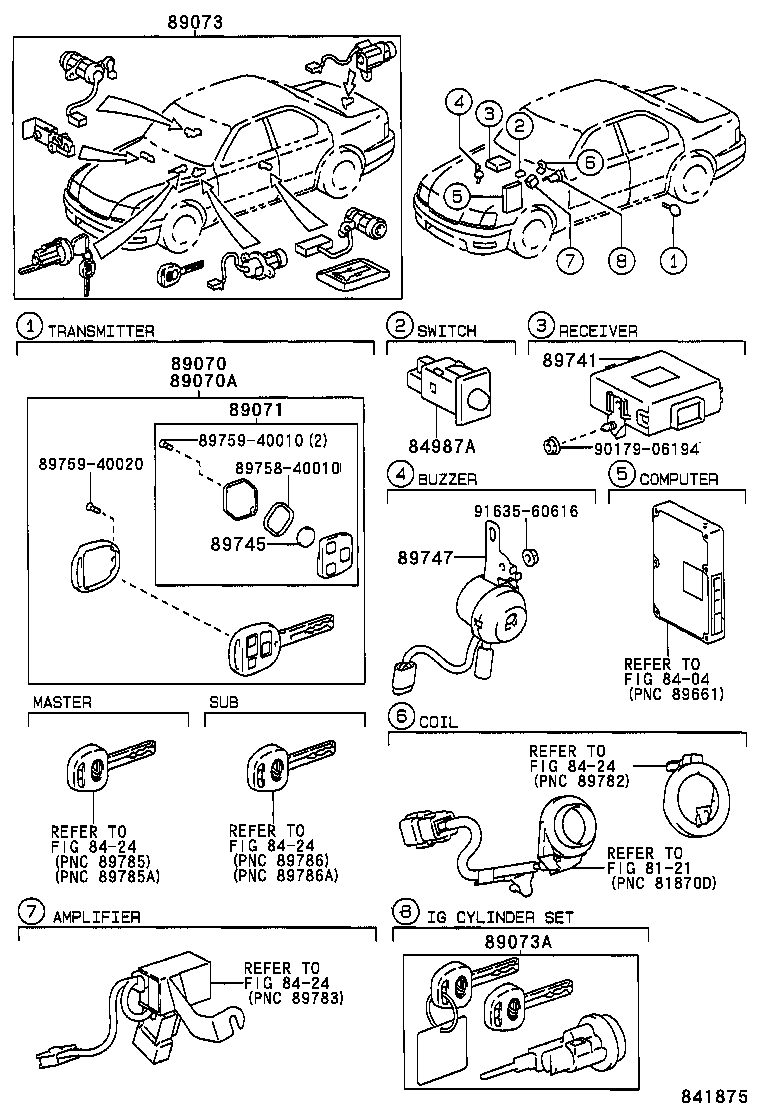

Click highlighted areas on diagram

diagram 8121 8404 8424 8424 8424 8424 84987A 89070 89070A 89071 89073 89073A 89741 89745 89747 8975840010 8975940010 8975940020 9017906194 9163560616
Part # Description Qty Price
84987A - SWITCH, KEYLESS ENTRY CANCEL
84987-50040

UCF20

 1
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-50230

UCF20..RHD..EUR

 1
89070A - TRANSMITTER, DOOR CONTROL (CUT KEY)
89070-50350

UCF20..RHD..EUR

 1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-50030

UCF20..EUR

 1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-50080

UCF20..RHD..EUR

 1
89073A - IGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)
89073-50200

UCF20..RHD..EUR

 1
89741 - RECEIVER, DOOR CONTROL
89741-50330

UCF20..RHD..EUR

 1
89745 - BATTERY, TRANSMITTER
89745-50010

UCF20

 2
89745-40010

UCF20

 2
89747 - BUZZER, WIRELESS DOOR LOCK
89747-50030

UCF20

 1
89747-50040

UCF20

 1
Common parts
89758-40010
89759-40010
89759-40020
90179-06194
91635-60616
Linked diagrams
8121
8404
8424
