UCF20R-AEAGKW (1997)
Toyota Lexus Ls400

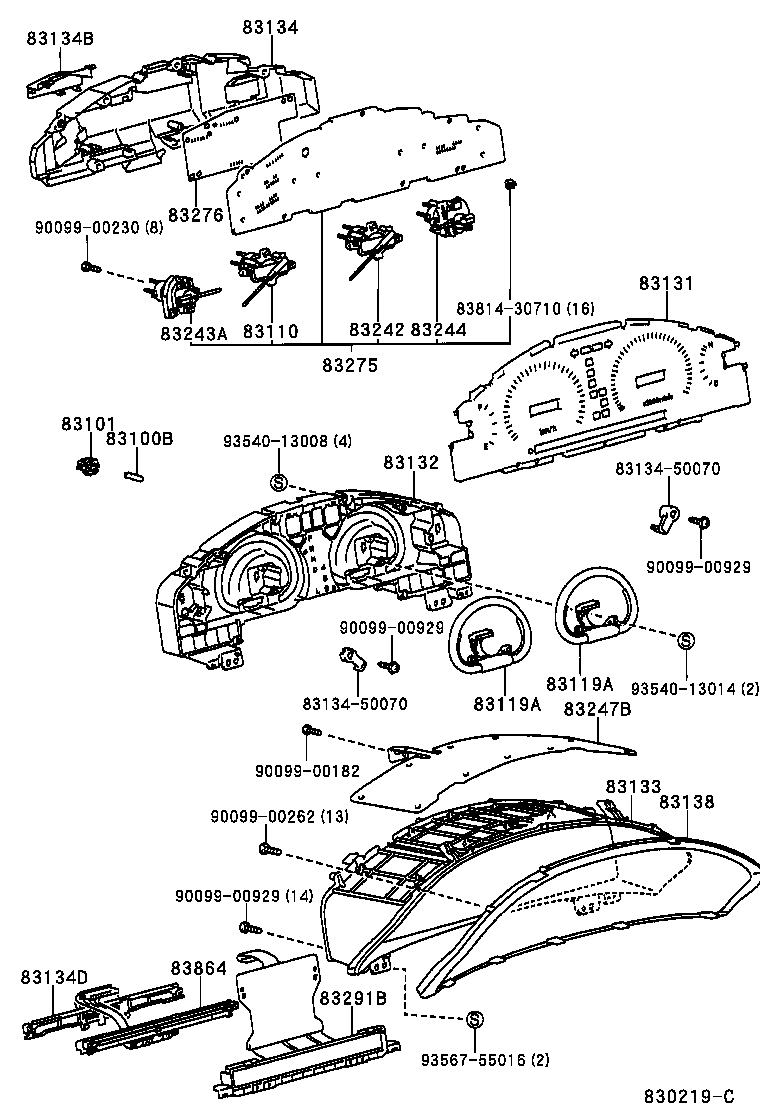

ILLUST NO. 1 OF 2(9707- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
UCF20..RHD..EUR 12V 1.2W W/O SOCKET,SOUTH AFRICA SPEC |
25 | ||
| 90981-11018 |
UCF20..RHD..EUR 12V 1.2W W/O SOCKET |
26 | ||
| 83109-30070 |
UCF20..EUR 14V 2.0W,W/O SOCKET |
3 | ||
| 83109-30070 |
UCF20 14V 2.0W,W/O SOCKET,NO.2 |
4 | ||
| 90981-11018 |
UCF20..RHD..(ARL,EUR) 12V 1.2W W/O SOCKET,NO.1 |
23 | ||
| 90981-11018 |
UCF20..RHD..EUR 12V 1.2W W/O SOCKET,SOUTH AFRICA SPEC,NO.1 |
22 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
UCF20..RHD..EUR SOUTH AFRICA SPEC,BULB:12V 1.4W |
25 | ||
| 83101-30050 |
UCF20..EUR BULB:14V 2.0W |
3 | ||
| 83101-14040 |
UCF20..RHD..EUR BULB:12V 1.4W |
26 | ||
| 83101-14040 |
UCF20..RHD..(ARL,EUR) NO.1 |
23 | ||
| 83101-14040 |
UCF20..RHD..EUR SOUTH AFRICA SPEC,NO.1 |
22 | ||
| 83101-30050 |
UCF20 NO.2 |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-50250 |
UCF20..RHD..EUR |
1 | ||
| 83110-50180 |
UCF20..RHD..EUR SOUTH AFRICA SPEC |
1 | ||
| 83220-50050 |
UCF20..RHD..EUR |
1 | ||
| 83220-50030 |
UCF20..RHD..EUR SOUTH AFRICA SPEC |
1 | ||
| 83119A - TUBE,CATHODE | ||||
| 83119-50110 |
UCF20 SPEEDOMETER SIDE |
1 | ||
| 83119-50130 |
UCF20 TACHOMETER SIDE |
1 | ||
| 83119A - TUBE,CATHODE | ||||
| 83119-50110 |
UCF20 SPEEDOMETER SIDE |
1 | ||
| 83119-50130 |
UCF20 TACHOMETER SIDE |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-5A290 |
UCF20..RHD..EUR |
1 | ||
| 83131-5A450 |
UCF20..RHD..EUR SOUTH AFRICA SPEC |
1 | ||
| 83225-50090 |
UCF20..RHD..EUR SOUTH AFRICA SPEC |
1 | ||
| 83225-50050 |
UCF20..RHD..EUR |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-50290 |
UCF20..RHD |
1 | ||
| 83841-50050 |
UCF20..RHD..EUR |
1 | ||
| 83841-50090 |
UCF20..RHD..EUR SOUTH AFRICA SPEC |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-50150 |
UCF20..RHD |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-50050 |
UCF20..RHD |
1 | ||
| 83134-50370 |
UCF20..RHD |
1 | ||
| 83134B - COVER, COMBINATION METER, NO.2 | ||||
| 83134-50410 |
UCF20..RHD |
1 | ||
| 83822-50050 |
UCF20..RHD |
1 | ||
| 83134D - COVER, COMBINATION METER, NO.3 | ||||
| 83823-50010 |
UCF20 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-50110 |
UCF20..RHD |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-50010 |
UCF20 |
1 | ||
| 83242-50070 |
UCF20 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-50130 |
UCF20..RHD |
1 | ||
| 83882-50050 |
UCF20..RHD |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-50170 |
UCF20..RHD |
1 | ||
| 83883-50050 |
UCF20..RHD |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83247-5A510 |
UCF20 |
1 | ||
| 83275 - PLATE,COMPUTER METER CIRCUIT NO.1 | ||||
| 83277-50230 |
UCF20..RHD..EUR |
1 | ||
| 83277-50231 |
UCF20..RHD..EUR |
1 | ||
| 83277-50270 |
UCF20..RHD..EUR SOUTH AFRICA SPEC |
1 | ||
| 83277-50271 |
UCF20..RHD..EUR SOUTH AFRICA SPEC |
1 | ||
| 83276 - PLATE,COMPUTER METER CIRCUIT NO.2 | ||||
| 83276-50240 |
UCF20..RHD |
1 | ||
| 83291B - COMPUTER ASSY | ||||
| 83247-5A490 |
UCF20..RHD |
1 | ||
| 83862-50010 |
UCF20 |
1 | ||
| 83864 - PLATE, METER CIRCUIT, NO.4 (FOR COMPUTER) | ||||
| 83864-50010 |
UCF20 |
1 | ||
| Common parts | ||||
| 83134-50070 | ||||
| 83814-30710 | ||||
| 90099-00182 | ||||
| 90099-00230 | ||||
| 90099-00262 | ||||
| 90099-00929 | ||||
| 93540-13008 | ||||
| 93540-13014 | ||||
| 93567-55016 | ||||

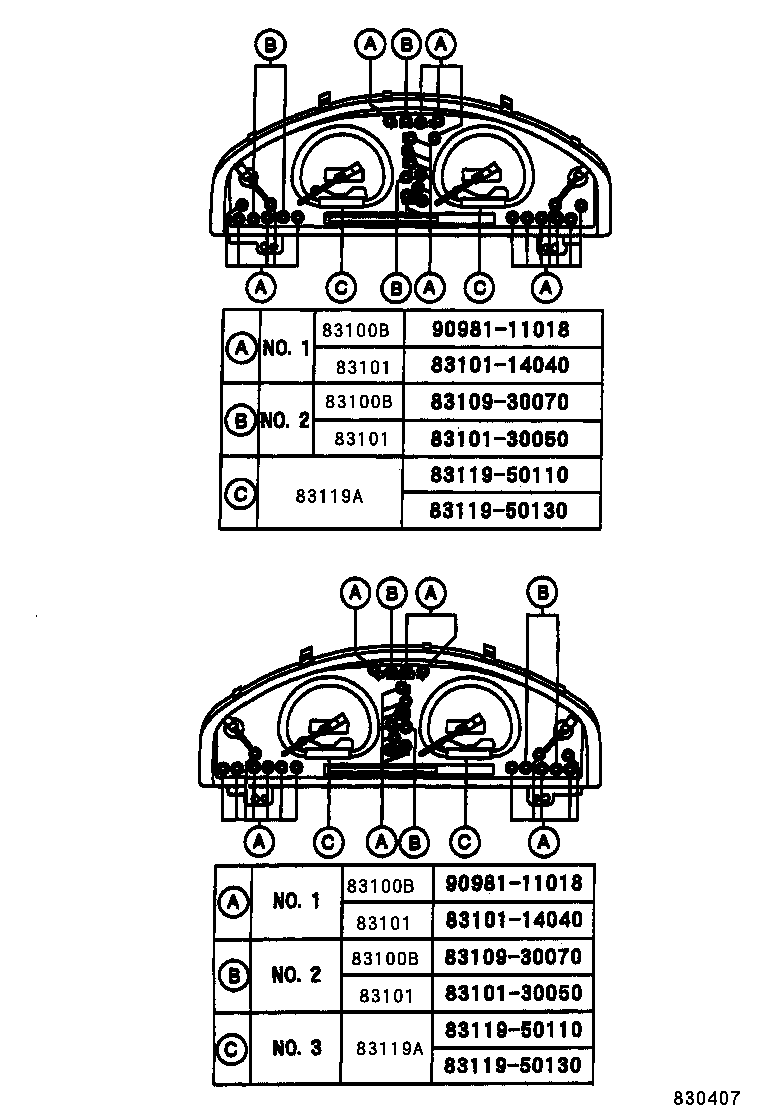

ILLUST NO. 2 OF 2(9707- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
UCF20..RHD..EUR 12V 1.2W W/O SOCKET,SOUTH AFRICA SPEC |
25 | ||
| 90981-11018 |
UCF20..RHD..EUR 12V 1.2W W/O SOCKET |
26 | ||
| 83109-30070 |
UCF20..EUR 14V 2.0W,W/O SOCKET |
3 | ||
| 83109-30070 |
UCF20 14V 2.0W,W/O SOCKET,NO.2 |
4 | ||
| 90981-11018 |
UCF20..RHD..(ARL,EUR) 12V 1.2W W/O SOCKET,NO.1 |
23 | ||
| 90981-11018 |
UCF20..RHD..EUR 12V 1.2W W/O SOCKET,SOUTH AFRICA SPEC,NO.1 |
22 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
UCF20..RHD..EUR 12V 1.2W W/O SOCKET,SOUTH AFRICA SPEC |
25 | ||
| 90981-11018 |
UCF20..RHD..EUR 12V 1.2W W/O SOCKET |
26 | ||
| 83109-30070 |
UCF20..EUR 14V 2.0W,W/O SOCKET |
3 | ||
| 83109-30070 |
UCF20 14V 2.0W,W/O SOCKET,NO.2 |
4 | ||
| 90981-11018 |
UCF20..RHD..(ARL,EUR) 12V 1.2W W/O SOCKET,NO.1 |
23 | ||
| 90981-11018 |
UCF20..RHD..EUR 12V 1.2W W/O SOCKET,SOUTH AFRICA SPEC,NO.1 |
22 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
UCF20..RHD..EUR 12V 1.2W W/O SOCKET,SOUTH AFRICA SPEC |
25 | ||
| 90981-11018 |
UCF20..RHD..EUR 12V 1.2W W/O SOCKET |
26 | ||
| 83109-30070 |
UCF20..EUR 14V 2.0W,W/O SOCKET |
3 | ||
| 83109-30070 |
UCF20 14V 2.0W,W/O SOCKET,NO.2 |
4 | ||
| 90981-11018 |
UCF20..RHD..(ARL,EUR) 12V 1.2W W/O SOCKET,NO.1 |
23 | ||
| 90981-11018 |
UCF20..RHD..EUR 12V 1.2W W/O SOCKET,SOUTH AFRICA SPEC,NO.1 |
22 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
UCF20..RHD..EUR 12V 1.2W W/O SOCKET,SOUTH AFRICA SPEC |
25 | ||
| 90981-11018 |
UCF20..RHD..EUR 12V 1.2W W/O SOCKET |
26 | ||
| 83109-30070 |
UCF20..EUR 14V 2.0W,W/O SOCKET |
3 | ||
| 83109-30070 |
UCF20 14V 2.0W,W/O SOCKET,NO.2 |
4 | ||
| 90981-11018 |
UCF20..RHD..(ARL,EUR) 12V 1.2W W/O SOCKET,NO.1 |
23 | ||
| 90981-11018 |
UCF20..RHD..EUR 12V 1.2W W/O SOCKET,SOUTH AFRICA SPEC,NO.1 |
22 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
UCF20..RHD..EUR SOUTH AFRICA SPEC,BULB:12V 1.4W |
25 | ||
| 83101-30050 |
UCF20..EUR BULB:14V 2.0W |
3 | ||
| 83101-14040 |
UCF20..RHD..EUR BULB:12V 1.4W |
26 | ||
| 83101-14040 |
UCF20..RHD..(ARL,EUR) NO.1 |
23 | ||
| 83101-14040 |
UCF20..RHD..EUR SOUTH AFRICA SPEC,NO.1 |
22 | ||
| 83101-30050 |
UCF20 NO.2 |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
UCF20..RHD..EUR SOUTH AFRICA SPEC,BULB:12V 1.4W |
25 | ||
| 83101-30050 |
UCF20..EUR BULB:14V 2.0W |
3 | ||
| 83101-14040 |
UCF20..RHD..EUR BULB:12V 1.4W |
26 | ||
| 83101-14040 |
UCF20..RHD..(ARL,EUR) NO.1 |
23 | ||
| 83101-14040 |
UCF20..RHD..EUR SOUTH AFRICA SPEC,NO.1 |
22 | ||
| 83101-30050 |
UCF20 NO.2 |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
UCF20..RHD..EUR SOUTH AFRICA SPEC,BULB:12V 1.4W |
25 | ||
| 83101-30050 |
UCF20..EUR BULB:14V 2.0W |
3 | ||
| 83101-14040 |
UCF20..RHD..EUR BULB:12V 1.4W |
26 | ||
| 83101-14040 |
UCF20..RHD..(ARL,EUR) NO.1 |
23 | ||
| 83101-14040 |
UCF20..RHD..EUR SOUTH AFRICA SPEC,NO.1 |
22 | ||
| 83101-30050 |
UCF20 NO.2 |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
UCF20..RHD..EUR SOUTH AFRICA SPEC,BULB:12V 1.4W |
25 | ||
| 83101-30050 |
UCF20..EUR BULB:14V 2.0W |
3 | ||
| 83101-14040 |
UCF20..RHD..EUR BULB:12V 1.4W |
26 | ||
| 83101-14040 |
UCF20..RHD..(ARL,EUR) NO.1 |
23 | ||
| 83101-14040 |
UCF20..RHD..EUR SOUTH AFRICA SPEC,NO.1 |
22 | ||
| 83101-30050 |
UCF20 NO.2 |
4 | ||
| 83119A - TUBE,CATHODE | ||||
| 83119-50110 |
UCF20 SPEEDOMETER SIDE |
1 | ||
| 83119-50130 |
UCF20 TACHOMETER SIDE |
1 | ||
| 83119A - TUBE,CATHODE | ||||
| 83119-50110 |
UCF20 SPEEDOMETER SIDE |
1 | ||
| 83119-50130 |
UCF20 TACHOMETER SIDE |
1 | ||
