UCF20R-AEAGKQ (1997)

Toyota Lexus Ls400

Production Jul 1997 - Aug 2000
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9707- )

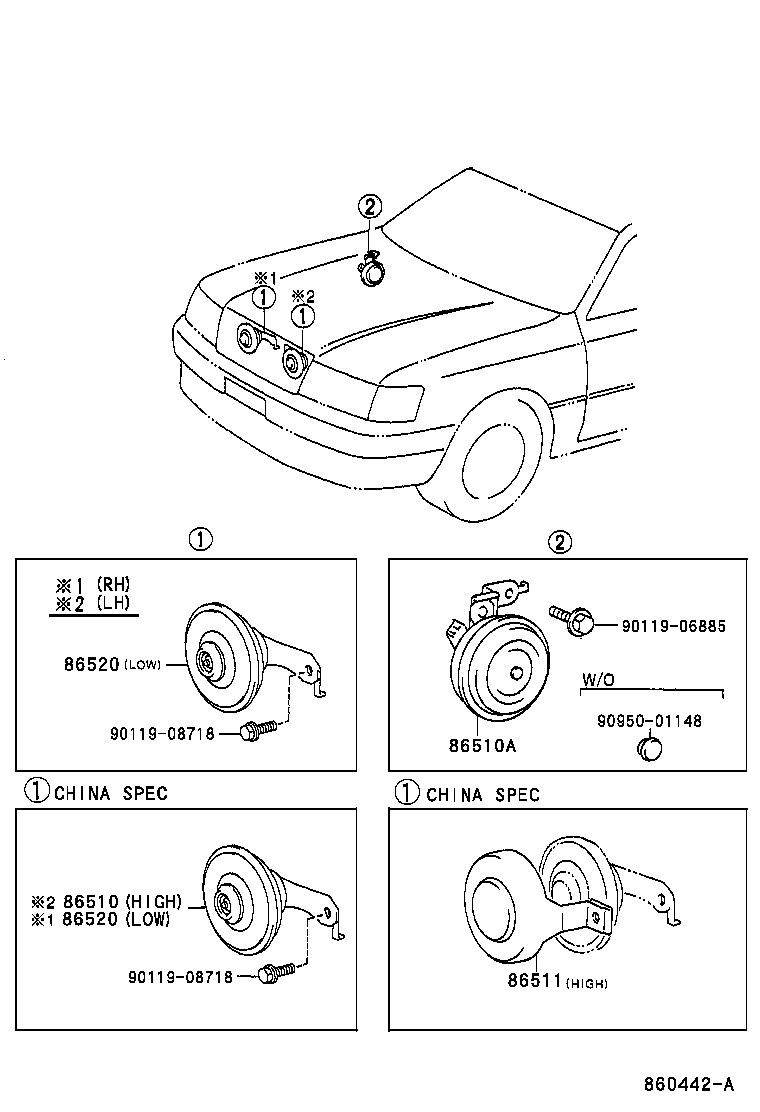

Click highlighted areas on diagram

diagram 86510 86510A 86511 86520 86520 9011906885 9011908718 9011908718 9095001148
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-50090

UCF20..ARL,GEN

 1
86510A - HORN ASSY, SECURITY
86510-50070

UCF20..ARL,EUR,GEN

 1
86510-50130

UCF20

 1
86520 - HORN ASSY, LOW PITCHED
86540-50010

UCF20..ARL,GEN

RH

 1
86520-50070

UCF20..ARL,GEN

 1
86520-50100

UCF20..ARL,GEN

LH

 1
86520 - HORN ASSY, LOW PITCHED
86540-50010

UCF20..ARL,GEN

RH

 1
86520-50070

UCF20..ARL,GEN

 1
86520-50100

UCF20..ARL,GEN

LH

 1
Common parts
90119-06885
90119-08718
90950-01148
