UCF20R-AEAGKQ (1997)
Toyota Lexus Ls400
Production
Jul 1997
-
Aug 2000
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9707- )

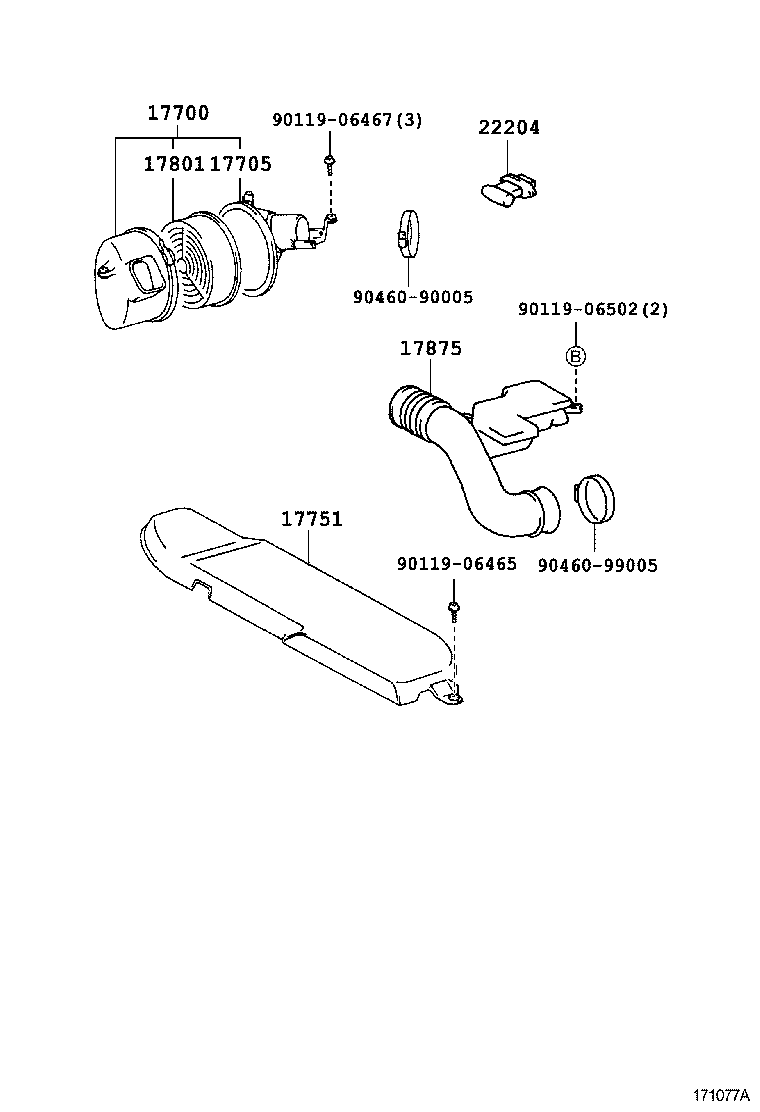

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-50100 |
1UZFE..UCF20 |
1 | ||
| 17700-50140 |
1UZFE..UCF20 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-50060 |
1UZFE..UCF20 |
1 | ||
| 17705-50070 |
1UZFE..UCF20 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17750-50010 |
1UZFE..UCF20 |
1 | ||
| 17750-50020 |
1UZFE..UCF20 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-50010 |
1UZFE..UCF20 |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17875-50150 |
1UZFE..UCF20 |
1 | ||
| 17875-50111 |
1UZFE..UCF20 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-20010 |
1UZFE..UCF20 |
1 | ||
| Common parts | ||||
| 90119-06465 | ||||
| 90119-06467 | ||||
| 90119-06502 | ||||
| 90460-90005 | ||||
| 90460-99005 | ||||
