UCF20R-AEAGK (1997)
Toyota Lexus Ls400

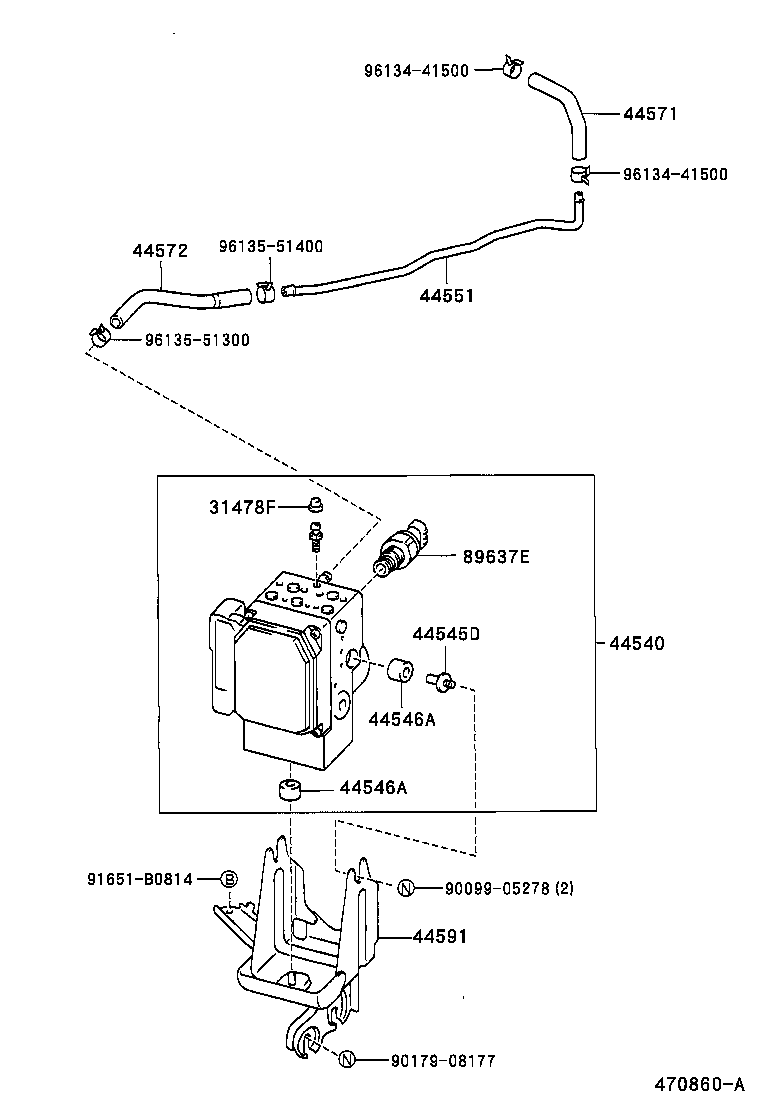

ILLUST NO. 2 OF 2(9707- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478F - CAP, BLEEDER PLUG(FOR BRAKE TRACTION ACTUATOR) | ||||
| 31478-30010 |
UCF20..ARL,GEN;UCF20..LHD..EUR |
1 | ||
| 31478-30010 |
UCF20 |
1 | ||
| 44540 - ACTUATOR ASSY, ABS & TRACTION | ||||
| 44540-50010 |
UCF20 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
UCF20..V;UCF20..RHD |
3 | ||
| 44545-33010 |
UCF20..ARL,GEN W(*TRC) |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
UCF20..V;UCF20..RHD |
3 | ||
| 44546-33010 |
UCF20..ARL,GEN W(*TRC) |
4 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
UCF20..V;UCF20..RHD |
3 | ||
| 44546-33010 |
UCF20..ARL,GEN W(*TRC) |
4 | ||
| 44551 - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-50060 |
UCF20..ARL,GEN |
1 | ||
| 44551-50100 |
UCF20..RHD |
1 | ||
| 44571 - HOSE, BRAKE ACTUATOR | ||||
| 44571-50040 |
UCF20..RHD |
1 | ||
| 44571-50030 |
UCF20..ARL,GEN NO.2 |
1 | ||
| 44571-50020 |
UCF20..ARL,GEN NO.1 |
1 | ||
| 44572 - HOSE, BRAKE ACTUATOR, NO.2 | ||||
| 44572-50010 |
UCF20..ARL,GEN;UCF20..LHD..EUR |
1 | ||
| 44571-50070 |
UCF20 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-50020 |
UCF20 |
1 | ||
| 44591-50060 |
UCF20..ARL,GEN W(*TRC) |
1 | ||
| 44591-50050 |
UCF20..V;UCF20..RHD |
1 | ||
| 89637E - SENSOR, OIL PRESSURE | ||||
| 89637-30030 |
UCF20 |
1 | ||
| Common parts | ||||
| 90099-05278 | ||||
| 90179-08177 | ||||
| 91651-B0814 | ||||
| 96134-41500 | ||||
| 96135-51300 | ||||
| 96135-51400 | ||||

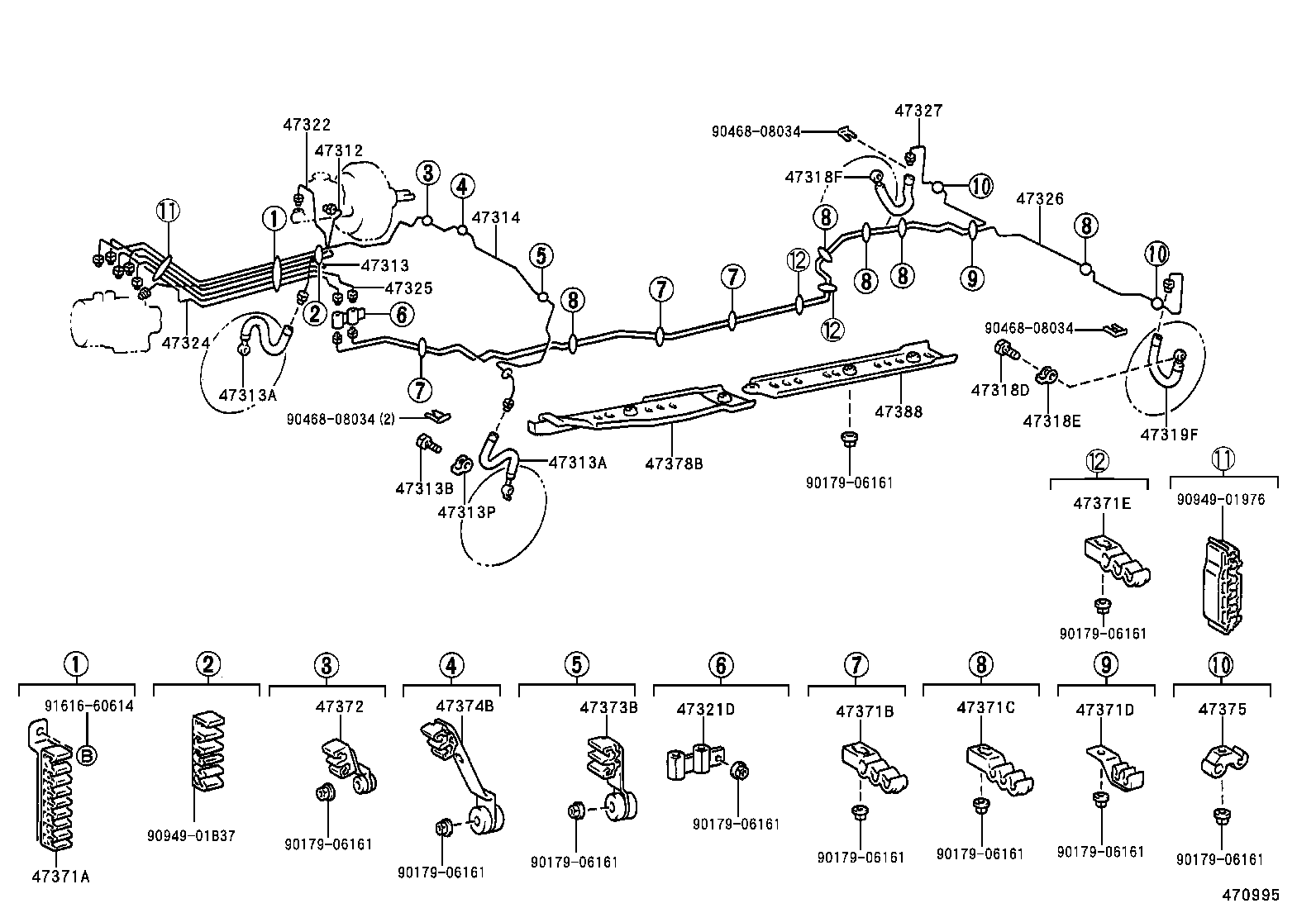

ILLUST NO. 1 OF 2(9707- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-50170 |
UCF20..RHD |
1 | ||
| 47312-50190 |
UCF20..RHD |
1 | ||
| 47312-50130 |
UCF20..ARL,GEN W(*TRC) |
1 | ||
| 47312-50140 |
UCF20..RHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-50130 |
UCF20..V;UCF20..RHD |
1 | ||
| 47313-50120 |
UCF20..ARL,GEN W(*TRC) |
1 | ||
| 47313-50140 |
UCF20 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02810 |
UCF20 |
2 | ||
| 90947-02A04 |
UCF20 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02810 |
UCF20 |
2 | ||
| 90947-02A04 |
UCF20 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
UCF20 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
UCF20 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-50150 |
UCF20..RHD |
1 | ||
| 47314-50140 |
UCF20..ARL,GEN W(*TRC) |
1 | ||
| 47314-50180 |
UCF20..RHD |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
UCF20 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
UCF20 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02903 |
UCF20 |
1 | ||
| 90947-02811 |
UCF20 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02903 |
UCF20 |
1 | ||
| 90947-02811 |
UCF20 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10158 |
UCF20..5FC;UCF20..LHD..EUR..4FC |
1 | ||
| 90412-10167 |
UCF20..V;UCF20..RHD |
1 | ||
| 90412-10158 |
UCF20..ARL,GEN W(*TRC) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-50140 |
UCF20..RHD |
1 | ||
| 47322-50170 |
UCF20..RHD |
1 | ||
| 47322-50130 |
UCF20..ARL,GEN W(*TRC) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-50100 |
UCF20..ARL,GEN W(*TRC) |
1 | ||
| 47324-50120 |
UCF20 |
1 | ||
| 47324-50110 |
UCF20..V;UCF20..RHD |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-50060 |
UCF20 |
1 | ||
| 47325-50050 |
UCF20..ARL,GEN;UCF20..LHD..EUR |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-50051 |
UCF20..ARL,GEN W(*TRC) |
1 | ||
| 47326-50051 |
UCF20..5FC;UCF20..LHD..EUR..4FC |
1 | ||
| 47326-50040 |
UCF20..V;UCF20..RHD |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-50021 |
UCF20..5FC;UCF20..LHD..EUR..4FC;UCF20..(ARL,GEN)..4FC |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-50130 |
UCF20..RHD |
1 | ||
| 47371-50020 |
UCF20..ARL,GEN W(*TRC) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-30170 |
UCF20..V;UCF20..RHD |
3 | ||
| 47371-30170 |
UCF20 |
4 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-50090 |
UCF20..ARL,GEN W(*TRC) |
6 | ||
| 47371-50090 |
UCF20..V;UCF20..RHD |
5 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47371-50170 |
UCF20 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 47371-40030 |
UCF20 |
2 | ||
| 47371-24070 |
UCF20..V;UCF20..RHD |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-50220 |
UCF20..ARL,GEN W(*TRC) |
1 | ||
| 47371-50150 |
UCF20..RHD |
1 | ||
| 47372-50170 |
UCF20..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47372-50220 |
UCF20..RHD |
1 | ||
| 47372-50300 |
UCF20..RHD |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47372-50010 |
UCF20..RHD |
1 | ||
| 47374-50050 |
UCF20..RHD |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-24070 |
UCF20..5FC;UCF20..LHD..EUR..4FC;UCF20..(ARL,GEN)..4FC |
2 | ||
| 47378B - PROTECTOR, TUBE, UPPER | ||||
| 47378-50030 |
UCF20 |
1 | ||
| 47388 - PROTECTOR, BRAKE TUBE, LOWER | ||||
| 77267-50030 |
UCF20 |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90468-08034 | ||||
| 90949-01976 | ||||
| 90949-01B37 | ||||
| 91616-60614 | ||||
