UCF20R-AEAGK (1997)
Toyota Lexus Ls400
Production
Jul 1997
-
Aug 2000
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9707- )

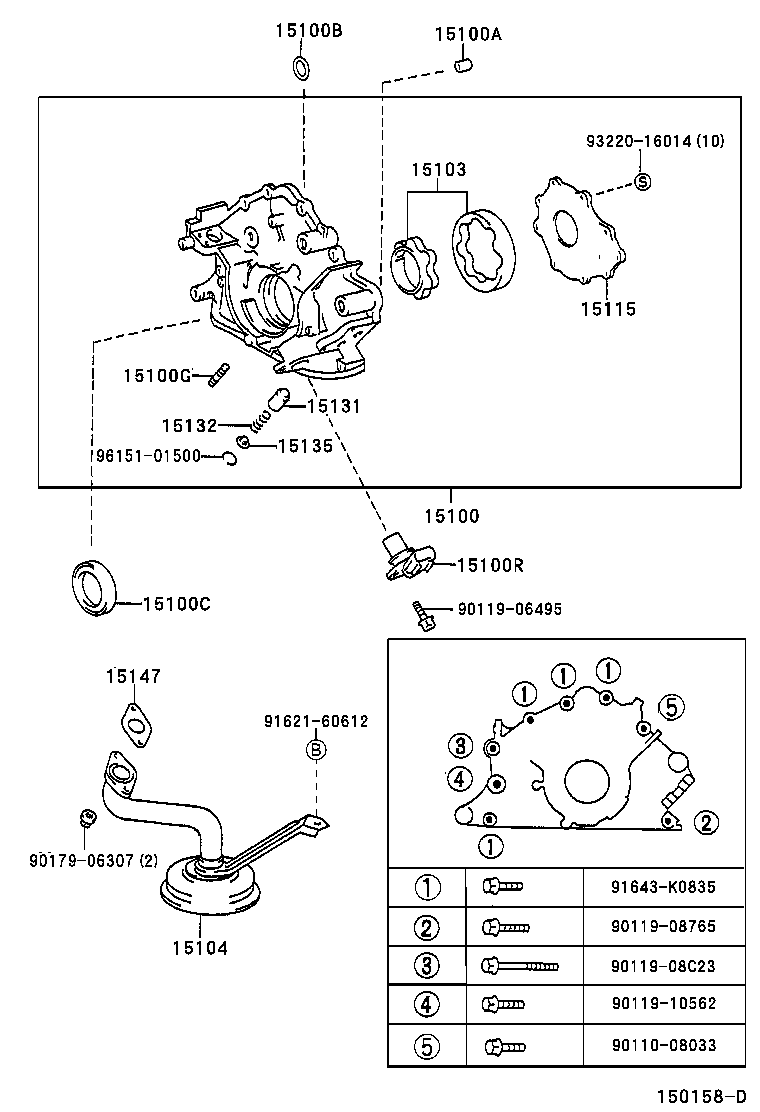

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-50040 |
1UZFE..UCF20 |
1 | ||
| 15100-50022 |
1UZFE..UCF20 |
1 | ||
| 15100A - PIN, RING(FOR OIL PUMP SET) | ||||
| 90253-13017 |
1UZFE..UCF20 |
2 | ||
| 15100B - RING, O(FOR OIL PUMP) | ||||
| 96721-24025 |
1UZFE..UCF20 |
1 | ||
| 15100C - SEAL(FOR OIL PUMP) | ||||
| 90311-43004 |
1UZFE..UCF20 |
1 | ||
| 90311-43006 |
1UZFE..UCF20 |
1 | ||
| 15100G - BOLT,STUD(FOR OIL PUMP) | ||||
| 16193-15010 |
1UZFE..UCF20 |
2 | ||
| 15100R - SENSOR, CRANK POSITION | ||||
| 90919-05035 |
1UZFE..UCF20 |
1 | ||
| 90919-05002 |
1UZFE..UCF20 |
1 | ||
| 15103 - GEAR SET, OIL PUMP | ||||
| 15103-50041 |
1UZFE..UCF20 |
1 | ||
| 15103-50020 |
1UZFE..UCF20 |
1 | ||
| 15103-50040 |
1UZFE..UCF20 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-50100 |
1UZFE..UCF20 |
1 | ||
| 15104-50021 |
1UZFE..UCF20 |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15115-50022 |
1UZFE..UCF20 |
1 | ||
| 15115-50040 |
1UZFE..UCF20 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-24010 |
1UZFE..UCF20 |
1 | ||
| 15131-46060 |
1UZFE..UCF20 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-46020 |
1UZFE..UCF20 |
1 | ||
| 15132-62010 |
1UZFE..UCF20 |
1 | ||
| 15135 - RETAINER, OIL PUMP RELIEF VALVE | ||||
| 15133-17010 |
1UZFE..UCF20 |
1 | ||
| 15135-15010 |
1UZFE..UCF20 |
1 | ||
| 15147 - GASKET, OIL STRAINER | ||||
| 15147-50011 |
1UZFE..UCF20 |
1 | ||
| 15147-50010 |
1UZFE..UCF20 |
1 | ||
| Common parts | ||||
| 90110-08033 | ||||
| 90119-06495 | ||||
| 90119-08765 | ||||
| 90119-08C23 | ||||
| 90119-10562 | ||||
| 90179-06307 | ||||
| 91621-60612 | ||||
| 91643-K0835 | ||||
| 93220-16014 | ||||
| 96151-01500 | ||||
