UCF20R-AEAGK (1997)

Toyota Lexus Ls400

Production Jul 1997 - Aug 2000
Engine 1UZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9707- )

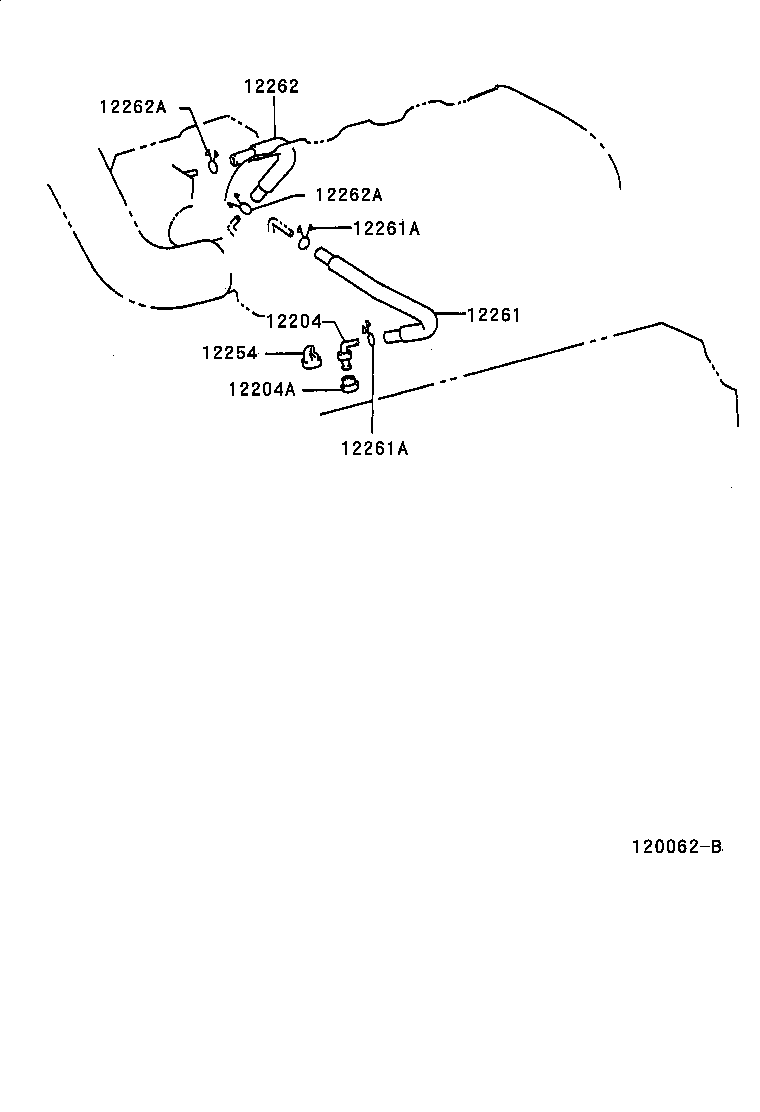

Click highlighted areas on diagram

diagram 12204 12204A 12254 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-50020

1UZFE..UCF20

 1
12204-50011

1UZFE..UCF20

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

1UZFE..UCF20

 1
12254 - COVER, VENTILATION VALVE
12236-50010

1UZFE..UCF20

 1
12261 - HOSE, VENTILATION
12261-50040

1UZFE..UCF20

 1
12261-50021

1UZFE..UCF20

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15021

1UZFE..UCF20

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15021

1UZFE..UCF20

 2
12262 - HOSE, VENTILATION, NO.2
12262-50020

1UZFE..UCF20

 1
12262-50011

1UZFE..UCF20

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
96134-41500

1UZFE..UCF20

THROTTLE BODY SIDE

 1
90467-15021

1UZFE..UCF20

HEAD COVER SIDE

 1
90467-17011

1UZFE..UCF20

RESONATOR SIDE

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
96134-41500

1UZFE..UCF20

THROTTLE BODY SIDE

 1
90467-15021

1UZFE..UCF20

HEAD COVER SIDE

 1
90467-17011

1UZFE..UCF20

RESONATOR SIDE

 1
