UCF20R-AEAGK (1997)
Toyota Lexus Ls400

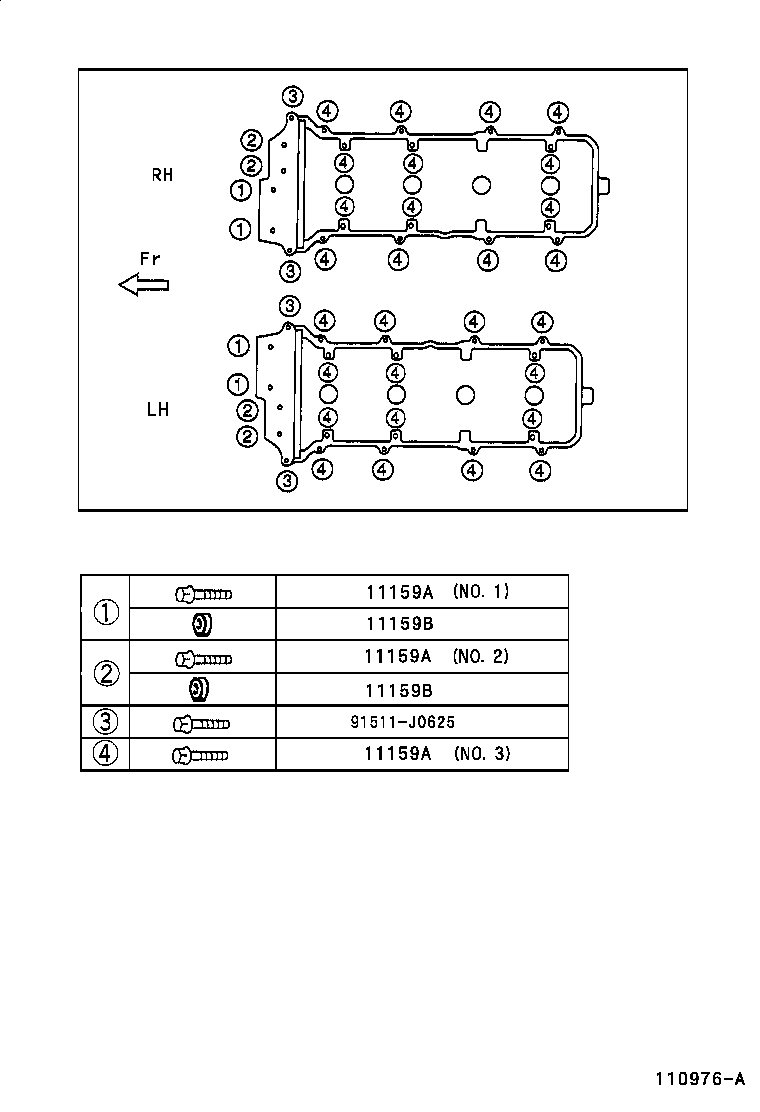

ILLUST NO. 2 OF 2(9707- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07007 |
1UZFE..UCF20 NO.2 |
28 | ||
| 90105-07004 |
1UZFE..UCF20 NO.2 |
4 | ||
| 90105-07003 |
1UZFE..UCF20 NO.1 |
8 | ||
| 90105-07005 |
1UZFE..UCF20 NO.1 |
4 | ||
| 90119-07009 |
1UZFE..UCF20 NO.3 |
28 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07007 |
1UZFE..UCF20 NO.2 |
28 | ||
| 90105-07004 |
1UZFE..UCF20 NO.2 |
4 | ||
| 90105-07003 |
1UZFE..UCF20 NO.1 |
8 | ||
| 90105-07005 |
1UZFE..UCF20 NO.1 |
4 | ||
| 90119-07009 |
1UZFE..UCF20 NO.3 |
28 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07007 |
1UZFE..UCF20 NO.2 |
28 | ||
| 90105-07004 |
1UZFE..UCF20 NO.2 |
4 | ||
| 90105-07003 |
1UZFE..UCF20 NO.1 |
8 | ||
| 90105-07005 |
1UZFE..UCF20 NO.1 |
4 | ||
| 90119-07009 |
1UZFE..UCF20 NO.3 |
28 | ||
| 11159B - WASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90210-07003 |
1UZFE..UCF20 |
8 | ||
| 11159B - WASHER, SEAL(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90210-07003 |
1UZFE..UCF20 |
8 | ||
| Common parts | ||||
| 91511-J0625 | ||||

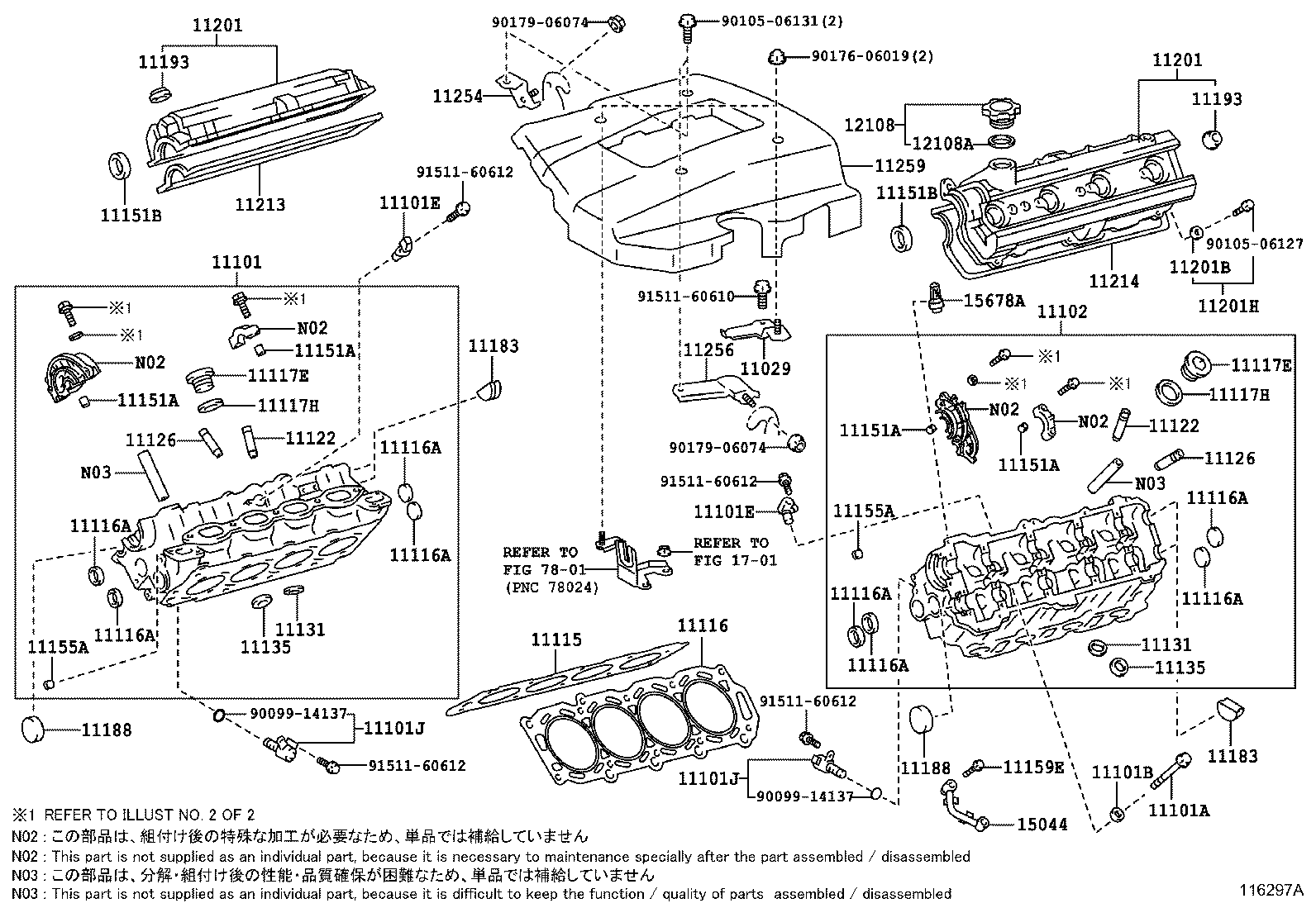

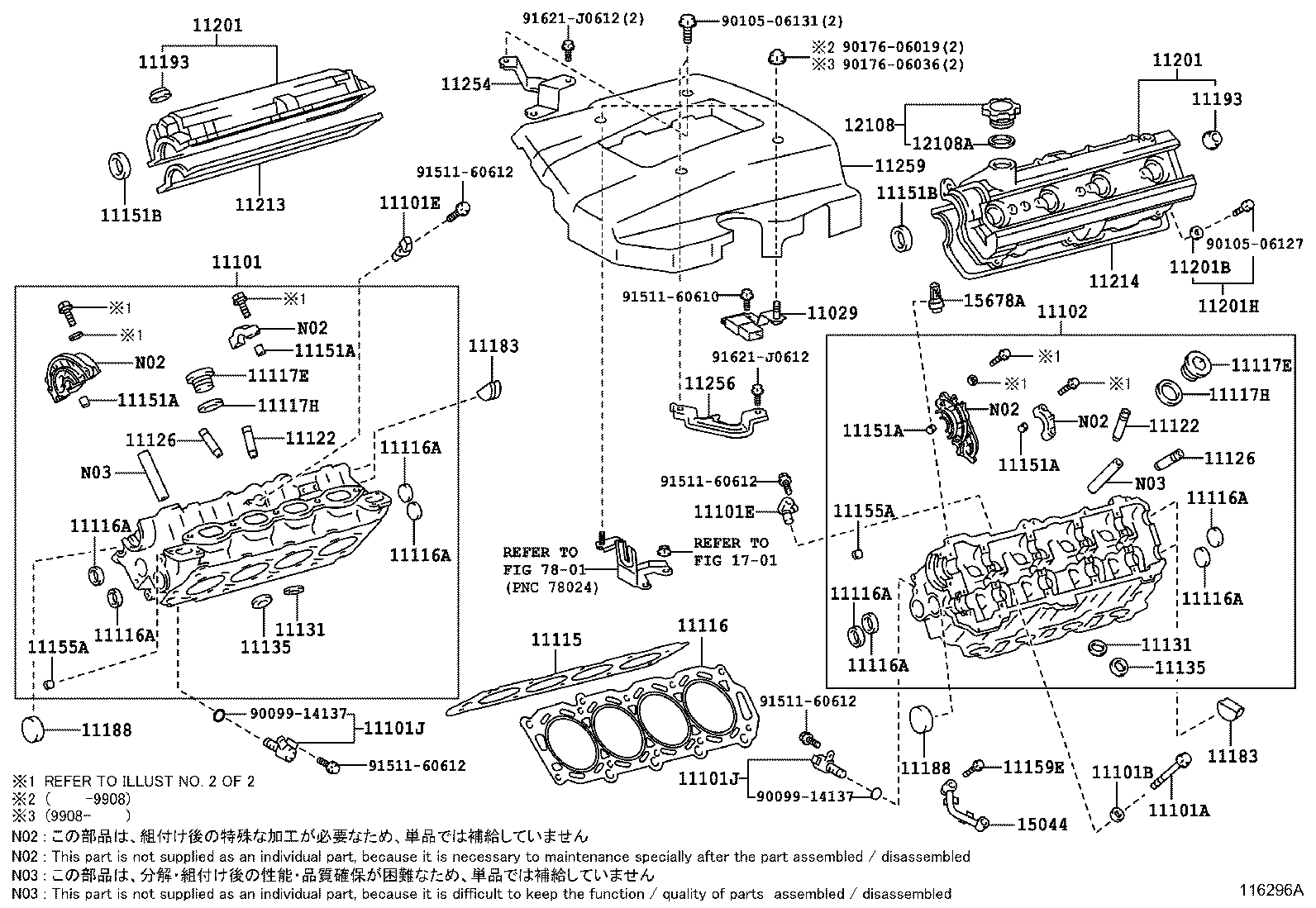

ILLUST NO. 1 OF 2(9806- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11029 - BRACKET SUB-ASSY, V-BANK COVER | ||||
| 11029-50010 |
1UZFE..UCF20 |
1 | ||
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-59145 |
1UZFE..UCF20 |
1 | ||
| 11101-59157 |
1UZFE..UCF20 |
1 | ||
| 11101-59155B0 |
1UZFE..UCF20 REFER TO REPAIR MANUAL,MARK B |
1 | ||
| 11101-59156A0 |
1UZFE..UCF20 REFER TO REPAIR MANUAL,MARK 1 |
1 | ||
| 11101-59155A0 |
1UZFE..UCF20 REFER TO REPAIR MANUAL,MARK A |
1 | ||
| 11101-59156B0 |
1UZFE..UCF20 REFER TO REPAIR MANUAL,MARK 2 |
1 | ||
| 11101-59158 |
1UZFE..UCF20 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02144 |
1UZFE..UCF20 |
20 | ||
| 90910-02088 |
1UZFE..UCF20 |
20 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
1UZFE..UCF20 |
20 | ||
| 90201-10133 |
1UZFE..UCF20 |
20 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05036 |
1UZFE..UCF20 |
2 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05036 |
1UZFE..UCF20 |
2 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15340-50010 |
1UZFE..UCF20 LH |
1 | ||
| 15330-50010 |
1UZFE..UCF20 RH |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15340-50010 |
1UZFE..UCF20 LH |
1 | ||
| 15330-50010 |
1UZFE..UCF20 RH |
1 | ||
| 11102 - HEAD, CYLINDER, LH | ||||
| 11102-59015B0 |
1UZFE..UCF20 REFER TO REPAIR MANUAL,MARK B |
1 | ||
| 11102-59015A0 |
1UZFE..UCF20 REFER TO REPAIR MANUAL,MARK A |
1 | ||
| 11102-59017A0 |
1UZFE..UCF20 REFER TO REPAIR MANUAL,MARK 1 |
1 | ||
| 11102-59017B0 |
1UZFE..UCF20 REFER TO REPAIR MANUAL,MARK 2 |
1 | ||
| 11102-59018 |
1UZFE..UCF20 |
1 | ||
| 11102-59016B0 |
1UZFE..UCF20 REFER TO REPAIR MANUAL,MARK 2 |
1 | ||
| 11102-59016A0 |
1UZFE..UCF20 REFER TO REPAIR MANUAL,MARK 1 |
1 | ||
| 11101-59145 |
1UZFE..UCF20 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-50021 |
1UZFE..UCF20 |
1 | ||
| 11115-50042 |
1UZFE..UCF20 |
1 | ||
| 11116 - GASKET, CYLINDER HEAD, NO.2 | ||||
| 11116-50032 |
1UZFE..UCF20 |
1 | ||
| 11116-50011 |
1UZFE..UCF20 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
1UZFE..UCF20 |
8 | ||
| 96411-43000 |
1UZFE..UCF20 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
1UZFE..UCF20 |
8 | ||
| 96411-43000 |
1UZFE..UCF20 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
1UZFE..UCF20 |
8 | ||
| 96411-43000 |
1UZFE..UCF20 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
1UZFE..UCF20 |
8 | ||
| 96411-43000 |
1UZFE..UCF20 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
1UZFE..UCF20 |
8 | ||
| 96411-43000 |
1UZFE..UCF20 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
1UZFE..UCF20 |
8 | ||
| 96411-43000 |
1UZFE..UCF20 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
1UZFE..UCF20 |
8 | ||
| 96411-43000 |
1UZFE..UCF20 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
1UZFE..UCF20 |
8 | ||
| 96411-43000 |
1UZFE..UCF20 |
8 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-27006 |
1UZFE..UCF20 |
2 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-27006 |
1UZFE..UCF20 |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-27005 |
1UZFE..UCF20 |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-27005 |
1UZFE..UCF20 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-74030 |
1UZFE..UCF20 O/S 0.05 |
16 | ||
| 11123-20020 |
1UZFE..UCF20 O/S 0.05 |
16 | ||
| 11122-20020 |
1UZFE..UCF20 STD |
16 | ||
| 11122-74030 |
1UZFE..UCF20 STD |
16 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-74030 |
1UZFE..UCF20 O/S 0.05 |
16 | ||
| 11123-20020 |
1UZFE..UCF20 O/S 0.05 |
16 | ||
| 11122-20020 |
1UZFE..UCF20 STD |
16 | ||
| 11122-74030 |
1UZFE..UCF20 STD |
16 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11127-50050 |
1UZFE..UCF20 O/S 0.05 |
16 | ||
| 11127-20020 |
1UZFE..UCF20 O/S 0.05 |
16 | ||
| 11126-20020 |
1UZFE..UCF20 STD |
16 | ||
| 11126-50050 |
1UZFE..UCF20 STD |
16 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11127-50050 |
1UZFE..UCF20 O/S 0.05 |
16 | ||
| 11127-20020 |
1UZFE..UCF20 O/S 0.05 |
16 | ||
| 11126-20020 |
1UZFE..UCF20 STD |
16 | ||
| 11126-50050 |
1UZFE..UCF20 STD |
16 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-50020 |
1UZFE..UCF20 STD |
16 | ||
| 11132-50020 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11131-50030 |
1UZFE..UCF20 STD |
16 | ||
| 11131-50040 |
1UZFE..UCF20 STD |
16 | ||
| 11132-50040 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11132-50030 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-50020 |
1UZFE..UCF20 STD |
16 | ||
| 11132-50020 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11131-50030 |
1UZFE..UCF20 STD |
16 | ||
| 11131-50040 |
1UZFE..UCF20 STD |
16 | ||
| 11132-50040 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11132-50030 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-50020 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11136-50040 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11135-50030 |
1UZFE..UCF20 STD |
16 | ||
| 11135-50020 |
1UZFE..UCF20 STD |
16 | ||
| 11135-50040 |
1UZFE..UCF20 STD |
16 | ||
| 11136-50030 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-50020 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11136-50040 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11135-50030 |
1UZFE..UCF20 STD |
16 | ||
| 11135-50020 |
1UZFE..UCF20 STD |
16 | ||
| 11135-50040 |
1UZFE..UCF20 STD |
16 | ||
| 11136-50030 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
1UZFE..UCF20 L=7,OD=10 |
36 | ||
| 90253-10006 |
1UZFE..UCF20 L=7,OD=10 |
40 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
1UZFE..UCF20 L=7,OD=10 |
36 | ||
| 90253-10006 |
1UZFE..UCF20 L=7,OD=10 |
40 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
1UZFE..UCF20 L=7,OD=10 |
36 | ||
| 90253-10006 |
1UZFE..UCF20 L=7,OD=10 |
40 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
1UZFE..UCF20 L=7,OD=10 |
36 | ||
| 90253-10006 |
1UZFE..UCF20 L=7,OD=10 |
40 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-71001 |
1UZFE..UCF20 |
2 | ||
| 90311-38036 |
1UZFE..UCF20 |
2 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-71001 |
1UZFE..UCF20 |
2 | ||
| 90311-38036 |
1UZFE..UCF20 |
2 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-09001 |
1UZFE..UCF20 |
3 | ||
| 90253-11001 |
1UZFE..UCF20 |
4 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-09001 |
1UZFE..UCF20 |
3 | ||
| 90253-11001 |
1UZFE..UCF20 |
4 | ||
| 11159E - BOLT(FOR CAMSHAFT OIL FEED PIPE) | ||||
| 90119-07006 |
1UZFE..UCF20 |
4 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-50010 |
1UZFE..UCF20 |
4 | ||
| 11183-50020 |
1UZFE..UCF20 |
4 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-50010 |
1UZFE..UCF20 |
4 | ||
| 11183-50020 |
1UZFE..UCF20 |
4 | ||
| 11188 - PLUG, CAMSHAFT HOUSING | ||||
| 11188-62010 |
1UZFE..UCF20 |
2 | ||
| 11188-50010 |
1UZFE..UCF20 |
2 | ||
| 11188 - PLUG, CAMSHAFT HOUSING | ||||
| 11188-62010 |
1UZFE..UCF20 |
2 | ||
| 11188-50010 |
1UZFE..UCF20 |
2 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-15010 |
1UZFE..UCF20 |
8 | ||
| 11193-16010 |
1UZFE..UCF20 |
8 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-15010 |
1UZFE..UCF20 |
8 | ||
| 11193-16010 |
1UZFE..UCF20 |
8 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11202-50030 |
1UZFE..UCF20 LH |
1 | ||
| 11201-50031 |
1UZFE..UCF20 RH |
1 | ||
| 11201-50021 |
1UZFE..UCF20 RH |
1 | ||
| 11202-50020 |
1UZFE..UCF20 LH |
1 | ||
| 11201-50030 |
1UZFE..UCF20 RH |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11202-50030 |
1UZFE..UCF20 LH |
1 | ||
| 11201-50031 |
1UZFE..UCF20 RH |
1 | ||
| 11201-50021 |
1UZFE..UCF20 RH |
1 | ||
| 11202-50020 |
1UZFE..UCF20 LH |
1 | ||
| 11201-50030 |
1UZFE..UCF20 RH |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-07001 |
1UZFE..UCF20 |
18 | ||
| 90210-07001 |
1UZFE..UCF20 |
16 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90109-06163 |
1UZFE..UCF20 |
18 | ||
| 90109-06163 |
1UZFE..UCF20 |
16 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-50020 |
1UZFE..UCF20 |
2 | ||
| 11213-50030 |
1UZFE..UCF20 |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-50010 |
1UZFE..UCF20 |
1 | ||
| 11254 - BRACKET, V-BANK COVER, NO.1 | ||||
| 11254-50020 |
1UZFE..UCF20 |
1 | ||
| 11254-50010 |
1UZFE..UCF20 |
1 | ||
| 11254-50021 |
1UZFE..UCF20 |
1 | ||
| 11256 - BRACKET, V-BANK COVER, NO.2 | ||||
| 11256-50011 |
1UZFE..UCF20 |
1 | ||
| 11256-50010 |
1UZFE..UCF20 |
1 | ||
| 11259 - COVER, V-BANK | ||||
| 11209-50031 |
1UZFE..UCF20 |
1 | ||
| 11259-50010 |
1UZFE..UCF20 |
1 | ||
| 11209-50030 |
1UZFE..UCF20 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-50010 |
1UZFE..UCF20 |
1 | ||
| 12180-50040 |
1UZFE..UCF20 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-50010 |
1UZFE..UCF20 |
1 | ||
| 15044 - PIPE SUB-ASSY, CAMSHAFT OIL FEED | ||||
| 15044-50010 |
1UZFE..UCF20 |
2 | ||
| 15044-50020 |
1UZFE..UCF20 |
2 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-46020 |
1UZFE..UCF20 |
2 | ||
| 15678-46010 |
1UZFE..UCF20 |
2 | ||
| Common parts | ||||
| 90099-14137 | ||||
| 90105-06127 | ||||
| 90105-06131 | ||||
| 90176-06019 | ||||
| 90176-06036 | ||||
| 91511-60610 | ||||
| 91511-60612 | ||||
| 91621-J0612 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 7801 | ||||
ILLUST NO. 1 OF 2(9707-9806)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11029 - BRACKET SUB-ASSY, V-BANK COVER | ||||
| 11029-50010 |
1UZFE..UCF20 |
1 | ||
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-59145 |
1UZFE..UCF20 |
1 | ||
| 11101-59157 |
1UZFE..UCF20 |
1 | ||
| 11101-59155B0 |
1UZFE..UCF20 REFER TO REPAIR MANUAL,MARK B |
1 | ||
| 11101-59156A0 |
1UZFE..UCF20 REFER TO REPAIR MANUAL,MARK 1 |
1 | ||
| 11101-59155A0 |
1UZFE..UCF20 REFER TO REPAIR MANUAL,MARK A |
1 | ||
| 11101-59156B0 |
1UZFE..UCF20 REFER TO REPAIR MANUAL,MARK 2 |
1 | ||
| 11101-59158 |
1UZFE..UCF20 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02144 |
1UZFE..UCF20 |
20 | ||
| 90910-02088 |
1UZFE..UCF20 |
20 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
1UZFE..UCF20 |
20 | ||
| 90201-10133 |
1UZFE..UCF20 |
20 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05036 |
1UZFE..UCF20 |
2 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05036 |
1UZFE..UCF20 |
2 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15340-50010 |
1UZFE..UCF20 LH |
1 | ||
| 15330-50010 |
1UZFE..UCF20 RH |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15340-50010 |
1UZFE..UCF20 LH |
1 | ||
| 15330-50010 |
1UZFE..UCF20 RH |
1 | ||
| 11102 - HEAD, CYLINDER, LH | ||||
| 11102-59015B0 |
1UZFE..UCF20 REFER TO REPAIR MANUAL,MARK B |
1 | ||
| 11102-59015A0 |
1UZFE..UCF20 REFER TO REPAIR MANUAL,MARK A |
1 | ||
| 11102-59017A0 |
1UZFE..UCF20 REFER TO REPAIR MANUAL,MARK 1 |
1 | ||
| 11102-59017B0 |
1UZFE..UCF20 REFER TO REPAIR MANUAL,MARK 2 |
1 | ||
| 11102-59018 |
1UZFE..UCF20 |
1 | ||
| 11102-59016B0 |
1UZFE..UCF20 REFER TO REPAIR MANUAL,MARK 2 |
1 | ||
| 11102-59016A0 |
1UZFE..UCF20 REFER TO REPAIR MANUAL,MARK 1 |
1 | ||
| 11101-59145 |
1UZFE..UCF20 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-50021 |
1UZFE..UCF20 |
1 | ||
| 11115-50042 |
1UZFE..UCF20 |
1 | ||
| 11116 - GASKET, CYLINDER HEAD, NO.2 | ||||
| 11116-50032 |
1UZFE..UCF20 |
1 | ||
| 11116-50011 |
1UZFE..UCF20 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
1UZFE..UCF20 |
8 | ||
| 96411-43000 |
1UZFE..UCF20 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
1UZFE..UCF20 |
8 | ||
| 96411-43000 |
1UZFE..UCF20 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
1UZFE..UCF20 |
8 | ||
| 96411-43000 |
1UZFE..UCF20 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
1UZFE..UCF20 |
8 | ||
| 96411-43000 |
1UZFE..UCF20 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
1UZFE..UCF20 |
8 | ||
| 96411-43000 |
1UZFE..UCF20 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
1UZFE..UCF20 |
8 | ||
| 96411-43000 |
1UZFE..UCF20 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
1UZFE..UCF20 |
8 | ||
| 96411-43000 |
1UZFE..UCF20 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
1UZFE..UCF20 |
8 | ||
| 96411-43000 |
1UZFE..UCF20 |
8 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-27006 |
1UZFE..UCF20 |
2 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-27006 |
1UZFE..UCF20 |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-27005 |
1UZFE..UCF20 |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-27005 |
1UZFE..UCF20 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-74030 |
1UZFE..UCF20 O/S 0.05 |
16 | ||
| 11123-20020 |
1UZFE..UCF20 O/S 0.05 |
16 | ||
| 11122-20020 |
1UZFE..UCF20 STD |
16 | ||
| 11122-74030 |
1UZFE..UCF20 STD |
16 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-74030 |
1UZFE..UCF20 O/S 0.05 |
16 | ||
| 11123-20020 |
1UZFE..UCF20 O/S 0.05 |
16 | ||
| 11122-20020 |
1UZFE..UCF20 STD |
16 | ||
| 11122-74030 |
1UZFE..UCF20 STD |
16 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11127-50050 |
1UZFE..UCF20 O/S 0.05 |
16 | ||
| 11127-20020 |
1UZFE..UCF20 O/S 0.05 |
16 | ||
| 11126-20020 |
1UZFE..UCF20 STD |
16 | ||
| 11126-50050 |
1UZFE..UCF20 STD |
16 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11127-50050 |
1UZFE..UCF20 O/S 0.05 |
16 | ||
| 11127-20020 |
1UZFE..UCF20 O/S 0.05 |
16 | ||
| 11126-20020 |
1UZFE..UCF20 STD |
16 | ||
| 11126-50050 |
1UZFE..UCF20 STD |
16 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-50020 |
1UZFE..UCF20 STD |
16 | ||
| 11132-50020 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11131-50030 |
1UZFE..UCF20 STD |
16 | ||
| 11131-50040 |
1UZFE..UCF20 STD |
16 | ||
| 11132-50040 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11132-50030 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-50020 |
1UZFE..UCF20 STD |
16 | ||
| 11132-50020 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11131-50030 |
1UZFE..UCF20 STD |
16 | ||
| 11131-50040 |
1UZFE..UCF20 STD |
16 | ||
| 11132-50040 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11132-50030 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-50020 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11136-50040 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11135-50030 |
1UZFE..UCF20 STD |
16 | ||
| 11135-50020 |
1UZFE..UCF20 STD |
16 | ||
| 11135-50040 |
1UZFE..UCF20 STD |
16 | ||
| 11136-50030 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-50020 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11136-50040 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11135-50030 |
1UZFE..UCF20 STD |
16 | ||
| 11135-50020 |
1UZFE..UCF20 STD |
16 | ||
| 11135-50040 |
1UZFE..UCF20 STD |
16 | ||
| 11136-50030 |
1UZFE..UCF20 O/S 0.03 |
16 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
1UZFE..UCF20 L=7,OD=10 |
36 | ||
| 90253-10006 |
1UZFE..UCF20 L=7,OD=10 |
40 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
1UZFE..UCF20 L=7,OD=10 |
36 | ||
| 90253-10006 |
1UZFE..UCF20 L=7,OD=10 |
40 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
1UZFE..UCF20 L=7,OD=10 |
36 | ||
| 90253-10006 |
1UZFE..UCF20 L=7,OD=10 |
40 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
1UZFE..UCF20 L=7,OD=10 |
36 | ||
| 90253-10006 |
1UZFE..UCF20 L=7,OD=10 |
40 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-71001 |
1UZFE..UCF20 |
2 | ||
| 90311-38036 |
1UZFE..UCF20 |
2 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-71001 |
1UZFE..UCF20 |
2 | ||
| 90311-38036 |
1UZFE..UCF20 |
2 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-09001 |
1UZFE..UCF20 |
3 | ||
| 90253-11001 |
1UZFE..UCF20 |
4 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-09001 |
1UZFE..UCF20 |
3 | ||
| 90253-11001 |
1UZFE..UCF20 |
4 | ||
| 11159E - BOLT(FOR CAMSHAFT OIL FEED PIPE) | ||||
| 90119-07006 |
1UZFE..UCF20 |
4 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-50010 |
1UZFE..UCF20 |
4 | ||
| 11183-50020 |
1UZFE..UCF20 |
4 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-50010 |
1UZFE..UCF20 |
4 | ||
| 11183-50020 |
1UZFE..UCF20 |
4 | ||
| 11188 - PLUG, CAMSHAFT HOUSING | ||||
| 11188-62010 |
1UZFE..UCF20 |
2 | ||
| 11188-50010 |
1UZFE..UCF20 |
2 | ||
| 11188 - PLUG, CAMSHAFT HOUSING | ||||
| 11188-62010 |
1UZFE..UCF20 |
2 | ||
| 11188-50010 |
1UZFE..UCF20 |
2 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-15010 |
1UZFE..UCF20 |
8 | ||
| 11193-16010 |
1UZFE..UCF20 |
8 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-15010 |
1UZFE..UCF20 |
8 | ||
| 11193-16010 |
1UZFE..UCF20 |
8 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11202-50030 |
1UZFE..UCF20 LH |
1 | ||
| 11201-50031 |
1UZFE..UCF20 RH |
1 | ||
| 11201-50021 |
1UZFE..UCF20 RH |
1 | ||
| 11202-50020 |
1UZFE..UCF20 LH |
1 | ||
| 11201-50030 |
1UZFE..UCF20 RH |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11202-50030 |
1UZFE..UCF20 LH |
1 | ||
| 11201-50031 |
1UZFE..UCF20 RH |
1 | ||
| 11201-50021 |
1UZFE..UCF20 RH |
1 | ||
| 11202-50020 |
1UZFE..UCF20 LH |
1 | ||
| 11201-50030 |
1UZFE..UCF20 RH |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-07001 |
1UZFE..UCF20 |
18 | ||
| 90210-07001 |
1UZFE..UCF20 |
16 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90109-06163 |
1UZFE..UCF20 |
18 | ||
| 90109-06163 |
1UZFE..UCF20 |
16 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-50020 |
1UZFE..UCF20 |
2 | ||
| 11213-50030 |
1UZFE..UCF20 |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-50010 |
1UZFE..UCF20 |
1 | ||
| 11254 - BRACKET, V-BANK COVER, NO.1 | ||||
| 11254-50020 |
1UZFE..UCF20 |
1 | ||
| 11254-50010 |
1UZFE..UCF20 |
1 | ||
| 11254-50021 |
1UZFE..UCF20 |
1 | ||
| 11256 - BRACKET, V-BANK COVER, NO.2 | ||||
| 11256-50011 |
1UZFE..UCF20 |
1 | ||
| 11256-50010 |
1UZFE..UCF20 |
1 | ||
| 11259 - COVER, V-BANK | ||||
| 11209-50031 |
1UZFE..UCF20 |
1 | ||
| 11259-50010 |
1UZFE..UCF20 |
1 | ||
| 11209-50030 |
1UZFE..UCF20 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-50010 |
1UZFE..UCF20 |
1 | ||
| 12180-50040 |
1UZFE..UCF20 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-50010 |
1UZFE..UCF20 |
1 | ||
| 15044 - PIPE SUB-ASSY, CAMSHAFT OIL FEED | ||||
| 15044-50010 |
1UZFE..UCF20 |
2 | ||
| 15044-50020 |
1UZFE..UCF20 |
2 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-46020 |
1UZFE..UCF20 |
2 | ||
| 15678-46010 |
1UZFE..UCF20 |
2 | ||
| Common parts | ||||
| 90099-14137 | ||||
| 90105-06127 | ||||
| 90105-06131 | ||||
| 90176-06019 | ||||
| 90179-06074 | ||||
| 91511-60610 | ||||
| 91511-60612 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 7801 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
