UCF20L-AEPGKW (1994)
Toyota Lexus Ls400
Production
Oct 1994
-
Jul 1997
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9410-9707)LHD

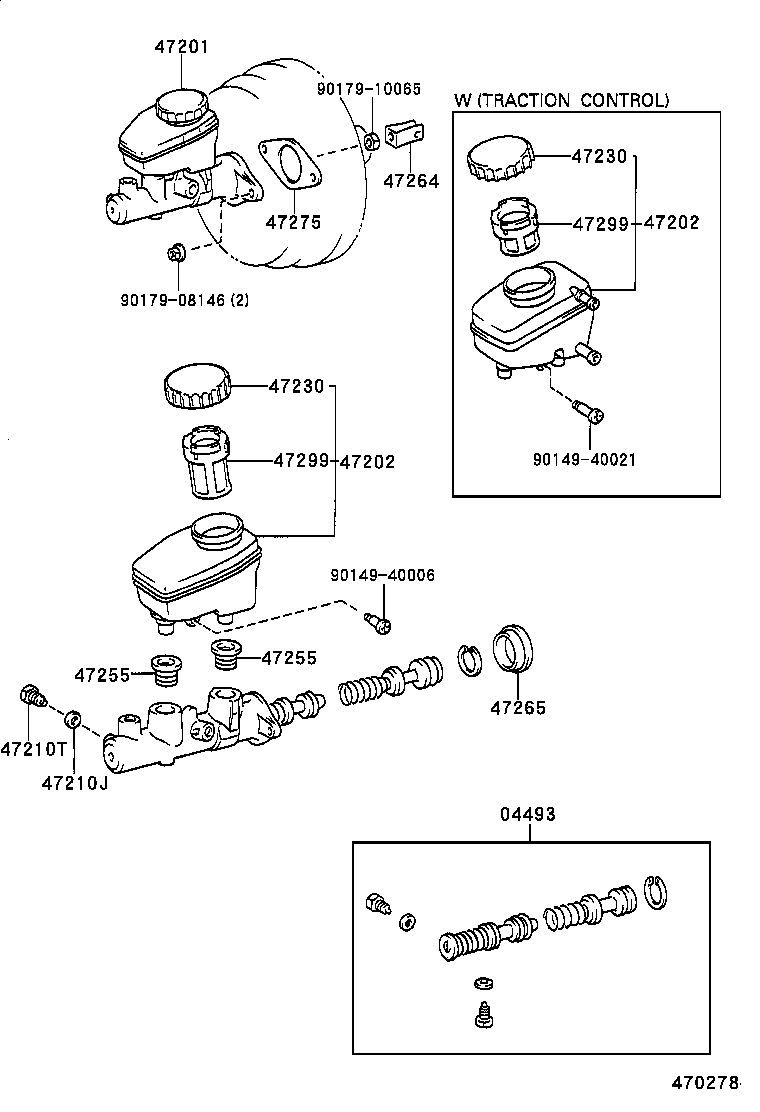

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-50040 |
UCF20 |
1 | ||
| 04493-50030 |
UCF20 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-50200 |
UCF20..LHD..EUR |
1 | ||
| 47201-50160 |
UCF20..LHD..EUR |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-50060 |
UCF20..LHD..EUR |
1 | ||
| 47220-50100 |
UCF20..LHD..EUR |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-50060 |
UCF20..LHD..EUR |
1 | ||
| 47220-50100 |
UCF20..LHD..EUR |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
UCF20..LHD..EUR |
2 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
UCF20..LHD..EUR |
2 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20100 |
UCF20 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20100 |
UCF20 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
UCF20 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
UCF20 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-28010 |
UCF20 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
UCF20 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
UCF20 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-17010 |
UCF20..LHD..EUR |
1 | ||
| 47299-20060 |
UCF20..5FC;UCF20..LHD..EUR..4FC |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-17010 |
UCF20..LHD..EUR |
1 | ||
| 47299-20060 |
UCF20..5FC;UCF20..LHD..EUR..4FC |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90149-40021 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
