UCF20L-AEPGKV (1994)
Toyota Lexus Ls400
Production
Oct 1994
-
Jul 1997
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 4 OF 4(9410- )
Click highlighted areas on diagram
O RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
ILLUST NO. 3 OF 4(9410- )V
Click highlighted areas on diagram

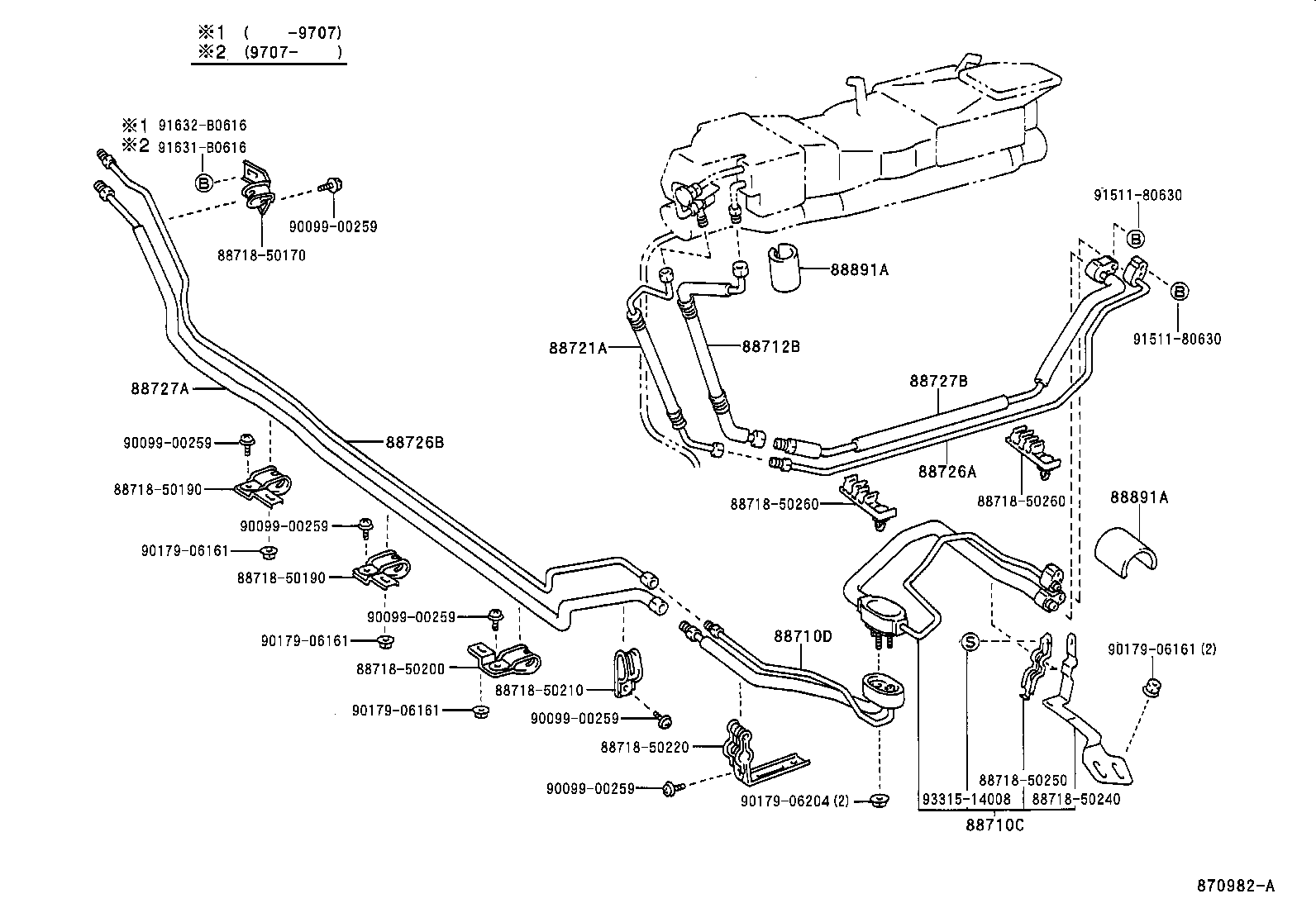

REAR COOLER PIPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88710C - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-50430 |
UCF20..V |
1 | ||
| 88710D - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-50450 |
UCF20..V |
1 | ||
| 88712B - HOSE, COOLER REFRIGERANT SUCTION | ||||
| 88712-50200 |
UCF20..V |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-50010 |
UCF20..V |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-50310 |
UCF20..V |
1 | ||
| 88726B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-50290 |
UCF20..V |
1 | ||
| 88727A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-50240 |
UCF20..V |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-50250 |
UCF20..V |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-50030 |
UCF20..V |
2 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-50030 |
UCF20..V |
2 | ||
| Common parts | ||||
| 88718-50170 | ||||
| 88718-50190 | ||||
| 88718-50200 | ||||
| 88718-50210 | ||||
| 88718-50220 | ||||
| 88718-50240 | ||||
| 88718-50250 | ||||
| 88718-50260 | ||||
| 90099-00259 | ||||
| 90179-06161 | ||||
| 90179-06204 | ||||
| 91511-80630 | ||||
| 91631-B0616 | ||||
| 91632-B0616 | ||||
| 93315-14008 | ||||
ILLUST NO. 1 OF 4(9410- )V
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

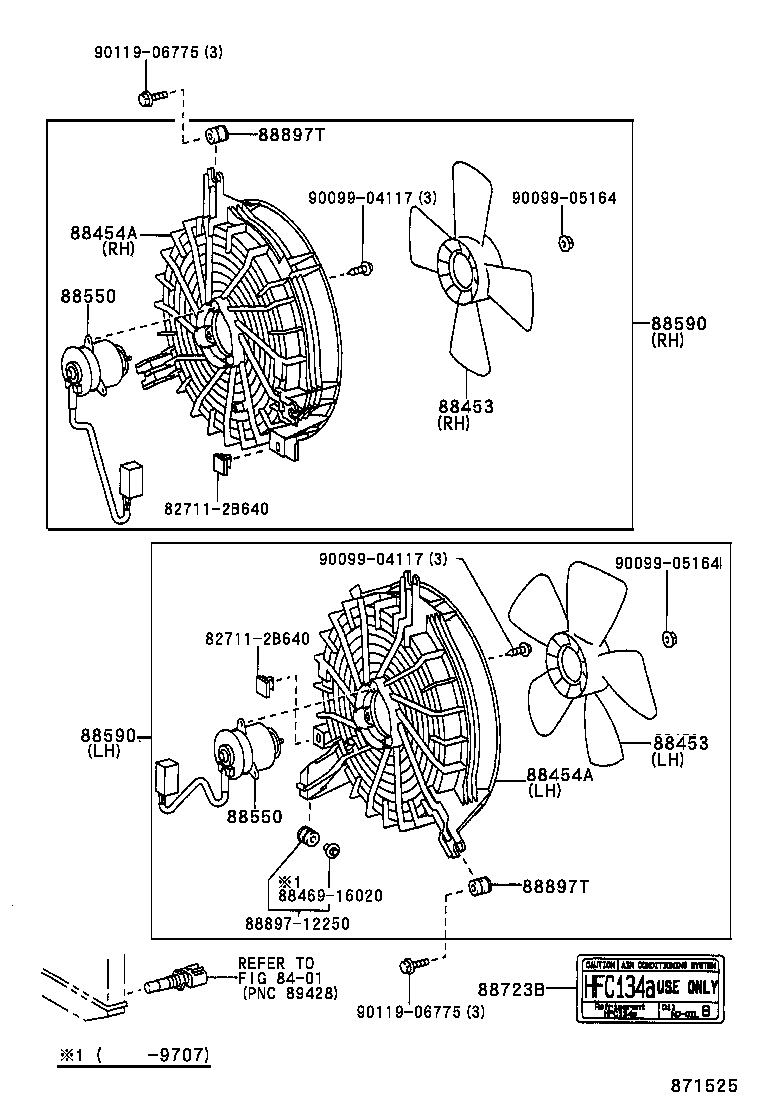

| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-50020 |
UCF20..V LH |
1 | ||
| 88453-50010 |
UCF20..V RH |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-50020 |
UCF20..V LH |
1 | ||
| 88453-50010 |
UCF20..V RH |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-50030 |
UCF20..V RH |
1 | ||
| 88454-50040 |
UCF20..V LH |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-50030 |
UCF20..V RH |
1 | ||
| 88454-50040 |
UCF20..V LH |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-50040 |
UCF20..V |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-50040 |
UCF20..V |
2 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-50090 |
UCF20..V RH |
1 | ||
| 88590-50100 |
UCF20..V LH |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-50090 |
UCF20..V RH |
1 | ||
| 88590-50100 |
UCF20..V LH |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-50150 |
UCF20 |
1 | ||
| 88897T - GROMMET, COOLER | ||||
| 88897-50020 |
UCF20..V |
5 | ||
| 88897T - GROMMET, COOLER | ||||
| 88897-50020 |
UCF20..V |
5 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88469-16020 | ||||
| 88897-12250 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90119-06775 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 4(9410- )V
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-30280 |
UCF20 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
UCF20..V;UCF20..LHD..EUR..4FC |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-50130 |
UCF20..V |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-50020 |
UCF20..V |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-50020 |
UCF20..V |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-20050 |
UCF20 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-50040 |
UCF20 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-50160 |
UCF20..LHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-50250 |
UCF20..V |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-50210 |
UCF20..V |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-50270 |
UCF20..V |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-50190 |
UCF20..V |
1 | ||
| Common parts | ||||
| 88714-50020 | ||||
| 88714-50030 | ||||
| 88718-24060 | ||||
| 88718-50100 | ||||
| 88718-50110 | ||||
| 88718-50140 | ||||
| 88718-50150 | ||||
| 88718-50160 | ||||
| 88718-50330 | ||||
| 88718-50370 | ||||
| 88718-50380 | ||||
| 88895-89102 | ||||
| 90099-00259 | ||||
| 90099-14120 | ||||
| 90099-32128 | ||||
| 90099-32140 | ||||
| 90099-32142 | ||||
| 90099-32143 | ||||
| 90119-06459 | ||||
| 90119-06553 | ||||
| 90179-06170 | ||||
| 90179-06171 | ||||
| 90179-06219 | ||||
| 90950-01356 | ||||
| 91621-J0612 | ||||
| 91631-B0630 | ||||
| 91631-B0640 | ||||
| 91635-B0635 | ||||
| 93315-14008 | ||||
| 93385-16016 | ||||
| 93385-56025 | ||||
