UCF20L-AEPGKV (1994)
Toyota Lexus Ls400
Production
Oct 1994
-
Jul 1997
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9410- )V

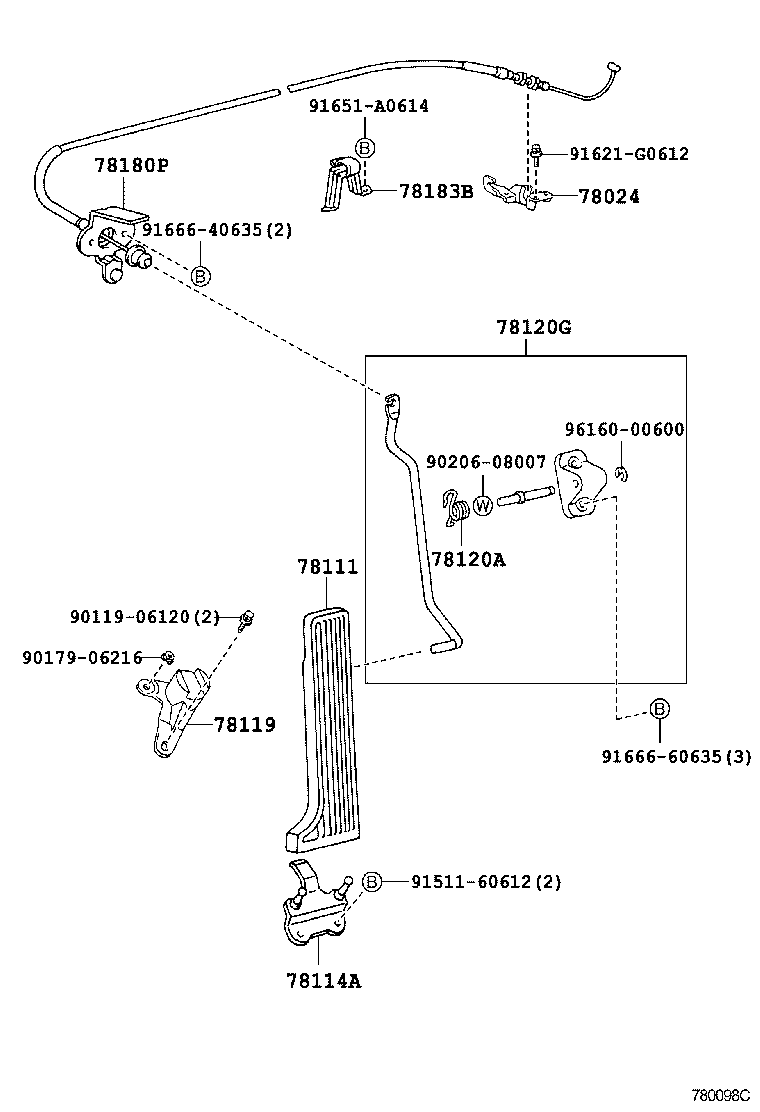

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-50010 |
UCF20..LHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-30110 |
UCF20 |
1 | ||
| 78114A - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 78114-50021 |
UCF20 |
1 | ||
| 78119 - STOPPER, ACCELERATOR PEDAL ROD | ||||
| 78119-50010 |
UCF20..V |
1 | ||
| 78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD) | ||||
| 90959-03059 |
UCF20 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-50050 |
UCF20..V |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-50050 |
UCF20..LHD |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 90179-06216 | ||||
| 90206-08007 | ||||
| 91511-60612 | ||||
| 91621-G0612 | ||||
| 91651-A0614 | ||||
| 91666-40635 | ||||
| 91666-60635 | ||||
| 96160-00600 | ||||
