UCF20L-AEPGKV (1994)
Toyota Lexus Ls400

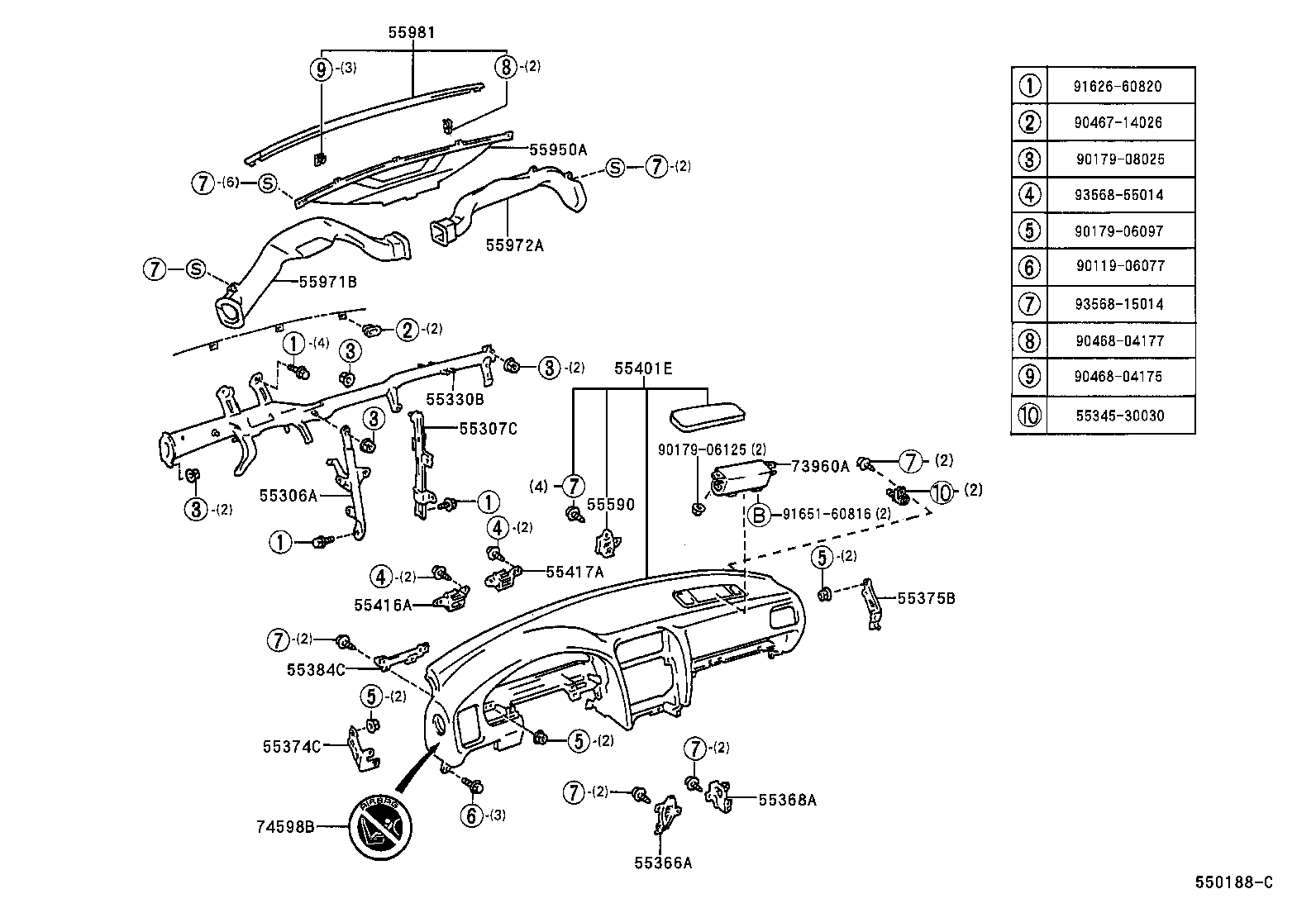

ILLUST NO. 1 OF 2(9410- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-50040 |
UCF20..LHD |
1 | ||
| 55306-50041 |
UCF20..LHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-50060 |
UCF20..LHD |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-50050 |
UCF20..LHD |
1 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 55366-50040 |
UCF20 |
1 | ||
| 55368A - BRACKET, RADIO MOUNTING, NO.2 | ||||
| 55368-50040 |
UCF20 |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-50030 |
UCF20..LHD |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-50040 |
UCF20..LHD |
1 | ||
| 55384C - BRACKET, FINISH PANEL MOUNTING, NO.4 | ||||
| 55384-50030 |
UCF20..LHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-50050C0 |
UCF20..LHD BLACK,TRIM2# |
1 | ||
| 55401-50050E0 |
UCF20..LHD OAK,TRIM0# |
1 | ||
| 55401-50050B0 |
UCF20..LHD DK.BLUE GRAY,TRIM1# |
1 | ||
| 55416A - RETAINER, METER HOOD, NO.1 | ||||
| 55416-50020 |
UCF20 |
1 | ||
| 55417A - RETAINER, METER HOOD, NO.2 | ||||
| 55417-50010 |
UCF20 |
1 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-50040 |
UCF20..LHD |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-50010 |
UCF20 |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-50020 |
UCF20..LHD |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-50020 |
UCF20..LHD |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-50050B0 |
UCF20..LHD DK. BLUE GRAY,TRIM1# |
1 | ||
| 55981-50060E0 |
UCF20..LHD OAK,TRIM0# |
1 | ||
| 55981-50050C0 |
UCF20..LHD BLACK,TRIM2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-50010 |
UCF20 |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-30040 |
UCF20 |
1 | ||
| Common parts | ||||
| 55345-30030 | ||||
| 90119-06077 | ||||
| 90179-06097 | ||||
| 90179-06125 | ||||
| 90179-08025 | ||||
| 90467-14026 | ||||
| 90468-04175 | ||||
| 90468-04177 | ||||
| 91626-60820 | ||||
| 91651-60816 | ||||
| 93568-15014 | ||||
| 93568-55014 | ||||
ILLUST NO. 2 OF 2(9410- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-50050 |
UCF20 |
1 | ||
| 55054B - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-50040 |
UCF20 |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-50030A0 |
UCF20..LHD IVORY,TRIM0# |
1 | ||
| 55308-50030B0 |
UCF20..LHD BLUE GRAY,TRIM1# |
1 | ||
| 55308-50030C0 |
UCF20..LHD BLACK,TRIM2# |
1 | ||
| 55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH | ||||
| 55402-50060C0 |
UCF20..LHD BLACK,TRIM2# |
1 | ||
| 55402-50040A0 |
UCF20..LHD IVORY,TRIM0# |
1 | ||
| 55402-50040B0 |
UCF20..LHD BLUE GRAY,TRIM1# |
1 | ||
| 55403E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55403-50040C0 |
UCF20..LHD BLACK,TRIM2# |
1 | ||
| 55403-50040B0 |
UCF20..LHD BLUE GRAY,TRIM1# |
1 | ||
| 55403-50040A0 |
UCF20..LHD IVORY,TRIM0# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-50110 |
UCF20..V |
1 | ||
| 55404-50100 |
UCF20..LHD |
1 | ||
| 55407D - PAD SUB-ASSY, INSTRUMENT PANEL, END | ||||
| 55407-50080C0 |
UCF20..LHD BLACK,TRIM2# |
1 | ||
| 55407-50080E0 |
UCF20..LHD OAK,TRIM0# |
1 | ||
| 55407-50080B0 |
UCF20..LHD DK.BLUE GRAY,TRIM1# |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-50030B0 |
UCF20..LHD BLUE GRAY,TRIM1# |
1 | ||
| 55440-50030C0 |
UCF20..LHD BLACK,TRIM2# |
1 | ||
| 55440-50030A0 |
UCF20..LHD IVORY,TRIM0# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-30160B2 |
UCF20 DK.BLUE GRAY,TRIM1# |
1 | ||
| 55445-30160C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 55445-30160E1 |
UCF20 OAK,TRIM0# |
1 | ||
| 55445C - PLATE, INSTRUMENT PANEL BOX | ||||
| 55445-50010 |
UCF20 |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-50040E0 |
UCF20..V OAK,TRIM0# |
1 | ||
| 55450-50040B0 |
UCF20..V DK.BLUE GRAY,TRIM1# |
1 | ||
| 55450-50040C0 |
UCF20..V BLACK,TRIM2# |
1 | ||
| 55459D - COVER, INSTRUMENT, LOWER LH | ||||
| 55459-50050 |
UCF20 |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55479-50050 |
UCF20 |
1 | ||
| 55488B - LENS, FRONT FOOT LAMP, NO.1 | ||||
| 55488-50010 |
UCF20 |
1 | ||
| 55489B - LENS, FRONT FOOT LAMP, NO.2 | ||||
| 55489-50010 |
UCF20 |
1 | ||
| 55509C - PANEL SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55509-50010 |
UCF20 |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-50030B0 |
UCF20..LHD DK.BLUE GRAY,TRIM1# |
1 | ||
| 55550-50030E0 |
UCF20..LHD OAK,TRIM0# |
1 | ||
| 55550-50030C0 |
UCF20..LHD BLACK,TRIM2# |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-50030 |
UCF20 |
1 | ||
| 55531A - PANEL, GLOVE COMPARTMENT, NO.1 | ||||
| 55531-50030 |
UCF20 |
1 | ||
| 55532A - PANEL, GLOVE COMPARTMENT, NO.2 | ||||
| 55532-50030 |
UCF20 |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-50020 |
UCF20 |
2 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-50060 |
UCF20 |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-50050 |
UCF20..LHD LWR |
1 | ||
| 55560-50060 |
UCF20..LHD UPR |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-50050 |
UCF20..LHD LWR |
1 | ||
| 55560-50060 |
UCF20..LHD UPR |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-5001022 |
UCF20 BLACK,TRIM2# |
1 | ||
| 55565-50010B1 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 55565-50010A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 55565B - KNOB, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-50020B0 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 55565-50020E0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 55565-50020C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH | ||||
| 55568-24020 |
UCF20 |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-5001022 |
UCF20 BLACK,TRIM2# |
1 | ||
| 55569-50010B1 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 55569-50010A0 |
UCF20 IVORY,TRIM0# |
1 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55574-10010 |
UCF20 |
2 | ||
| 55598A - BRACKET, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55598-33020 |
UCF20 |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-50060 |
UCF20..LHD |
1 | ||
| 55606-50061 |
UCF20..LHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-50071 |
UCF20..LHD |
1 | ||
| 55607-50070 |
UCF20..LHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-50030C0 |
UCF20..LHD BLACK,TRIM2# |
1 | ||
| 55650-50030B0 |
UCF20..LHD DK.BLUE GRAY,TRIM1# |
1 | ||
| 55650-50030E0 |
UCF20..LHD OAK,TRIM0# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-50030 |
UCF20 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-50030B0 |
UCF20..LHD DK.BLUE GRAY,TRIM1# |
1 | ||
| 55670-50030E0 |
UCF20..LHD OAK,TRIM0# |
1 | ||
| 55670-50030C0 |
UCF20..LHD BLACK,TRIM2# |
1 | ||
| 55680B - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-22020A2 |
UCF20 IVORY,TRIM0# |
1 | ||
| 55680-50010C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 55680-22020B1 |
UCF20 BLUE GRAY,TRIM1# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-50020E0 |
UCF20 OAK,TRIM0# |
1 | ||
| 55961-50020C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| 55961-50020B0 |
UCF20 DK. BLUE GRAY,TRIM1# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-50020E0 |
UCF20 OAK,TRIM0# |
1 | ||
| 55962-50020B0 |
UCF20 DK. BLUE GRAY,TRIM1# |
1 | ||
| 55962-50020C0 |
UCF20 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06077 | ||||
| 90179-04017 | ||||
| 90179-06097 | ||||
| 90468-04177 | ||||
| 90541-05020 | ||||
| 90541-05080 | ||||
| 91515-F0620 | ||||
| 91626-40625 | ||||
| 91661-60625 | ||||
| 93540-14008 | ||||
| 93560-14008 | ||||
| 93560-14010 | ||||
| 93568-15014 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
