UCF20L-AEPGKV (1994)

Toyota Lexus Ls400

Production Oct 1994 - Jul 1997

Engine 1UZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9410- )

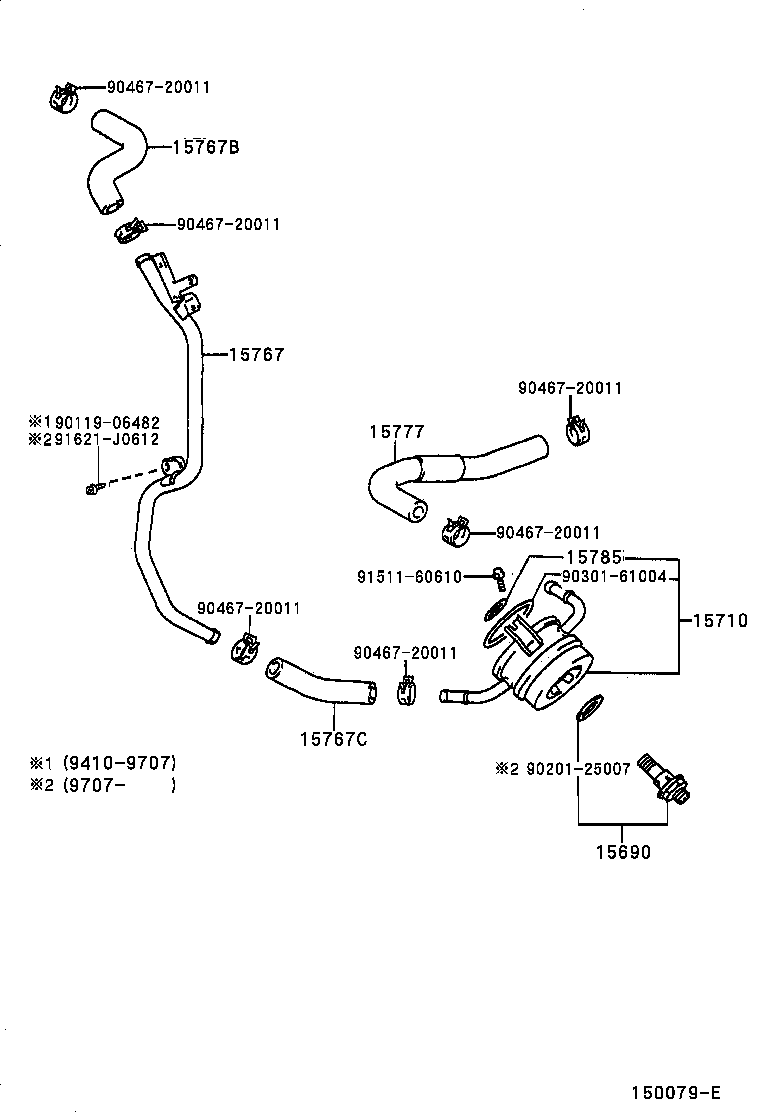

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
15690 - VALVE ASSY, OIL COOLER RELIEF
15690-50010	1UZFE..UCF20	10/1994 - 07/1997	1
15710 - COOLER ASSY, OIL
15710-50010	1UZFE..UCF20	10/1994 - 07/1997	1
15767 - PIPE, OIL COOLER
15767-50020	1UZFE..UCF20	10/1994 - 07/1997	1
15767B - HOSE, WATER BY-PASS, NO.4
16281-50020	1UZFE..UCF20	10/1994 - 07/1997	1
15767C - HOSE, WATER BY-PASS, NO.5
16282-50020	1UZFE..UCF20	10/1994 - 12/2999	1
15777 - HOSE, OIL COOLER
15777-50020	1UZFE..UCF20	10/1994 - 12/2999	1
15785 - GASKET, OIL COOLER
15785-35010	1UZFE..UCF20	08/1996 - 07/1997	1
Common parts
90119-06482
90201-25007
90301-61004
90467-20011
91511-60610
91621-J0612
