UCF20L-AEAGKV (1997)
Toyota Lexus Ls400
Production
Jul 1997
-
Aug 2000
Engine
1UZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

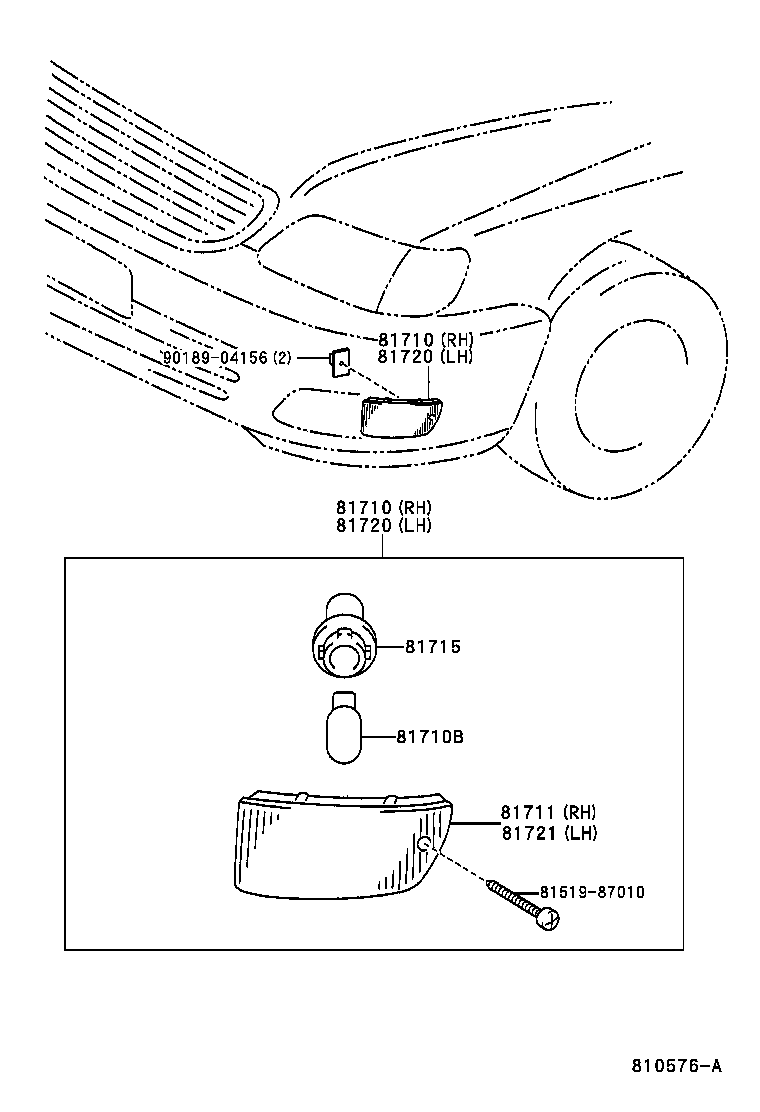

ILLUST NO. 2 OF 2(9707- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81710 - LAMP ASSY, FRONT MARKER, RH | ||||
| 81730-50080 |
UCF20 |
1 | ||
| 81730-50060 |
UCF20 |
1 | ||
| 81710 - LAMP ASSY, FRONT MARKER, RH | ||||
| 81730-50080 |
UCF20 |
1 | ||
| 81730-50060 |
UCF20 |
1 | ||
| 81710B - BULB, FRONT MARKER LAMP | ||||
| 99132-12050 |
UCF20 12V 5W |
2 | ||
| 81711 - LENS, FRONT MARKER LAMP, RH | ||||
| 81731-50060 |
UCF20 |
1 | ||
| 81731-50080 |
UCF20 |
1 | ||
| 81715 - SOCKET & WIRE, FRONT MARKER LAMP | ||||
| 90075-60001 |
UCF20 |
2 | ||
| 81720 - LAMP ASSY, FRONT MARKER, LH | ||||
| 81740-50060 |
UCF20 |
1 | ||
| 81740-50080 |
UCF20 |
1 | ||
| 81720 - LAMP ASSY, FRONT MARKER, LH | ||||
| 81740-50060 |
UCF20 |
1 | ||
| 81740-50080 |
UCF20 |
1 | ||
| 81721 - LENS, FRONT MARKER LAMP, LH | ||||
| 81741-50080 |
UCF20 |
1 | ||
| 81741-50060 |
UCF20 |
1 | ||
| Common parts | ||||
| 81519-87010 | ||||
| 90189-04156 | ||||
