UCF10R-AEPGKW (1989)
Toyota Lexus Ls400

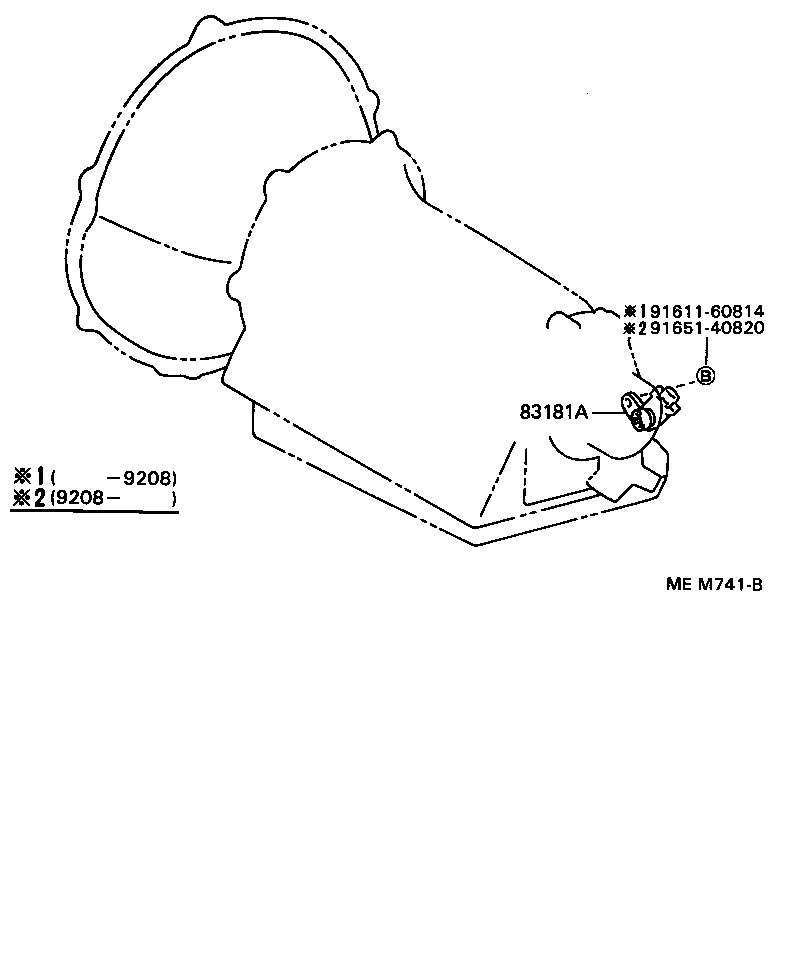

ILLUST NO. 2 OF 3(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-24040 |
UCF10 |
1 | ||
| 83181-50010 |
UCF10 |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| 91651-40820 | ||||

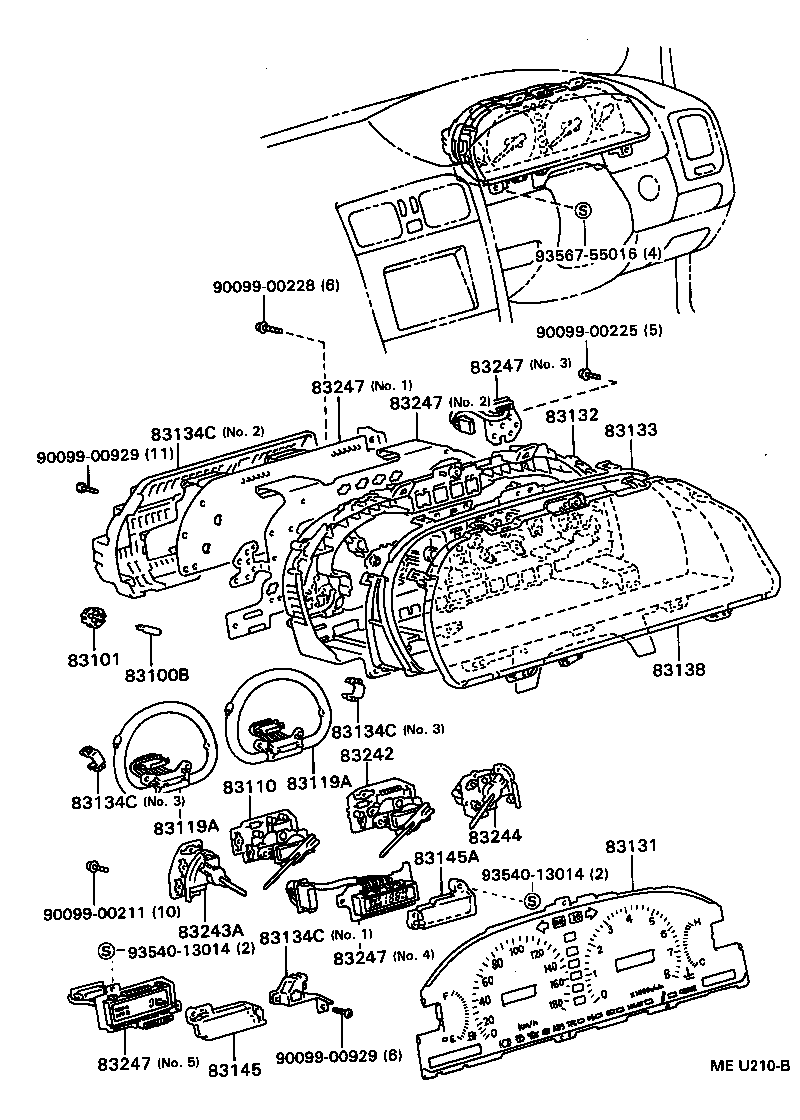

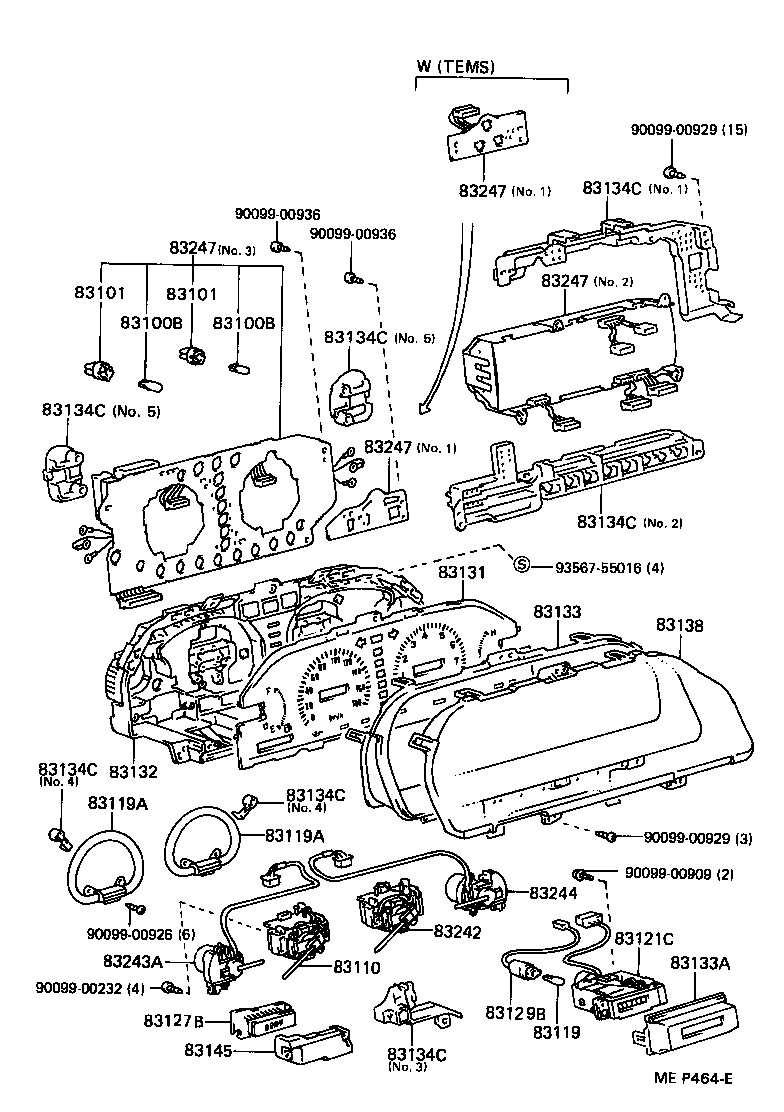

ILLUST NO. 1 OF 3(8912-9208)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
UCF10..RHD..EUR 14V 2.0W,W/O SOCKET |
10 | ||
| 83109-30070 |
UCF10..V;UCF10..RHD 14V 2.0W,W/O SOCKET |
6 | ||
| 83109-30070 |
UCF10..RHD..(ARL,EUR) 14V 2.0W,W/O SOCKET |
7 | ||
| 83109-30070 |
UCF10..RHD..EUR 14V 2.0W,W/O SOCKET |
14 | ||
| 83109-30070 |
UCF10..RHD..EUR 14V 2.0W,W/O SOCKET |
11 | ||
| 83109-30070 |
UCF10..RHD..EUR 14V 2.0W,W/O SOCKET |
12 | ||
| 83109-30070 |
UCF10..RHD..EUR 14V 2.0W,W/O SOCKET |
7 | ||
| 83119-50050 |
UCF10 14V 3.0W,LONG LIFE |
10 | ||
| 90981-11018 |
UCF10 12V 1.2W W/O SOCKET |
3 | ||
| 83109-30070 |
UCF10 14V 2.0W,W/O SOCKET |
3 | ||
| 90981-11018 |
UCF10..RHD..EUR 12V 1.2W W/O SOCKET |
14 | ||
| 90981-11018 |
UCF10..RHD..EUR 12V 1.2W W/O SOCKET |
12 | ||
| 83109-30070 |
UCF10..RHD..EUR 14V 2.0W,W/O SOCKET |
13 | ||
| 83119-32010 |
UCF10 14V 3.0W |
4 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
UCF10..RHD..EUR 14V 2.0W,W/O SOCKET |
10 | ||
| 83109-30070 |
UCF10..V;UCF10..RHD 14V 2.0W,W/O SOCKET |
6 | ||
| 83109-30070 |
UCF10..RHD..(ARL,EUR) 14V 2.0W,W/O SOCKET |
7 | ||
| 83109-30070 |
UCF10..RHD..EUR 14V 2.0W,W/O SOCKET |
14 | ||
| 83109-30070 |
UCF10..RHD..EUR 14V 2.0W,W/O SOCKET |
11 | ||
| 83109-30070 |
UCF10..RHD..EUR 14V 2.0W,W/O SOCKET |
12 | ||
| 83109-30070 |
UCF10..RHD..EUR 14V 2.0W,W/O SOCKET |
7 | ||
| 83119-50050 |
UCF10 14V 3.0W,LONG LIFE |
10 | ||
| 90981-11018 |
UCF10 12V 1.2W W/O SOCKET |
3 | ||
| 83109-30070 |
UCF10 14V 2.0W,W/O SOCKET |
3 | ||
| 90981-11018 |
UCF10..RHD..EUR 12V 1.2W W/O SOCKET |
14 | ||
| 90981-11018 |
UCF10..RHD..EUR 12V 1.2W W/O SOCKET |
12 | ||
| 83109-30070 |
UCF10..RHD..EUR 14V 2.0W,W/O SOCKET |
13 | ||
| 83119-32010 |
UCF10 14V 3.0W |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
UCF10..RHD..EUR 14V 2.0W |
11 | ||
| 83101-14040 |
UCF10..RHD..EUR 14V 2.0W |
7 | ||
| 83101-32020 |
UCF10 14V 3.0W |
10 | ||
| 83101-14040 |
UCF10 12V 1.4W |
3 | ||
| 83101-14040 |
UCF10..V;UCF10..RHD 14V 2.0W |
6 | ||
| 83101-30050 |
UCF10..RHD..EUR 14V 2.0W |
14 | ||
| 83101-14040 |
UCF10..RHD..(ARL,EUR) 14V 2.0W |
7 | ||
| 83101-30050 |
UCF10..RHD..EUR 14V 2.0W |
13 | ||
| 83101-14040 |
UCF10..RHD..EUR 14V 2.0W |
10 | ||
| 83101-30050 |
UCF10..RHD..EUR 14V 2.0W |
12 | ||
| 83101-14040 |
UCF10..RHD..EUR 12V 1.4W |
12 | ||
| 83101-32020 |
UCF10 14V 3.0W |
4 | ||
| 83101-14040 |
UCF10..RHD..EUR 12V 1.4W |
14 | ||
| 83101-30050 |
UCF10 14V 2.0W |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
UCF10..RHD..EUR 14V 2.0W |
11 | ||
| 83101-14040 |
UCF10..RHD..EUR 14V 2.0W |
7 | ||
| 83101-32020 |
UCF10 14V 3.0W |
10 | ||
| 83101-14040 |
UCF10 12V 1.4W |
3 | ||
| 83101-14040 |
UCF10..V;UCF10..RHD 14V 2.0W |
6 | ||
| 83101-30050 |
UCF10..RHD..EUR 14V 2.0W |
14 | ||
| 83101-14040 |
UCF10..RHD..(ARL,EUR) 14V 2.0W |
7 | ||
| 83101-30050 |
UCF10..RHD..EUR 14V 2.0W |
13 | ||
| 83101-14040 |
UCF10..RHD..EUR 14V 2.0W |
10 | ||
| 83101-30050 |
UCF10..RHD..EUR 14V 2.0W |
12 | ||
| 83101-14040 |
UCF10..RHD..EUR 12V 1.4W |
12 | ||
| 83101-32020 |
UCF10 14V 3.0W |
4 | ||
| 83101-14040 |
UCF10..RHD..EUR 12V 1.4W |
14 | ||
| 83101-30050 |
UCF10 14V 2.0W |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-50070 |
UCF10..RHD..EUR |
1 | ||
| 83110-50250 |
UCF10..RHD..EUR |
1 | ||
| 83110-50340 |
UCF10..RHD..EUR SOUTH AFRICA SPEC |
1 | ||
| 83119 - BULB, COMBINATION METER, NO.3 | ||||
| 83119-50030 |
UCF10 14V 3.0W,W(CAP) |
1 | ||
| 83119A - TUBE,CATHODE | ||||
| 83119-50090 |
UCF10 |
2 | ||
| 83119-50010 |
UCF10 |
2 | ||
| 83119A - TUBE,CATHODE | ||||
| 83119-50090 |
UCF10 |
2 | ||
| 83119-50010 |
UCF10 |
2 | ||
| 83121C - ODOMETER ASSY | ||||
| 83121-50050 |
UCF10..RHD..EUR |
1 | ||
| 83127B - COMPUTER ASSY | ||||
| 83127-50070 |
UCF10..RHD..EUR |
1 | ||
| 83129B - SOCKET SUB-ASSY, METER BULB | ||||
| 83129-50030 |
UCF10..RHD |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-50270 |
UCF10..RHD..EUR |
1 | ||
| 83131-50430 |
UCF10..RHD..EUR W(TEMS) |
1 | ||
| 83131-50670 |
UCF10..RHD..EUR W(*TRC) |
1 | ||
| 83131-50810 |
UCF10..RHD..EUR SOUTH AFRICA SPEC |
1 | ||
| 83131-50650 |
UCF10..RHD..EUR |
1 | ||
| 83131-50290 |
UCF10..RHD..EUR W(*TRC) |
1 | ||
| 83131-50450 |
UCF10..RHD..EUR W(TEMS & *TRC) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-50170 |
UCF10..RHD..EUR SOUTH AFRICA SPEC |
1 | ||
| 83132-50070 |
UCF10..RHD..EUR W(TEMS) |
1 | ||
| 83132-50090 |
UCF10..RHD |
1 | ||
| 83132-50250 |
UCF10..RHD..EUR |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-50070 |
UCF10..RHD |
1 | ||
| 83133-50090 |
UCF10..RHD |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-50050 |
UCF10..RHD |
1 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50150 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50170 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50070 |
UCF10 NO.4 |
2 | ||
| 83134-50250 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50130 |
UCF10..RHD NO.5 |
2 | ||
| 83134-50290 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50330 |
UCF10 NO.3 |
2 | ||
| 83134-50230 |
UCF10..RHD NO.3 |
1 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50150 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50170 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50070 |
UCF10 NO.4 |
2 | ||
| 83134-50250 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50130 |
UCF10..RHD NO.5 |
2 | ||
| 83134-50290 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50330 |
UCF10 NO.3 |
2 | ||
| 83134-50230 |
UCF10..RHD NO.3 |
1 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50150 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50170 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50070 |
UCF10 NO.4 |
2 | ||
| 83134-50250 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50130 |
UCF10..RHD NO.5 |
2 | ||
| 83134-50290 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50330 |
UCF10 NO.3 |
2 | ||
| 83134-50230 |
UCF10..RHD NO.3 |
1 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50150 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50170 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50070 |
UCF10 NO.4 |
2 | ||
| 83134-50250 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50130 |
UCF10..RHD NO.5 |
2 | ||
| 83134-50290 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50330 |
UCF10 NO.3 |
2 | ||
| 83134-50230 |
UCF10..RHD NO.3 |
1 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50150 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50170 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50070 |
UCF10 NO.4 |
2 | ||
| 83134-50250 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50130 |
UCF10..RHD NO.5 |
2 | ||
| 83134-50290 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50330 |
UCF10 NO.3 |
2 | ||
| 83134-50230 |
UCF10..RHD NO.3 |
1 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50150 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50170 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50070 |
UCF10 NO.4 |
2 | ||
| 83134-50250 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50130 |
UCF10..RHD NO.5 |
2 | ||
| 83134-50290 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50330 |
UCF10 NO.3 |
2 | ||
| 83134-50230 |
UCF10..RHD NO.3 |
1 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50150 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50170 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50070 |
UCF10 NO.4 |
2 | ||
| 83134-50250 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50130 |
UCF10..RHD NO.5 |
2 | ||
| 83134-50290 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50330 |
UCF10 NO.3 |
2 | ||
| 83134-50230 |
UCF10..RHD NO.3 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-50050 |
UCF10..RHD |
1 | ||
| 83138-50030 |
UCF10..RHD |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-50050 |
UCF10..RHD |
1 | ||
| 83145-50070 |
UCF10..RHD |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-50030 |
UCF10..RHD |
1 | ||
| 83242-50050 |
UCF10 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-50050 |
UCF10..RHD |
1 | ||
| 83243-50030 |
UCF10..RHD |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-50070 |
UCF10..RHD |
1 | ||
| 83244-50050 |
UCF10..RHD |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-50410 |
UCF10..RHD..EUR W(*TRC),NO.3 |
1 | ||
| 83247-50210 |
UCF10..RHD..EUR W(TEMS),NO.1 |
1 | ||
| 83134-50190 |
UCF10..V;UCF10..RHD NO.1 |
1 | ||
| 83247-50250 |
UCF10..RHD NO.2 |
1 | ||
| 83247-50530 |
UCF10..RHD..EUR W(TEMS & *TRC),NO.3 |
1 | ||
| 83247-50510 |
UCF10..RHD..EUR W(TEMS),NO.3 |
1 | ||
| 83247-5A170 |
UCF10..RHD..EUR W(*TRC),NO.2 |
1 | ||
| 83247-50790 |
UCF10..RHD NO.5 |
1 | ||
| 83247-50430 |
UCF10..RHD NO.3 |
1 | ||
| 83247-50810 |
UCF10..RHD NO.4 |
1 | ||
| 83247-50890 |
UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.1 |
1 | ||
| 83247-5A150 |
UCF10..RHD..EUR NO.2 |
1 | ||
| 83247-50410 |
UCF10..RHD..(ARL,EUR) W(*TRC),NO.3 |
1 | ||
| 83247-50830 |
UCF10..RHD..EUR NO.1 |
1 | ||
| 83247-50750 |
UCF10..RHD NO.3 |
1 | ||
| 83247-5A390 |
UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.2 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-50410 |
UCF10..RHD..EUR W(*TRC),NO.3 |
1 | ||
| 83247-50210 |
UCF10..RHD..EUR W(TEMS),NO.1 |
1 | ||
| 83134-50190 |
UCF10..V;UCF10..RHD NO.1 |
1 | ||
| 83247-50250 |
UCF10..RHD NO.2 |
1 | ||
| 83247-50530 |
UCF10..RHD..EUR W(TEMS & *TRC),NO.3 |
1 | ||
| 83247-50510 |
UCF10..RHD..EUR W(TEMS),NO.3 |
1 | ||
| 83247-5A170 |
UCF10..RHD..EUR W(*TRC),NO.2 |
1 | ||
| 83247-50790 |
UCF10..RHD NO.5 |
1 | ||
| 83247-50430 |
UCF10..RHD NO.3 |
1 | ||
| 83247-50810 |
UCF10..RHD NO.4 |
1 | ||
| 83247-50890 |
UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.1 |
1 | ||
| 83247-5A150 |
UCF10..RHD..EUR NO.2 |
1 | ||
| 83247-50410 |
UCF10..RHD..(ARL,EUR) W(*TRC),NO.3 |
1 | ||
| 83247-50830 |
UCF10..RHD..EUR NO.1 |
1 | ||
| 83247-50750 |
UCF10..RHD NO.3 |
1 | ||
| 83247-5A390 |
UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.2 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-50410 |
UCF10..RHD..EUR W(*TRC),NO.3 |
1 | ||
| 83247-50210 |
UCF10..RHD..EUR W(TEMS),NO.1 |
1 | ||
| 83134-50190 |
UCF10..V;UCF10..RHD NO.1 |
1 | ||
| 83247-50250 |
UCF10..RHD NO.2 |
1 | ||
| 83247-50530 |
UCF10..RHD..EUR W(TEMS & *TRC),NO.3 |
1 | ||
| 83247-50510 |
UCF10..RHD..EUR W(TEMS),NO.3 |
1 | ||
| 83247-5A170 |
UCF10..RHD..EUR W(*TRC),NO.2 |
1 | ||
| 83247-50790 |
UCF10..RHD NO.5 |
1 | ||
| 83247-50430 |
UCF10..RHD NO.3 |
1 | ||
| 83247-50810 |
UCF10..RHD NO.4 |
1 | ||
| 83247-50890 |
UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.1 |
1 | ||
| 83247-5A150 |
UCF10..RHD..EUR NO.2 |
1 | ||
| 83247-50410 |
UCF10..RHD..(ARL,EUR) W(*TRC),NO.3 |
1 | ||
| 83247-50830 |
UCF10..RHD..EUR NO.1 |
1 | ||
| 83247-50750 |
UCF10..RHD NO.3 |
1 | ||
| 83247-5A390 |
UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.2 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-50410 |
UCF10..RHD..EUR W(*TRC),NO.3 |
1 | ||
| 83247-50210 |
UCF10..RHD..EUR W(TEMS),NO.1 |
1 | ||
| 83134-50190 |
UCF10..V;UCF10..RHD NO.1 |
1 | ||
| 83247-50250 |
UCF10..RHD NO.2 |
1 | ||
| 83247-50530 |
UCF10..RHD..EUR W(TEMS & *TRC),NO.3 |
1 | ||
| 83247-50510 |
UCF10..RHD..EUR W(TEMS),NO.3 |
1 | ||
| 83247-5A170 |
UCF10..RHD..EUR W(*TRC),NO.2 |
1 | ||
| 83247-50790 |
UCF10..RHD NO.5 |
1 | ||
| 83247-50430 |
UCF10..RHD NO.3 |
1 | ||
| 83247-50810 |
UCF10..RHD NO.4 |
1 | ||
| 83247-50890 |
UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.1 |
1 | ||
| 83247-5A150 |
UCF10..RHD..EUR NO.2 |
1 | ||
| 83247-50410 |
UCF10..RHD..(ARL,EUR) W(*TRC),NO.3 |
1 | ||
| 83247-50830 |
UCF10..RHD..EUR NO.1 |
1 | ||
| 83247-50750 |
UCF10..RHD NO.3 |
1 | ||
| 83247-5A390 |
UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.2 |
1 | ||
| Common parts | ||||
| 90099-00232 | ||||
| 90099-00909 | ||||
| 90099-00926 | ||||
| 90099-00929 | ||||
| 90099-00936 | ||||
| 93567-55016 | ||||
ILLUST NO. 3 OF 3(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90464-00065 | ||||
ILLUST NO. 1 OF 3(9208- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-30070 |
UCF10..RHD..EUR 14V 2.0W,W/O SOCKET |
10 | ||
| 83109-30070 |
UCF10..V;UCF10..RHD 14V 2.0W,W/O SOCKET |
6 | ||
| 83109-30070 |
UCF10..RHD..(ARL,EUR) 14V 2.0W,W/O SOCKET |
7 | ||
| 83109-30070 |
UCF10..RHD..EUR 14V 2.0W,W/O SOCKET |
14 | ||
| 83109-30070 |
UCF10..RHD..EUR 14V 2.0W,W/O SOCKET |
11 | ||
| 83109-30070 |
UCF10..RHD..EUR 14V 2.0W,W/O SOCKET |
12 | ||
| 83109-30070 |
UCF10..RHD..EUR 14V 2.0W,W/O SOCKET |
7 | ||
| 83119-50050 |
UCF10 14V 3.0W,LONG LIFE |
10 | ||
| 90981-11018 |
UCF10 12V 1.2W W/O SOCKET |
3 | ||
| 83109-30070 |
UCF10 14V 2.0W,W/O SOCKET |
3 | ||
| 90981-11018 |
UCF10..RHD..EUR 12V 1.2W W/O SOCKET |
14 | ||
| 90981-11018 |
UCF10..RHD..EUR 12V 1.2W W/O SOCKET |
12 | ||
| 83109-30070 |
UCF10..RHD..EUR 14V 2.0W,W/O SOCKET |
13 | ||
| 83119-32010 |
UCF10 14V 3.0W |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
UCF10..RHD..EUR 14V 2.0W |
11 | ||
| 83101-14040 |
UCF10..RHD..EUR 14V 2.0W |
7 | ||
| 83101-32020 |
UCF10 14V 3.0W |
10 | ||
| 83101-14040 |
UCF10 12V 1.4W |
3 | ||
| 83101-14040 |
UCF10..V;UCF10..RHD 14V 2.0W |
6 | ||
| 83101-30050 |
UCF10..RHD..EUR 14V 2.0W |
14 | ||
| 83101-14040 |
UCF10..RHD..(ARL,EUR) 14V 2.0W |
7 | ||
| 83101-30050 |
UCF10..RHD..EUR 14V 2.0W |
13 | ||
| 83101-14040 |
UCF10..RHD..EUR 14V 2.0W |
10 | ||
| 83101-30050 |
UCF10..RHD..EUR 14V 2.0W |
12 | ||
| 83101-14040 |
UCF10..RHD..EUR 12V 1.4W |
12 | ||
| 83101-32020 |
UCF10 14V 3.0W |
4 | ||
| 83101-14040 |
UCF10..RHD..EUR 12V 1.4W |
14 | ||
| 83101-30050 |
UCF10 14V 2.0W |
3 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-50070 |
UCF10..RHD..EUR |
1 | ||
| 83110-50250 |
UCF10..RHD..EUR |
1 | ||
| 83110-50340 |
UCF10..RHD..EUR SOUTH AFRICA SPEC |
1 | ||
| 83119A - TUBE,CATHODE | ||||
| 83119-50090 |
UCF10 |
2 | ||
| 83119-50010 |
UCF10 |
2 | ||
| 83119A - TUBE,CATHODE | ||||
| 83119-50090 |
UCF10 |
2 | ||
| 83119-50010 |
UCF10 |
2 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-50270 |
UCF10..RHD..EUR |
1 | ||
| 83131-50430 |
UCF10..RHD..EUR W(TEMS) |
1 | ||
| 83131-50670 |
UCF10..RHD..EUR W(*TRC) |
1 | ||
| 83131-50810 |
UCF10..RHD..EUR SOUTH AFRICA SPEC |
1 | ||
| 83131-50650 |
UCF10..RHD..EUR |
1 | ||
| 83131-50290 |
UCF10..RHD..EUR W(*TRC) |
1 | ||
| 83131-50450 |
UCF10..RHD..EUR W(TEMS & *TRC) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-50170 |
UCF10..RHD..EUR SOUTH AFRICA SPEC |
1 | ||
| 83132-50070 |
UCF10..RHD..EUR W(TEMS) |
1 | ||
| 83132-50090 |
UCF10..RHD |
1 | ||
| 83132-50250 |
UCF10..RHD..EUR |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-50070 |
UCF10..RHD |
1 | ||
| 83133-50090 |
UCF10..RHD |
1 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50150 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50170 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50070 |
UCF10 NO.4 |
2 | ||
| 83134-50250 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50130 |
UCF10..RHD NO.5 |
2 | ||
| 83134-50290 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50330 |
UCF10 NO.3 |
2 | ||
| 83134-50230 |
UCF10..RHD NO.3 |
1 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50150 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50170 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50070 |
UCF10 NO.4 |
2 | ||
| 83134-50250 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50130 |
UCF10..RHD NO.5 |
2 | ||
| 83134-50290 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50330 |
UCF10 NO.3 |
2 | ||
| 83134-50230 |
UCF10..RHD NO.3 |
1 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50150 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50170 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50070 |
UCF10 NO.4 |
2 | ||
| 83134-50250 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50130 |
UCF10..RHD NO.5 |
2 | ||
| 83134-50290 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50330 |
UCF10 NO.3 |
2 | ||
| 83134-50230 |
UCF10..RHD NO.3 |
1 | ||
| 83134C - COVER, SPEEDOMETER | ||||
| 83134-50150 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50170 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50070 |
UCF10 NO.4 |
2 | ||
| 83134-50250 |
UCF10..RHD NO.1 |
1 | ||
| 83134-50130 |
UCF10..RHD NO.5 |
2 | ||
| 83134-50290 |
UCF10..RHD NO.2 |
1 | ||
| 83134-50330 |
UCF10 NO.3 |
2 | ||
| 83134-50230 |
UCF10..RHD NO.3 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-50050 |
UCF10..RHD |
1 | ||
| 83138-50030 |
UCF10..RHD |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-50050 |
UCF10..RHD |
1 | ||
| 83145-50070 |
UCF10..RHD |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-50090 |
UCF10..RHD |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-50030 |
UCF10..RHD |
1 | ||
| 83242-50050 |
UCF10 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-50050 |
UCF10..RHD |
1 | ||
| 83243-50030 |
UCF10..RHD |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-50070 |
UCF10..RHD |
1 | ||
| 83244-50050 |
UCF10..RHD |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-50410 |
UCF10..RHD..EUR W(*TRC),NO.3 |
1 | ||
| 83247-50210 |
UCF10..RHD..EUR W(TEMS),NO.1 |
1 | ||
| 83134-50190 |
UCF10..V;UCF10..RHD NO.1 |
1 | ||
| 83247-50250 |
UCF10..RHD NO.2 |
1 | ||
| 83247-50530 |
UCF10..RHD..EUR W(TEMS & *TRC),NO.3 |
1 | ||
| 83247-50510 |
UCF10..RHD..EUR W(TEMS),NO.3 |
1 | ||
| 83247-5A170 |
UCF10..RHD..EUR W(*TRC),NO.2 |
1 | ||
| 83247-50790 |
UCF10..RHD NO.5 |
1 | ||
| 83247-50430 |
UCF10..RHD NO.3 |
1 | ||
| 83247-50810 |
UCF10..RHD NO.4 |
1 | ||
| 83247-50890 |
UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.1 |
1 | ||
| 83247-5A150 |
UCF10..RHD..EUR NO.2 |
1 | ||
| 83247-50410 |
UCF10..RHD..(ARL,EUR) W(*TRC),NO.3 |
1 | ||
| 83247-50830 |
UCF10..RHD..EUR NO.1 |
1 | ||
| 83247-50750 |
UCF10..RHD NO.3 |
1 | ||
| 83247-5A390 |
UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.2 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-50410 |
UCF10..RHD..EUR W(*TRC),NO.3 |
1 | ||
| 83247-50210 |
UCF10..RHD..EUR W(TEMS),NO.1 |
1 | ||
| 83134-50190 |
UCF10..V;UCF10..RHD NO.1 |
1 | ||
| 83247-50250 |
UCF10..RHD NO.2 |
1 | ||
| 83247-50530 |
UCF10..RHD..EUR W(TEMS & *TRC),NO.3 |
1 | ||
| 83247-50510 |
UCF10..RHD..EUR W(TEMS),NO.3 |
1 | ||
| 83247-5A170 |
UCF10..RHD..EUR W(*TRC),NO.2 |
1 | ||
| 83247-50790 |
UCF10..RHD NO.5 |
1 | ||
| 83247-50430 |
UCF10..RHD NO.3 |
1 | ||
| 83247-50810 |
UCF10..RHD NO.4 |
1 | ||
| 83247-50890 |
UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.1 |
1 | ||
| 83247-5A150 |
UCF10..RHD..EUR NO.2 |
1 | ||
| 83247-50410 |
UCF10..RHD..(ARL,EUR) W(*TRC),NO.3 |
1 | ||
| 83247-50830 |
UCF10..RHD..EUR NO.1 |
1 | ||
| 83247-50750 |
UCF10..RHD NO.3 |
1 | ||
| 83247-5A390 |
UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.2 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-50410 |
UCF10..RHD..EUR W(*TRC),NO.3 |
1 | ||
| 83247-50210 |
UCF10..RHD..EUR W(TEMS),NO.1 |
1 | ||
| 83134-50190 |
UCF10..V;UCF10..RHD NO.1 |
1 | ||
| 83247-50250 |
UCF10..RHD NO.2 |
1 | ||
| 83247-50530 |
UCF10..RHD..EUR W(TEMS & *TRC),NO.3 |
1 | ||
| 83247-50510 |
UCF10..RHD..EUR W(TEMS),NO.3 |
1 | ||
| 83247-5A170 |
UCF10..RHD..EUR W(*TRC),NO.2 |
1 | ||
| 83247-50790 |
UCF10..RHD NO.5 |
1 | ||
| 83247-50430 |
UCF10..RHD NO.3 |
1 | ||
| 83247-50810 |
UCF10..RHD NO.4 |
1 | ||
| 83247-50890 |
UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.1 |
1 | ||
| 83247-5A150 |
UCF10..RHD..EUR NO.2 |
1 | ||
| 83247-50410 |
UCF10..RHD..(ARL,EUR) W(*TRC),NO.3 |
1 | ||
| 83247-50830 |
UCF10..RHD..EUR NO.1 |
1 | ||
| 83247-50750 |
UCF10..RHD NO.3 |
1 | ||
| 83247-5A390 |
UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.2 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-50410 |
UCF10..RHD..EUR W(*TRC),NO.3 |
1 | ||
| 83247-50210 |
UCF10..RHD..EUR W(TEMS),NO.1 |
1 | ||
| 83134-50190 |
UCF10..V;UCF10..RHD NO.1 |
1 | ||
| 83247-50250 |
UCF10..RHD NO.2 |
1 | ||
| 83247-50530 |
UCF10..RHD..EUR W(TEMS & *TRC),NO.3 |
1 | ||
| 83247-50510 |
UCF10..RHD..EUR W(TEMS),NO.3 |
1 | ||
| 83247-5A170 |
UCF10..RHD..EUR W(*TRC),NO.2 |
1 | ||
| 83247-50790 |
UCF10..RHD NO.5 |
1 | ||
| 83247-50430 |
UCF10..RHD NO.3 |
1 | ||
| 83247-50810 |
UCF10..RHD NO.4 |
1 | ||
| 83247-50890 |
UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.1 |
1 | ||
| 83247-5A150 |
UCF10..RHD..EUR NO.2 |
1 | ||
| 83247-50410 |
UCF10..RHD..(ARL,EUR) W(*TRC),NO.3 |
1 | ||
| 83247-50830 |
UCF10..RHD..EUR NO.1 |
1 | ||
| 83247-50750 |
UCF10..RHD NO.3 |
1 | ||
| 83247-5A390 |
UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.2 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-50410 |
UCF10..RHD..EUR W(*TRC),NO.3 |
1 | ||
| 83247-50210 |
UCF10..RHD..EUR W(TEMS),NO.1 |
1 | ||
| 83134-50190 |
UCF10..V;UCF10..RHD NO.1 |
1 | ||
| 83247-50250 |
UCF10..RHD NO.2 |
1 | ||
| 83247-50530 |
UCF10..RHD..EUR W(TEMS & *TRC),NO.3 |
1 | ||
| 83247-50510 |
UCF10..RHD..EUR W(TEMS),NO.3 |
1 | ||
| 83247-5A170 |
UCF10..RHD..EUR W(*TRC),NO.2 |
1 | ||
| 83247-50790 |
UCF10..RHD NO.5 |
1 | ||
| 83247-50430 |
UCF10..RHD NO.3 |
1 | ||
| 83247-50810 |
UCF10..RHD NO.4 |
1 | ||
| 83247-50890 |
UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.1 |
1 | ||
| 83247-5A150 |
UCF10..RHD..EUR NO.2 |
1 | ||
| 83247-50410 |
UCF10..RHD..(ARL,EUR) W(*TRC),NO.3 |
1 | ||
| 83247-50830 |
UCF10..RHD..EUR NO.1 |
1 | ||
| 83247-50750 |
UCF10..RHD NO.3 |
1 | ||
| 83247-5A390 |
UCF10..RHD..EUR SOUTH AFRICA SPEC,NO.2 |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90099-00228 | ||||
| 90099-00929 | ||||
| 93540-13014 | ||||
| 93567-55016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
