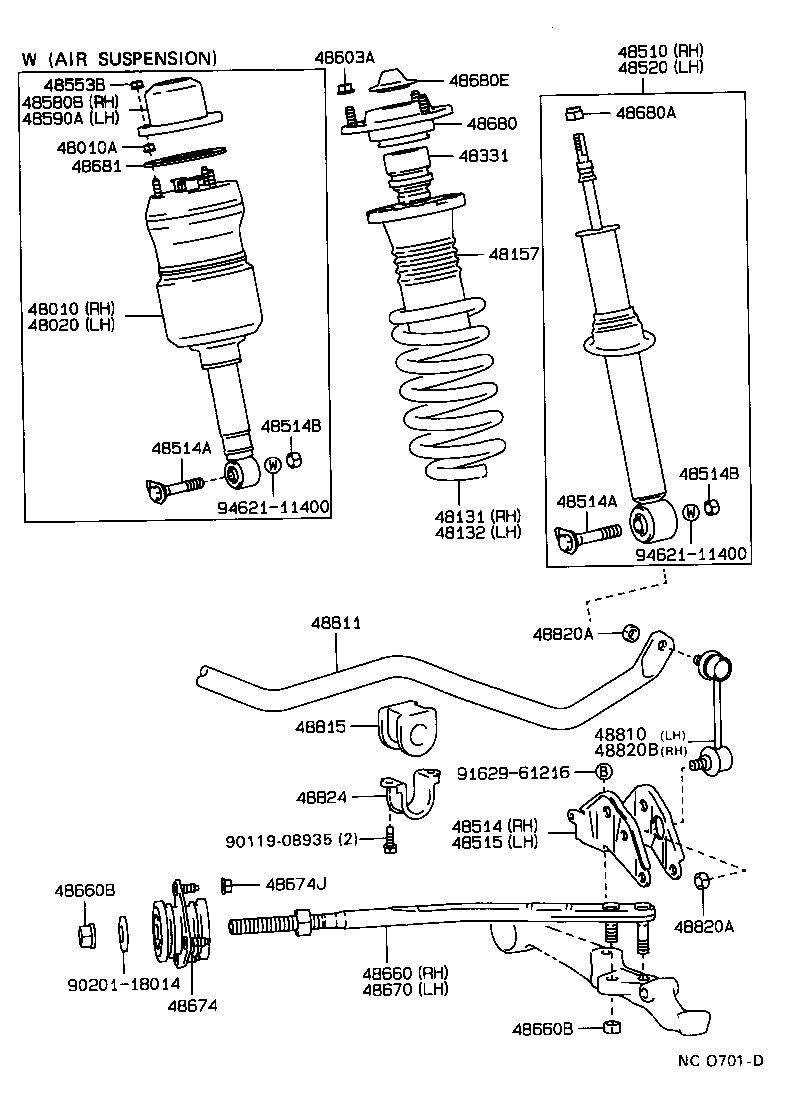

Toyota Lexus ls400 UCF10 FRONT SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
48010 - CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER
48010-50040	UCF10..EUR	12/1989 - 08/1992	1
48010A - NUT(FOR FRONT PNEUMATIC CYLINDER)
90179-10137	UCF10..EUR	12/1989 - 08/1992	6
48020 - CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER
48010-50040	UCF10..EUR	12/1989 - 08/1992	1
48131 - SPRING, FRONT COIL, RH
48131-50040	UCF10	03/1990 - 08/1992	1
48131-50010	UCF10	12/1989 - 03/1990	1
48131-50020	UCF10..RHD..EUR IRELAND SPEC	10/1990 - 08/1992	1
48131-50050	UCF10	08/1992 - 10/1994	1
48131-50060	UCF10..RHD..EUR IRELAND SPEC	08/1992 - 10/1994	1
48132 - SPRING, FRONT COIL, LH
48131-50010	UCF10	12/1989 - 03/1990	1
48131-50040	UCF10	03/1990 - 08/1992	1
48131-50060	UCF10..RHD..EUR IRELAND SPEC	08/1992 - 10/1994	1
48131-50050	UCF10	08/1992 - 10/1994	1
48131-50020	UCF10..RHD..EUR IRELAND SPEC	10/1990 - 08/1992	1
48157 - INSULATOR, FRONT COIL SPRING, UPPER
48157-50010	UCF10	12/1989 - 10/1994	2
48331 - BUMPER, FRONT SPRING, NO.1
48331-50010	UCF10	12/1989 - 08/1992	2
48331-50030	UCF10	08/1992 - 10/1994	2
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-59065	UCF10..RHD..EUR	08/1992 - 01/1993	1
48510-59055	UCF10..RHD..EUR IRELAND SPEC	08/1992 - 01/1993	1
48510-59045	UCF10..RHD..EUR IRELAND SPEC	10/1990 - 08/1992	1
48510-59035	UCF10	12/1989 - 08/1992	1
48510-59066	UCF10..RHD..EUR	01/1993 - 08/1993	1
48510-59066	UCF10..RHD	08/1993 - 10/1994	1
48510-59056	UCF10..RHD..EUR IRELAND SPEC	01/1993 - 10/1994	1
48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH
48514-50010	UCF10	12/1989 - 05/1994	1
48514-50011	UCF10	05/1994 - 10/1994	1
48514A - BOLT(FOR FRONT SHOCK ABSORBER BRACKET LOWER)
90105-14034	UCF10	12/1989 - 01/1993	2
90105-14087	UCF10	01/1993 - 10/1994	2
48514A - BOLT(FOR FRONT SHOCK ABSORBER BRACKET LOWER)
90105-14034	UCF10	12/1989 - 01/1993	2
90105-14087	UCF10	01/1993 - 10/1994	2
48514B - NUT(FOR FRONT SHOCK ABSORBER BRACKET LOWER)
90179-14045	UCF10	01/1993 - 10/1994	2
90170-14006	UCF10	12/1989 - 01/1993	2
48514B - NUT(FOR FRONT SHOCK ABSORBER BRACKET LOWER)
90179-14045	UCF10	01/1993 - 10/1994	2
90170-14006	UCF10	12/1989 - 01/1993	2
48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH
48515-50010	UCF10	12/1989 - 05/1994	1
48515-50011	UCF10	05/1994 - 10/1994	1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48510-59055	UCF10..RHD..EUR IRELAND SPEC	08/1992 - 01/1993	1
48510-59035	UCF10	12/1989 - 08/1992	1
48510-59045	UCF10..RHD..EUR IRELAND SPEC	10/1990 - 08/1992	1
48510-59066	UCF10..RHD..EUR	01/1993 - 08/1993	1
48510-59066	UCF10..RHD	08/1993 - 10/1994	1
48510-59065	UCF10..RHD..EUR	08/1992 - 01/1993	1
48510-59056	UCF10..RHD..EUR IRELAND SPEC	01/1993 - 10/1994	1
48553B - NUT(FOR FRONT SHOCK ABSORBER CAP)
90179-10136	UCF10..EUR	12/1989 - 08/1992	6
48580B - CAP ASSY, FRONT SHOCK ABSORBER, RH
48580-50010	UCF10..EUR	12/1989 - 04/1992	1
48580-50030	UCF10..EUR	04/1992 - 08/1992	1
48590A - CAP ASSY, FRONT SHOCK ABSORBER, LH
48580-50030	UCF10..EUR	04/1992 - 08/1992	1
48590-50010	UCF10..EUR	12/1989 - 04/1992	1
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90179-10174	UCF10	01/1993 - 10/1994	6
90179-10137	UCF10	12/1989 - 01/1993	6
48660 - BAR ASSY, STRUT, RH
48660-50030	UCF10	08/1992 - 10/1994	1
48660-50010	UCF10	12/1989 - 08/1992	1
48660B - NUT(FOR STRUT BAR)
90179-18014	UCF10 CUSHION SIDE	12/1989 - 10/1994	2
90179-14025	UCF10 LOWER ARM SIDE	12/1989 - 10/1994	4
48660B - NUT(FOR STRUT BAR)
90179-18014	UCF10 CUSHION SIDE	12/1989 - 10/1994	2
90179-14025	UCF10 LOWER ARM SIDE	12/1989 - 10/1994	4
48670 - BAR ASSY, STRUT, LH
48670-50030	UCF10	08/1992 - 10/1994	1
48670-50010	UCF10	12/1989 - 08/1992	1
48674 - CUSHION, STRUT BAR
48674-50020	UCF10	12/1989 - 08/1992	2
48674-50030	UCF10..RHD..EUR	08/1992 - 10/1994	2
48674J - NUT(FOR STRUT BAR CUSHION)
90179-10145	UCF10	12/1989 - 10/1994	6
48680 - SUPPORT ASSY, FRONT SUSPENSION
48680-50040	UCF10	08/1992 - 11/1992	2
48680-50060	UCF10	11/1992 - 10/1994	2
48680-50010	UCF10	12/1989 - 08/1992	2
48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
94187-11200	UCF10	12/1989 - 10/1994	2
48680E - PLUG, HOLE(FOR FRONT SUSPENSION SUPPORT)
90950-01659	UCF10	12/1989 - 10/1994	2
48681 - SUPPORT, FRONT SUSPENSION, NO.1
48681-24040	UCF10..EUR	12/1989 - 08/1992	2
48810 - LINK ASSY, FRONT STABILIZER, LH
48810-50010	UCF10	12/1989 - 10/1994	1
48811 - BAR, STABILIZER, FRONT
48811-50020	UCF10	12/1989 - 08/1992	1
48811-50010	UCF10..EUR W(AIR SUSPENSION)	12/1989 - 08/1992	1
48811-50040	UCF10	08/1992 - 10/1994	1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-50010	UCF10..EUR W(AIR SUSPENSION)	12/1989 - 06/1991	2
48815-50011	UCF10..EUR W(AIR SUSPENSION)	06/1991 - 08/1992	2
48815-50041	UCF10	06/1991 - 10/1994	2
48815-50040	UCF10	12/1989 - 06/1991	2
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-12047	UCF10	12/1989 - 10/1994	4
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-12047	UCF10	12/1989 - 10/1994	4
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-50010	UCF10	12/1989 - 10/1994	1
48824 - BRACKET, STABILIZER, FRONT
48824-50020	UCF10	12/1989 - 10/1994	2
Common parts
90119-08935
90201-18014
91629-61216
94621-11400

UCF10R-AEPGKW (1989)

(8912- )
